Metz Connect PTi-F-C12 230 V AC 1105020870 Signal converter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Input signal (current) (max.)
20 mA
Input signal (voltage) (max.)
10 V
Type
PTi-F-C12 230 V AC
Dim
(L x W x H) 60 x 35 x 69.30 mm
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
14-day return policy included
Technical specifications
- Type
PTi-F-C12 230 V AC
- Product type
Signal converter
- Input signal (current) (max.)
20 mA
- Input signal (voltage) (max.)
10 V
- Dim
(L x W x H) 60 x 35 x 69.30 mm
- Output (voltage)
0 - 10 V/DC
- Output (current)
0 - 20 mA
- Operating voltage
230, 230 V AC, V DC (max)
- Max. operating voltage
230 V AC
230 V DC
- Load
500 Ω
- Input signal (voltage)
0 - 10 V/DC
- Input signal (current)
0 - 20 mA
- Content
1 pc(s)
- Width
35 mm
- Height
69.30 mm
- Length
60 mm
- Current consumption
AC: 200 mA; DC: 110 mA
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
230 V AC
230 V DC
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3164624 Metz Connect PTi-F-C12 230 V AC 1105020870 Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164624 Metz Connect PTi-F-C12 230 V AC 1105020870 Signal converter 1 pc(s)
Description

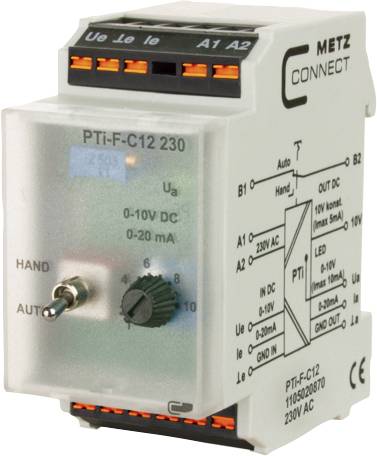

The potential isolator / signal converter is used to separate analog signals within a range from 0 to 10 0 V DC and 0 to 20 mA DC, or for signal conversion from 0 to 10 V DC to 0 mA DC, or 0 to 20 mA DC to 20 to 10 V. DC The input or Output signals as well as the supply voltage are isolated against each other. An input signal 0 to 10 V or 0 to 20 mA can be connected to the device. Potential separation function: With PT-C12 230, the input signal 0 to 10 V is proportionally matched to the output signal 0 to 10 V. The PTI-C12 230 balances the input signal 0 to 20 mA proportionally to the output signal 0 to 20 mA. Signal conversion function with potential separation: With a signal conversion from 0 to 10 V on 0 to 20 mA or 0 to 20 mA on 0 to 10 V, the converted output signal can be adjusted by means of integrated spindle trimmer. In addition, a manual emergency operating level is integrated with MANUAL auto switch with feedback contact. The output signal 0 to 10 V or 0 to 20 mA can be set MANUALLY via the potentiometer on the front. The 10 V clamp provides a constant output voltage of max. 10 V DC, 5 mA. The integrated LED displays the brightness depending on the level of the output signal Ua. Connection with spring clamps (Push-In).
This text is machine translated.
This text is machine translated.
Features
- Interface technology
- Interface component
- Potential separation
- Signal converter
- Current balancing
