Monacor PA-6010Z PA amplifier 600 W 5-channel 10-zone
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,535.00 / piece)
€ 1,535.00
incl. VAT
Only 10 Piece(s) available
Highlights & Details
10-zone ELA-mono mixer amplifier
- 1 x 600 W.
- 10 zones, individually adjustable
- 3 microphone/line inputs via combination sockets
- 2 stereo line inputs via phono sockets
- Gong, continuous and howling tone, auto mute, 2-tone or 4-tone gong can be set
- This text is machine translated.
Technical specifications
- Frequency range 55 - 16000 Hz
- Sound control Depth: ±10 dB/100 Hz
- Sound control Treble: ±10 dB/10 kHz
- Mains voltage 230 V.
- Height units HE 3

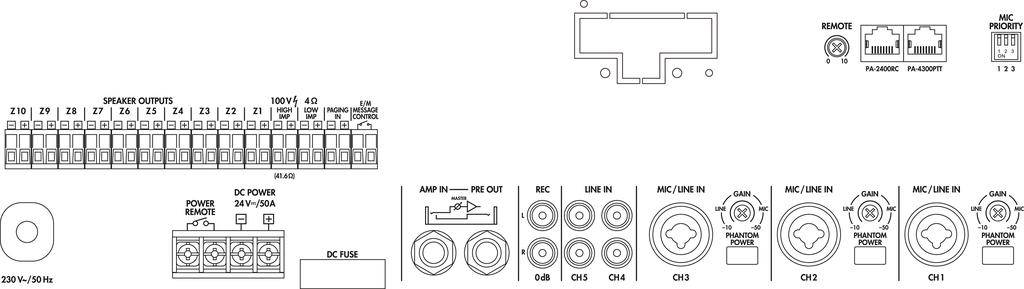

- Connections: 3 x 6.3-mm/XLR-Combo (Mic/Line), 2 x Cinch L/R (Line), 1 x 6.3-mm jack (pre-amplifier input), 1 x RJ45 (PTT Mic), 1 x RJ45 (command Mic), screw connections (loudspeaker), 1 x cinch L/R (record output)
- Product type
PA amplifier
- RMS power
600 W
- No. of zones
10-zone
- Dim
(L x W x H) 35.2 x 48.2 x 13.3 cm
- Weight
22 kg
- No. of channels
5-channel
- Output type (PA amplifier)
100 V
- Width
48.2 cm
- Height
13.3 cm
- Length
35.2 cm
- Interfaces
RCA in
RCA out
6.3 mm jack in
Mic input combo jack (XLR, 6.35 mm jack)
Screw terminals
LAN
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2355604 Monacor PA-6010Z PA amplifier 600 W 5-channel 10-zone
User & Safety Instructions
User & Safety Instructions 2355604 Monacor PA-6010Z PA amplifier 600 W 5-channel 10-zone
Description
Features
- Bass, treble as well as master controller, signal/clip display via LEDs, regulated fan
- Slots for various functions are available as an option
- 15 V phantom power for electret microphones
- Connection for up to 32 PA-2400RC command microphones
- Connection for up to 3 PTT microphones PA-4300PTT
- Alarm announcement with PA-1120DMT slot (available as an option)
- Power and 24 V emergency power operation
- Detachable mounting bracket
Scope of delivery
- 10-zone ELA-mono mixer amplifier
