Monacor PA-704 PA amplifier 70 W 4-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€
Only 4 Piece(s) available
Highlights & Details
PA mono mixer amplifier
- 1 x 35 W.
- 2 low-resistance microphone inputs
- 1 Aux, 1 Phono input
- Loudspeaker outputs via screw connections
- This text is machine translated.
Technical specifications
- Rated output: 35 W
- Inputs: 5 mV (Mic), 210 mV (Aux), 5 mV (Phono)
- Frequency range 100 - 18,000 Hz
- Sound control Depth: ±10 dB/150 Hz
- Sound control Treble: ±10 dB/6 kHz
- Mains voltage 230 V.
- Operating voltage (alternatively, if necessary): DC 12-24 V.
- Current (alternative if applicable): DC 2.5 A.

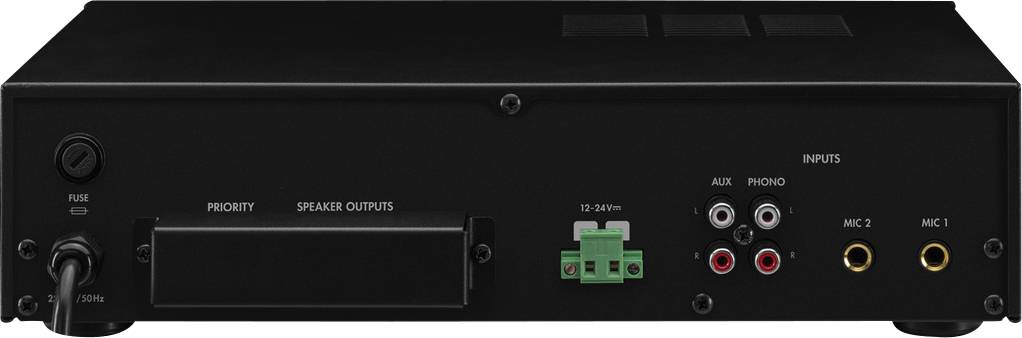

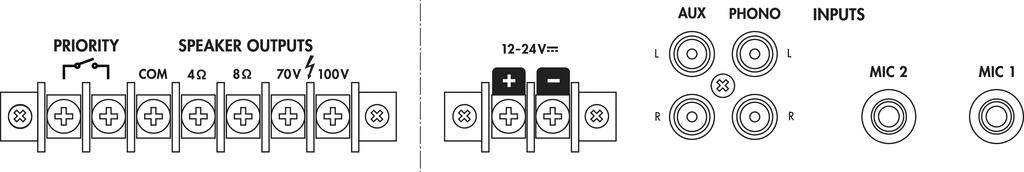

- Connections: 2 x 6.3 mm jack (Mic), 1 x RCA L/R (Aux), 1 x RCA L/R (Phono), connection terminals (Speaker)
- Dim
(L x W x H) 23 x 32 x 8.5 cm
- Weight
4.97 kg
- Height
8.5 cm
- Length
23 cm
- Width
32 cm
- No. of channels
4-channel
- Interfaces
RCA in
Mic 6.35 mm in
Phono in
Screw terminals
- Output type (PA amplifier)
100 V
- RMS power
70 W
- Product type
PA amplifier
Documents & Downloads
Datasheet
Datasheet 2355607 Monacor PA-704 PA amplifier 70 W 4-channel
User & Safety Instructions
User & Safety Instructions 2355607 Monacor PA-704 PA amplifier 70 W 4-channel
Description
Features
- Input and output level controller
- 2-way sound control for the output
- Connection for a microphone talk button to switch off the other sources For announcements
- Power and 12-24V emergency power operation
Scope of delivery
- PA mono mixer amplifier
