A black amplifier with multiple rotary knobs and displays for controlling various audio inputs and zones.

A black amplifier with multiple rotary knobs and displays for controlling various audio inputs and zones.

Rear view of an electronic audio device with multiple ports and inputs, including XLR and RCA connections.

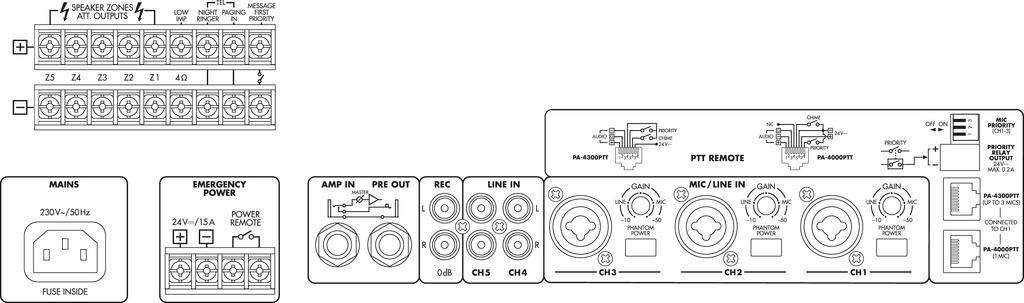

'Technical Diagram of an Audio Amplifier: Depicts Main Power Connection, Emergency Power Supply, Fuses, and Various Audio Inputs/Outputs.'

1/3

Monacor

Datasheet (PDF)

Deutsch (Deutschland)

Fast track dispatch on Fri, 11 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 721.85 / piece)

€ 721.85

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Monacor PA-1240 PA-mono mixer-amplifier

Highlights & Details

1 X 240 W RMS (PA-1240)
5 zones, individually controllable
Gong, continuous and hay tone, auto mute, 2-tone or 4-tone Gong adjustable

Technical specifications

Height units: 3
3 x 6.3 mm/XLR combo (mic/line inputs), 2 x cinch L/R (line inputs), 2 x RJ45 (PTT microphone), screw contacts (telephone system), 1 x 6.3 mm jack (pre-amplifier), 1 x 6.3 mm jack (ext. Amplifier), 1 x cinch L/R (record), screw contacts (loudspeaker)
Inputs: 2.5 mV/5 kΩ, 0.3 V/5 kΩ (Mic/Line), 0.3 V/15 kΩ (Line), 0.775 V/10 kΩ (Pre-amplifier)
Frequency range 55-16000 Hz
Sound control Bass: ±10 dB/100 Hz
Sound control for trebles: ±10 dB/10 kHz
Signal-to-noise ratio > 70 dBA (mic), > 80 dBA (line)
Distortion factor < 1 %

Dim: (L x W x H) 35.2 x 48.2 x 13.3 cm

Weight: 14 kg

Height: 13.3 cm

Length: 35.2 cm

Width: 48.2 cm

No. of channels: 1-channel

Interfaces: 3.5 mm jack
XLR in
RCA in
RCA out
Screw terminals

No. of zones: 5-zone

Output type (PA amplifier): 70 V
100 V

RMS power: 240 W

UKCA: yes

Product type: PA amplifier

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 314253 Monacor PA-1240 PA amplifier 240 W 1-channel 5-zone

User & Safety Instructions

European union

User & Safety Instructions 314253 Monacor PA-1240 PA amplifier 240 W 1-channel 5-zone

Description

5-Zone-ELA mono mixing amplifier

This text is machine translated.

Features

Bass, treble and master controller, level display by LEDs, regulated fan
Slots for different functions are optionally available
17 V phantom power for electret microphones
Connection for PA-1120RC command microphone (optional)
Connection for PTT microphone PA-4000PTT or PA-4300PTT
Automatic alarm announcement with PA-1120DM module (available optionally)
Mains and 24 V emergency power mode
Detachable mounting bracket
