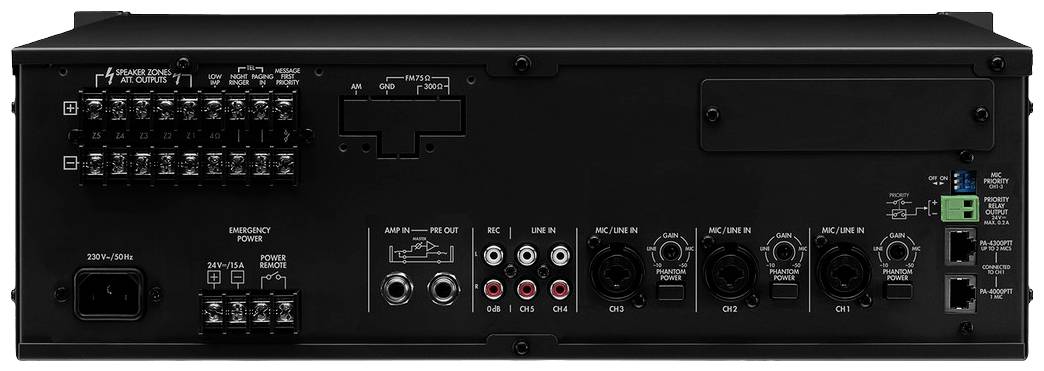

Back panel of an audio mixing desk with multiple inputs and connections for microphones, speakers, and power supply.

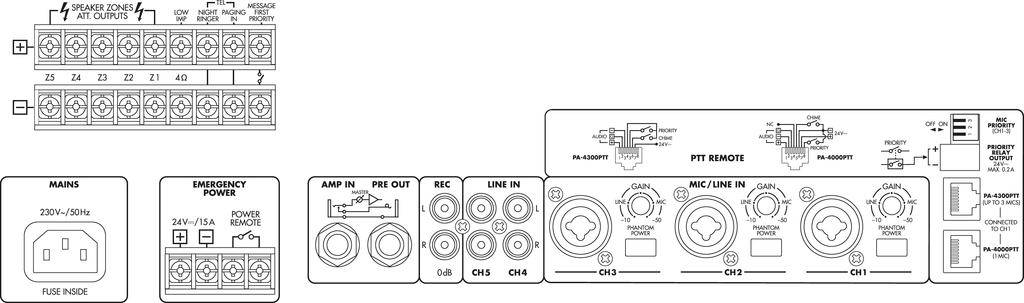

'Circuit diagram of an audio device: Input/output ports, mains and emergency power connection, audio channels for microphone and line-in, connection diagrams.'

1/3

Monacor

Datasheet (PDF)

Deutsch (Deutschland)

Dispatches on Mon, 14 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 604.20 / piece)

€ 604.20

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Monacor PA-1120ELA-AMPLIFIER

Highlights & Details

1 x 120 W RMS (PA-1120).
5 zones, individually controlled.
Gong, continuous and loud howl has many, Auto Mute, 2-tone or 4-Ton-Gong adjustable.

Technical specifications

Mic/Line 1-3: 2.5 mV/5 kΩ, 0.3 V/5 kΩ • Line 4-5: 0.3 V/15 kΩ
Before amplifier: 0.775V/10 kΩ
Speakers: 100 V/70 V
Before amplifier: 0.775V/100Ω
Record: 0.775V/3 kΩ
Frequency range: 55 - 16000 Hz
Depth: +-10 dB/100 Hz
High: +-10 dB/10 kHz
Mic:> 70 dB, "A"-evaluated
Line:> 80 dB, "A"-evaluated
Distortion factor:< 1%
Power supply 230 V/50 Hz/340 VA, 24 V DC / 15 A
Mic-Line: 3 x 6.3 mm/XLR (Combo)
Line: 2 x RCA L/R
Command Microphone: 2 x RJ-45 optional
PTT microphone: 1 x 7-pin. DIN
Telephone system: screw connections
Ext. Amplifier: 1 x 6.3 mm jack
1 x pre-amplifier: 1 x 6.3 mm jack
Speaker: screw terminals
230 V: IEC socket.
24 V DC current: screw terminals
3 HE.

Dim: (L x W x H) 35.2 x 48.2 x 13.3 cm

Weight: 13 kg

Height: 13.3 cm

Length: 35.2 cm

Width: 48.2 cm

No. of channels: 1-channel

Interfaces: 3.5 mm jack
XLR in
RCA in
RCA out
Screw terminals

No. of zones: 5-zone

Output type (PA amplifier): 70 V
100 V

RMS power: 120 W

UKCA: yes

Product type: PA amplifier

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 314248 Monacor PA-1120 PA amplifier 120 W 1-channel 5-zone

User & Safety Instructions

European union

User & Safety Instructions 314248 Monacor PA-1120 PA amplifier 120 W 1-channel 5-zone

Description

5-Zone-ELA mono mixing amplifier

This text is machine translated.

Features

Bass, Treble, as well as master controller, level display via LEDs, controlled fan
Slots for different functions are optionally available.
17-V phantom supply for electret microphones
Connection for command microphone PA-1120RC
Automatic alarm announcement with slot PA-1120DM (optionally available) Power and 24V emergency power operation
Mounting bracket can be removed.
