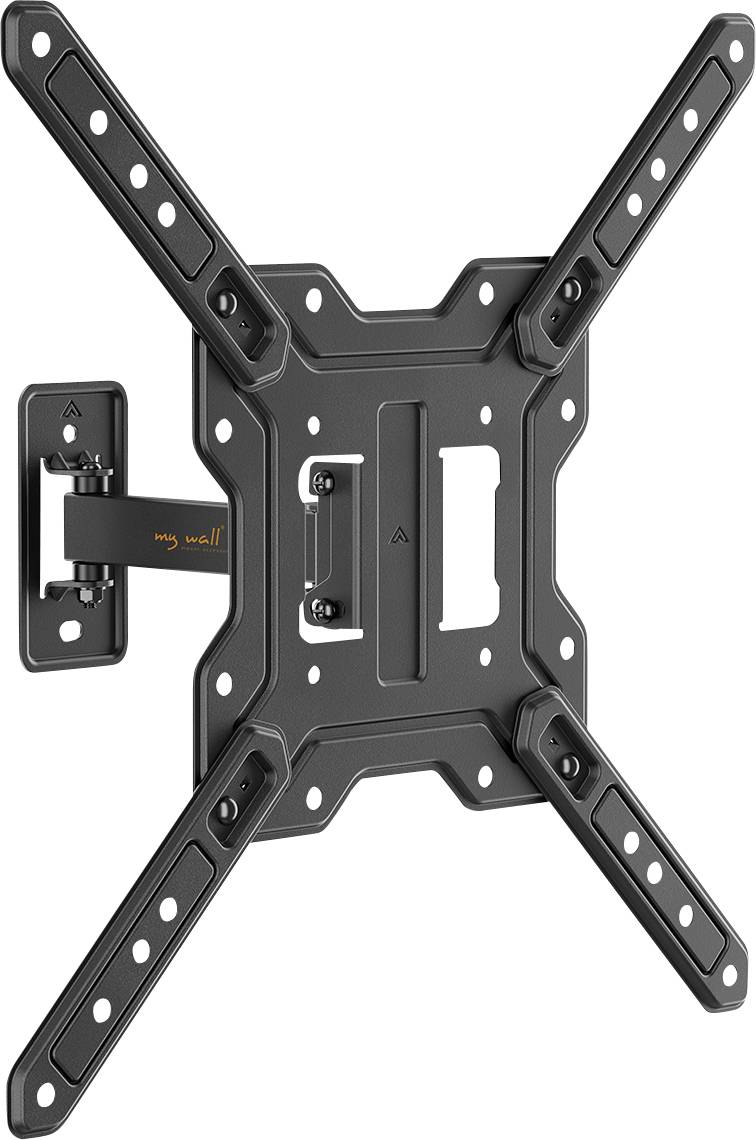

My Wall HEG5L TV wall mount
- Holder type: Swivelling, Tiltable
- Supports VESA standards up to

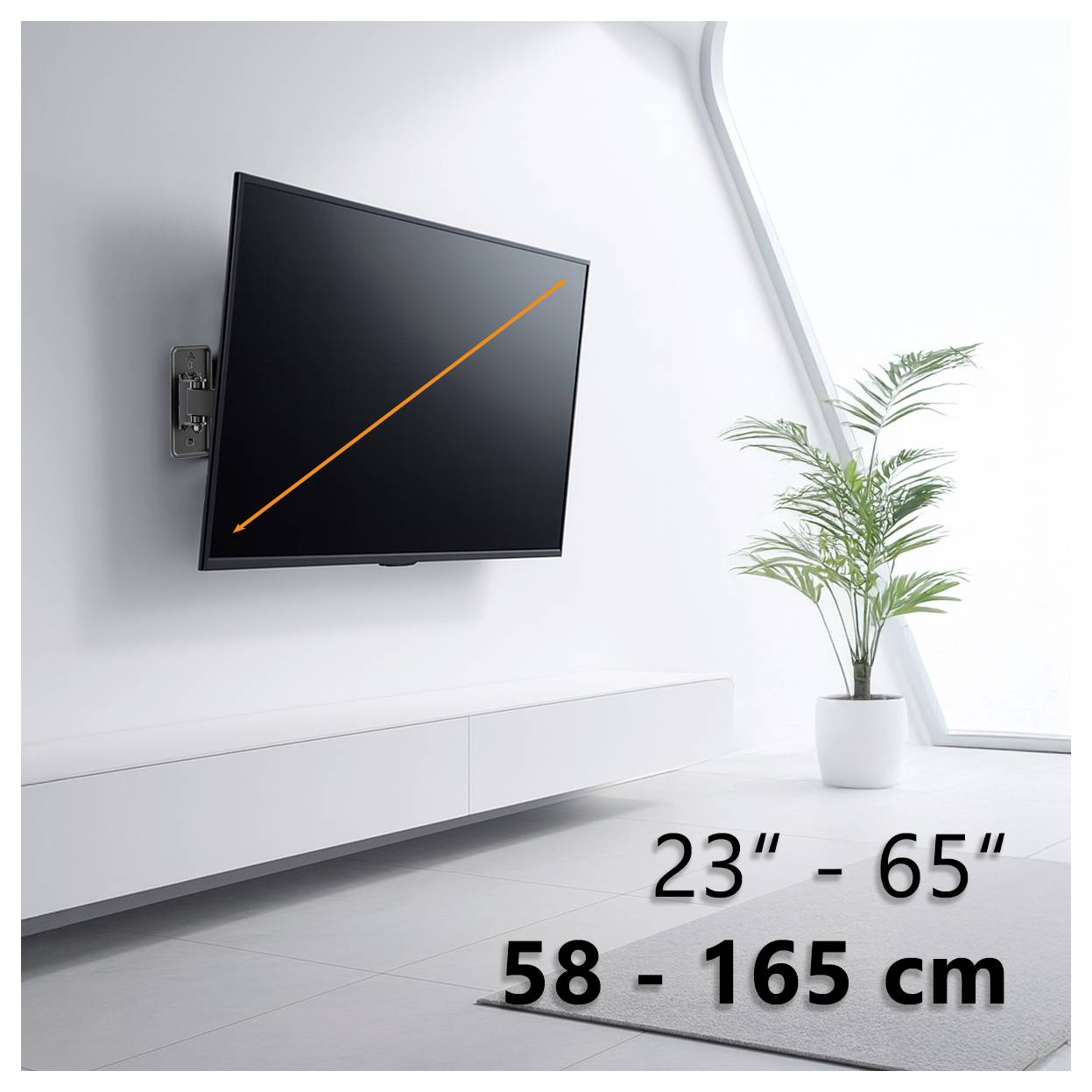

- Suitable for displays sized (range): 58,4 cm (23") - 165,1 cm (65")
- Load capacity (max.) 30 kg
Technical specifications
- Product type
TV wall mount
- Suitable for
58,4 cm (23")
165,1 cm (65")
- Suitable for
58,4 cm (23") - 165,1 cm (65")
- Holder type
Swivelling
Tiltable
- Max. load capacity
30 kg
No
100 x 100 mm
100 x 200 mm
200 x 100 mm
200 x 200 mm
200 x 300 mm
300 x 200 mm
200 x 400 mm
400 x 200 mm
300 x 300 mm
400 x 300 mm
Show more
- Tilt range (bottom)
-10°
- Tilt range (top)
5°

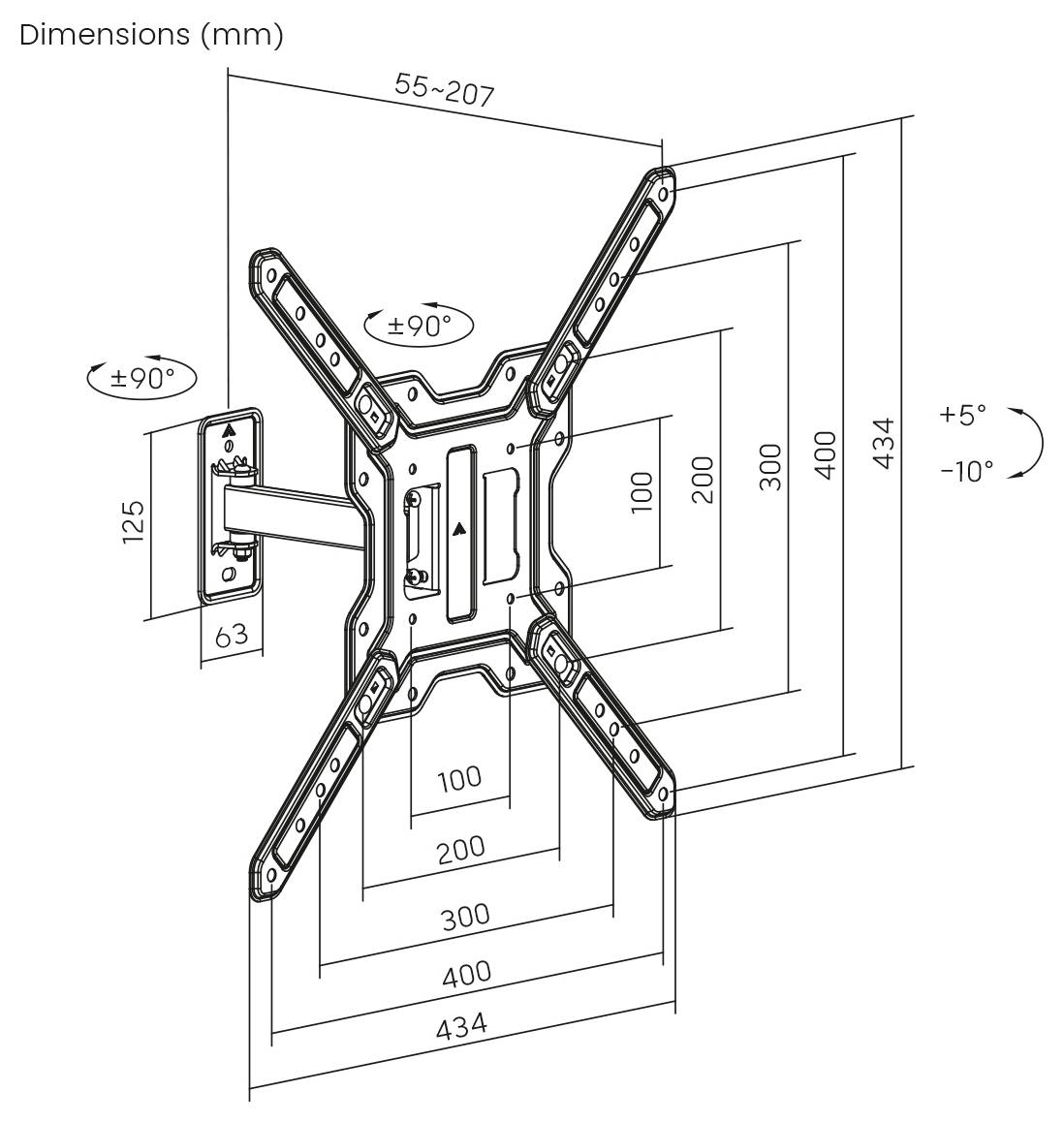

- Distance to wall (min.)
55 mm
- Distance to wall (max.)
207 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729099 My Wall HEG5L TV wall mount 58,4 cm (23") - 165,1 cm (65") Swivelling, Tiltable
Warranty Terms
Warranty Terms 3729099 My Wall HEG5L TV wall mount 58,4 cm (23") - 165,1 cm (65") Swivelling, Tiltable
Description

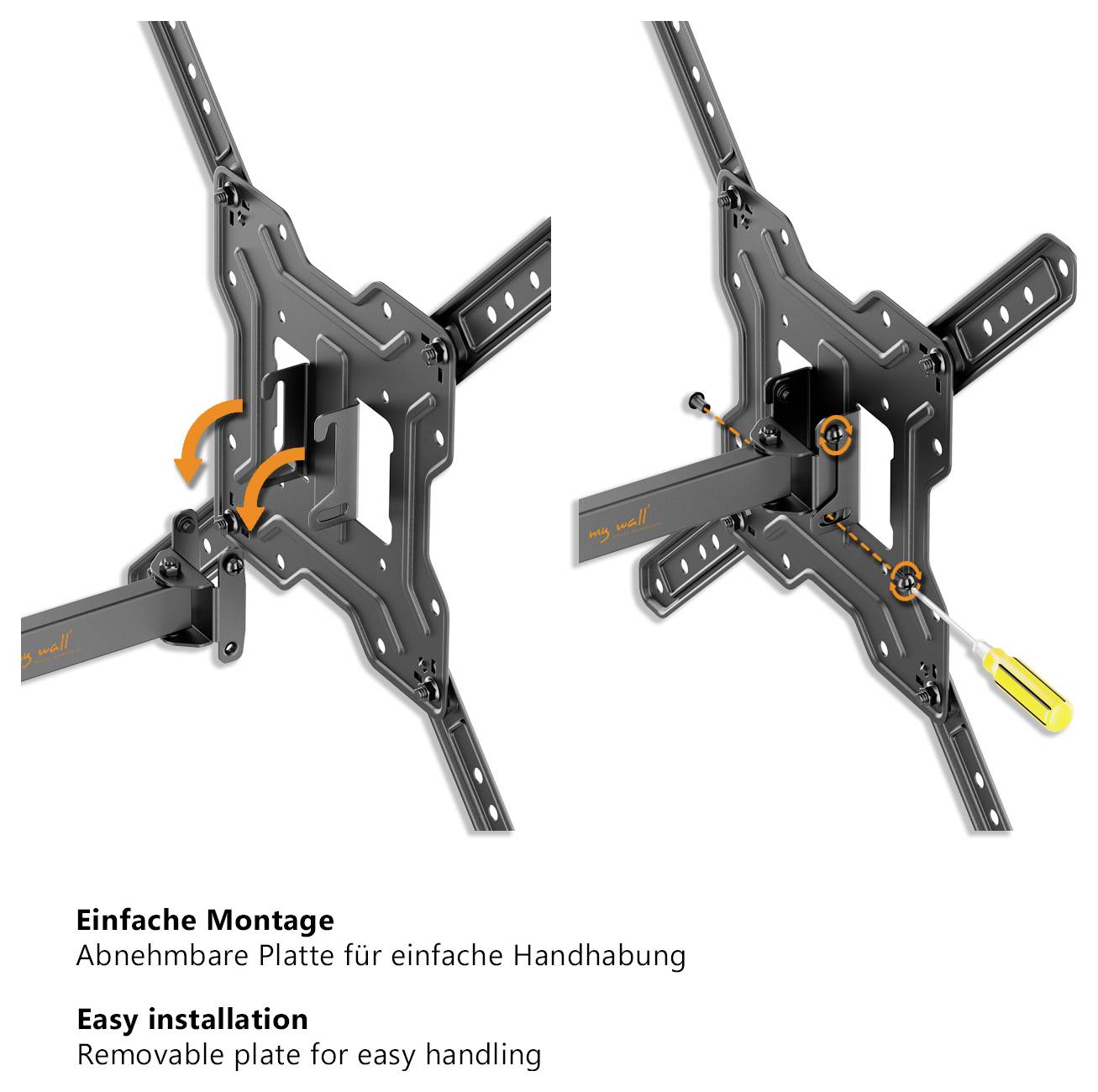

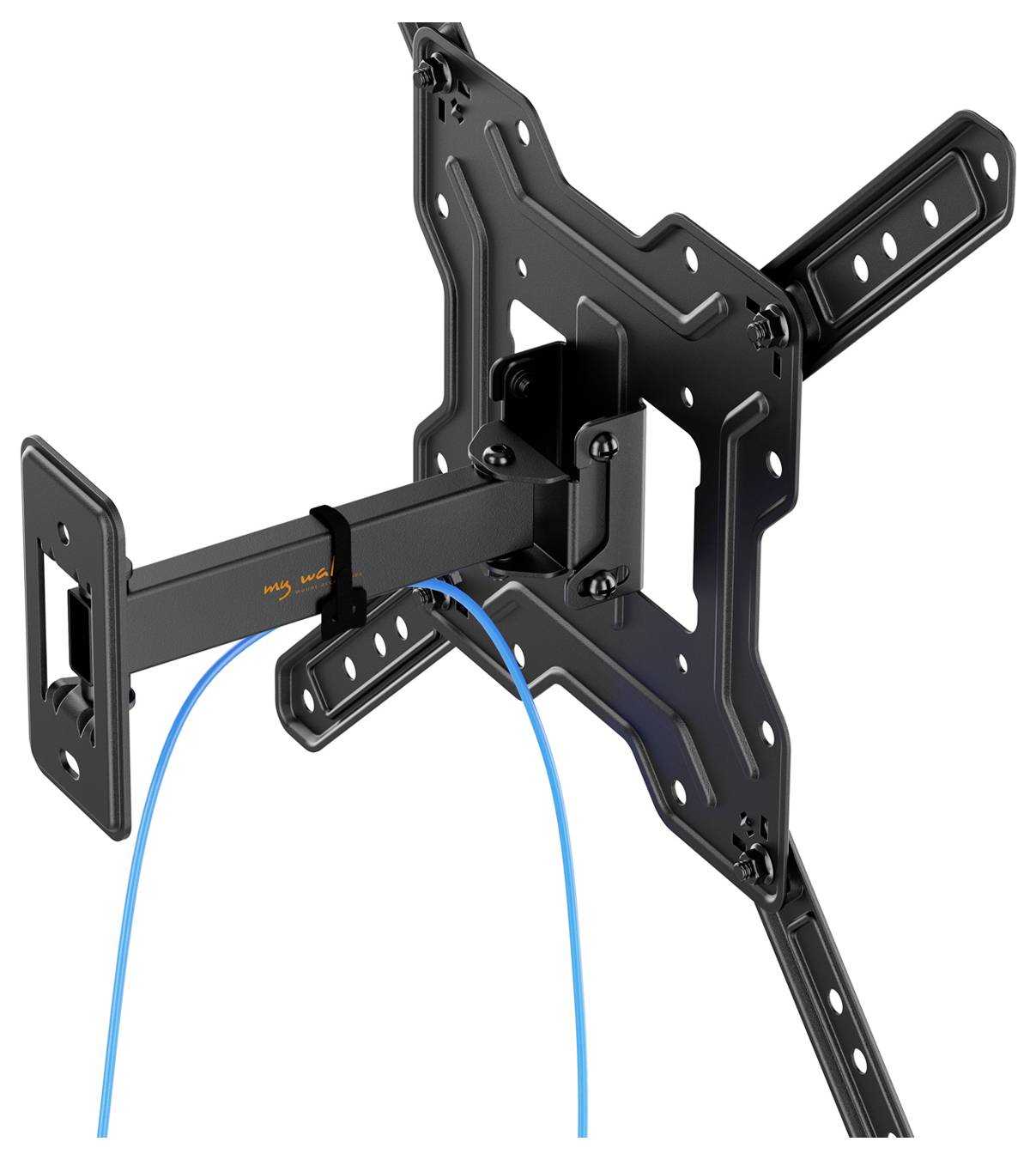

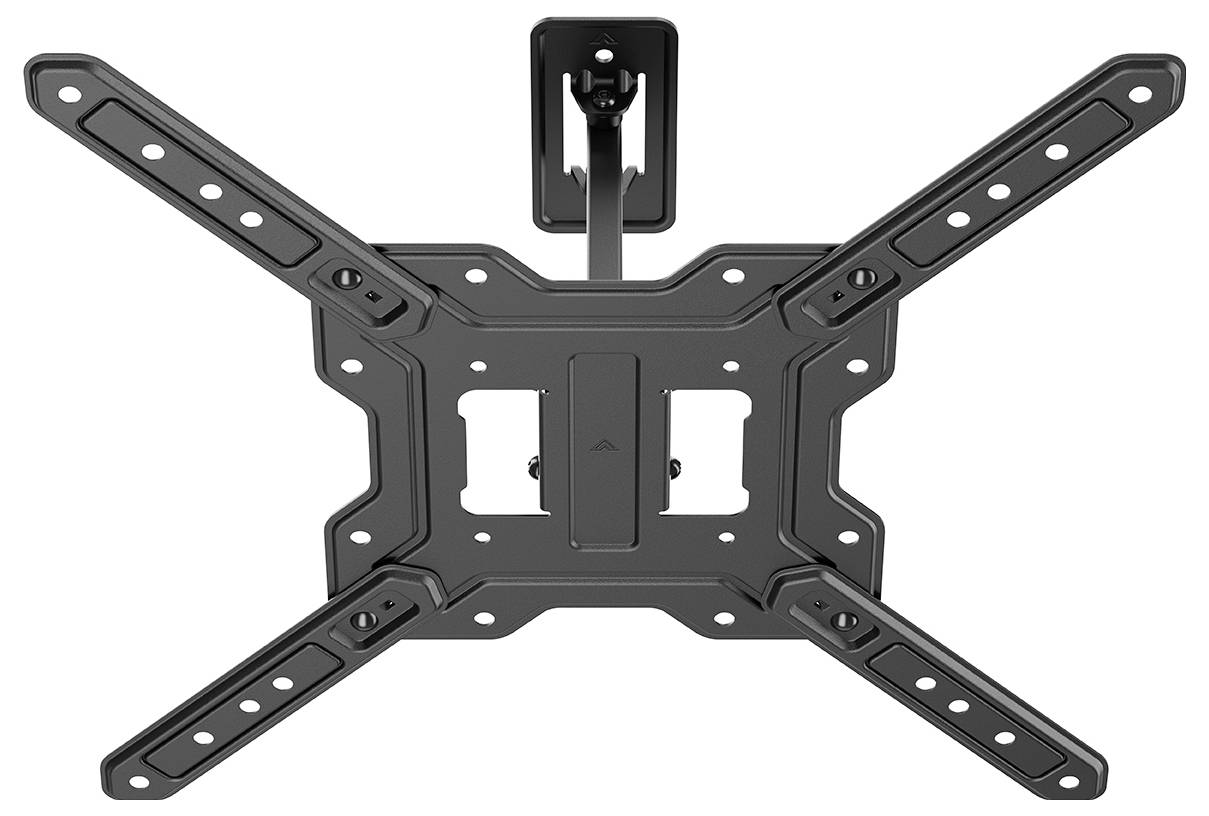

Thanks to its pivoting and tilting design with variable wall distance, this wall bracket adapts to every situation of the room and always enables the perfect viewing angle. The installation is particularly easy because the removable plate simplifies the placing of the display considerably and saves valuable time. The integrated cable guide keeps everything stowed away properly for a clean optics without visible cables.

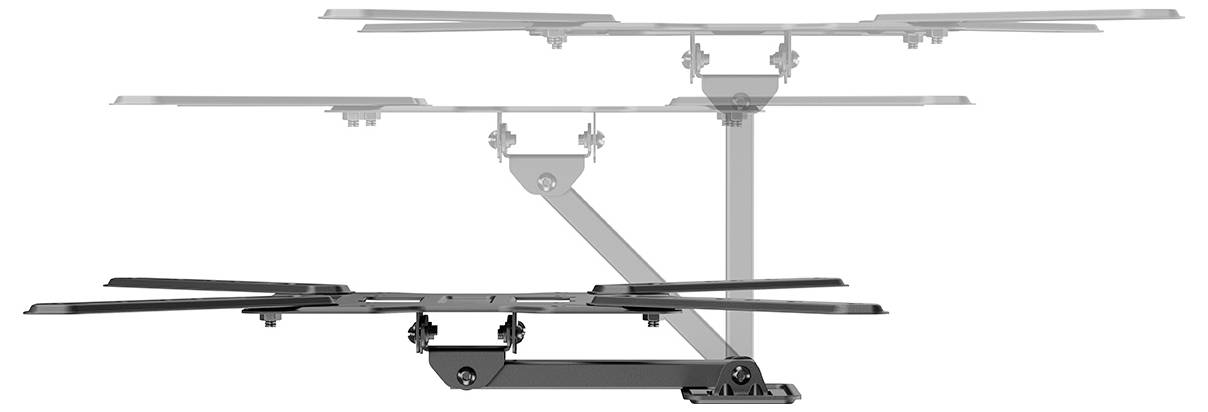

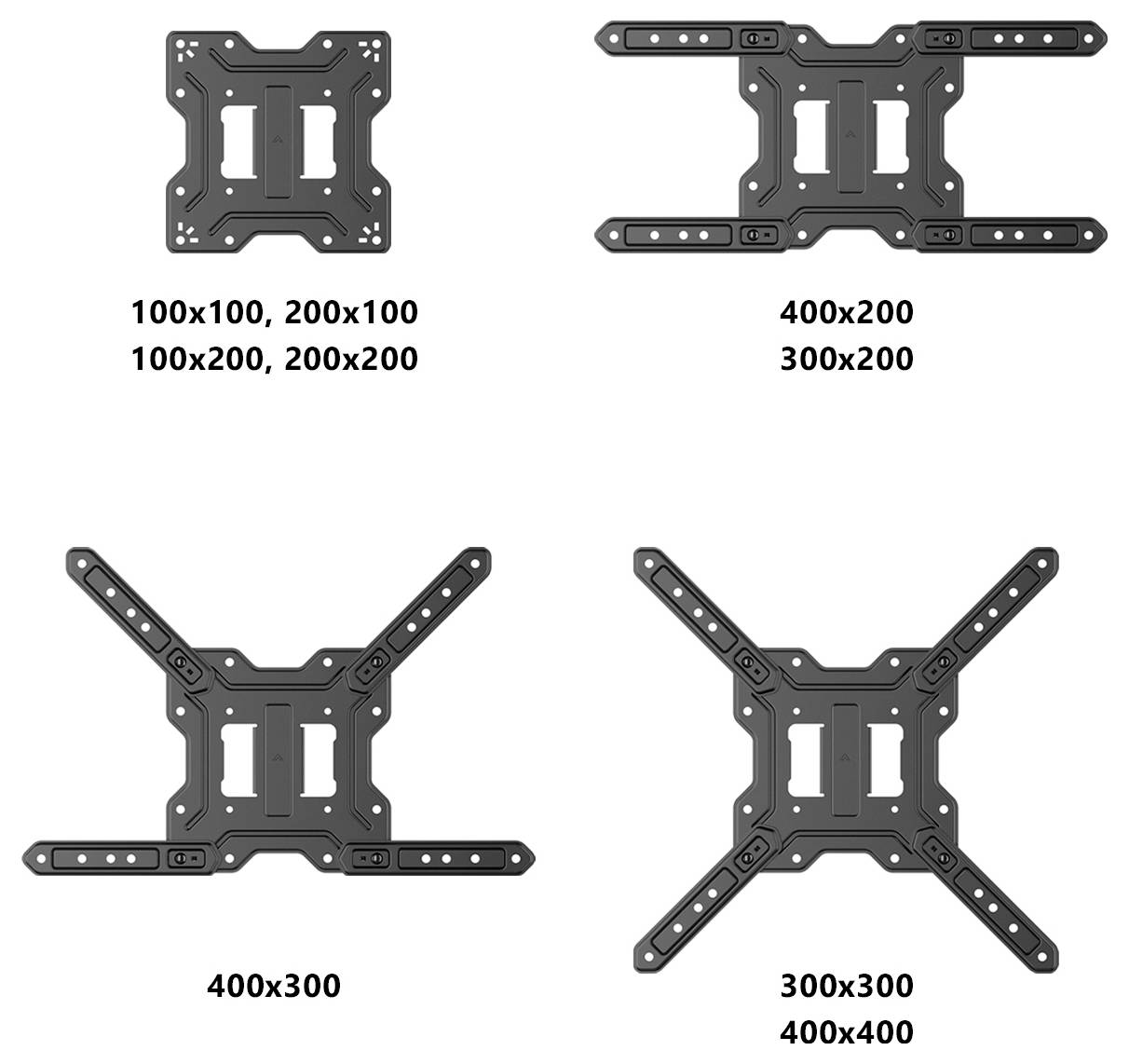

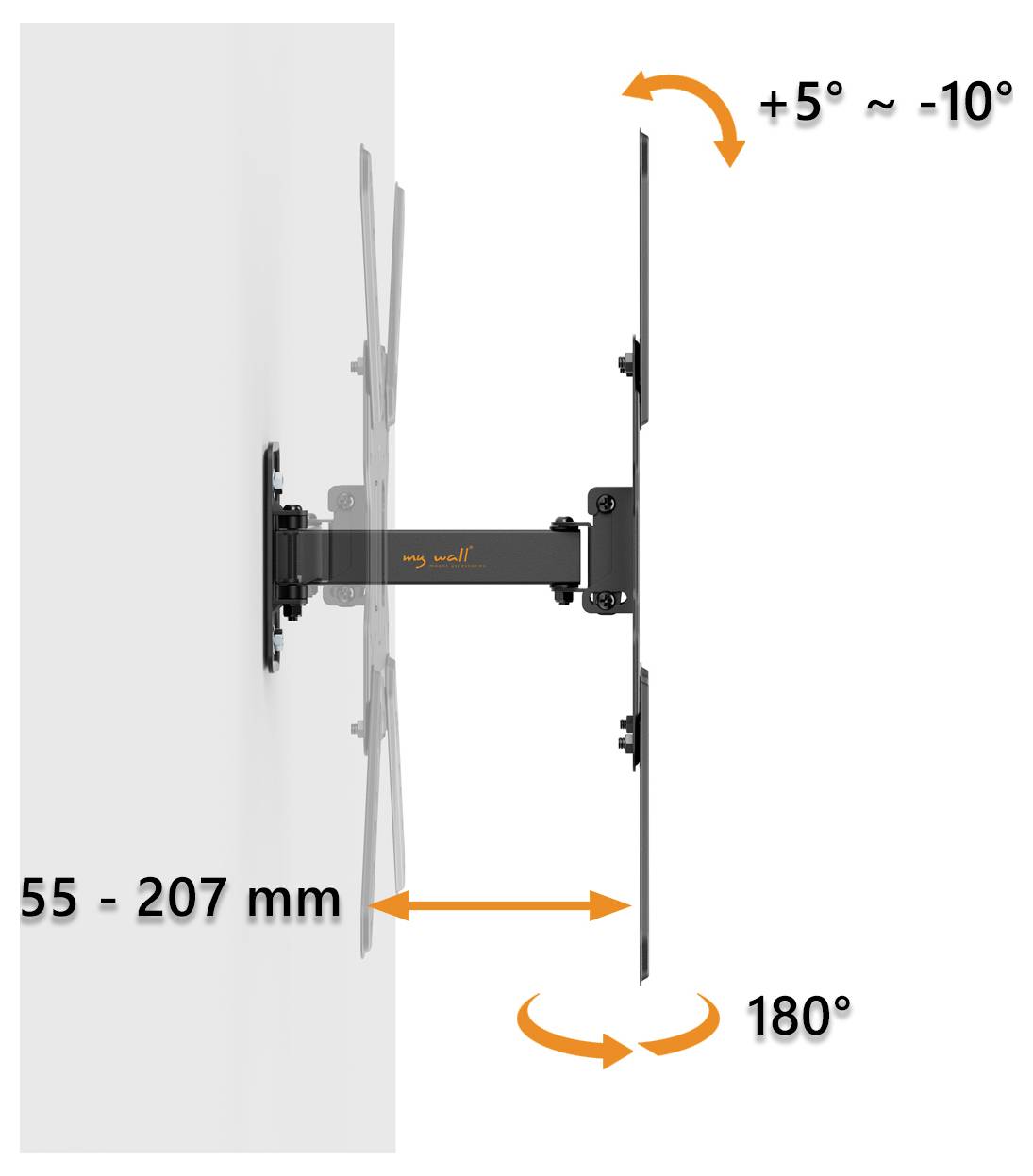

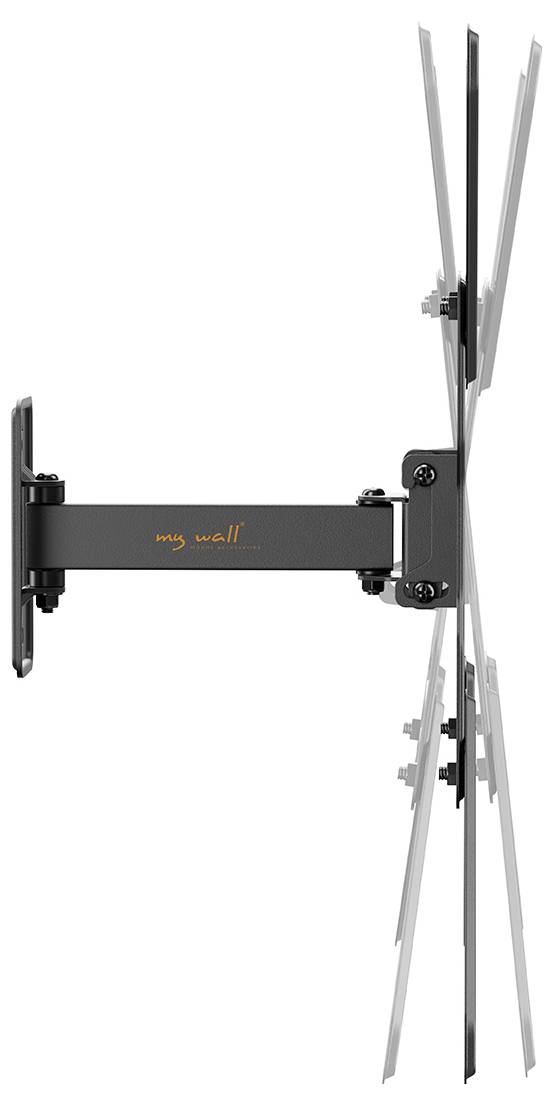

Manufactured for screens from 23" - 65" (58 - 165 cm), the TV holder convinces with a load capacity of up to 30 kg. The inclination of +5 to -10°, a swivel range of 180° as well as a variable wall distance of 55 to 207 mm offer maximum freedom of movement. Whether in the living room, office or bedroom, this television bracket for the wall fulfills highest demands in quality, flexibility and comfort. It is also ideal for larger devices with wide mounting patterns and covers VESA standards from 100x100 to 400x400. With this TV wall mount, you can get the best out of your TV for a modern, functional and elegant picture.
This text is machine translated.
Scope of delivery
- Mount
- Installation manual
- Fasteners
