Name: Neomounts WL30-265BL1 TV wall mount 109,2 cm (43") - 215,9 cm (85")
Brand: Neomounts
SKU: 3412100
Availability: InStock

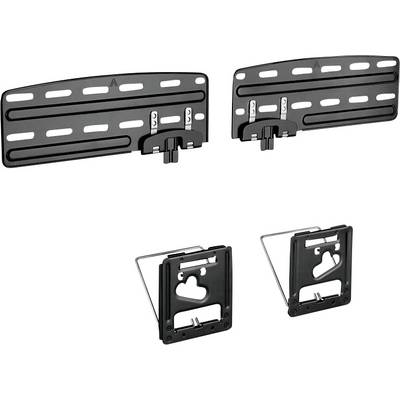

Two black wall-mounting brackets and two angle connectors on a white background, for securing flat objects to walls.

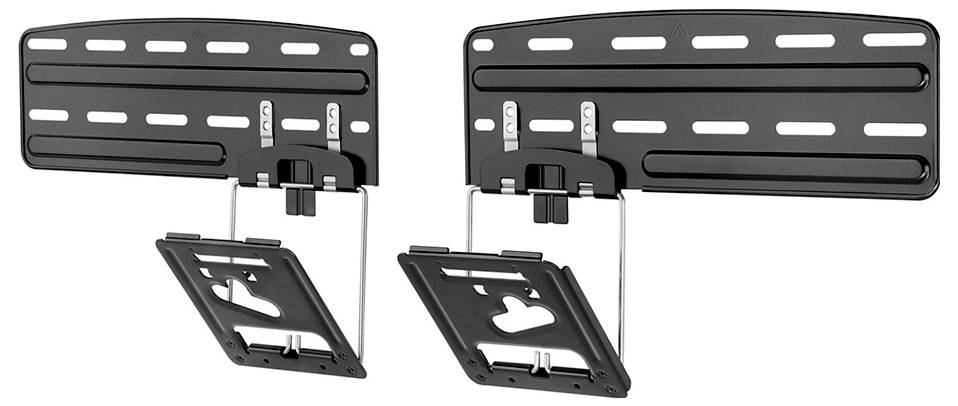

Two black metal TV wall mounts, mountable, with adjustable arm mechanisms for tilting and swivelling the television.

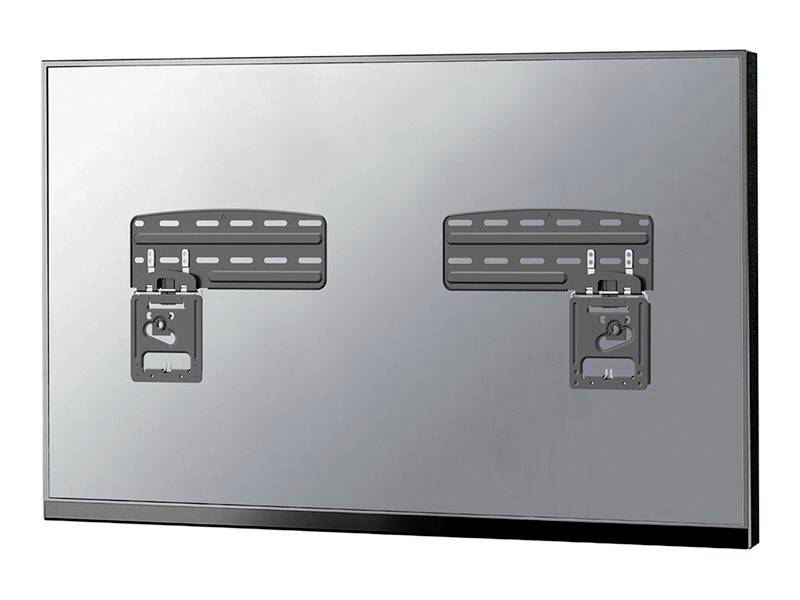

Wall mount for flat screen, suitable for mounting two monitors side by side.

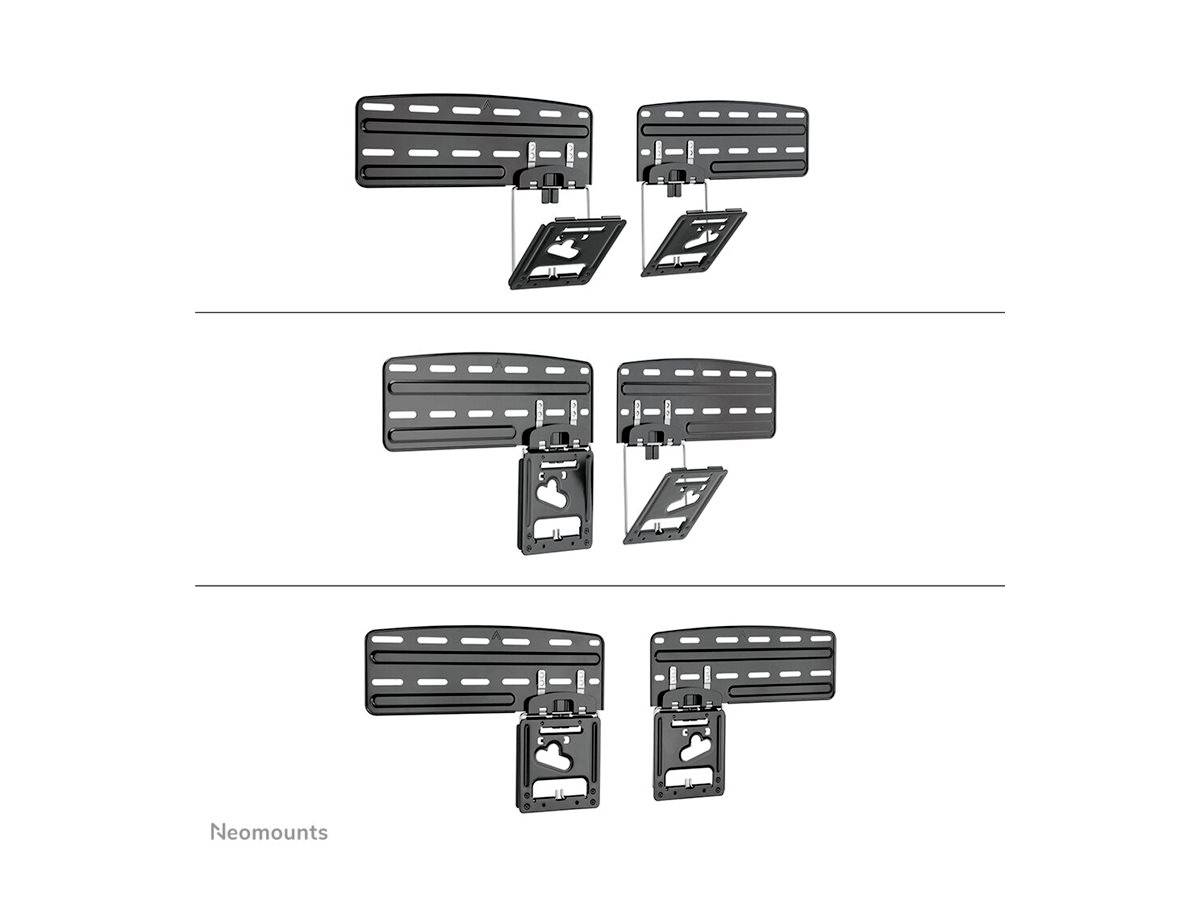

Multiple images of monitor mounts in various tilt and rotation positions, demonstrating movement flexibility and mounting options.

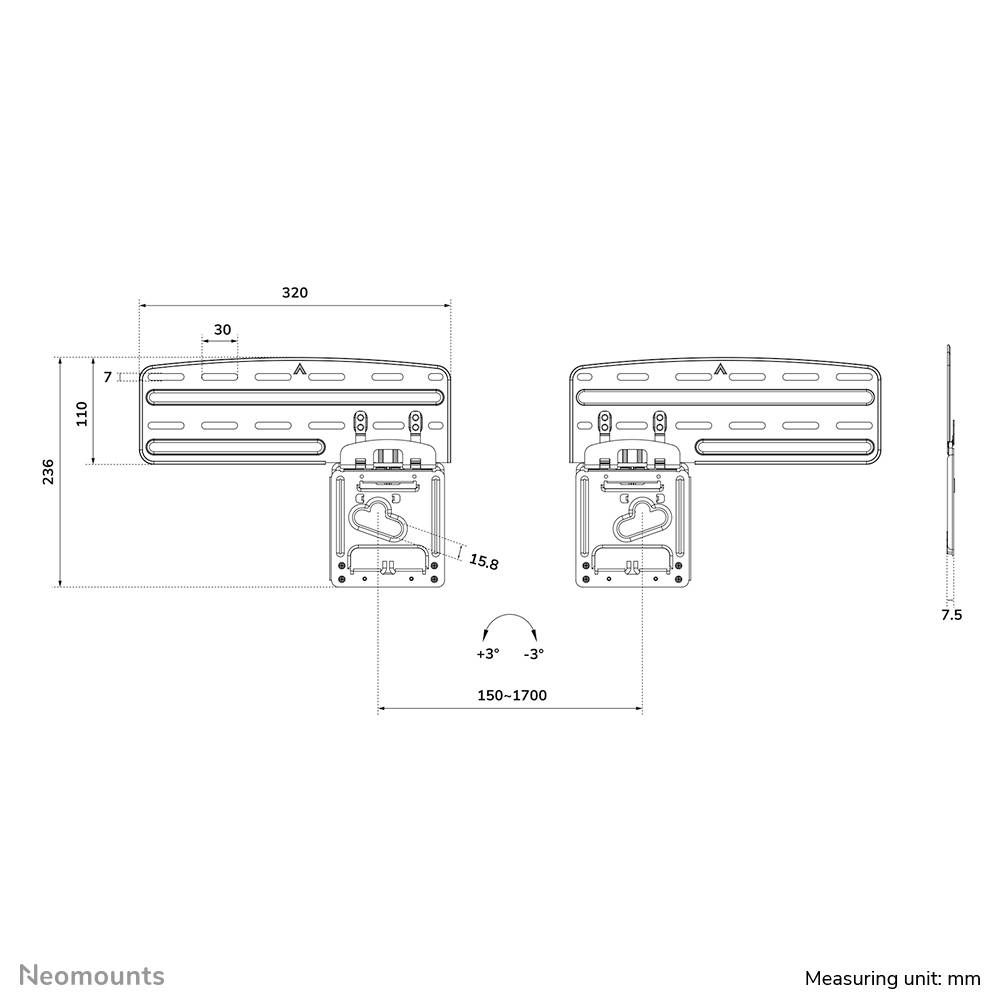

Construction drawing of a mounting bracket with dimensions in millimetres. Shows two parallel arranged parts, adjustable width from 150 to 1,700 mm.

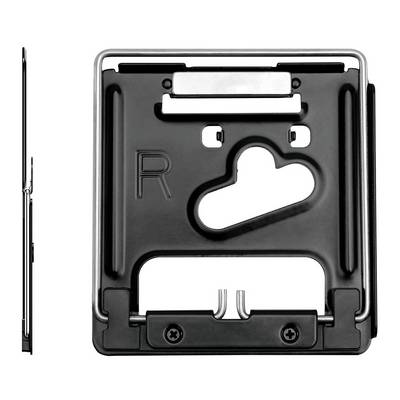

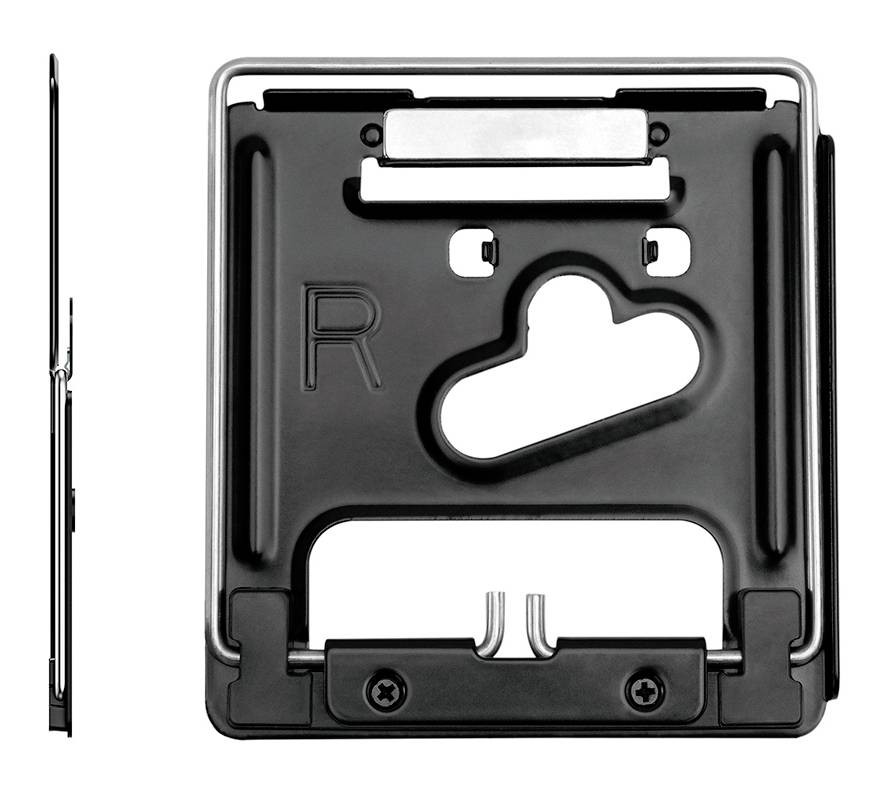

'Mountain Plate' side view from the left, rear view shows 'R' and asymmetrical mounting design for bicycle components.

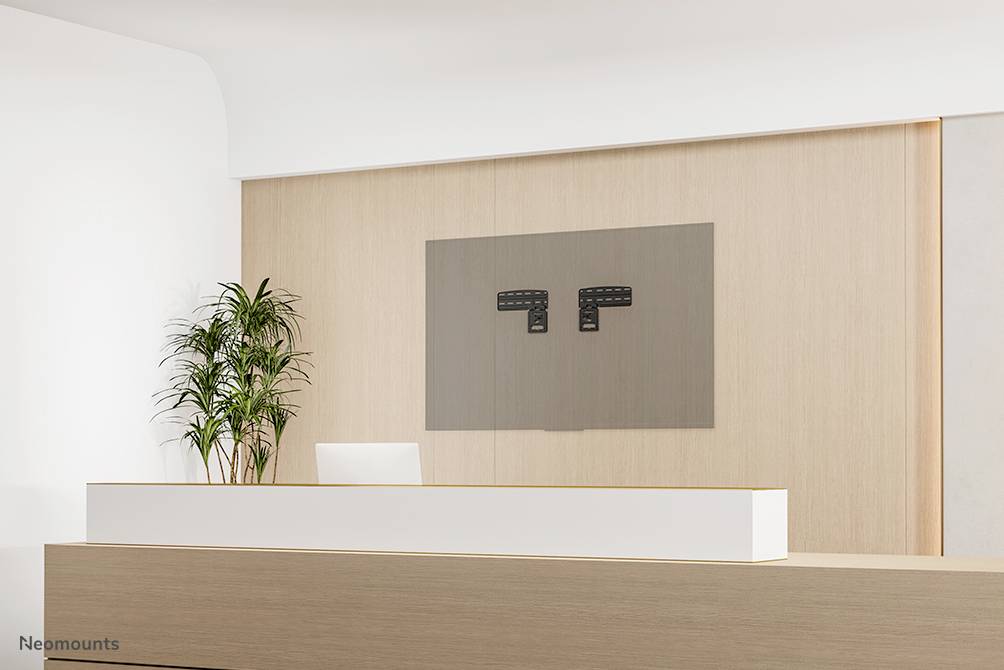

A modern wooden reception desk with a plant pot to the left and a wall-mounted screen holder on the wall behind it.

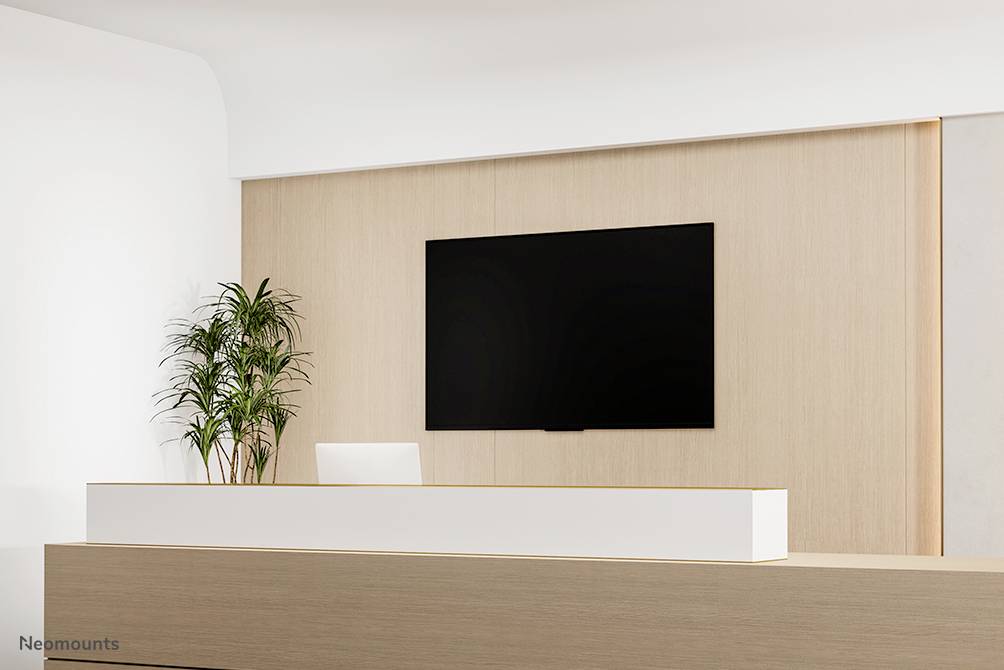

Reception desk in a modern office, with a plant to the left and a large wall-mounted screen above the counter.

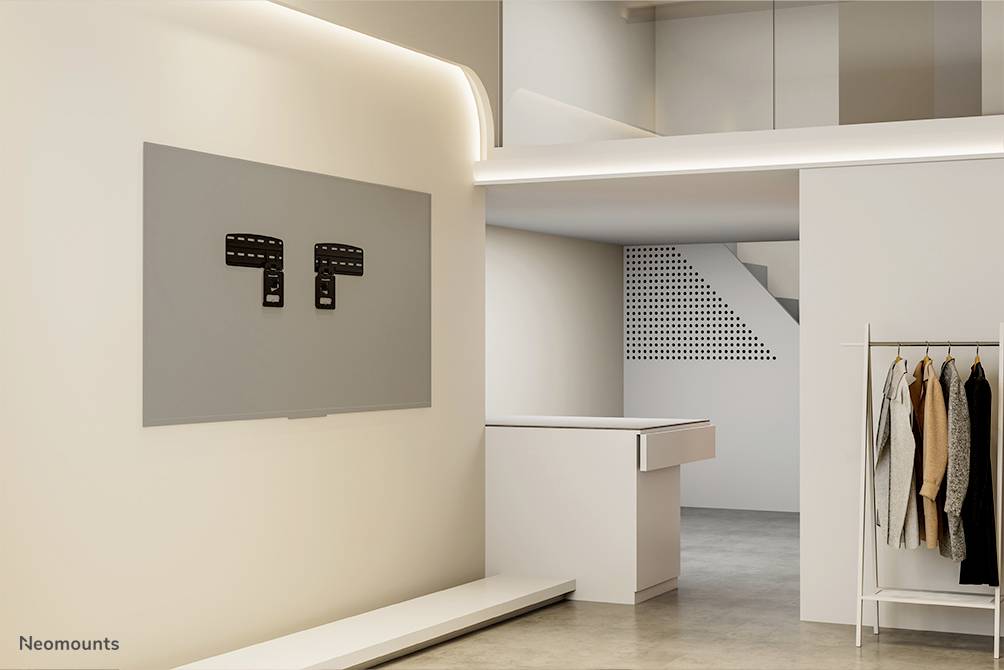

Wall with TV mount in a modern, minimalist living space. To the right, a clothing stand with garments, with a white reception desk in the background.

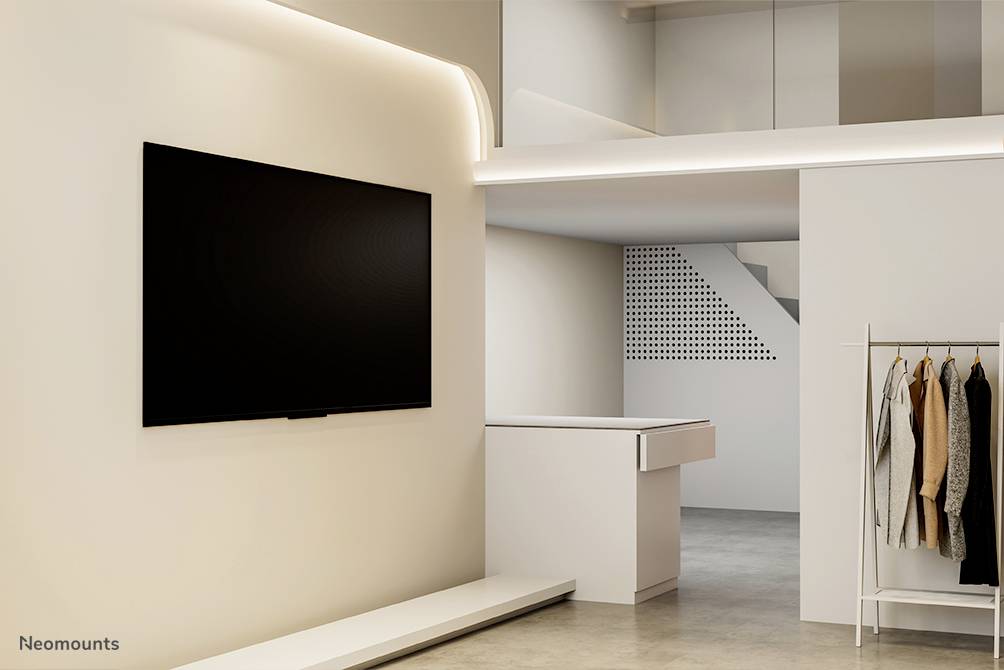

A modern, minimalist room with a large wall-mounted television, a wardrobe, and understated lighting.

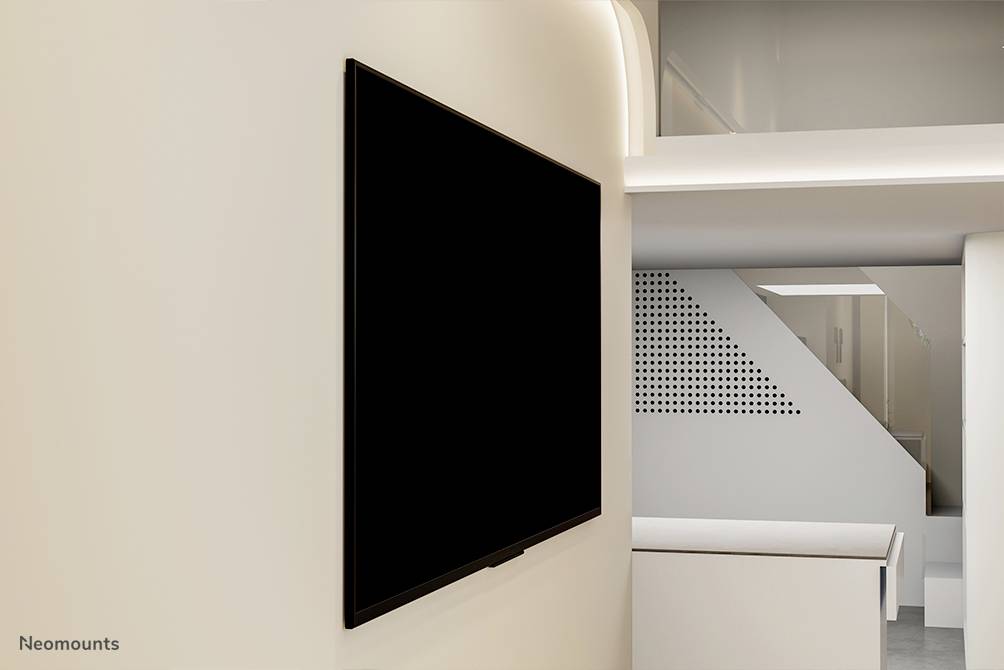

On a bright wall hangs a large, black flat-screen display. Modern architectural details are visible in the background.

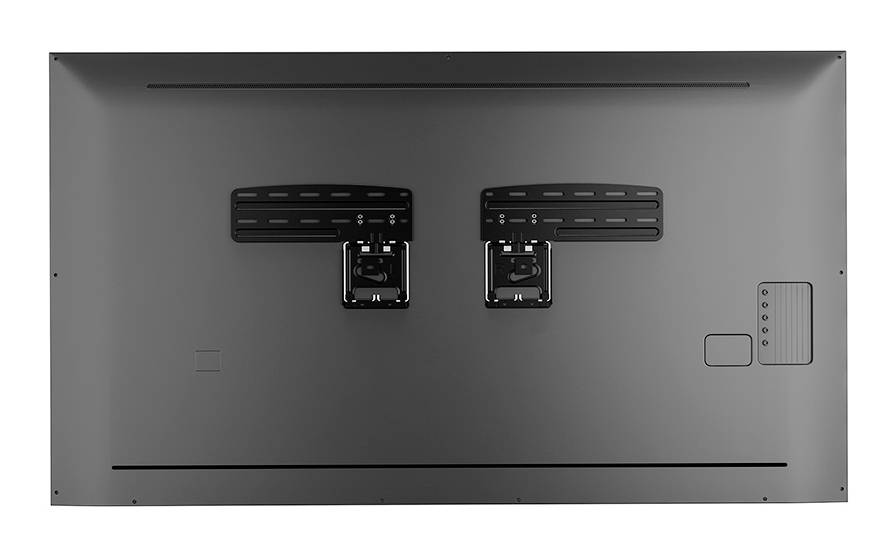

Back of a large screen with two mounting rails in the centre, several ventilation slots, and a control panel on the right.

1/15

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Neomounts WL30-265BL1 TV wall mount

Supports VESA standards up to
Suitable for displays sized (range): 109,2 cm (43") - 215,9 cm (85")
Load capacity (max.) 60 kg

Technical specifications

Minimum screen size: 109.2 cm (43")
Maximum screen size: 2.16 m (85")
Panel mounting interface: 200 x 200.200 x 400.400 x 400.400 x 600.200 x 300.300 x 500.600 x 300.400 x 500.600 x 200.400 x 200.800 x 400.300 x 300.800 x 300.600 x 400.680 x 200.600 x 400.500 x 400.600 x 300.440 x 600.800 x 500.800 x 600.900 x 600.200 x 100.300 x 100.1000 x 400.1000 x 600.460 x 640.800 x 800.300 x 900.1000 x 700.350 x 800.1500 x 900.1500 x 600.1600 x 800.1200 x 800.1200 x 900.1400 x 350.1200 x 600.400 x 200.1000 x 600.700 x 400.500 x 500.150 x 200.800 x 450.200 x 150

Product type: TV wall mount

Suitable for: 109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
180,3 cm (71")
182,9 cm (72")
185,4 cm (73")
188,0 cm (74")
190,5 cm (75")
193,0 cm (76")
195,6 cm (77")
198,1 cm (78")
200,7 cm (79")
203,2 cm (80")
208,3 cm (82")
213,4 cm (84")
215,9 cm (85")
Show more

Suitable for: 109,2 cm (43") - 215,9 cm (85")

Max. load capacity: 60 kg

: No

: 200 x 100 mm
200 x 200 mm
200 x 300 mm
200 x 400 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
400 x 600 mm
440 x 400 mm
500 x 400 mm
600 x 200 mm
600 x 300 mm
600 x 400 mm
600 x 500 mm
600 x 600 mm
700 x 400 mm
800 x 200 mm
800 x 400 mm
800 x 450 mm
800 x 500 mm
800 x 600 mm
800 x 800 mm
900 x 600 mm
1000 x 600 mm
1000 x 800 mm
1200 x 600 mm
1200 x 800 mm
1500 x 900 mm
Show more

Distance to wall (max.): 75 mm

Width: 640 mm

Height: 236 mm

Depth: 75 mm

Factory colour: Black

Weight: 1.2 kg

Dim: (W x H x D) 640 x 236 x 75 mm

Add-on displays: 1 Display(s)

Type: Fixed

UKCA: yes

Minimum VESA mount: 150 x 100 mm

Maximum VESA mount: 1200 x 800 mm

Master (outer) case length: 345 mm

Products per master (outer) case: 10 Stück(e)

Master (outer) case net weight: 12 kg

Maximum weight capacity: 60 kg

Products per pallet (EU): 243 Stück(e)

Master (outer) case height: 380 mm

Master (outer) case width: 350 mm

Depth (max): 7.5 cm

Distance to the wall (max): 7.5 cm

Package weight: 1.6 kg

Documents & Downloads

Datasheet

Datasheet 3412100 Neomounts WL30-265BL1 TV wall mount 109,2 cm (43") - 215,9 cm (85")

User & Safety Instructions

User & Safety Instructions 3412100 Neomounts WL30-265BL1 TV wall mount 109,2 cm (43") - 215,9 cm (85")

Description

The WL30-265BL1 Neomounts are the ideal ultra-slim solution for various Samsung screens up to 85", including professional crystal UHD signage displays. With this bracket you can install the screen incredibly close to the wall, with a distance of only 3-7.5 mm, depending on the TV model. Your TV will look like a painting on the wall. Height adjustment is possible for perfect installation.

The WL30-265BL1 is suitable for screens with a VESA hole image from 150x100 to 1200x800 mm and has a maximum weight of 60 kg. Strong magnetic contacts provide for a solid placement of the screen, while the practical kickstand option allows easy access to cables and connections behind the screen. Anti-skid pads provide for a secure and scratch-free installation of the screen on the bracket.

The Neomounts WL30-265BL1 wall mount is optimized for the following Samsung models:
43-85": Crystal UHD signage displays QMC, QBC, QHC

2023 Samsung-Models
- 43-65": OLED S90C, S95C, NEO QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, CRYSTAL UHD CU8000
- 50-85": The Frame (2021-2023)

2022 Samsung-Models
- 43-85": OLED S90BD, S90BQN95B, NEO QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B

2021 Samsung-Models
- 43-85": Neo QLED, QLED (except Q80A), Crystal UHD (AU8000 - AU9000)

NOT compatible with Samsung models
- 77": OLED S90C, S95C, QLED Q80A, Q80C, NEO QLED QN95D, QN95C
- Crystal UHD CU7000
