Name: Neomounts WL35-550BL16 TV wall mount 101,6 cm (40") - 190,5 cm (75") Tiltable
Brand: Neomounts
SKU: 2576163
Availability: InStock

Wall mounting bracket for a flat-screen television, designed for wall mounting a TV. Demonstrates an adjustable design for flexible viewing positions.

A black, tilting metal TV wall mount with cable pass-through holes and a horizontal rail.

Wall mount for attaching a television, black, adjustable with multiple drill holes for adapting to different sizes.

Wall mount for televisions or monitors, black, with adjustable arms and mounting points for secure wall installation.

A black, slim metal window fitting with multiple fixing points and an adjustable lever.

Vertical image of a black metal part with multiple screws and movable components. Potentially a mechanism or hinge.

A black metal mechanism with multiple holes and joints, likely part of an adjustable height stand.

Close-up of a black, adjustable TV mounting mechanism with screw holes and cable routing. Suitable for wall mounting.

A black metal mechanism with multiple holes and a cable hanging downwards, presumably part of an adjustable mounting system.

Black metal wall mount with adjustable tilt, suitable for flat-screen televisions, close-up of a mounting mechanism.

Close-up of a black, adjustable wall mounting system with lever and tension mechanism, suitable for monitors or televisions.

Close-up of a metal bracket with screws and a black connection. It is used for mounting objects on walls.

Black and grey metal U-shaped frame with rounded corners and slots along the long sides, possibly a frame or mounting bracket.

Wall mount with 'Neomounts' inscription; integrated spirit level in a blue housing for precise alignment.

'Neomounts' TV wall mounting kit with frame, two brackets and complete set of screws for installation.

TV wall mount installed on a white wall, in front of a minimalist white-beige TV console with wooden details. A small speaker stands to the left.

A flat television mounted on a white wall, beneath which sits a minimalist wooden and light beige sideboard with three drawers and two doors.

Wall-mounted TV bracket on a modern pink wall, articulating. A wooden cabinet with a vase stands to the right. Beneath it is a low wooden sideboard.

A modern television hangs at an angle on a pink wall. Beneath it stands a flat, dark wooden shelf. A small wall shelf is located in the top right.

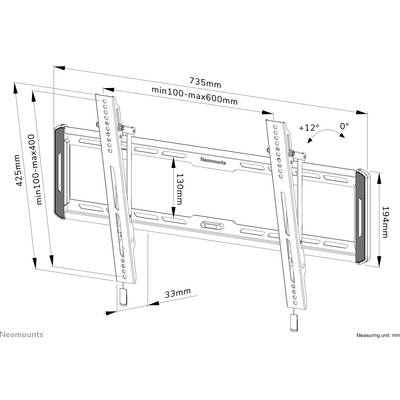

TV Wall Mount Diagram: Tilt Angle 0° to +12°, Width 735mm, Height 425mm, Variable VESA Mounting Ranges from 100mm to 600mm.

1/20

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 51.99 / piece)

€ 63.01

-17 %

€ 51.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Neomounts WL35-550BL16 TV wall mount

Holder type: Tiltable
Supports VESA standards up to
Suitable for displays sized (range): 101,6 cm (40") - 190,5 cm (75")
Load capacity (max.) 70 kg

Technical specifications

Product type: TV wall mount

Suitable for: 101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
180,3 cm (71")
182,9 cm (72")
185,4 cm (73")
188,0 cm (74")
190,5 cm (75")
Show more

Suitable for: 101,6 cm (40") - 190,5 cm (75")

Holder type: Tiltable

Max. load capacity: 70 kg

: No

: 100 x 100 mm
100 x 200 mm
150 x 75 mm
150 x 100 mm
200 x 100 mm
200 x 200 mm
200 x 300 mm
200 x 400 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
300 x 400 mm
400 x 100 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
400 x 600 mm
Show more

Tilt range (bottom): 12°

Tilt range (top): 12°

Distance to wall (min.): 3.3 cm

Distance to wall (max.): 3.3 cm

Width: 73.5 cm

Height: 42.5 cm

Depth: 3.3 cm

Factory colour: Black

Weight: 3.051 kg

Dim: (W x H x D) 73.5 x 42.5 x 3.3 cm

Add-on displays: 1 Display(s)

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2576163 Neomounts WL35-550BL16 TV wall mount 101,6 cm (40") - 190,5 cm (75") Tiltable

User & Safety Instructions

User & Safety Instructions 2576163 Neomounts WL35-550BL16 TV wall mount 101,6 cm (40") - 190,5 cm (75") Tiltable

Warranty Terms

Warranty Terms 2576163 Neomounts WL35-550BL16 TV wall mount 101,6 cm (40") - 190,5 cm (75") Tiltable

Description

The Neomounts WL35-550BL16 LEVEL is a tilting wall mount for flat screens up to 75" and a maximum load capacity of 70 kg. The versatile inclination technology (12°) enables you to set the optimum viewing angle. The LEVEL 550 wall bracket has a depth of 3.3 cm and is suitable for screens with VESA hole patterns 100x100 to 600x400 mm. The WL35-550BL16 has a refined magnetic pull & release system with which you can put on the television in no time at all and secure and secure it. Then the tensile and unlocking tapes can be hidden simply behind the screen by clicking on the magnet at the holder. The built-in spirit level ensures that the bracket is easily mounted.

This text is machine translated.
