Name: Neomounts WL70-550BL14 TV wall mount 81,3 cm (32") - 139,7 cm (55") Height-adjustable, Tiltable, Swivelling, Swivelling
Brand: Neomounts
SKU: 2576174
Availability: InStock

View of a pivoting TV wall mount with a flat-screen television mounted on it. The mount allows flexible positioning.

Swivel TV wall mount in black metal with X-shaped fixing bracket. It is flexibly adjustable for various viewing angles.

A black, swivel wall mount for flat-screen televisions, with an adjustable arm and a universal X-shaped mounting bracket.

TV Wall Mount Bracket with Adjustable Arm, Enabling Tilt and Rotation for Flexible Display Options.

Wall-mounted monitor bracket installed sideways, featuring articulated arm design for flexible screen positioning.

Installation of an adjustable monitor arm on the wall, which allows height and tilt adjustment of a mounted screen.

A black, adjustable TV wall mount with two articulating arms for flexible screen positioning.

Slim, tilting TV wall mount in black metal, suitable for monitors or televisions, enables flexible positioning.

Pivoting Metal TV Wall Mount for Flat Screens, Adjustable, with Arm and Mounting Plate. Suitable for Various Screen Sizes.

Black articulated arm with blue cables running through cable channels. Suitable for neatly routing cables along table edges.

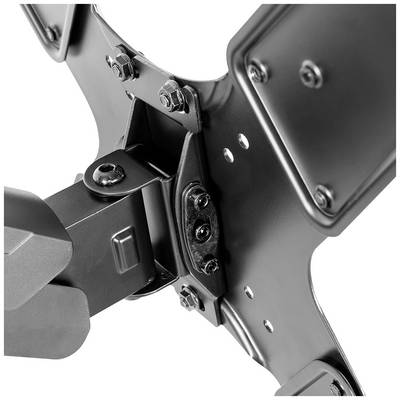

Close-up of a black metal bracket with screws and joints, providing flexibility and stability for electronic devices.

Close-up of a black monitor arm with a joint, demonstrating flexibility and positioning options for screen placement.

'TV wall mount installed on white wall, above a white sideboard; modern living room interior; neutral colours.'

A modern flat-screen television is mounted on a wall above a minimalist, white TV unit in a bright room.

A technical drawing shows a screen mount with adjustable articulated arms and dimensions. The unit of measurement is millimetres.

1/15

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 154.99 / piece)

€ 154.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Neomounts WL70-550BL14 TV wall mount

Holder type: Height-adjustable, Tiltable, Swivelling, Swivelling
Supports VESA standards up to
Suitable for displays sized (range): 81,3 cm (32") - 139,7 cm (55")
Load capacity (max.) 30 kg

Technical specifications

Product type: TV wall mount

Suitable for: 81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
Show more

Suitable for: 81,3 cm (32") - 139,7 cm (55")

Holder type: Height-adjustable
Tiltable
Swivelling
Swivelling

Max. load capacity: 30 kg

: No

: 75 x 75 mm
100 x 75 mm
100 x 100 mm
100 x 200 mm
150 x 75 mm
150 x 100 mm
200 x 100 mm
200 x 200 mm
200 x 300 mm
200 x 400 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
300 x 400 mm
400 x 100 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
Show more

Rotation: 3°

Tilt range (bottom): 15°

Tilt range (top): 5°

Swivel range (left): 90°

Swivel range (right): 90°

Min. distance to floor/ceiling: 0 cm

Max. distance to floor/ceiling: 28.2 cm

Distance to wall (min.): 6.1 cm

Distance to wall (max.): 56.5 cm

Width: 45 cm

Height: 45 cm

Depth: 56.5 cm

Factory colour: Black

Weight: 6 kg

Dim: (W x H x D) 45 x 45 x 56.5 cm

Add-on displays: 1 Display(s)

Product type description: Befestigungs-Kit

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2576174 Neomounts WL70-550BL14 TV wall mount 81,3 cm (32") - 139,7 cm (55") Height-adjustable, Tiltable, Swivelling, Swivelling

User & Safety Instructions

User & Safety Instructions 2576174 Neomounts WL70-550BL14 TV wall mount 81,3 cm (32") - 139,7 cm (55") Height-adjustable, Tiltable, Swivelling, Swivelling

Warranty Terms

Warranty Terms 2576174 Neomounts WL70-550BL14 TV wall mount 81,3 cm (32") - 139,7 cm (55") Height-adjustable, Tiltable, Swivelling, Swivelling

Description

The Neowmounts by NewStar WL70-550BL14 is a fully movable wall bracket for flat screens up to 55" and a maximum load capacity of 30 kg. The versatile tilt (20°) and swivel technology (180°) enables you to set the optimum viewing angle. The bracket can be leveled for the perfect installation. The WL70-550BL14 has a depth of 6.1-56.5 cm and is suitable for screens with VESA hole pattern 75x75 to 400x400 mm. Thanks to the gas spring, the wall bracket can be easily adjusted in height. The cable management system ensures that all loose cables can be routed and attached behind the screen. In addition, the wall bracket is equipped with an Easy release VESA, with which you can (de)mount the TV in no time at all.

This text is machine translated.
