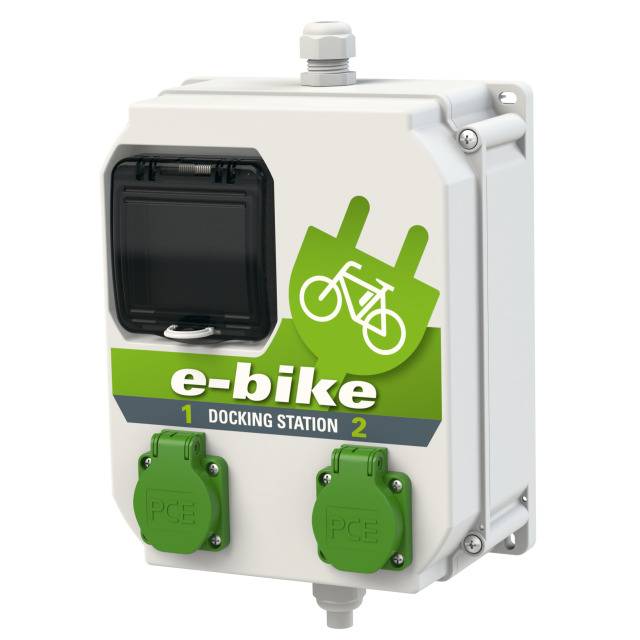

PCE 9134248 Electric bike battery charger
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 284.87 / piece)
€ 302.52
-6 %
€ 284.87
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Electric bike charging station ebbs 3x SSD
- 3x protective contact sockets (IP44)
- 3 x Line Protection Switch 6A 1-pole
Technical specifications
- Nominal voltage: 230 V
- Nominal current: 16 A
- Product type
Electric bike battery charger
- Weight
2.4 kg
- Suitable for
E-Bike Ladestation
- Width
22.2 cm
- Height
32 cm
- Depth
11.4 cm
- Current limitation
6 A
- Protection class
IP54
Documents & Downloads
Datasheet
Datasheet 1606263 PCE 9134248 Electric bike battery charger
User & Safety Instructions
User & Safety Instructions 1606263 PCE 9134248 Electric bike battery charger
Information
Information 1606263 PCE 9134248 Electric bike battery charger
Description

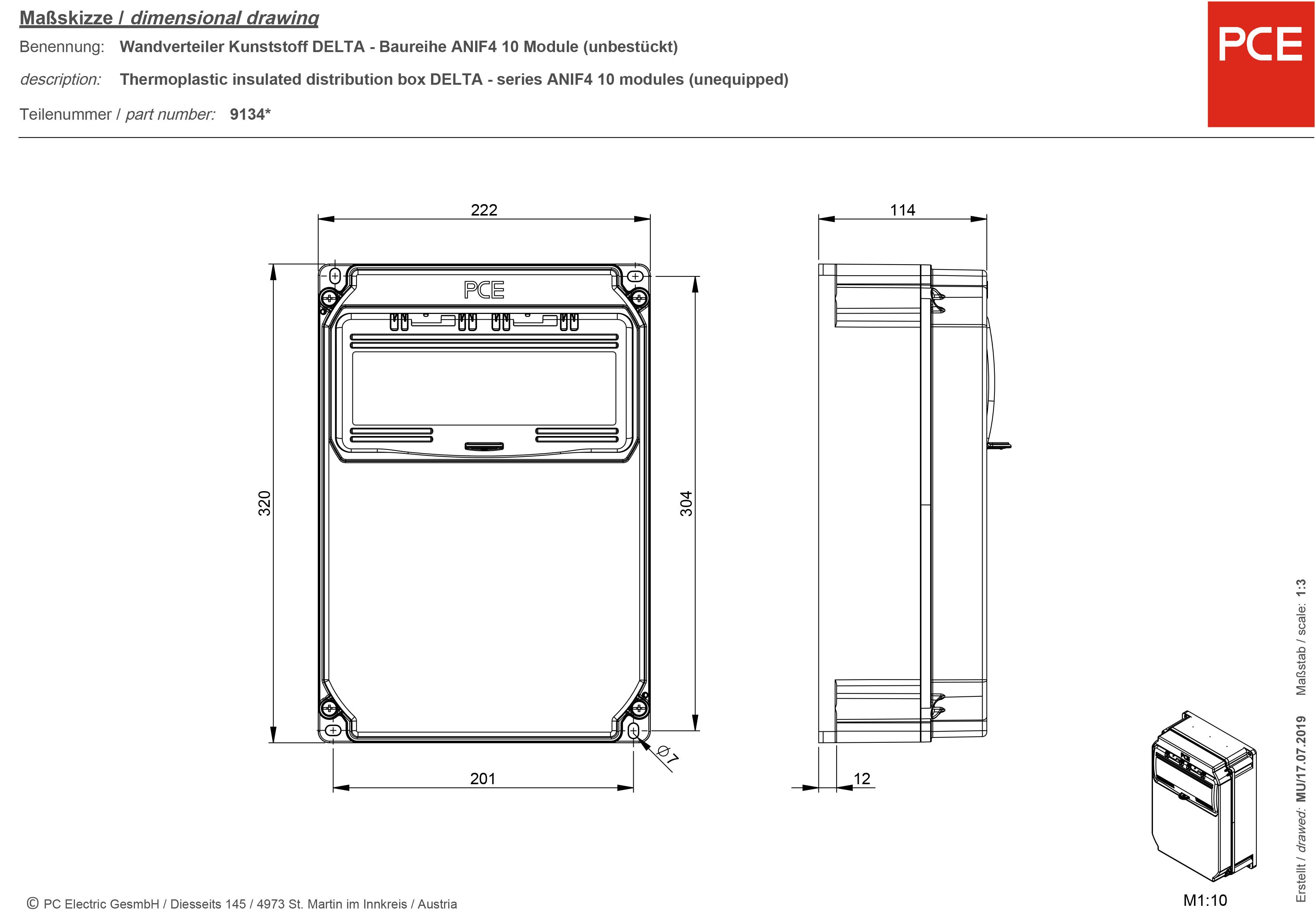

Plastic wall distributor model EBBS 4 IP54 with the dimensions H:320 mm x B: 222 mm x D: 114 mm.
The wall-mounted distributor has 10 divisions, a M20 gland top (Cable diameter: 10-14mm PG 16) gray and a M20 gland with dummy plug at the bottom.
For the assembly of Electric bike charging station are 3 Protection outlets (230 V/16 A/IP54)) in gray. These are by 3 FI/LS-Switch of the company Eaton secured (6A 1P+N 30 mA C TYPE A).
The distributor is based on vario connector wired (5-pin 10 mm2).
This text is machine translated.
The wall-mounted distributor has 10 divisions, a M20 gland top (Cable diameter: 10-14mm PG 16) gray and a M20 gland with dummy plug at the bottom.
For the assembly of Electric bike charging station are 3 Protection outlets (230 V/16 A/IP54)) in gray. These are by 3 FI/LS-Switch of the company Eaton secured (6A 1P+N 30 mA C TYPE A).
The distributor is based on vario connector wired (5-pin 10 mm2).
This text is machine translated.
Scope of delivery
- Electric bike charging station
- Incl. Labels
- 3x protective contact socket
- 3 x FI/LS from Eaton
- M20 gland above
- M20 gland below
