Name: Akyga AK-EV-21 Electric scooter battery charger 60 V
Brand: Akyga
SKU: 3553676
Availability: InStock

A rectangular black power adapter with a three-pin plug, used for charging electronic devices.

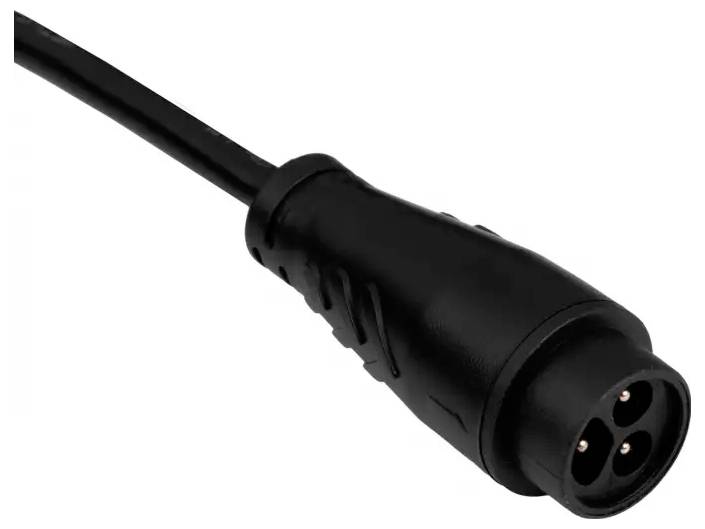

A black, three-pin audio cable connector, typically used for professional audio equipment, shown on a white background.

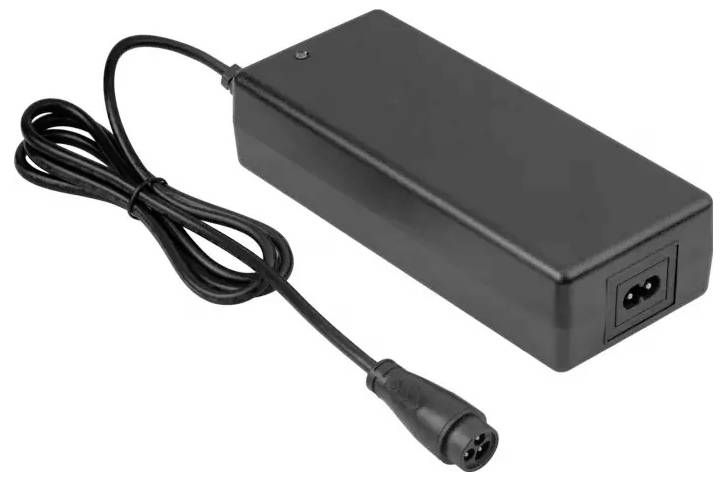

A black power adapter with a cord extending from one end and a plug on the other, designed for electronic devices.

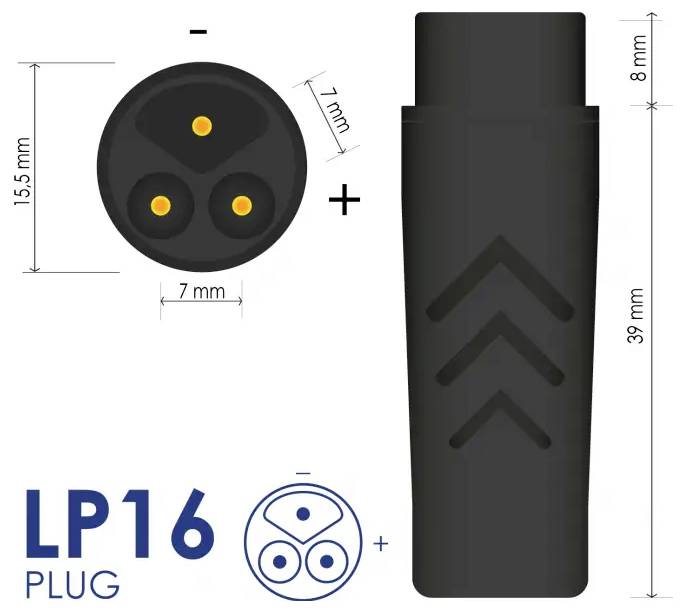

'LP16 Plug' diagram showing side and front views with measurements: 39mm height, 8mm width, 15.5mm diameter, 7mm pin spacing.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Output: 118 W
Connection 1: LP16
Product color: Black
Packaging dimensions (L x B x H) 250 x 46 x 111 mm
Gross weight 651 g
Power output 67.2 V
Output current 1.75 A
Output cable LP16
Earthing: Without (II protection class)
Manufacturing material: ABS
Length of output cable 1.2 m.
Supply voltage 100-240 V
IP rating: IP20
Power input < 2 A.
Capacity: > 80%
Pin length 8 mm
Bolts of a socket: IEC C8
Mechanical shut-off switch: Without
OVP fuse: Yes
OCP Backup: Yes
OPP fuse: Yes
SCP fuse: Yes
Ferrite filter: Without
Supply cable in set: None
Illumination color: Two-colored diode
Display: None
MTBF 10000 h

Product type: Electric scooter battery charger

Battery voltage: 60 V

Rechargeable battery technology: Li-ion

Weight: 651 g

Suitable for: Elektroroller. Dualtron-Modellen

: IP20

Material: Acrylonitrile butadiene styrene

Nominal current: 1.75 A

Nominal voltage: 67.2 V

: 118 W

Documents & Downloads

Datasheet

Datasheet 3553676 Akyga AK-EV-21 Electric scooter battery charger 60 V

User & Safety Instructions

User & Safety Instructions 3553676 Akyga AK-EV-21 Electric scooter battery charger 60 V

Description

The Akyga® AK-EV-21 charger for electric scooters is not only a practical accessory, but an indispensable component for the daily use of your scooter. It was developed with view to maximum efficiency and reliability and works perfectly with the popular Dualtron models, which offers uninterruptible power supply and operational readiness for each trip. In addition, the charger supplies 67.2 V and 1.75 A and provides a charging power of up to 118 W - Ideal for the safe and efficient charging of lithium-ion batteries in a 16S configuration (60 V).

With a robust LP16-plug and a 1.2-meter long cable the charger guarantees a safe and permanent connection to your device. In addition, the Dualtron Akyga® AK-EV-21 Roller Charger is equipped with protection against over-voltage, overload, short circuits and overheating. This advanced safety equipment not only extends the life of your batteries, but also ensures safe operation for the user - even during longer charging times.

The casing of the Akyga® AK-EV-21 electric scooter charger is made of durable materials and is therefore suitable for use at home or as a reliable companion on the road. This solution is designed for those who need a reliable replacement.

This text is machine translated.
