Buy Akyga AK-EV-15 Electric bike battery charger 24 V

A black power adapter with a cable ending in a barrel plug, used for charging electronic devices.

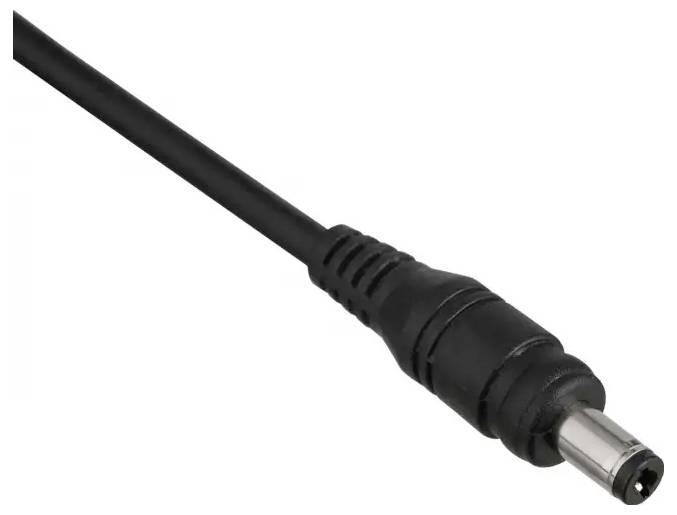

'A black DC power connector with a cylindrical metal tip, attached to a cable. Used for powering electronic devices.'

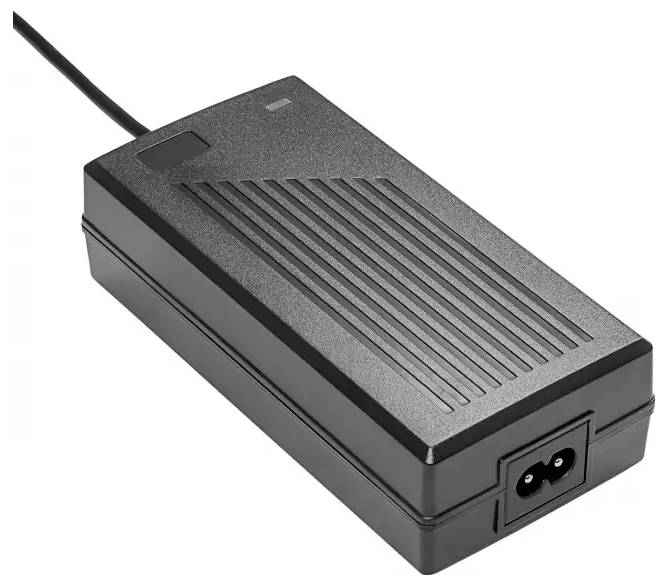

A black power adapter lying flat on a surface, with a cable coming out from the top. It has a rectangular shape and ribbed texture.

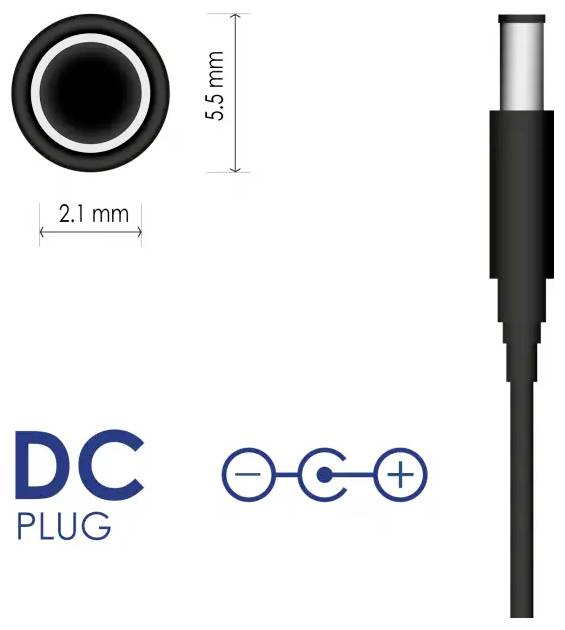

DC plug diagram showing a side and front view, with dimensions labeled as 5.5 mm outer diameter and 2.1 mm inner diameter.

1/4

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.04 / piece)

€ 26.04

plus VAT.

Only 2 Piece(s) available

14 days return policy included

Report legal concerns

Technical specifications

Output 60 W
Connection 1 5.5 x 2.1 mm
Product color: Black
Packaging dimensions (L x B x H) 257 x 131 x 48 mm
Net weight: 308 g
Gross weight 408 g
Product dimensions (L x W x H) 120 x 60 x 36 mm
Power output 29.4 V
Output current 2 A
Output cable 5.5 x 2.1 mm
Earthing: Without (II protection class)
Manufacturing material: ABS
Length of output cable 1.2 m.
Supply voltage 100-240 V
IP rating: IP20
Power input < 1.2 A.
Capacity: > 80%
Pin length 11 mm
Bolts of a socket: IEC C8
Mechanical shut-off switch: Without
OVP fuse: Yes
OCP Backup: Yes
OPP fuse: Yes
SCP fuse: Yes
Ferrite filter: Without
Supply cable in set: None
Illumination color: Two-colored diode
Display: None
MTBF 10000 h

Product type: Electric bike battery charger

Battery voltage: 24 V

Rechargeable battery technology: Li-ion

Weight: 408 g

Suitable for: Elektrofahrzeugen wie Rollern. Fahrrädern. Skateboards und anderen persönlichen Transportmitteln

Width: 60 mm

Height: 36 mm

Depth: 36 mm

Length: 120 mm

: IP20

Material: Acrylonitrile butadiene styrene

Nominal current: 2 A

Nominal voltage: 29.4 V

: 60 W

Documents & Downloads

Datasheet

Datasheet 3553672 Akyga AK-EV-15 Electric bike battery charger 24 V

User & Safety Instructions

User & Safety Instructions 3553672 Akyga AK-EV-15 Electric bike battery charger 24 V

Description

The Akyga® AK-EV-15 charger has been developed to supply power to electric vehicles such as scooters, bicycles, skateboards and other personal transport equipment powered by 7S (24 V) lithium-ion batteries. With an output voltage of 29.4 V and a common DC connector (5.5 x 2.1 mm), the power supply is compatible with many device models available in the market.

The Akyga® AK-EV-15 charger for electric scooters delivers 60 W power, WAS guarantees fast and safe charging of the battery. Correctly selected charging parameters reduce the risk of cell overheating and extend the life of the battery. The device is equipped with a complete set of safety functions: OVP (overvoltage protection), OCP (overcurrent protection), SCP (overload protection) and OTP (thermal protection), which ensure stable and safe operation even under difficult conditions.

The AK-EV-15 power supply for electric scooters or bicycles has a compact, rugged housing made of materials that are resistant to mechanical damage and high temperatures. Thanks to its small size it is perfectly suitable for journeys - it fits in a rucksack as well as a carry bag. It is the ideal solution for people who expect reliability and mobility in daily use.

This text is machine translated.
