Name: Akyga AK-EV-14 Electric bike battery charger 29.4 V
Brand: Akyga
SKU: 3553671
Availability: InStock

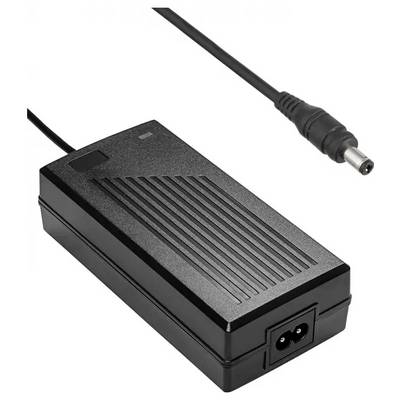

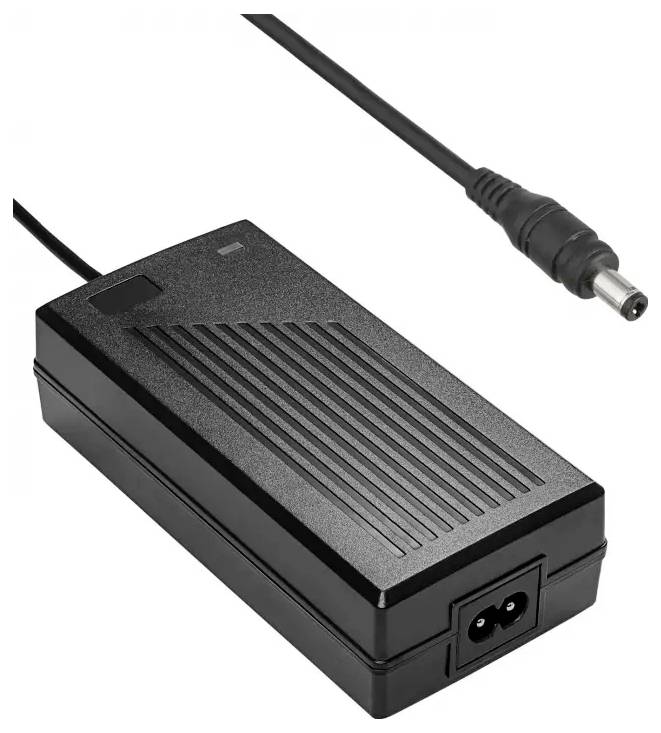

A black power adapter with a cord and plug, often used for electronic devices, shown against a white background.

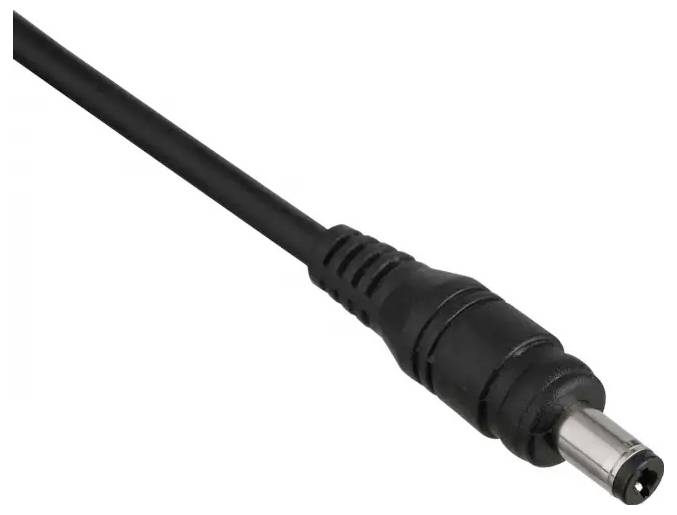

A black DC power plug with a cylindrical metal tip is shown on a white background, indicating it is used for electronic devices.

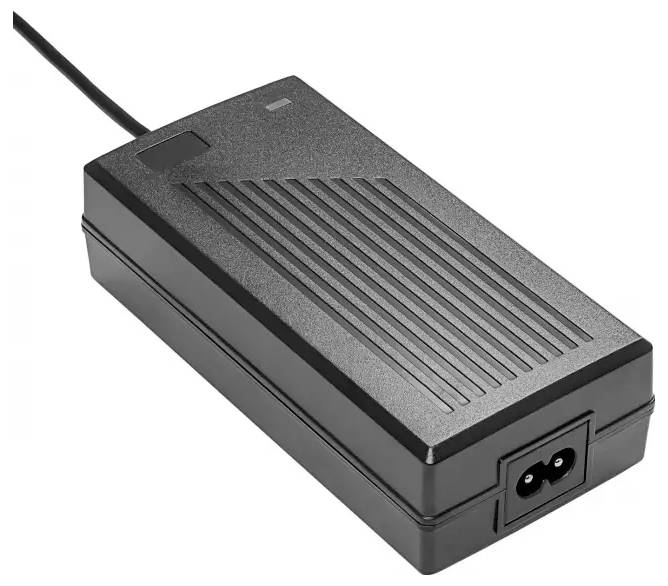

A black power adapter with a three-prong socket, connected by a cable, resting on a white surface.

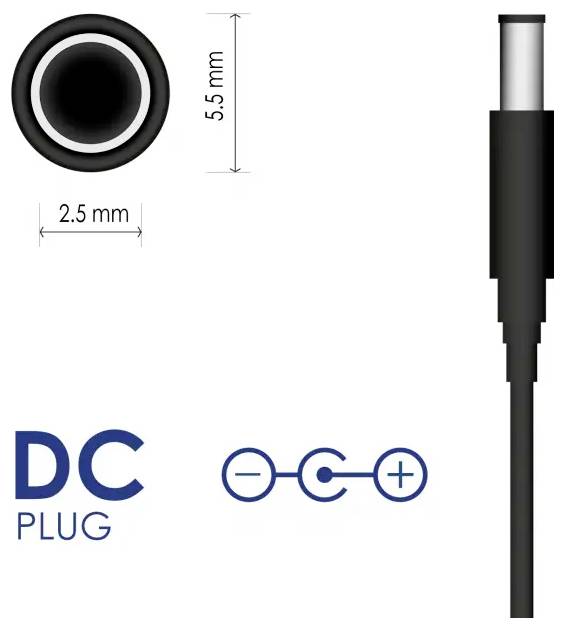

DC plug diagram showing connector with 5.5 mm outer and 2.5 mm inner dimensions, labeled with polarity symbols indicating positive and negative terminals.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26.99 / piece)

€ 26.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Output 60 W
Connection 1 5.5 x 2.5 mm
Product color: Black
Packaging dimensions (L x B x H) 257 x 131 x 48 mm
Net weight: 308 g
Gross weight 408 g
Product dimensions (L x W x H) 120 x 60 x 36 mm
Power output 29.4 V
Output current 2 A
Output cable 5.5 x 2.5 mm
Earthing: Without (II protection class)
Manufacturing material: ABS
Length of output cable 1.2 m.
Supply voltage 100-240 V
IP rating: IP20
Power input < 1.2 A.
Capacity: > 80%
Pin length 11 mm
Bolts of a socket: IEC C8
Mechanical shut-off switch: Without
OVP fuse: Yes
OCP Backup: Yes
OPP fuse: Yes
SCP fuse: Yes
Ferrite filter: Without
Supply cable in set: None
Illumination color: Two-colored diode
Display: None
MTBF 10000 h

Product type: Electric bike battery charger

Battery voltage: 29.4 V

Rechargeable battery technology: Li-ion

Weight: 408 g

Suitable for: Elektrofahrräder. Roller. Skateboards und Einräder

Width: 60 mm

Height: 36 mm

Depth: 36 mm

Length: 120 mm

: IP20

Material: Acrylonitrile butadiene styrene

Nominal current: 2 A

Nominal voltage: 29.4 V

: 60 W

Documents & Downloads

Datasheet

Datasheet 3553671 Akyga AK-EV-14 Electric bike battery charger 29.4 V

User & Safety Instructions

User & Safety Instructions 3553671 Akyga AK-EV-14 Electric bike battery charger 29.4 V

Description

The Akyga® AK-EV-14 charger has been designed Ideal for versatile use and is therefore suitable for a wide range of personal transport vehicles such as electric bicycles, scooters, skateboards and single wheels. With an output voltage of 29.4 V and a standard DC plug (5.5 x 2.5 mm), the power supply is compatible with many popular 7S (24 V) lithium-ion battery models and ensures a safe and efficient charging.

The AK-EV-14 electric bike charger offers 2 A current and maximum power of 60 W, WAS allows fast and gentle charging of the battery. Furthermore, the charger is equipped with a range of safety functions in order to protect both the device and the rechargeable battery. The integrated OVP (overvoltage protection), OCP (excess current protection), SCP (overload protection) and OTP (overheating protection) ensure stable operation and protect against damage by unstable current conditions.

The charger casing is made of durable materials that can withstand mechanical damage and high temperatures. Thanks to its compact size the charger can be transported easily in a backpack or a bag alongside your vehicle and is thus a practical companion for the daily use.

This text is machine translated.
