Name: Akyga Electric bike battery charger 24 V
Brand: Akyga
SKU: 2355175
Availability: InStock

Black power supply with a detachable cable and standard plug. Designed for powering electronic devices.

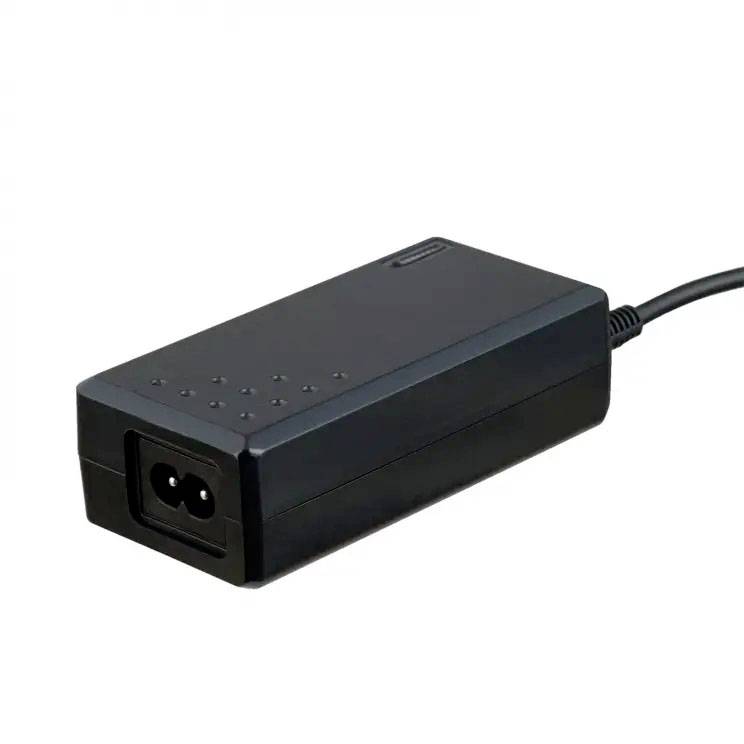

A black power supply with a rectangular housing and a power connector on the front.

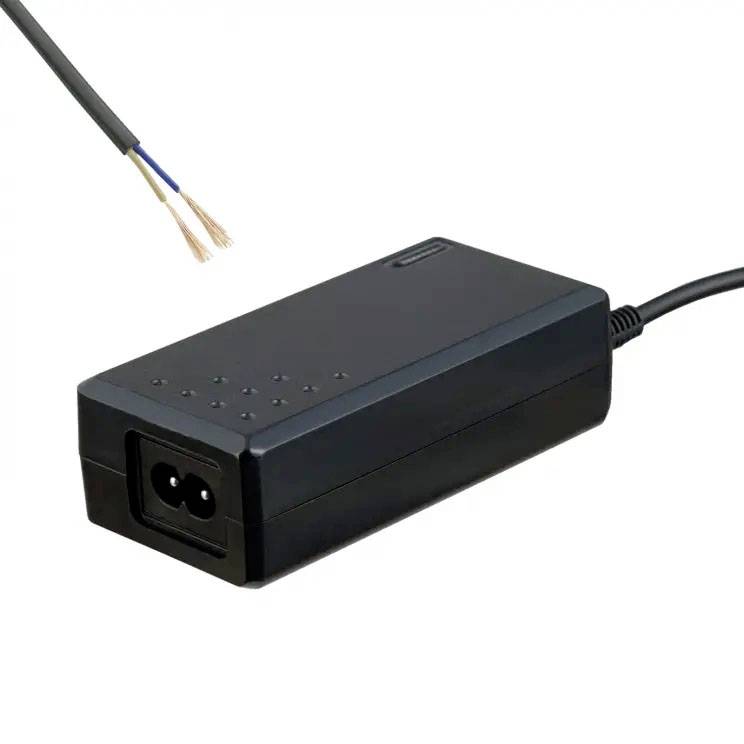

A black laptop power adapter with a cut cable, revealing two wire ends.

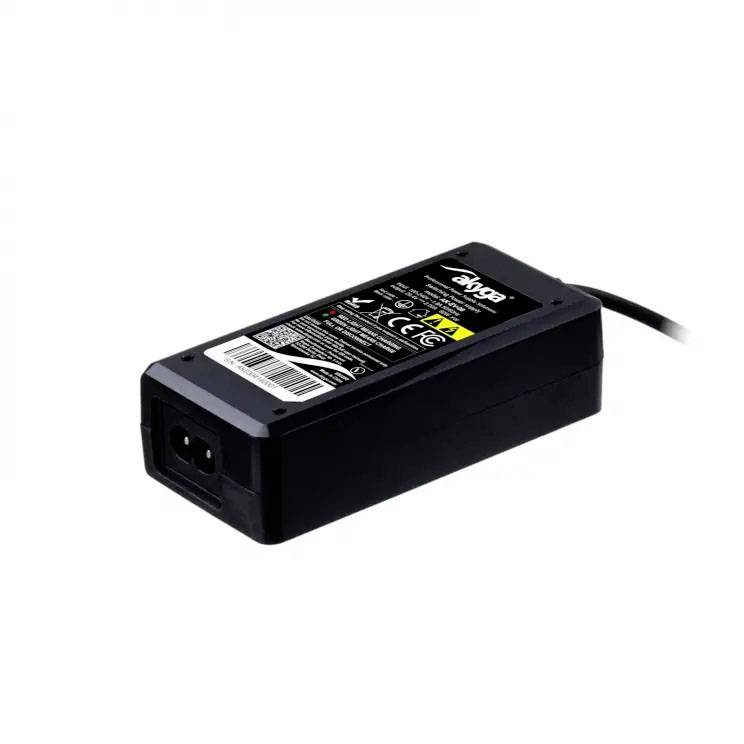

Laptop power supply, black casing, with cable. Shows technical specifications and safety marks on the top surface.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 25.99 / piece)

€ 32.99

-21 %

€ 25.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product code: AK-EV-08
Efficiency > 80%
Earthing: Without (II protection class)
IP Rating: IP20
Ferrite filter: None
Supply cable in the set: Without
ABS casing material
Illumination color: Two-color diode
MTBF 10000 h
Output 60 W
Input voltage 100 - 240 V.
Output current: 2 A
Cable length: 2 m

Product type: Electric bike battery charger

Battery voltage: 24 V

Weight: 215 g

Suitable for: E-Bikes als auch für Elektroroller

Width: 50 mm

Height: 32 mm

Depth: 100 mm

Current limitation: 2 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2355175 Akyga Electric bike battery charger 24 V

User & Safety Instructions

User & Safety Instructions 2355175 Akyga Electric bike battery charger 24 V

Warranty Terms

Warranty Terms 2355175 Akyga Electric bike battery charger 24 V

Description

The Akyga® AK-EV-08 is a high-quality universal charger for electric vehicles. It will prove to be a power source for both e-bikes and electric scooters. The device has a popular IEC C8 socket on one side and an endless cable on the other side, so that you can freely select the plug depending on the device to be charged. Its maximum charging power is 60 W, with output parameters of 29.4 V/2 A. It is recommended to use it for charging vehicles equipped with a 24 V (7s) cell block. Its greatest advantage is its high efficiency and reliability. It is equipped with an LED light, which signals the duration or completion of the charging process. The length of the charging cable is 1 meter, was used. The device is in black, packed in a pro-ecological Ecobox. Warning! The power supplies are only intended for persons with the appropriate qualifications. Improper use may result in fatal electric shock.
