Akyga AK-EV-23 Electric scooter battery charger 72 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 63.99 / piece)
€ 63.99
incl. VAT
Only 4 Piece(s) available
Technical specifications
- Output: 168 W
- Connection 1: GX16 12 mm (f)
- Product color: Black
- Packaging dimensions (L x B x H) 190 x 92 x 38 mm
- Net weight: 521 g
- Gross weight 624 g
- Power output 84 V
- Output current 2 A
- Output line GX16 12 mm (f)
- Earthing: Without (II protection class)
- Manufacturing material: ABS
- Length of output cable 1.2 m.
- Supply voltage 100-240 V
- IP rating: IP20
- Power input < 2.5 A.
- Capacity: > 80%
- Pin length 10 mm
- Bolts of a socket: IEC C8
- Mechanical shut-off switch: Without
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- SCP fuse: Yes
- Ferrite filter: Without
- Supply cable in set: None
- Illumination color: Two-colored diode
- Display: None
- MTBF 10000 h
- Product type
Electric scooter battery charger
- Battery voltage
72 V
- Rechargeable battery technology
Li-ion
- Weight
624 g
- Suitable for
Elektrofahrräder. Rollern und anderen E-Mobilitätsfahrzeugen
- Width
92 mm
- Height
38 mm
- Depth
190 mm
- Current limitation
2 A
IP20
- Material
Acrylonitrile butadiene styrene
- Nominal current
2 A
- Nominal voltage
84 V
168 W
Documents & Downloads
Datasheet
Datasheet 3553678 Akyga AK-EV-23 Electric scooter battery charger 72 V
User & Safety Instructions
User & Safety Instructions 3553678 Akyga AK-EV-23 Electric scooter battery charger 72 V
Description

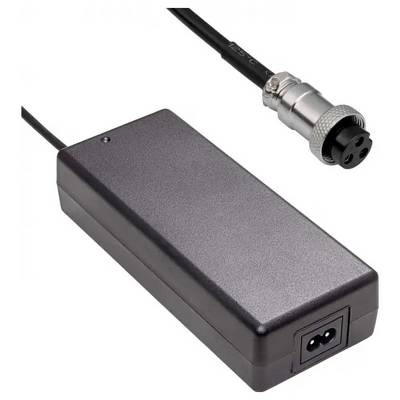

Akyga® AK-EV-23 is a professional electric bike charger designed for users who have a defective original charger or need an additional power source at work. The device provides a voltage of 84 V and a current of 2 A, WAS of 168 W corresponds – Ideal for the fast and efficient charging of lithium-ion batteries in a 20S configuration (72 V).

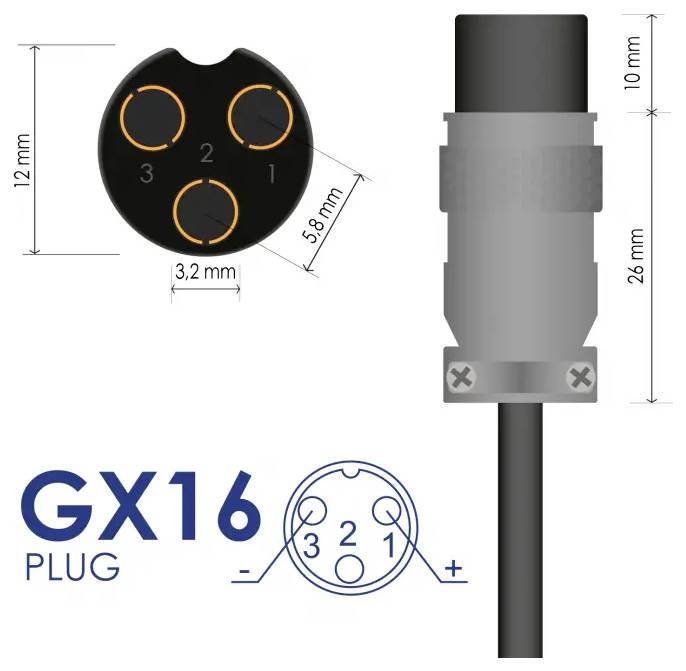

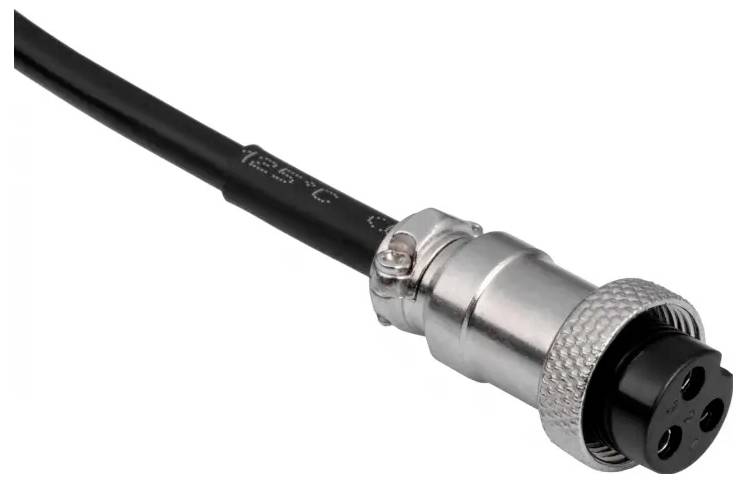

This charger is equipped with the popular GX16 3-pin plug (12 mm), which ensures a stable connection to the battery and complete compatibility with a wide range of electric bicycles, scooters and other electric mobility vehicles.
With advanced security features such as OVP (overvoltage protection), OCP (over-current protection), SCP (short-circuit protection) and OTP (overheating protection), the AK-EV-23 electric bike charger protects both battery and user. You can be sure that the charging process is completely safe even when used for a long time.

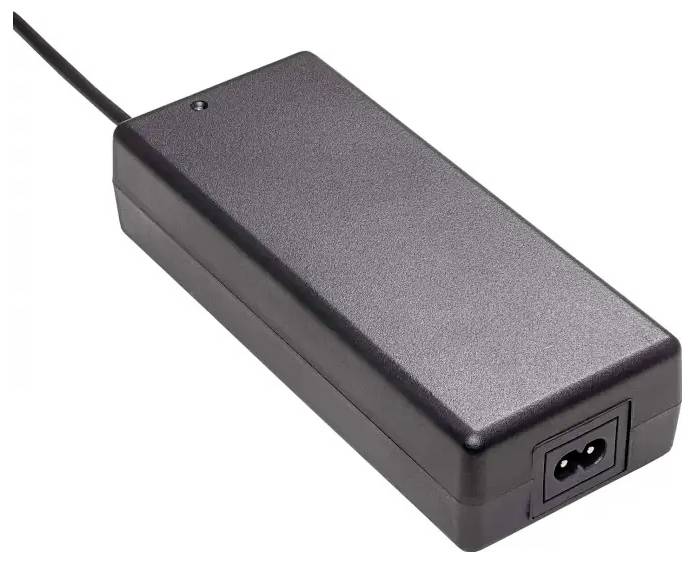

The charger casing is made of durable, heat-resistant materials. Thanks to its compact size it fits easily in a bag or a backpack and is thus an excellent choice for the home use as well as also while traveling.
This text is machine translated.
This charger is equipped with the popular GX16 3-pin plug (12 mm), which ensures a stable connection to the battery and complete compatibility with a wide range of electric bicycles, scooters and other electric mobility vehicles.
With advanced security features such as OVP (overvoltage protection), OCP (over-current protection), SCP (short-circuit protection) and OTP (overheating protection), the AK-EV-23 electric bike charger protects both battery and user. You can be sure that the charging process is completely safe even when used for a long time.
The charger casing is made of durable, heat-resistant materials. Thanks to its compact size it fits easily in a bag or a backpack and is thus an excellent choice for the home use as well as also while traveling.
This text is machine translated.
