Name: Akyga AK-EV-22 Electric bike battery charger 67.2 V
Brand: Akyga
SKU: 3553677
Availability: InStock

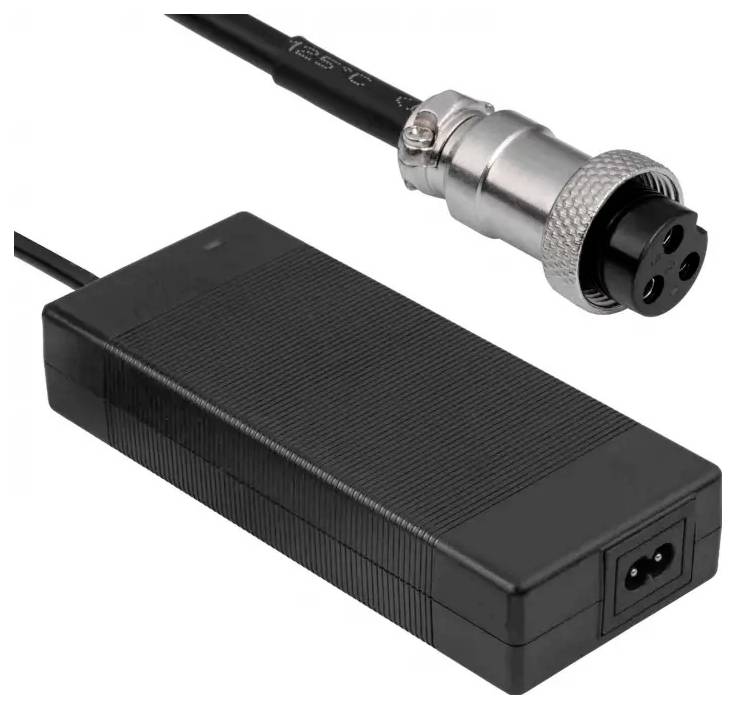

A black power adapter with a three-pin plug connector attached to a cable, used for connecting electronic devices to a power source.

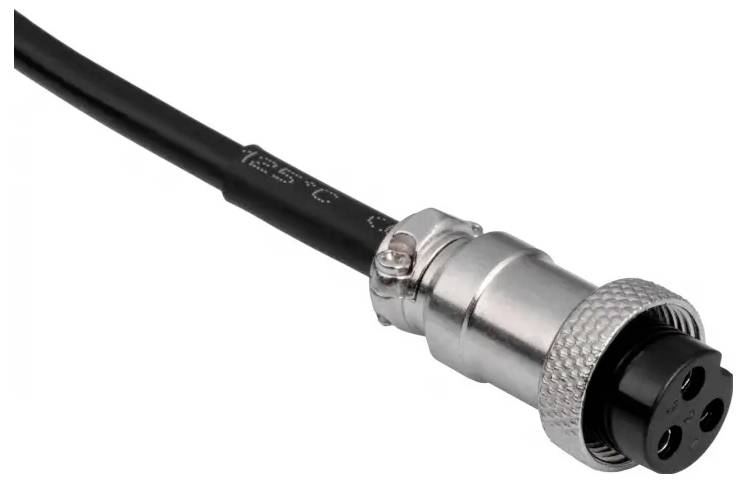

'A close-up of a cylindrical metal plug connector attached to a black cable, showing three circular pinholes, on a white background.'

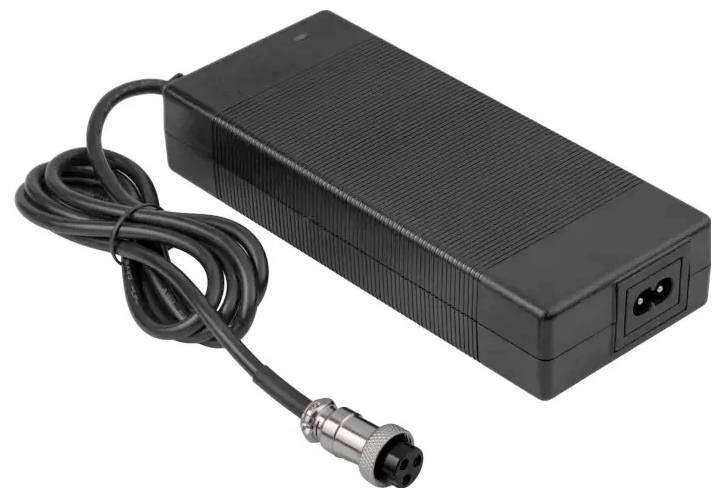

A black rectangular power adapter with a long attached cable ending in a three-pin plug.

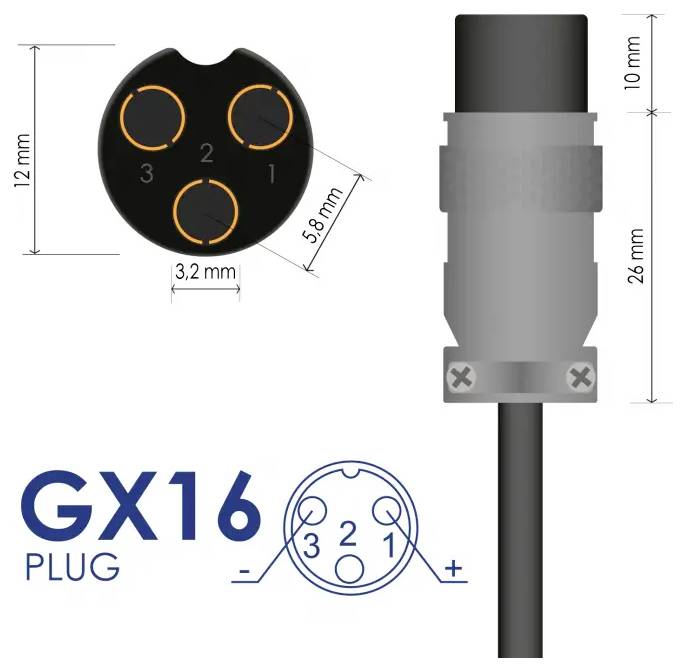

'GX16 Plug' illustration with 3-pin diagram, measurements labeled: 12mm, 3.2mm, 26mm, 10mm, 5.8mm. Indicates pin positioning and size.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

3 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 47.99 / piece)

€ 47.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Output: 135 W
Connection 1: GX16 12 mm (f)
Product color: Black
Packaging dimensions (L x B x H) 190 x 92 x 38 mm
Net weight: 514 g
Gross weight 618 g
Product dimensions (L x W x H) 170 x 77 x 32 mm
Power output 67.2 V
Output current 2 A
Output line GX16 12 mm (f)
Earthing: Without (II protection class)
Manufacturing material: ABS
Length of output cable 1.2 m.
Supply voltage 100-240 V
IP rating: IP20
Power input < 2.5 A.
Capacity: > 80%
Pin length 10 mm
Bolts of a socket: IEC C8
Mechanical shut-off switch: Without
OVP fuse: Yes
OCP Backup: Yes
OPP fuse: Yes
SCP fuse: Yes
Ferrite filter: Without
Supply cable in set: None
Illumination color: Two-colored diode
Display: None
MTBF 10000 h

Product type: Electric bike battery charger

Battery voltage: 67.2 V

Rechargeable battery technology: Li-ion

Weight: 618 g

Suitable for: Elektrofahrrädern. Rollern und anderen E-Mobilitätsfahrzeugen. Lithium-Ionen-Akkus

Width: 77 mm

Height: 32 mm

Depth: 32 mm

Current limitation: 2 A

Length: 170 mm

: IP20

Material: Acrylonitrile butadiene styrene

Nominal current: 2 A

Nominal voltage: 67.2 V

: 135 W

Documents & Downloads

Datasheet

Datasheet 3553677 Akyga AK-EV-22 Electric bike battery charger 67.2 V

User & Safety Instructions

User & Safety Instructions 3553677 Akyga AK-EV-22 Electric bike battery charger 67.2 V

Description

The Akyga® AK-EV-22 Electric Bike Charger is Ideal for situations where fast and safe charging is essential. It delivers a voltage of 67.2 V and an output power of 135 W – perfect for lithium-ion batteries in a 16S (60 V) configuration. Thanks to the standard plug GX16 (12 mm), the power supply is compatible with a large number of electric bicycles, scooters and other electric mobility vehicles.

The housing of the AK-EV-22 bicycle charger is made of sturdy, durable materials and is thus Ideal for use at home and while traveling. Thanks to its small size and robust design, the charger fits easily in a pocket or backpack – so you always have it handy when you need it.

The charger AK-EV-22 is a great alternative to original power supplies - it works just as effectively and is often even more reliable. Advanced security features (OVP, OCP, SCP, OTP) ensure complete protection both for the device to be charged and for the user.

This text is machine translated.
