Buy Akyga AK-EV-18 Electric bike battery charger 36 V

A black rectangular power adapter with a ribbed top and a connector cable, used for charging or supplying power to electronic devices.

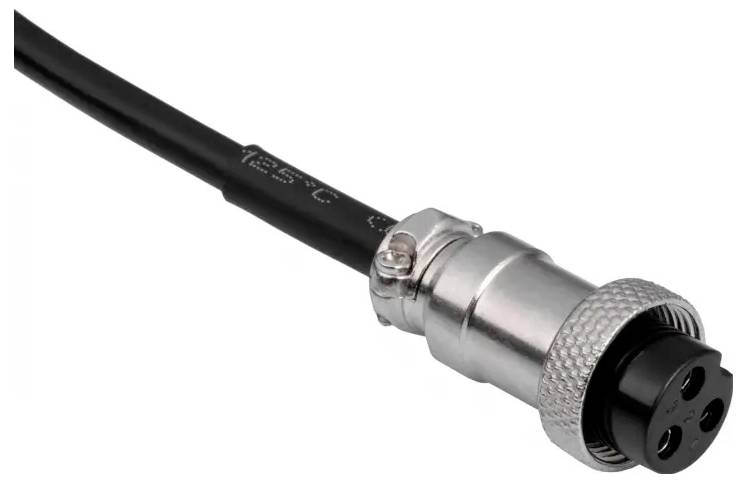

A close-up of a black, industrial-grade cable with a metal connector. The connector features three pinholes and is secured with a locking ring.

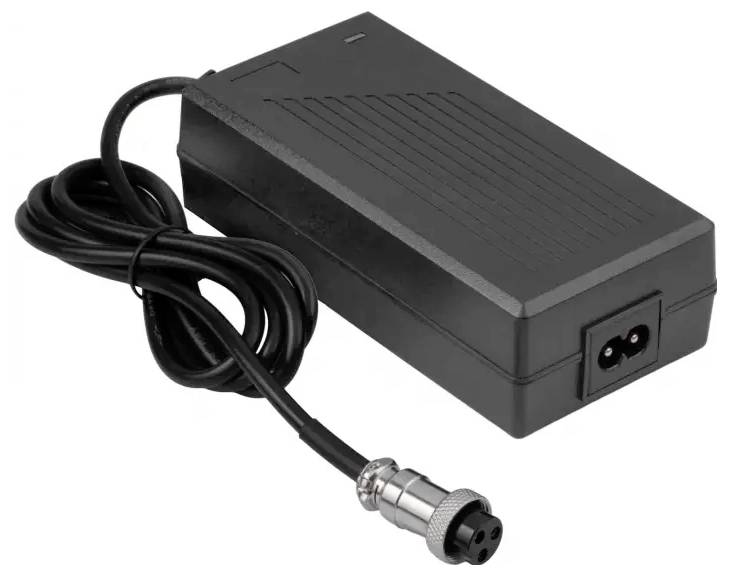

A black power adapter with a three-prong cable connector, designed for electronic devices, showing a ridged surface on the housing.

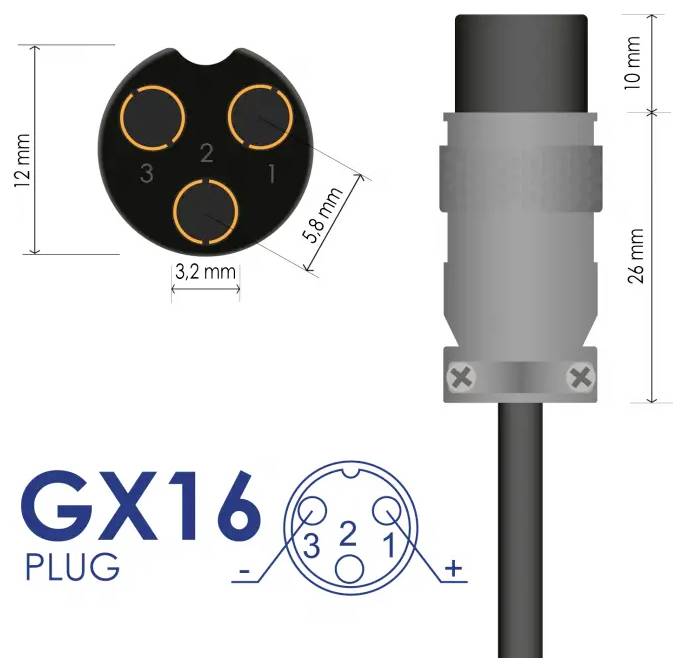

Diagram of GX16 plug with measurements. Pin layout shows three circular pins labeled '1', '2', '3' and ground. Dimensions: 12mm, 10mm, 5.8mm, 3.2mm.

1/4

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 28.56 / piece)

€ 28.56

plus VAT.

Only 9 Piece(s) available

14 days return policy included

Report legal concerns

Technical specifications

Power: 84 W
Connection 1: GX16 12 mm (f)
Product color: Black
Packaging dimensions (L x B x H) 190 x 92 x 38 mm
Net weight: 408 g
Gross weight 506 g
Product dimensions (L x W x H) 136 x 66 x 40 mm
Power output 42 V
Output current 2 A
Output line GX16 12 mm (f)
Earthing: Without (II protection class)
Manufacturing material: ABS
Length of output cable 1.2 m.
Supply voltage 100-240 V
IP rating: IP20
Capacity: > 80%
Pin length 10 mm
Bolts of a socket: IEC C8
Mechanical shut-off switch: Without
OVP fuse: Yes
OCP Backup: Yes
OPP fuse: Yes
SCP fuse: Yes
Ferrite filter: Without
Supply cable in set: None
Illumination color: Two-colored diode
Display: None
MTBF 10000 h

Product type: Electric bike battery charger

Battery voltage: 36 V

Rechargeable battery technology: Li-ion

Weight: 506 g

Suitable for: E-Bikes. Skateboards und Elektrorollern

Width: 66 mm

Height: 40 mm

Depth: 40 mm

Length: 136 mm

: IP20

Material: Acrylonitrile butadiene styrene

Nominal current: 2 A

Nominal voltage: 42 V

: 84 W

Documents & Downloads

Datasheet

Datasheet 3553674 Akyga AK-EV-18 Electric bike battery charger 36 V

User & Safety Instructions

User & Safety Instructions 3553674 Akyga AK-EV-18 Electric bike battery charger 36 V

Description

The Akyga® AK-EV-18 charger is a reliable device designed to efficiently charge electric scooters and other vehicles with 10S (36 V) lithium-ion batteries such as electric bikes, skateboards, and electric scooters. With an output voltage of 42 V and a common GX16 plug, the charger fits many models available on the market and offers a universal solution for users of e-mobility.

The Akyga® AK-EV-18 charger for electric scooters enables fast and safe charging of 84 W power batteries. The power supply also features a range of advanced safety features, including OVP (overvoltage protection), OCP (over-current protection), SCP (short-circuit protection) and OTP (overheating protection). This means that the loading process is not only efficient but also safe – for the machine as well as for the user.

The electric scooter charger AK-EV-18 has a compact housing made of materials that are resistant to high temperatures and mechanical damage. Thanks to its light design, it fits easily in a bag or a backpack so that you can charge your battery at home, at work or even while traveling. It is a practical accessory for those who value mobility and reliability.
