Name: PCE Instruments PCE-PIC 20 Inspection camera Probe diameter: 23 mm Probe length: 20 m
Brand: PCE Instruments
SKU: 2452588
Availability: InStock

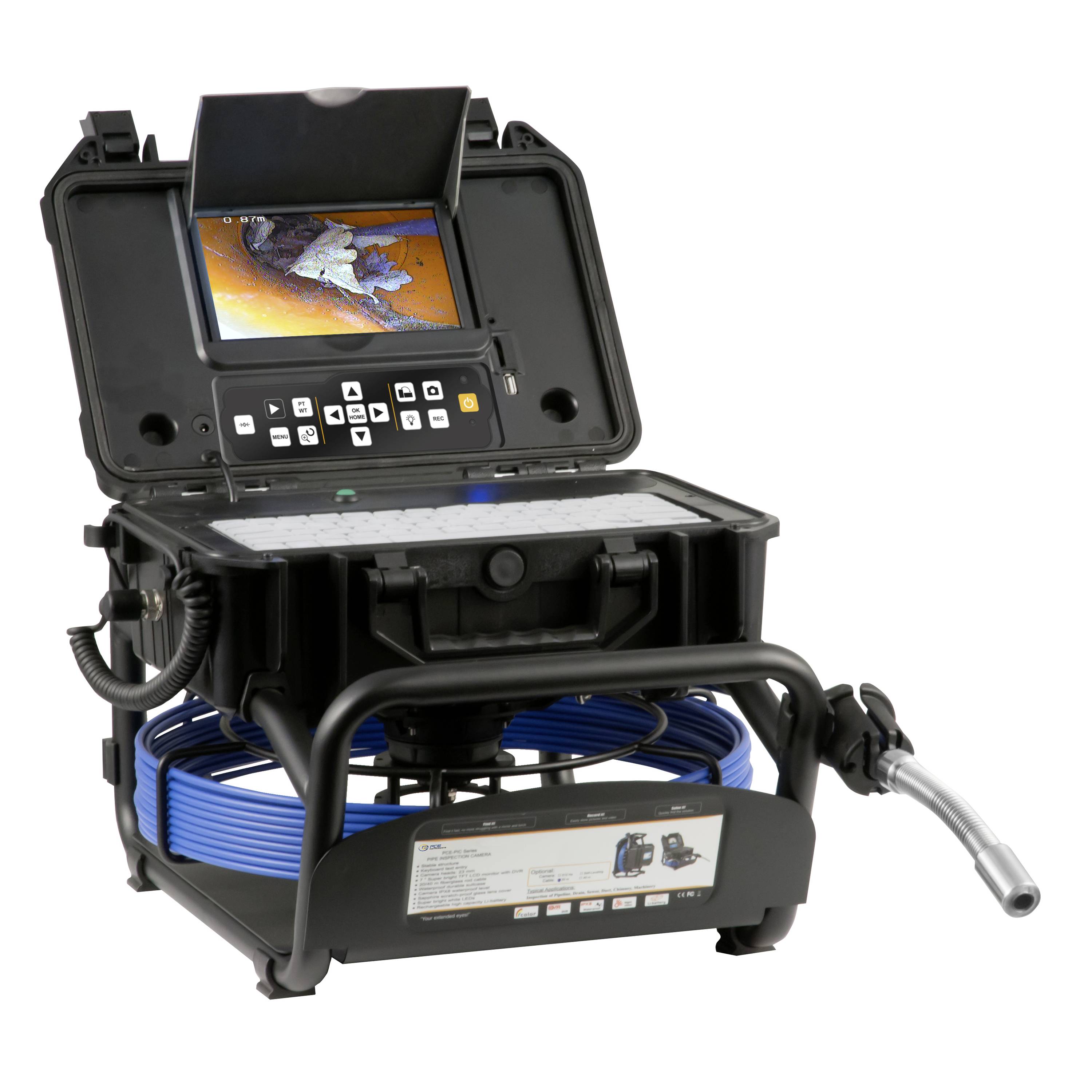

Portable sewer inspection camera system with open monitor case, control panel, coiled blue cable, and attached probe wand.<br>

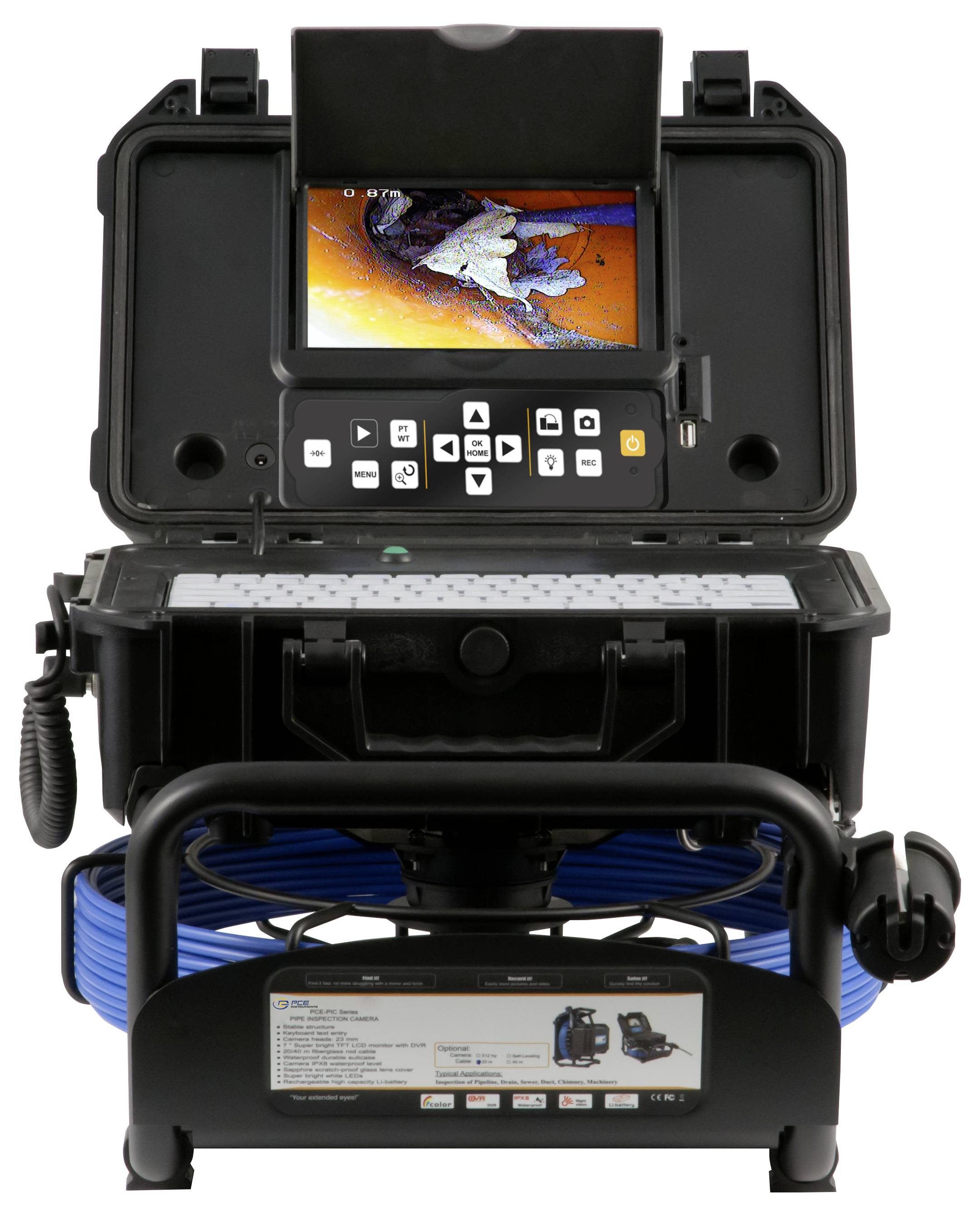

Portable sewer inspection camera system in a wheeled case, with a built-in monitor showing a pipe interior and coiled blue cable below.

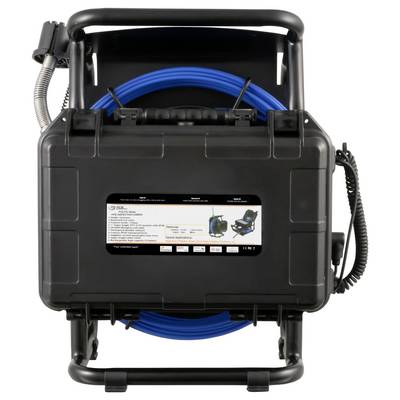

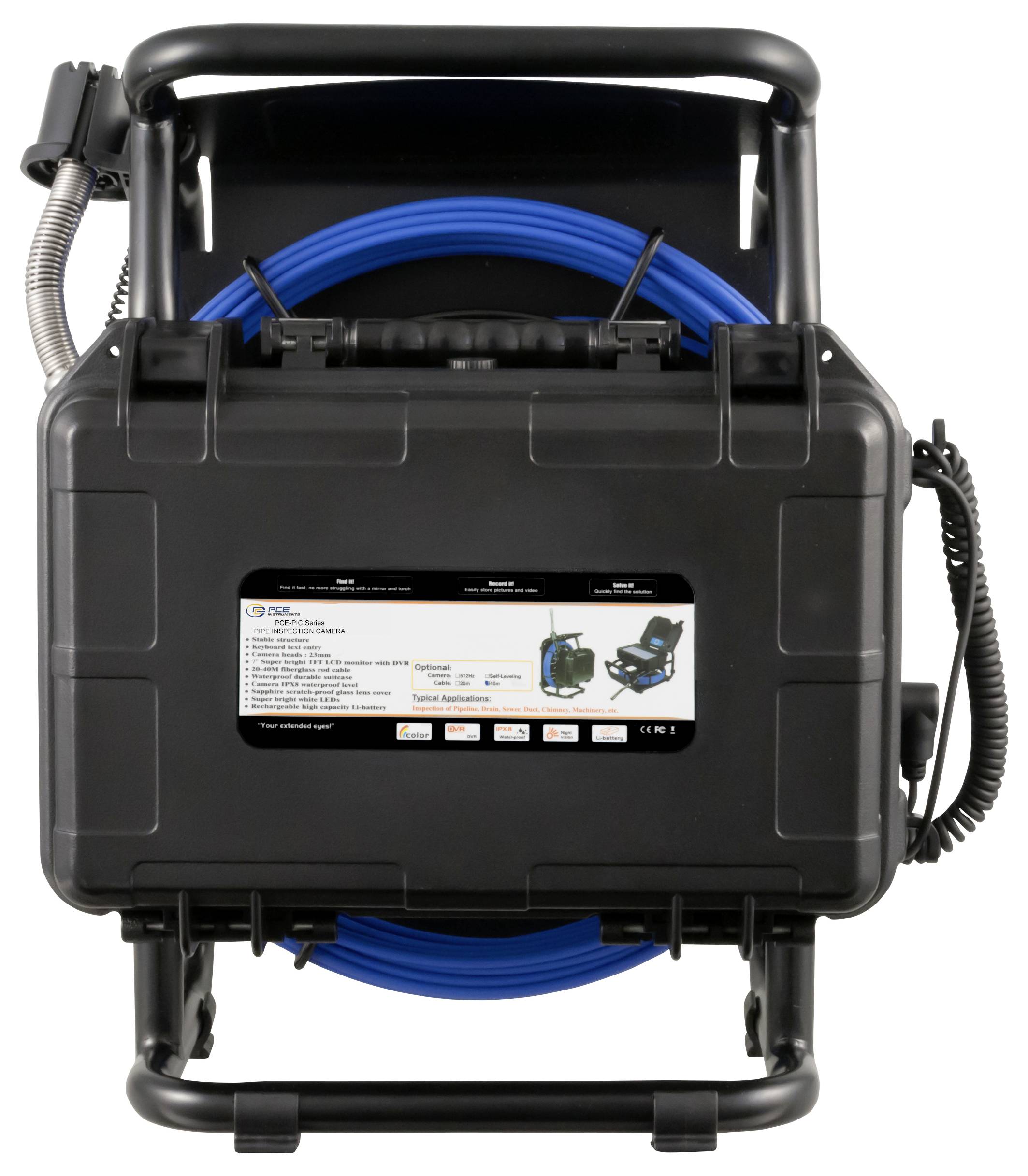

Black portable equipment case with a handle, blue coiled hose, and attached cord, shown against a white background.

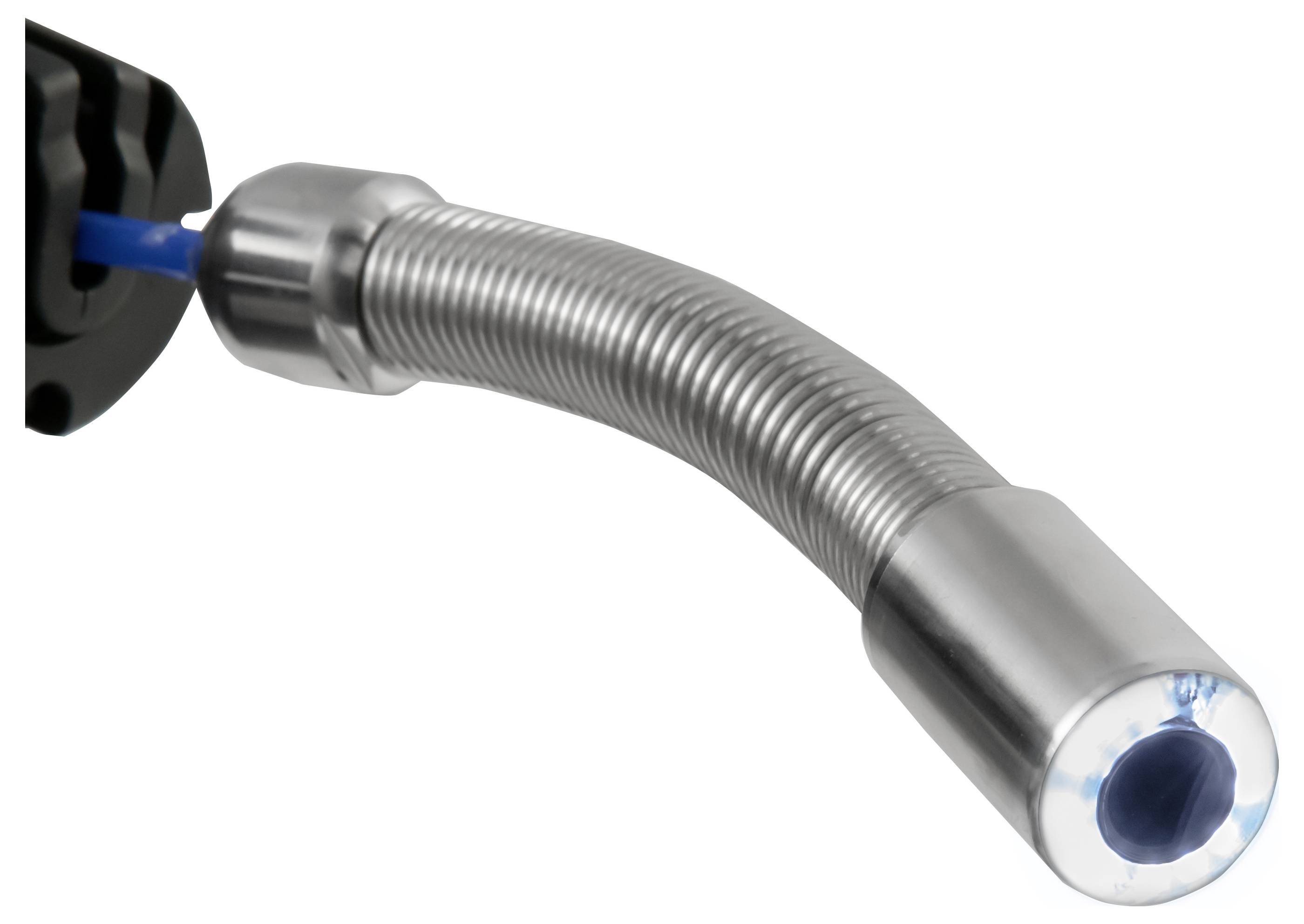

Close-up of a flexible corrugated metal hose or conduit with shiny fittings, connected to a black nozzle on a white background.

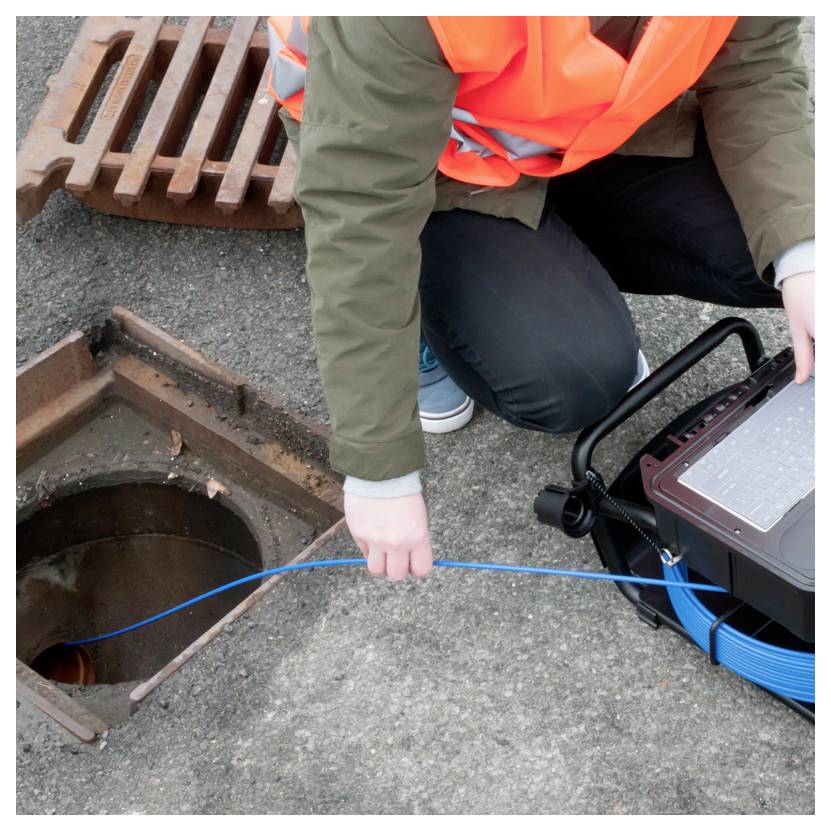

Worker in orange safety vest lowers a blue cable into an open manhole beside a street drain, using inspection equipment.<br>

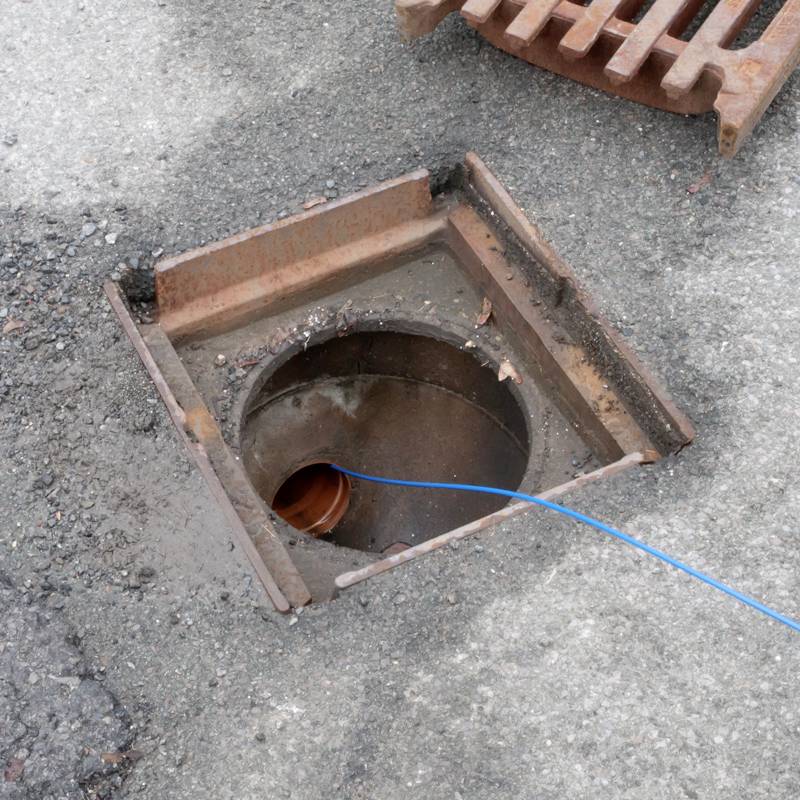

An open manhole cover with a visible sewage pipe and a blue cable inside, on an asphalt road.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,145.00 / piece)

€ 2,145.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Boroscope PCE-PIC 20

20 m connecting cable
Electronic meter counting
23 mm camera head
Keyboard for entering comments
Endoscope cable braked
12x LED lighting
Battery and mains operation
waterproof up to 20 m.
IP66 carrying case
90° radius of curvature at min. Ø 45 mm

Technical specifications

Cable diameter / head diameter 23 mm Cable length PCE-PIC 20: 20 m Field of view 20 ... 100 cm viewing angle 120° Lighting 12 x LED (dimmable) White balance automatic Image sensor 1/3 " Sony CCD 720 x 576 Pixel Display 7 " LC display Interface USB 2.0 storage possibility Video, Photo and sound Image memory SD card up to 32 GB Video output format PAL 720 x 576 Pixel NTSC 720 x 488 Pixel Menu navigation Multilingual: German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian Length measurement 0 ... 20 m data input possible by keyboard Operating conditions -10 ... 50 °C / 30 ... 90 % r.H. Storage conditions -20 ... 60 °C / 30 ... 90 % r.F. Power supply 110V ... 240V AC / 12V / 1.2 A DC Li ion battery 7.4 V / 5400 mAh Protection class Display: IP66 Camera head: Up to 20 m waterproof Dimensions complete: 55 x 43.5 x 34.5 cm Camera head: 23 x 45 mm (total length: 150 mm) Weight approx. 13 kg

Product type: Inspection camera

Probe diameter: 23 mm

Probe length: 20 m

Endoscope features: Battery indicator
Auto-switch off
SD card slot
High-resolution
Waterproof
Image rotation
Image function
Digital zoom
Exchangeable camera attachment
Video output
Sprayproof screen
LED lit
Show more

Camera resolution: 720 x 576 Pixel

: IP67/IP69K
IP65/67
Splash-proof controller
IP69/IP69K

Field of view: 120°

Weight: 13 kg

Dim: (L x W x H) 55 x 34.5 x 43.5 cm

Length: 55 cm

Width: 34.5 cm

Height: 43.5 cm

Type: PCE-PIC 20

Variants(All information include VAT, plus shipping costs)

Camera resolution

Endoscope features

IP rating

Probe diameter

Probe length

Product type

PCE Instruments PCE-PIC 20 Inspection camera Probe diameter: 23 mm Probe length: 20 m

Item no:2452588

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

This article

720 x 576 Pixel

Battery indicator

IP67/IP69K

23 mm

20 m

Inspection camera

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,145.00^*

PCE Instruments PCE-IVE 330 Borescope Probe diameter: 23 mm Probe length: 320 mm

Item no:2452790

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

704 x 576 Pixel

Video output

23 mm

320 mm

Borescope

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,425.00^*

PCE Instruments PCE-RS 27 Endoscope Probe diameter: 2.7 mm Probe length: 175 mm

Item no:2452614

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

High-resolution

2.7 mm

175 mm

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,265.00^*

PCE Instruments PCE-VE 100N4 Endoscope Probe diameter: 6 mm Probe length: 1 m

Item no:2452797

Dispatches on Fri 30 Oct

Conrad Electronic

960 x 720 Pixel

LED lit

IP65

6 mm

1 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,725.00^*

PCE Instruments PCE-IVE 320 Borescope Probe diameter: 23 mm Probe length: 320 mm

Item no:2452488

Unavailable

Conrad Electronic

704 x 576 Pixel

LED lit

23 mm

320 mm

Borescope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-PIC 120 Endoscope Probe diameter: 60 mm Probe length: 120 m

Item no:2452587

Unavailable

Conrad Electronic

1920 x 1080 Pixel

Video output

IP68

60 mm

120 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

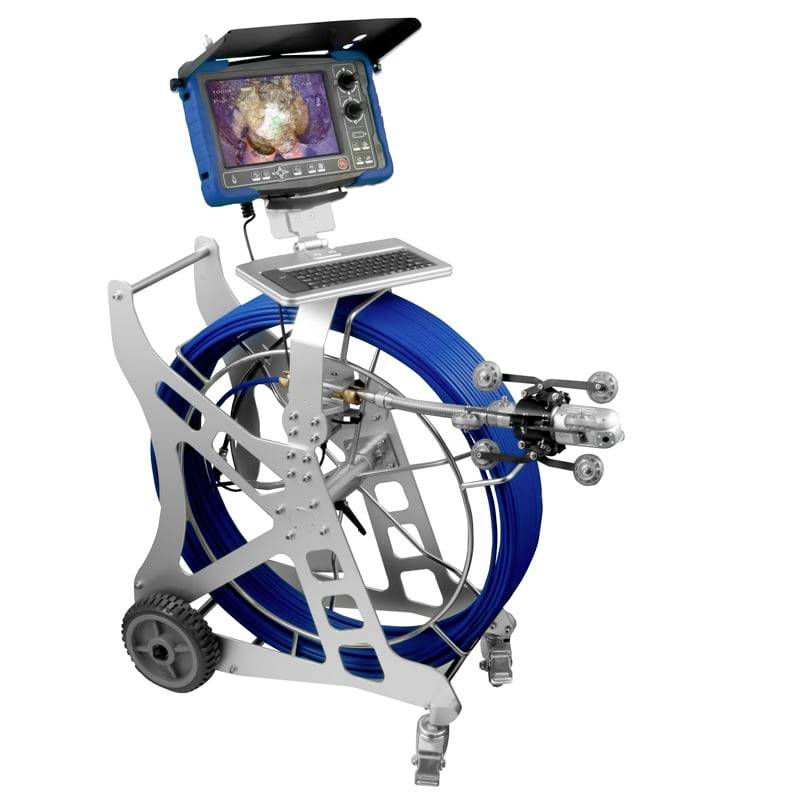

PCE Instruments PCE-PIC 60 Endoscope Probe diameter: 60 mm Probe length: 60 m

Item no:2452832

Unavailable

Conrad Electronic

1920 x 1080 Pixel

LED lit

IP68

60 mm

60 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-VE 200-S Endoscope Probe diameter: 3.7 mm Probe length: 1 m

Item no:2452704

Unavailable

Conrad Electronic

640 x 480 Pixel

LED lit

IP54

3.7 mm

1 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-VE 200-S3 Endoscope Probe diameter: 3.7 mm Probe length: 3 m

Item no:2452705

Unavailable

2 Piece(s)Conrad Electronic

640 x 480 Pixel

LED lit

IP54

3.7 mm

3 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

PCE Instruments PCE-VE 200SV3 Endoscope Probe diameter: 9 mm Probe length: 3 m

Item no:2452791

Unavailable

Conrad Electronic

640 x 480 Pixel

LED lit

IP54

9 mm

3 m

Endoscope

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2452588 PCE Instruments PCE-PIC 20 Inspection camera Probe diameter: 23 mm Probe length: 20 m

User & Safety Instructions

User & Safety Instructions 2452588 PCE Instruments PCE-PIC 20 Inspection camera Probe diameter: 23 mm Probe length: 20 m

Description

Boroscope PCE-PIC 20 channel camera with 20 m connecting cable / waterproof up to 20 m / meter counting / keyboard input possible for comments / SD memory The channel camera of the PCE-PIC series is an ideal tool for every service technician who needs to visually inspect pipes and channels. The channel camera has a 23 mm camera head that is attached to a fiber optic connecting cable. The channel camera is ideal for pipes and channels DN40 ... 150 mm. The camera of the channel camera is waterproof up to 20 m. The channel camera has an electronic meter count to facilitate the search for damaged spots on channels and pipes. Recorded images and videos can be stored on an SD memory card via the channel camera. For better documentation, comments can be added to the pictures and videos using the keyboard. The channel camera is supplied in a waterproof case. The case of the channel camera is mounted directly on the cable reel. This means that the channel camera takes up very little space during transport. The PCE-PIC channel camera is equipped with a rechargeable battery that enables mobile working. The rechargeable battery of the channel camera is charged via a mains adapter or the car charger.
