Name: Phoenix Contact 1731077 Screw terminal 2.50 mm² Number of pins 5 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 788972
Price: 164.99 EUR
Availability: BackOrder

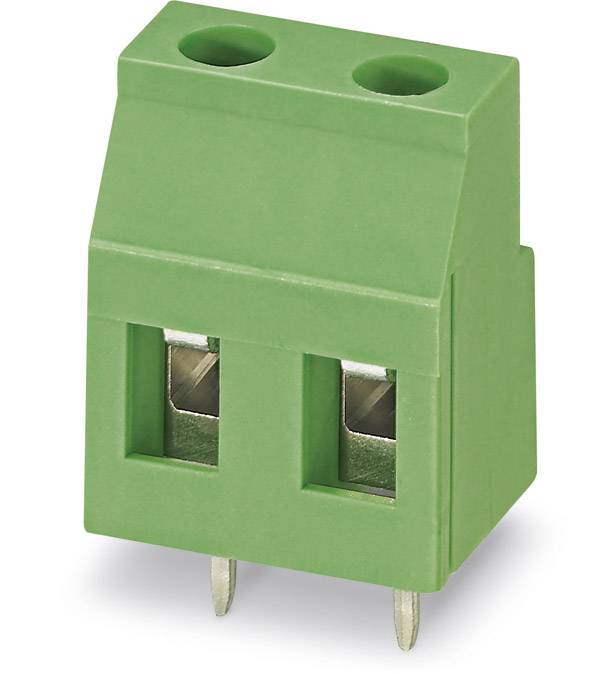

Green connector with two connections and two pins for PCB mounting.

Product type

Screw terminal

7.50 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 3 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.30 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block GMKDS 3/ 5

Content 50 pc(s)

Technical specifications

Type: GMKDS 3/ 5

Product type: Screw terminal

Features: + extractor sleeve

CS: 7.50 mm

No. of rows: 1

Pins per row: 5

Number of pins: 5

Series: GMKDS

Stripping length (max.): 8.00 mm

Connection: Screw terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 4.00 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 12

Contact material: Tin plated

Factory colour: Green

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1731077

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 630 V

Width: 37.50 mm

Height: 23.00 mm

Length: 11.20 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 788972 Phoenix Contact 1731077 Screw terminal 2.50 mm² Number of pins 5 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 788972 Phoenix Contact 1731077 Screw terminal 2.50 mm² Number of pins 5 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 24 A, Nom. voltage: 630 V, Pitch: 7.5 mm, Number of positions: 5, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green
