Name: Phoenix Contact 1930218 Screw terminal 2.50 mm² Number of pins 4 50 pc(s)
Brand: Phoenix Contact
SKU: 788483
Price: 139.99 EUR
Availability: InStock

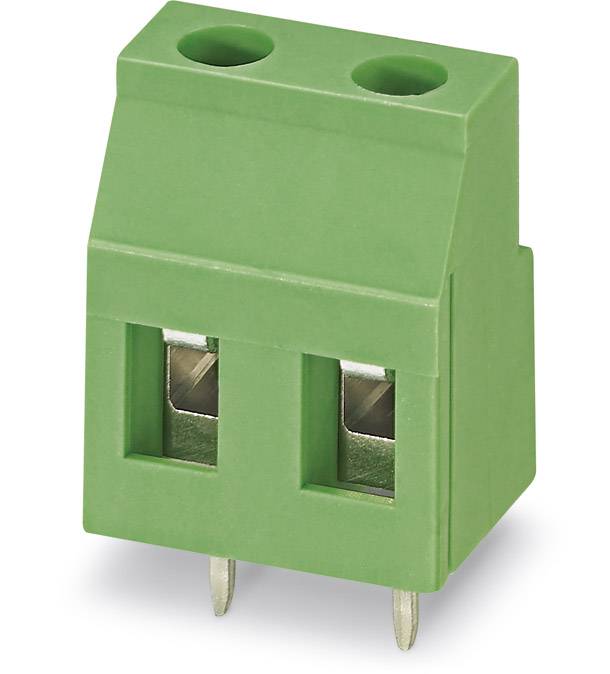

Green connector with two terminals and metal pins on the underside, suitable for mounting on printed circuit boards.

Product type

Screw terminal

7.62 mm

Pins per row

Number of pins

Connection

Screw terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 17 Nov

48 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.80 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block GMKDS 3/ 4-7,62

Content 50 pc(s)

Technical specifications

Type: GMKDS 3/ 4-7,62

Product type: Screw terminal

Features: + extractor sleeve

CS: 7.62 mm

No. of rows: 1

Pins per row: 4

Number of pins: 4

Series: GMKDS

Stripping length (max.): 8.00 mm

Connection: Screw terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 4.00 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 12

Contact material: Tin plated

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1930218

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 630 V

Width: 30.48 mm

Height: 23.00 mm

Length: 11.20 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 788483 Phoenix Contact 1930218 Screw terminal 2.50 mm² Number of pins 4 50 pc(s)

User & Safety Instructions

User & Safety Instructions 788483 Phoenix Contact 1930218 Screw terminal 2.50 mm² Number of pins 4 50 pc(s)

Description

PCB terminal block, Nominal current: 24 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 4, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °
