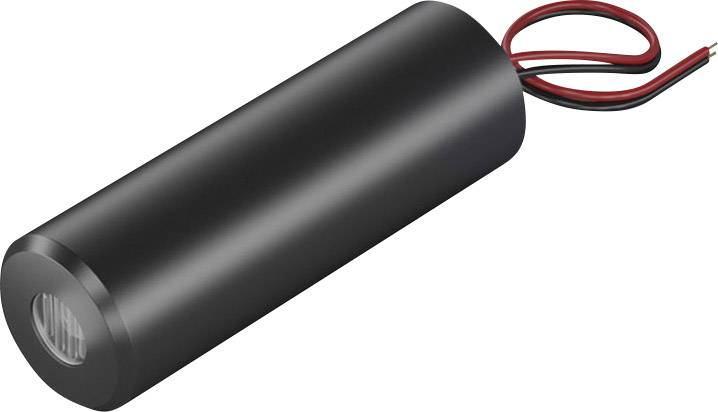

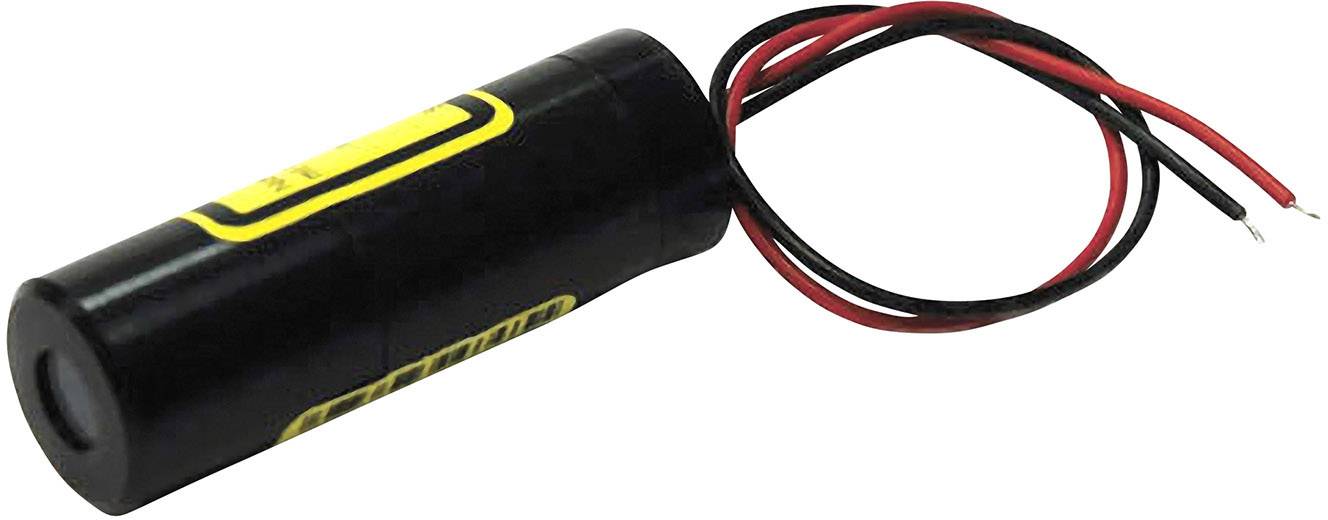

Picotronic Laser module Cross line Red 5 mW CB 635-5-3 (16x45)-PL
Product type
Laser module
Emission characteristics
Cross line
Wavelength
635 nm
Power
5 mW
(Ø)
16 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 159.99 / piece)
€ 159.99
incl. VAT
Only 6 Piece(s) available
Highlights & Details
Insulated Cross laser, red
- Red
- Laser category: 1
- Emission characteristics: Cross line
Technical specifications
- Product type
Laser module
- Type
CB 635-5-3 (16x45)-PL
- Emission characteristics
Cross line
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
635 nm
5 mW

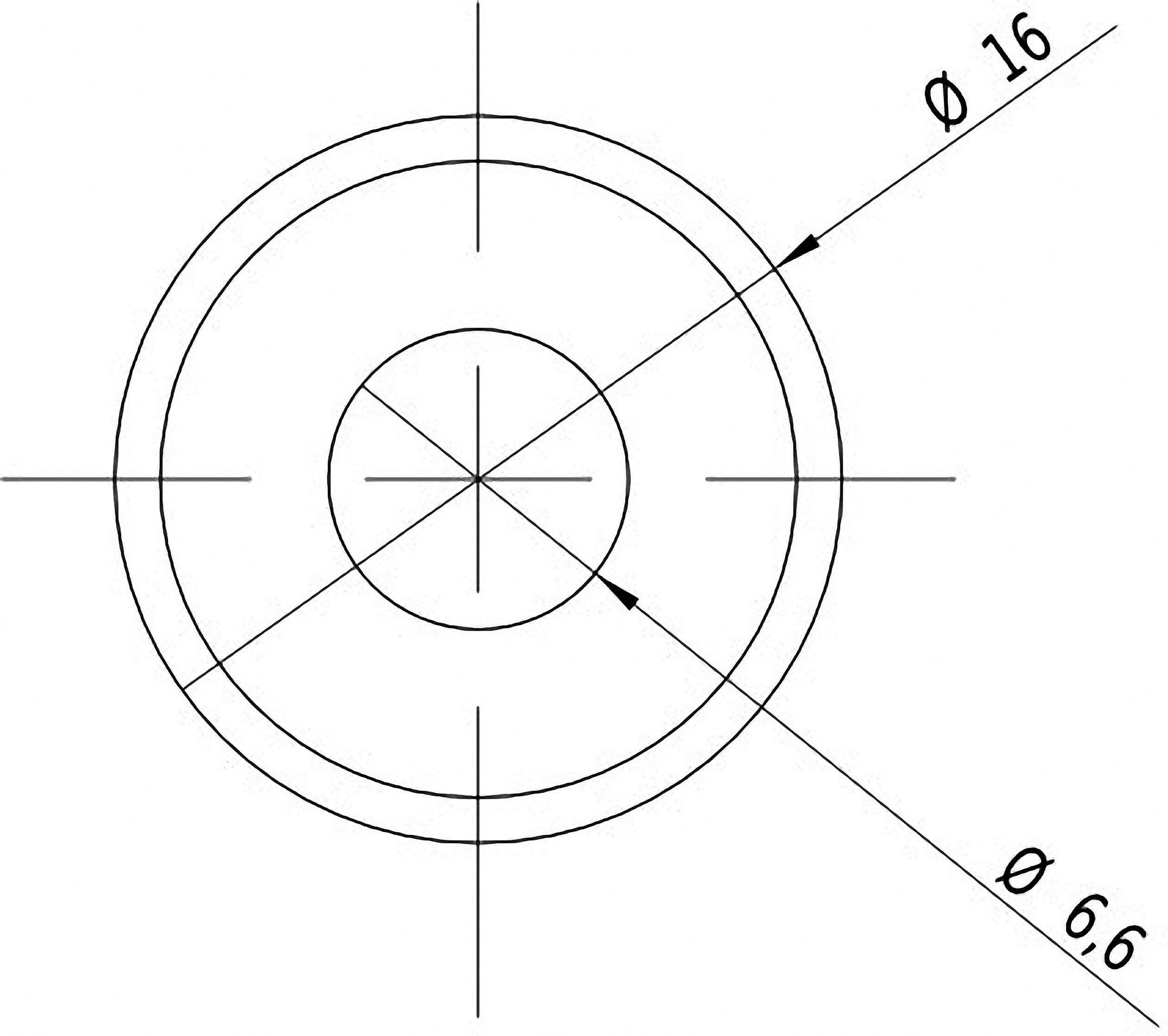

- (Ø)
16 mm
- Length
45 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.3 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
51 mA
- Material
Aluminium

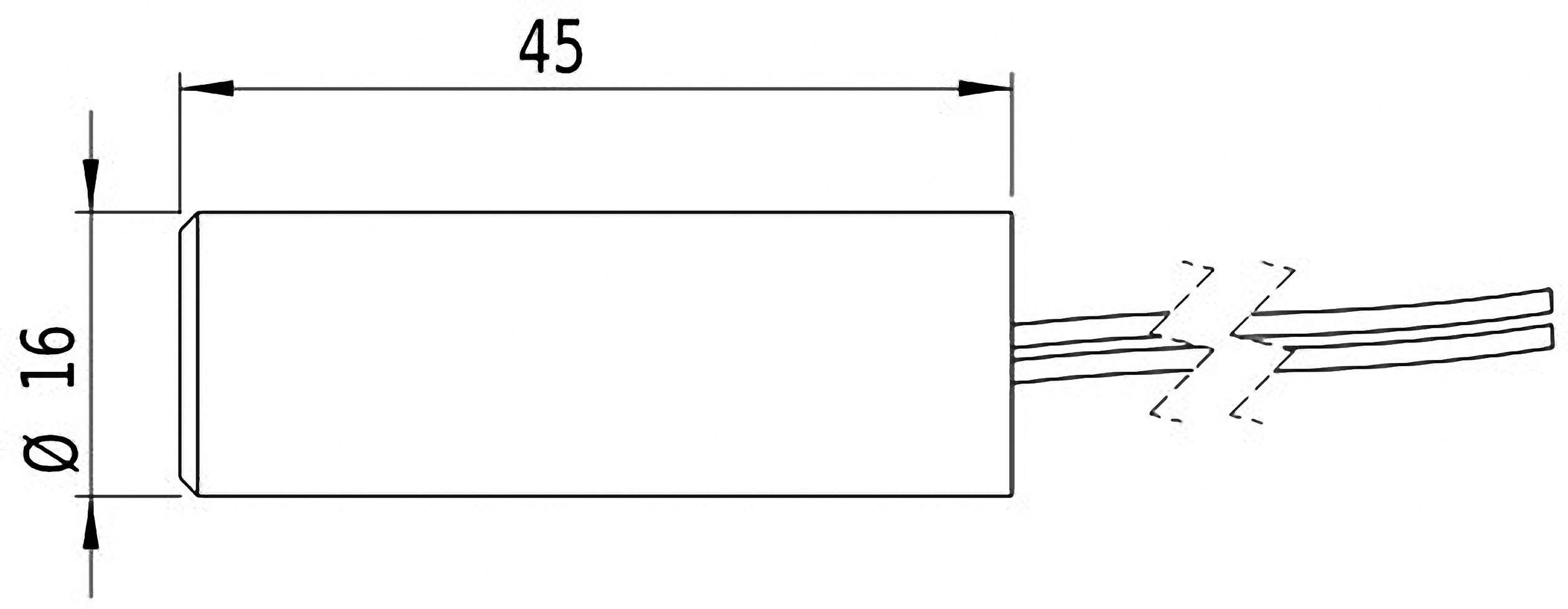

- Dim
(Ø x L) 16 mm x 45 mm
- Weight
24 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283425 Picotronic Laser module Cross line Red 5 mW CB 635-5-3 (16x45)-PL
User & Safety Instructions
User & Safety Instructions 1283425 Picotronic Laser module Cross line Red 5 mW CB 635-5-3 (16x45)-PL
Information
Information 1283425 Picotronic Laser module Cross line Red 5 mW CB 635-5-3 (16x45)-PL
Conformity certificate
Conformity certificate 1283425 Picotronic Laser module Cross line Red 5 mW CB 635-5-3 (16x45)-PL
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
