Name: Renkforce 1034069 Surface-mount PIR motion detector 160 ° Relay White IP44
Brand: Renkforce
SKU: 1034069
Availability: SoldOut

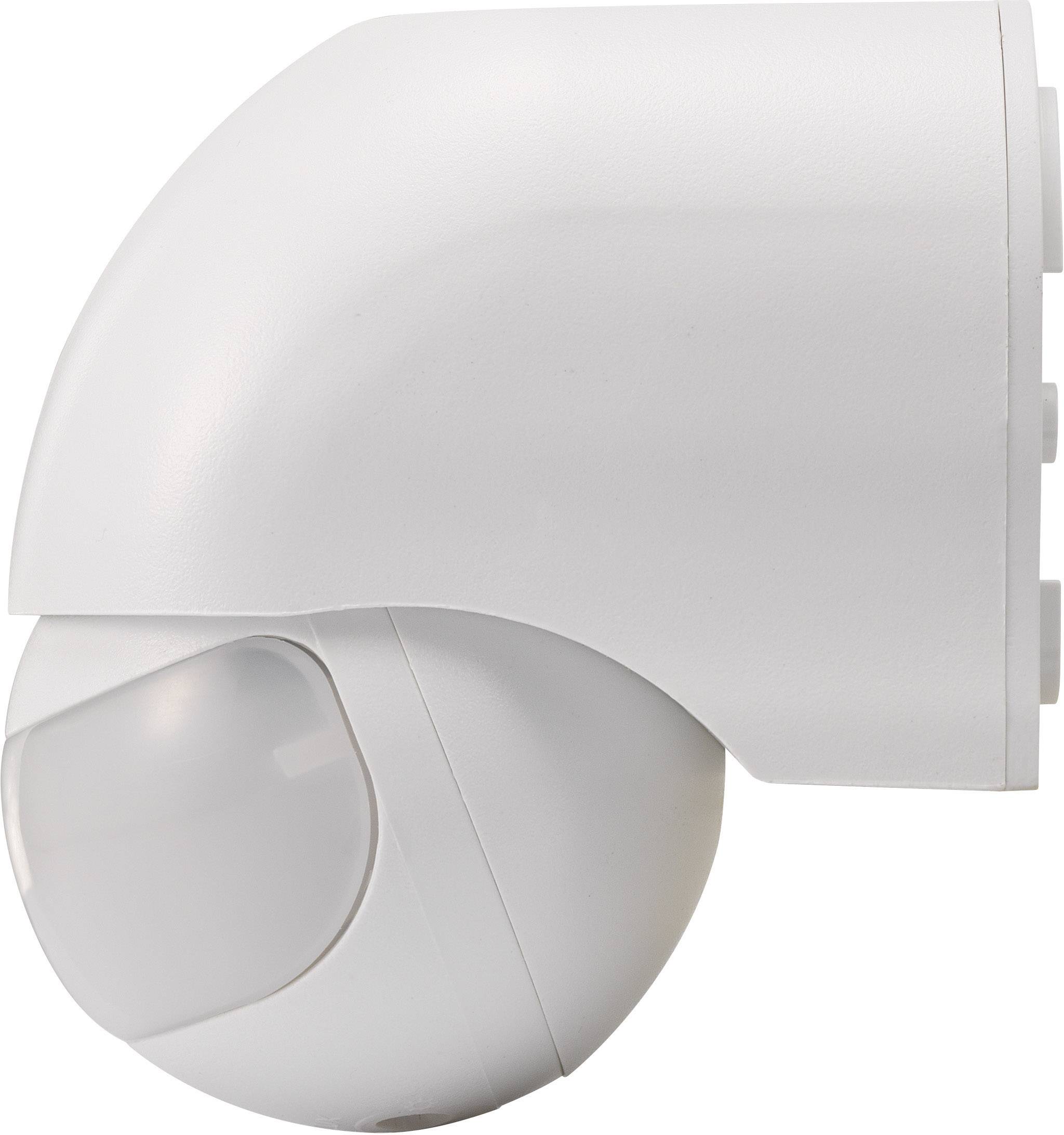

White motion sensor with a rounded housing, suitable for wall mounting.

White motion sensor with spherical design, suitable for wall mounting. Primarily used for motion detection in security and lighting systems.

1/2

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 6.49 / piece)

€ 9.99

-35 %

€ 6.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Motion detector 160° white

Easy installation in entrance areas, driveways or staircases
Ideal for poorly illuminated points
Built-in PIR sensor

Technical specifications

Product type: PIR motion detector

Detection angle: 160°

: 10 m

Used at: Outdoors

Mounting type: Surface-mount

Operating voltage: 230 V

Contact type: Relay

Switching capacity (energy saving bulbs): 300 W

Switching capacity (light bulbs): 1200 W

Switching capacity (halogen bulbs): 1200 W

Switching capacity (light tubes): 300 W

Standby current consumption: 0.45 W

Twilight settings: 3–2000 lx

Time settings: 10s - 7 min

Factory colour: White

: IP44

Width: 63 mm

Height: 92 mm

Dim: (W x H) 63 mm x 92 mm

Weight: 160 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1034069 Renkforce 1034069 Surface-mount PIR motion detector 160 ° Relay White IP44

Information

Information 1034069 Renkforce 1034069 Surface-mount PIR motion detector 160 ° Relay White IP44

Conformity certificate

Conformity certificate 1034069 Renkforce 1034069 Surface-mount PIR motion detector 160 ° Relay White IP44

Description

The motion detector is used for motion detection in indoor and outdoor areas. This can be in entrance areas, driveways or staircases be easily installed.

Connect the motion detector, for example, a light on, to focus illuminated set optimally to illuminate. Via the built-in PIR sensor, the lamp is turned on or off. The sensor responds to temperature changes within the detection area. This is the case, for example, if a person or an animal, with a temperature different from the ambient temperature to the detection area enters the detection area.

This text is machine translated.
