SHURflo 1602699 2088-573-534 Low voltage pressure water pump 810 l/h 30 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Only 4 Piece(s) available
Highlights & Details

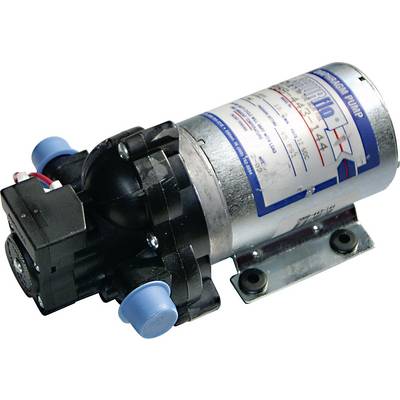

Pump Shurflo Sealed Premium
- Fresh Water Pump 24VDC
- Pressure switch 3.1 bar
- Self-priming, dry-run suitable
- Increased protection against splashing water with electrostatically coated motor
Technical specifications
- Product type
Low voltage pressure water pump
- Max. delivery head
30 m
- Max. feed rate
810 l/h
- Max. discharge pressure
3 bar
- Operating voltage
24 V
- Connection
1/2" NPT
- Length
250 mm
- Width
120 mm
- Height
100 mm
- Dim
(L x W x H) 250 x 120 x 100 mm
- Weight
2.9 kg
Documents & Downloads
Datasheet
Datasheet 1602699 SHURflo 1602699 2088-573-534 Low voltage pressure water pump 810 l/h 30 m
User & Safety Instructions
User & Safety Instructions 1602699 SHURflo 1602699 2088-573-534 Low voltage pressure water pump 810 l/h 30 m
Description
The pumps of the series Shurflo 2088 shall be regarded as a leader in the category of small diaphragm pumps. They are used in a variety of industrial sectors.
This text is machine translated.
This text is machine translated.
Hints
Runtime with pause/ Interval. For the operation of the pump is a power supply or a suitable power source is needed.
