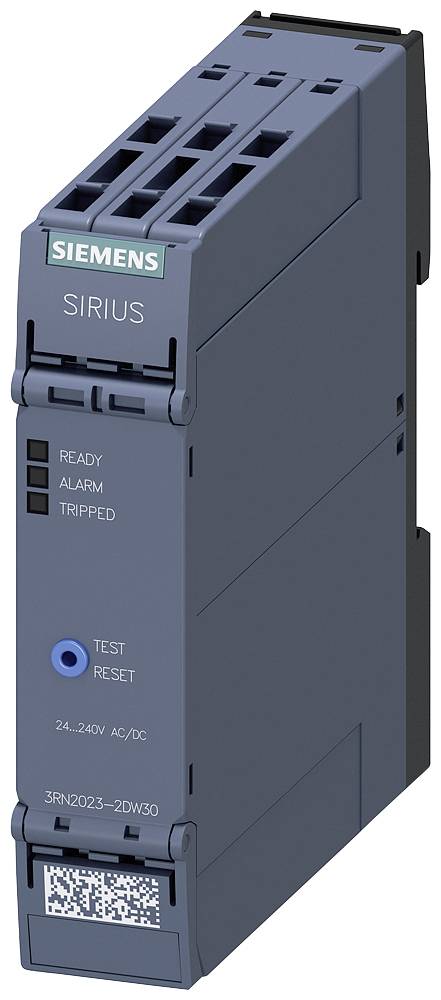

Siemens Thermistor overload relay 1 maker, 1 change-over 1 pc(s) 3RN2023-2DW30 Winding temperature
EAN:
Part number:
Item no:
Product type
Thermistor overload relay
Functions
Winding temperature
Contact type
1 maker
1 change-over
Type
3RN2023-2DW30
Features
+ test button
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
14-day return policy included
Technical specifications
- Thermal current 5 A
- Mounting type: screw and snap-on mounting rail 35 mm
- Isolation voltage: 300 V
- Operating frequency: 50/60 Hz
- Power loss: 1.8 W
- Surge voltage resistance: 6 kV
- Control supply voltage: 240 V
- Operating current: 3 A
- Product type
Thermistor overload relay
- Type
3RN2023-2DW30
- Functions
Winding temperature
- Features
+ test button
- Contact type
1 maker
1 change-over
- Contact material
AgSnO2
- Electrical lifespan
100000
- Durability
1000 0000
- Connection
Spring-loaded connector
- Min. temperature
-25 °C
- Max. temperature
+60 °C
IP20

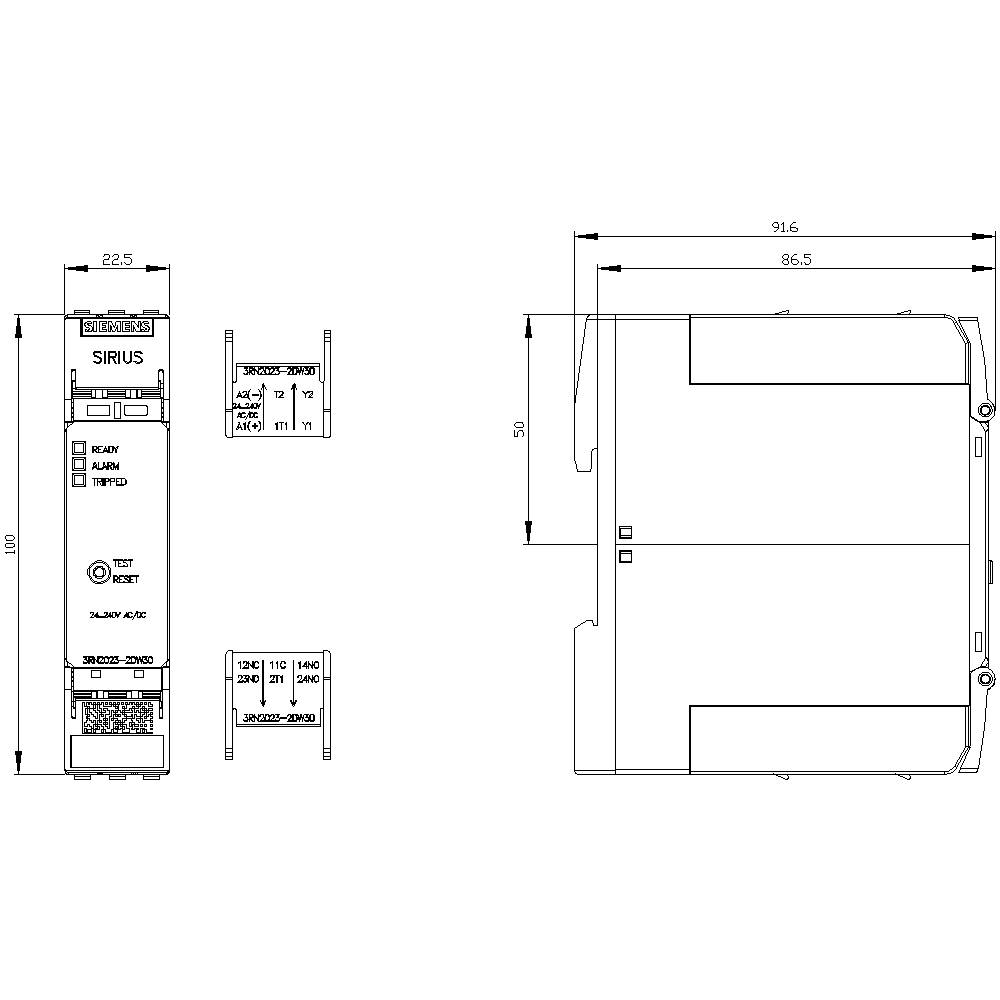

- Width
22.5 mm
- Height
100 mm
- Depth
90 mm
- Dim
(W x H x D) 22.5 x 100 x 90 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
22.5
100 mm
90 mm
TRUE
2
TRUE
Spring clamp connection
0
1
1
- UKCA
yes
