Name: Siemens Thermistor overload relay 24 V DC/AC 1 maker, 1 breaker 1 pc(s) 3RN2010-1CA30 PTC temperature monitoring
Brand: Siemens
SKU: 1741032
Price: 114.99 EUR
Availability: InStock

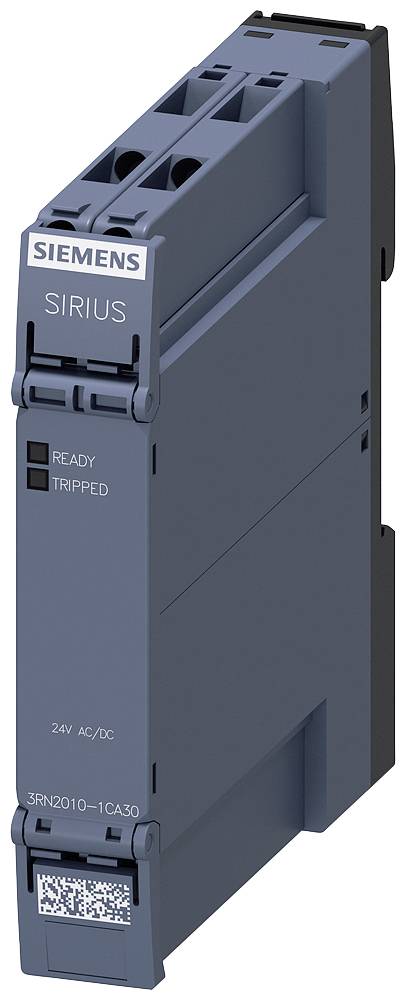

A Siemens SIRIUS industrial relay base in dark grey. Two indicator lights 'READY' and 'TRIPPED'. Labelled '24V AC/DC'. Model number 3RN2010-1CA30.

An electrical control cabinet with various electrical components and wiring. Coloured signal lights are located in the top right corner.

Circuit diagram of a Siemens relay: shows connections and terminals (T1, T2, A1, A2). 'Ready' and 'Tripped' switches marked.

The circuit diagram shows the dimensions and connections of a Siemens SIRIUS control unit. Dimensions: height 93 mm, width 22.5 mm.

1/4

Image similar

Product type

Thermistor overload relay

Functions

PTC temperature monitoring

Contact type

1 maker

1 breaker

Type

3RN2010-1CA30

Operating voltage

24 V DC/AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Thermal current 5 A
Mounting type: screw and snap-on mounting rail 35 mm
Isolation voltage: 300 V
Operating frequency: 50/60 Hz
Power loss: 0.6 W
Surge voltage resistance: 4 kV
Control supply voltage: 24 V
Operating current: 3 A

Product type: Thermistor overload relay

Type: 3RN2010-1CA30

Functions: PTC temperature monitoring

Operating voltage: 24 V DC/AC

Contact type: 1 maker
1 breaker

Contact material: AgSnO2

Electrical lifespan: 100000

Durability: 1000 0000

Connection: Screws

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Width: 17.5 mm

Height: 100 mm

Depth: 90 mm

Dim: (W x H x D) 17.5 x 100 x 90 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Weight: 1000 g

: 17.5

: 100 mm

: 90 mm

: FALSE

: 1

: FALSE

: Screw connection

: 1

: 1

: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1741032 Siemens Thermistor overload relay 24 V DC/AC 1 maker, 1 breaker 1 pc(s) 3RN2010-1CA30 PTC temperature monitoring

User & Safety Instructions

User & Safety Instructions 1741032 Siemens Thermistor overload relay 24 V DC/AC 1 maker, 1 breaker 1 pc(s) 3RN2010-1CA30 PTC temperature monitoring

Description

22MM METAL ROUND ACTUATOR: CES KEY-OPER.SWITCH WITH 2 KEYS MOMENTARY CONTACT TYPE 2 SWITCH POSITIONS O-I LOCK NO SSG 10, REMOVAL POS. O WITH HOLDER !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor type is 3SU1050-5BC01-0AA0 + 3SU1550-0AA10-0AA0
