SpeaKa Professional SP-TVCM-540 TV ceiling mount 94,0 cm (37") - 203,2 cm (80") Tiltable, Swivelling, Height-adjustable
EAN:
Part number:
Item no:
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
14-day return policy included
Highlights & Details

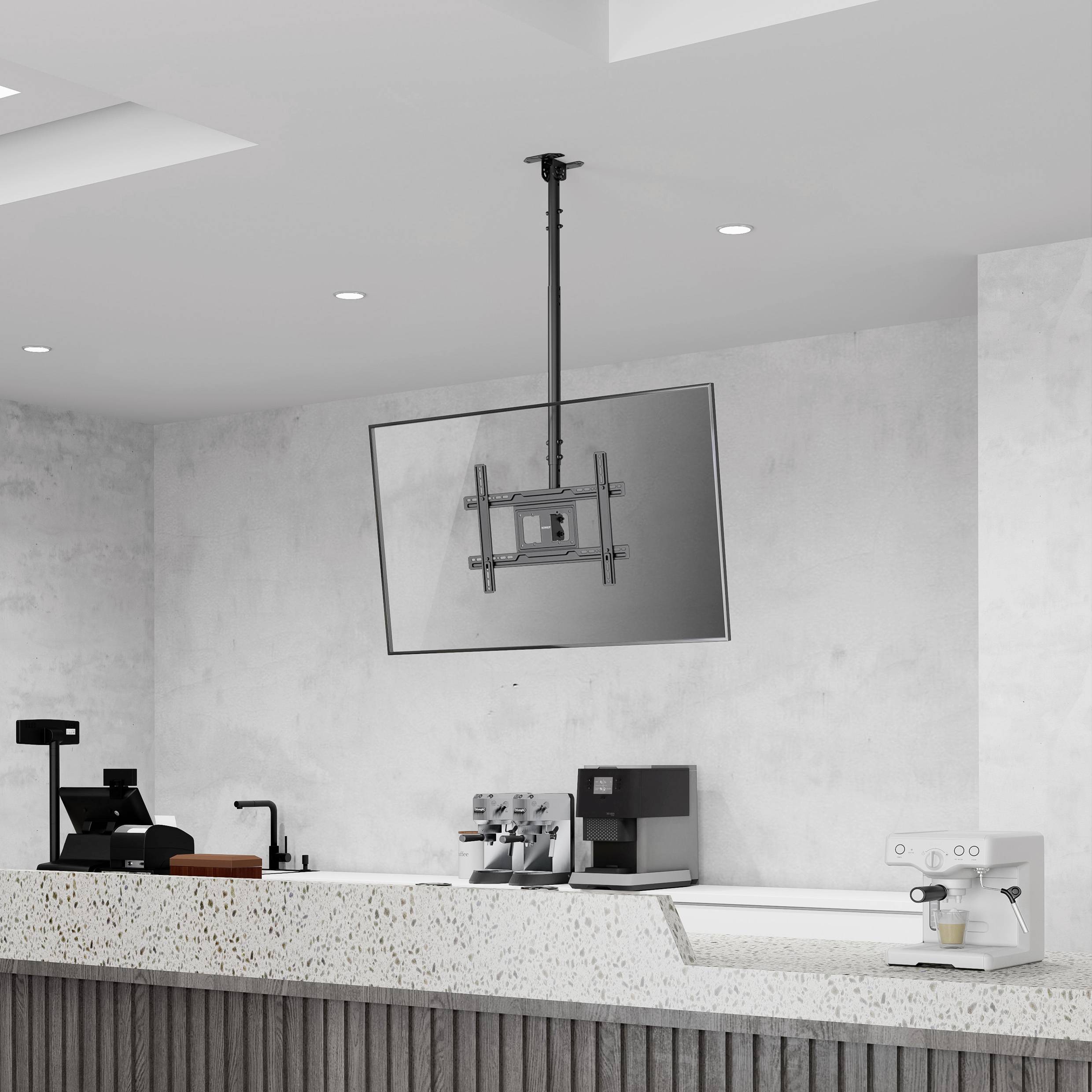

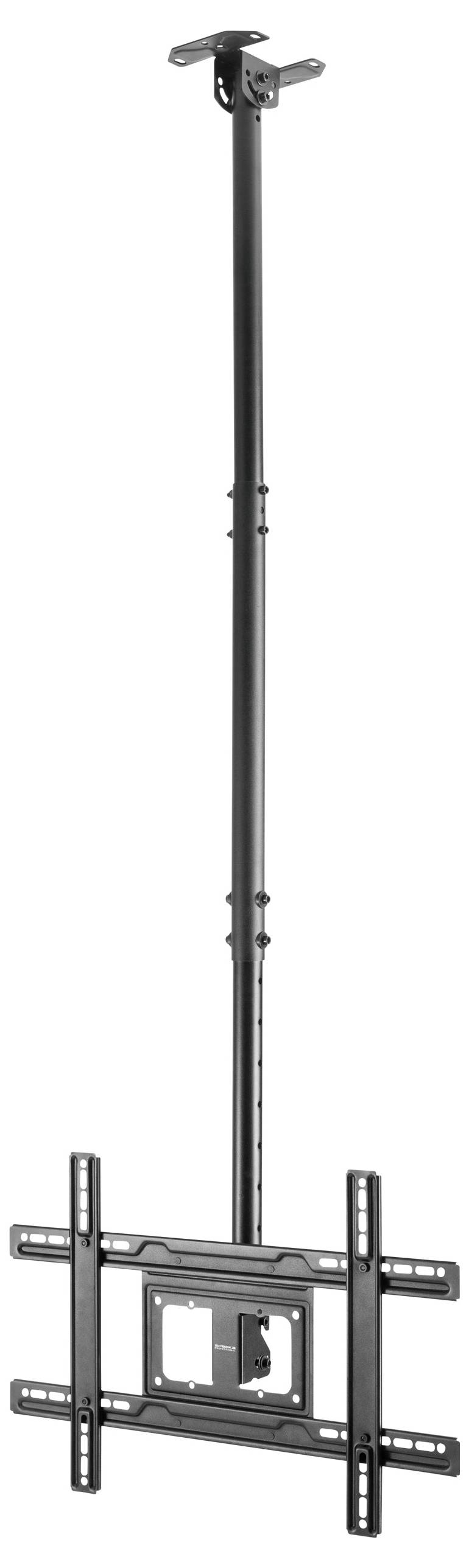

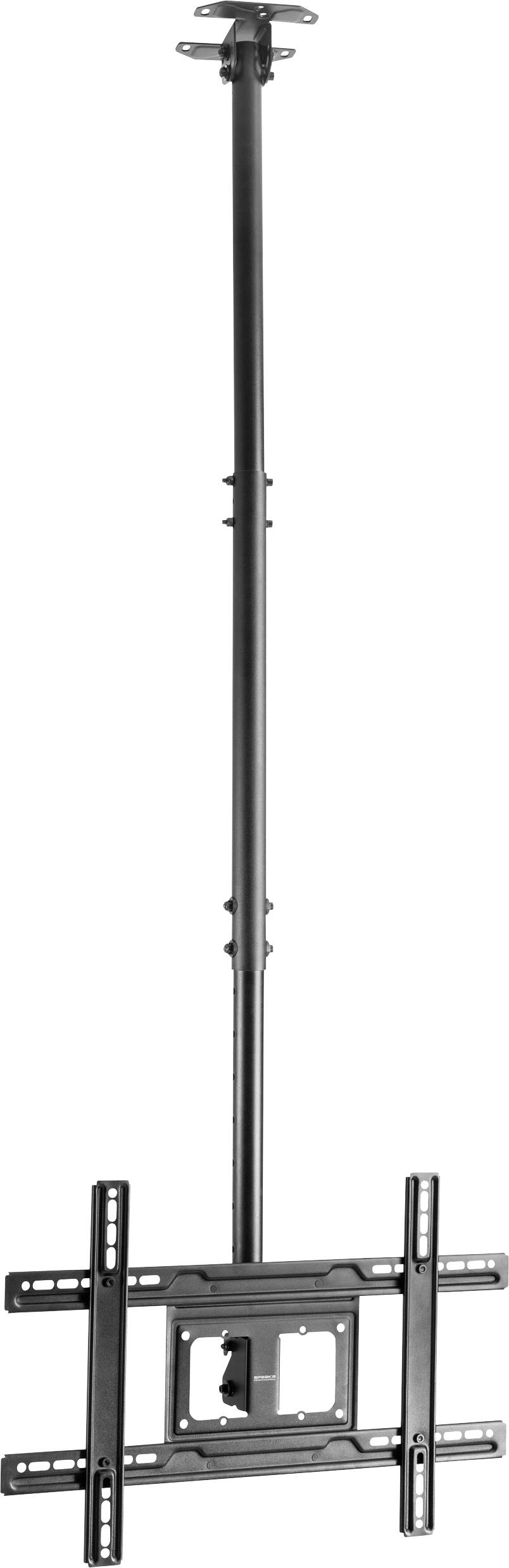

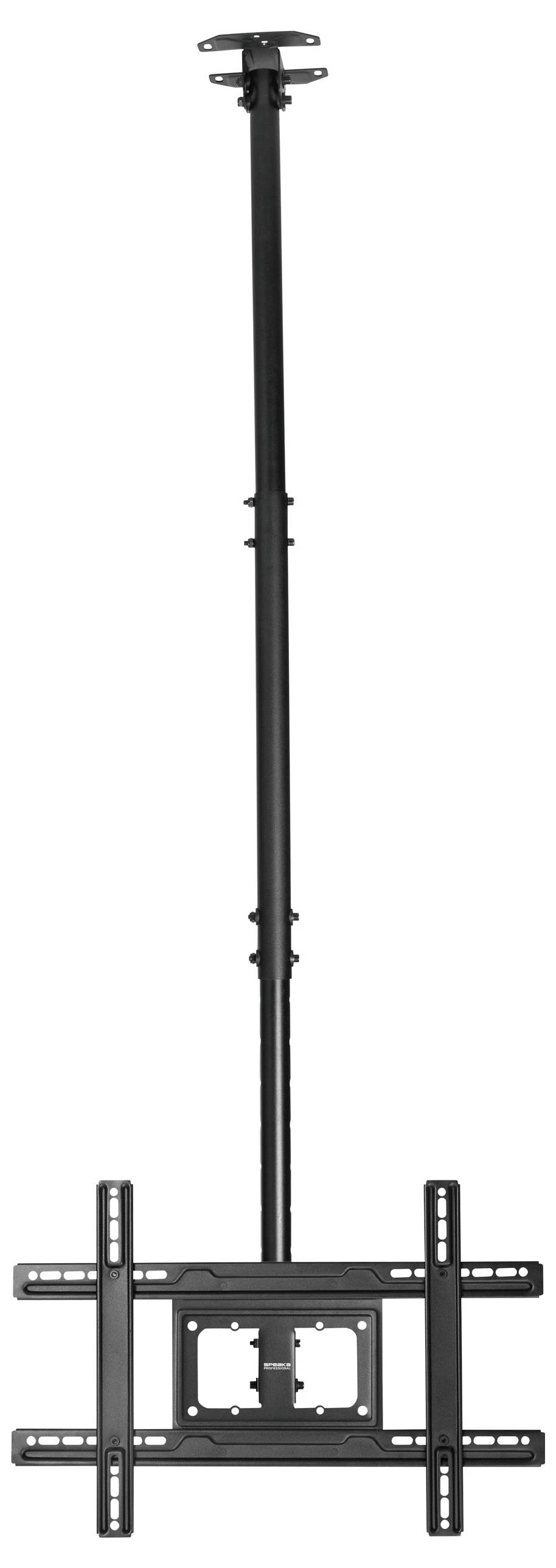

Speaka Professional SP-TVCM-540 Single Heavy-Duty TV Ceiling Mount, 94cm (37") - 203.20 cm (80")
- Holder type: Tiltable, Swivelling, Height-adjustable
- Suitable for displays sized (range): 94,0 cm (37") - 203,2 cm (80")
- Load capacity (max.) 50 kg
- Universally Compatible - Robust TV ceiling mount for most 94 (37") -203.2 (80") cm TVs up to 50 kg. Compatible with VESA standard

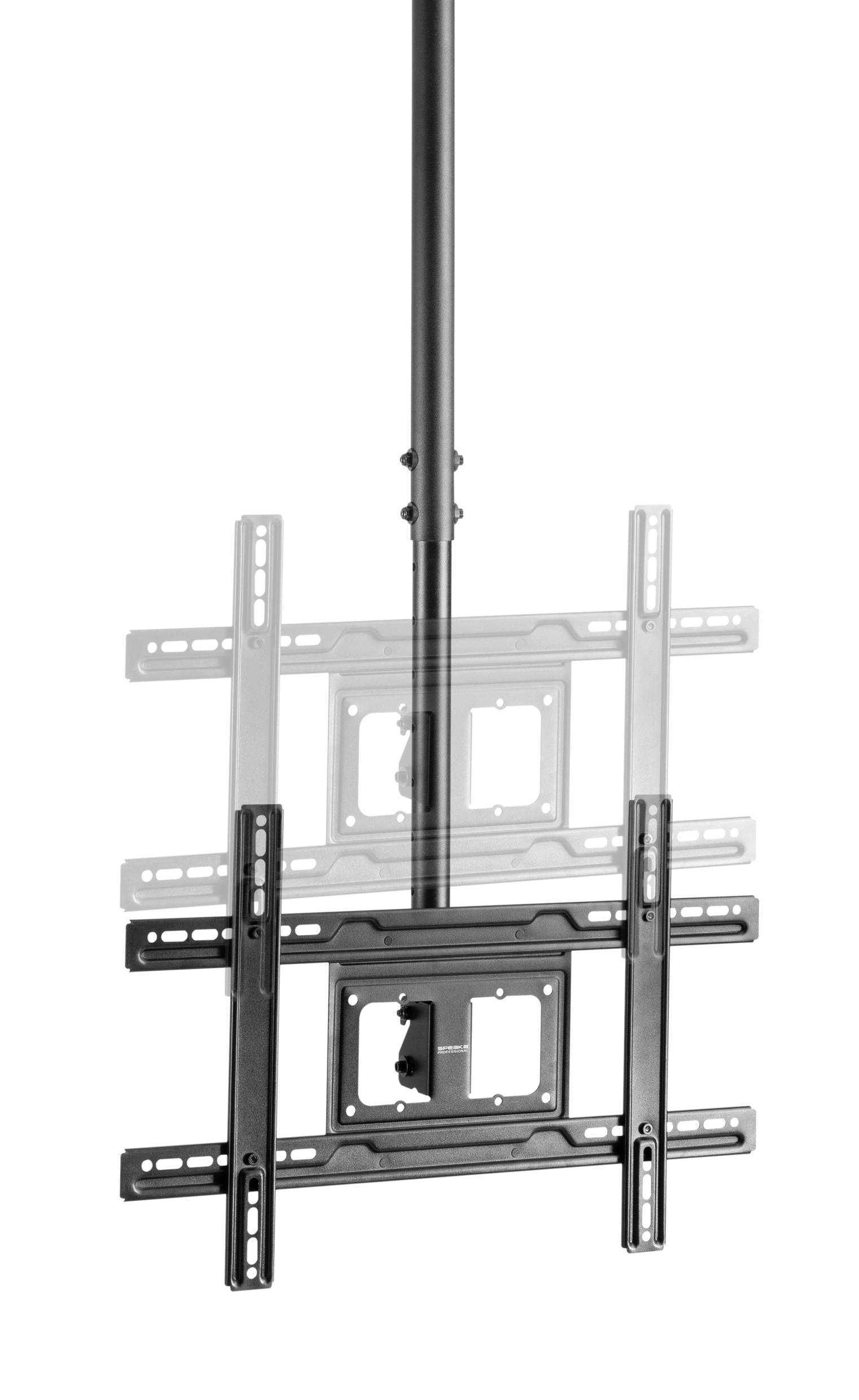

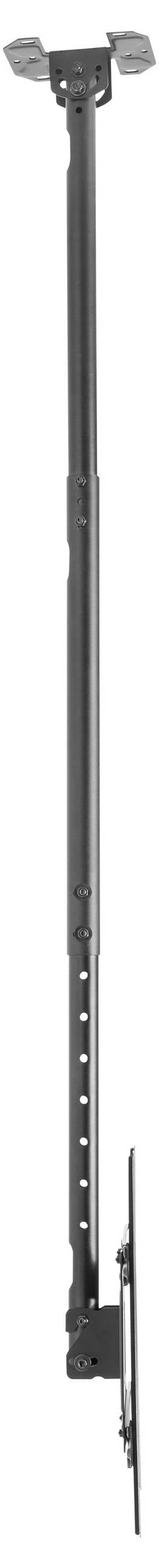

- Telescopic height adjustmen for optimal viewing height

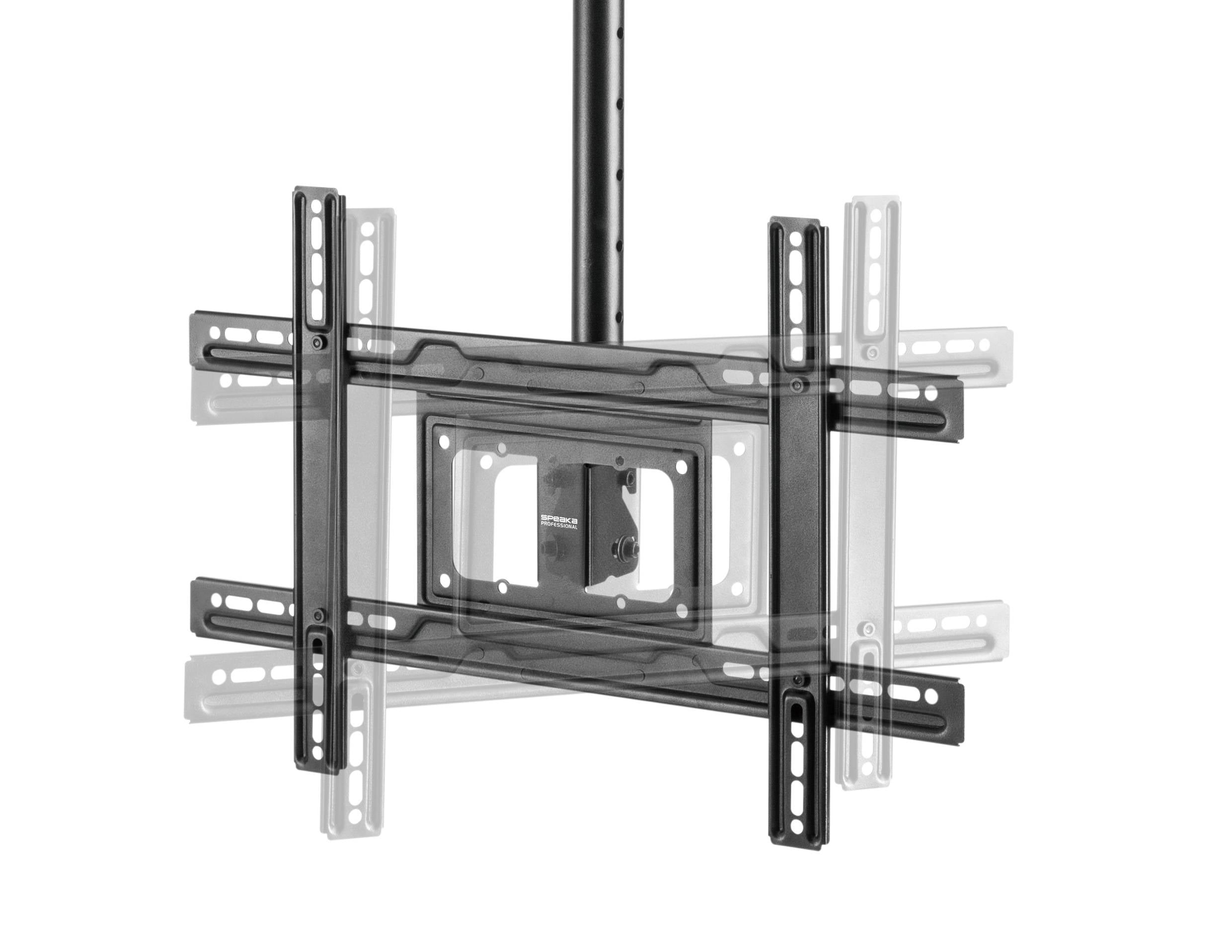

- Free-tilting & swiveling design for multiple TV viewing angles

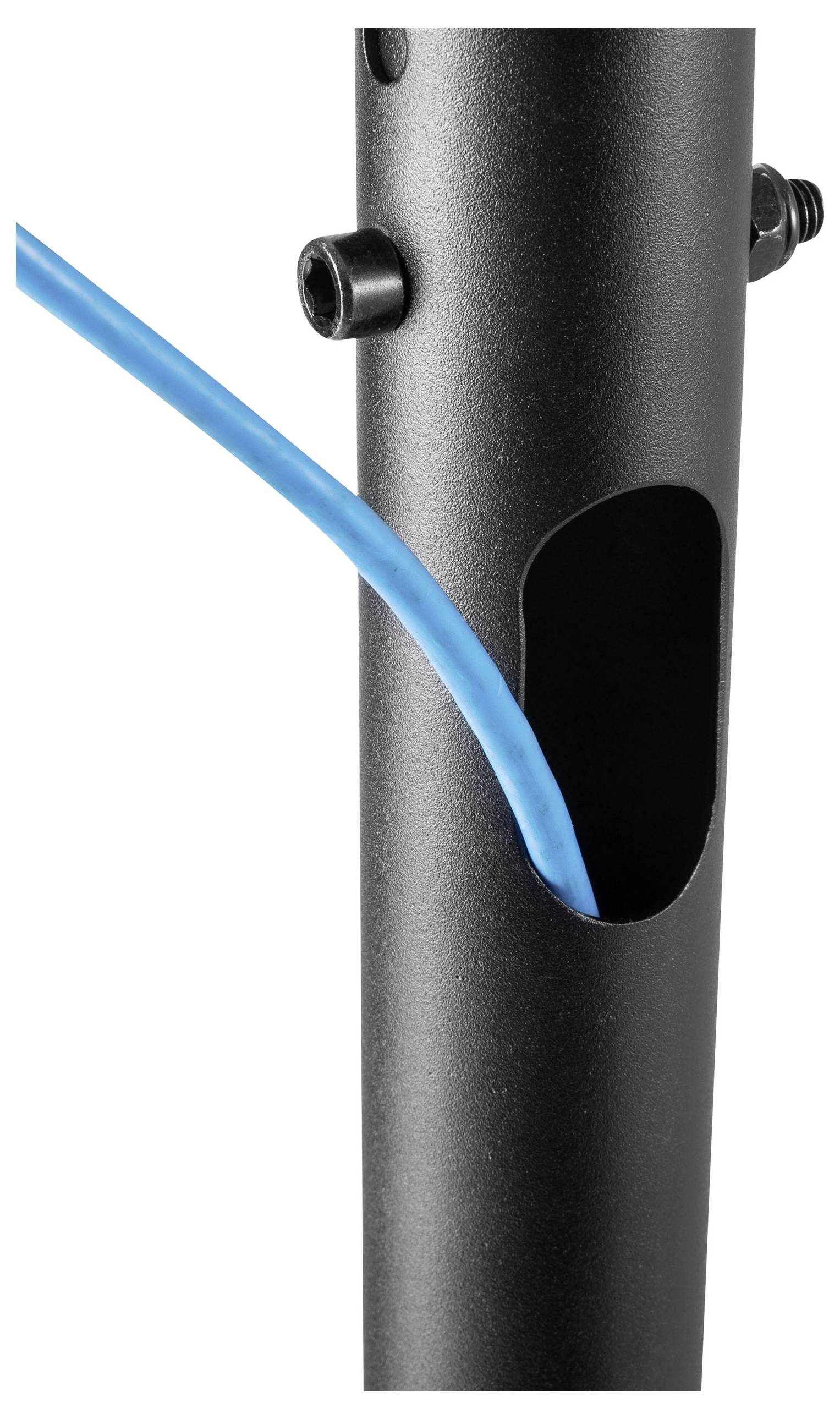

- Cable management system keeps everything organized
- Easy installation – install TV ceiling stand quickly and safely using our easy-to-follow instructions and videos. All necessary tools and accessories are included.

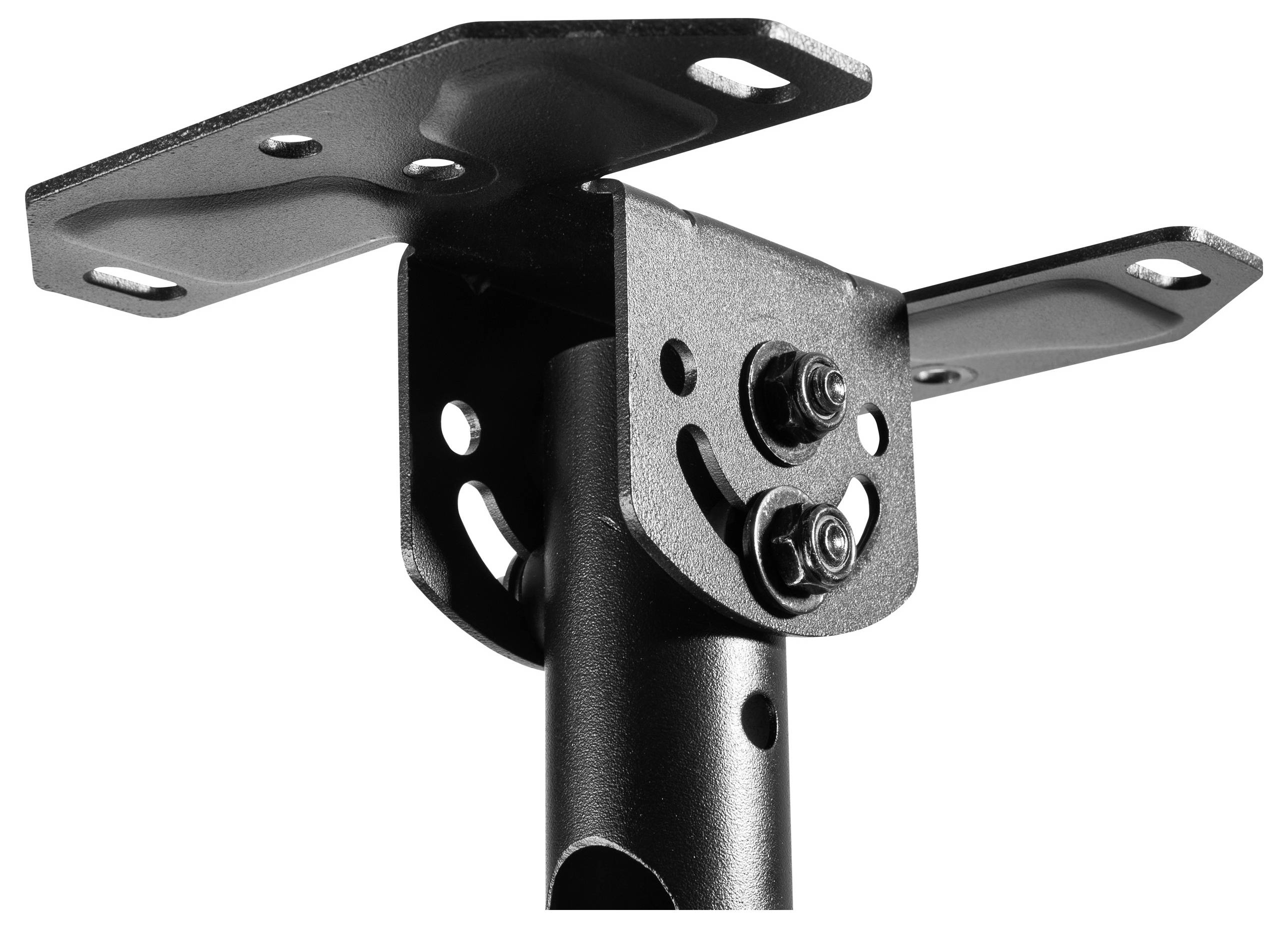

- Adjustable ceiling plate for mounting in flat or sloping ceiling
Technical specifications
- Product type
TV ceiling mount
- Suitable for
94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
Show more
- Suitable for
94,0 cm (37") - 203,2 cm (80")
- Holder type
Tiltable
Swivelling
Height-adjustable
- Max. load capacity
50 kg
No
200 x 200 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
600 x 400 mm
- Tilt range (bottom)
-25°
- Tilt range (top)
+5°
- Swivel range (left)
-30°
- Swivel range (right)
+30°
- Min. distance to floor/ceiling
707 mm
- Max. distance to floor/ceiling
1577 mm
- Width
650 mm
- Height
1792 mm
- Depth
185 mm
- Factory colour
Black
- Material (details)
Metal
- Weight
5.85 kg
- Dim
(W x H x D) 650 x 1792 x 185 mm
- Add-on displays
1 Display(s)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3415240 SpeaKa Professional SP-TVCM-540 TV ceiling mount 94,0 cm (37") - 203,2 cm (80") Tiltable, Swivelling, Height-adjustable
User & Safety Instructions 3415240 SpeaKa Professional SP-TVCM-540 TV ceiling mount 94,0 cm (37") - 203,2 cm (80") Tiltable, Swivelling, Height-adjustable
Description
Universally applicable - robust TV ceiling mount for most TV sets with 94 - 203.2 cm (37 - 80") screen size and 50 kg weight. Easy to install – the TV ceiling bracket can be mounted quickly and securely thanks to easy-to-understand instructions and videos. All necessary tools and accessories are included.
This text is machine translated.
This text is machine translated.
Features

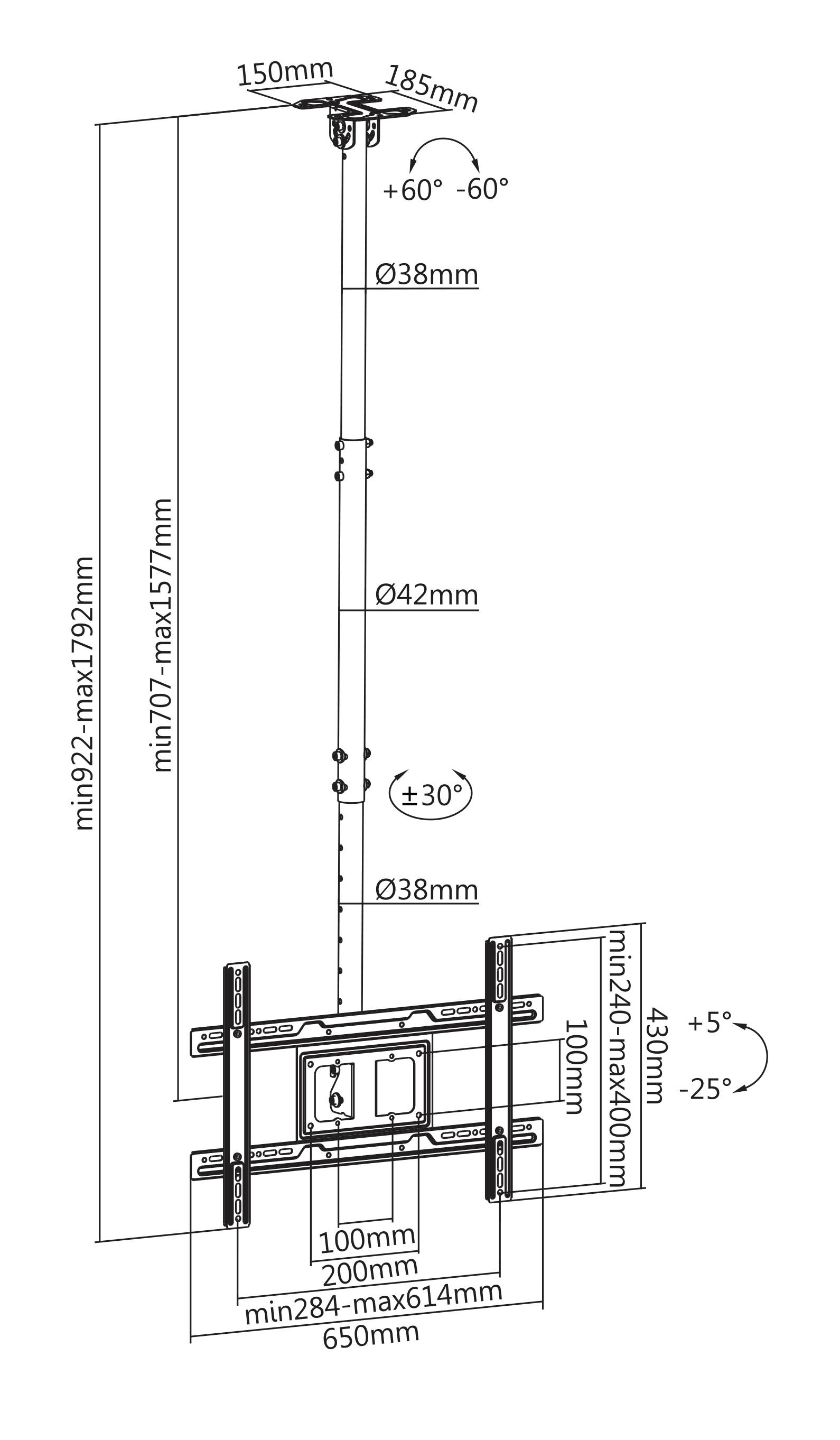

- Profile: 707 to 1577mm
- Tilt angle: +5° to -25°
- Swivel range: +30° to -30°
- VESA standard: 200x200, 300x200, 400x200,3 00x300, 400x300, 400x400, 600x400
Scope of delivery
- A 1x VESA Plate
- B 1x Wall Plate
- C 1x Upper Pole
- E 1x Lower Pole
- D 1x Middle Pole
- F 2x TV Bracket
- G 2x Crossbar
- H 1x 6x120mm Hexagon Key
- I 1x 10-13mm Double Open-Ended Wrench
- P-A 3x Screw M8x60
- P-B 4x Screw M8x55
- P-C 2x Screw M8x20
- P-D 4x Screw M6x8
- P-E 7x M8 Hexagon Lock Nut
- P-F 4x M6 Flange Hex Lock Nut
- P-G 2x D8 Washer
- P-H 4x Metal Washer ￠8.2x￠22x1.5
- P-I 8x Plastic Washer ￠22x￠8.5
- P-J 4x Plastic Washer ￠8x￠22x2.1
- M-A 4x Screw M6x14
- M-B 4x Screw M8x16
- M-C 4x Screw M6x30
- M-D 4x Screw M8x35
- M-E 4x D8 Flat Washer
- M-F 4x Plastic Bushing ￠15x￠8x5
- M-G 4x Plastic Bushing ￠8x￠15x15
- W-A 6x Screw (Type C) ST8x60
- W-B 6x Expansion Anchor ￠12x60
- W-C 6x D8 Flat Washer
- Safety sheet
- Operating instructions
