Name: SpeaKa Professional SP-TVCM-550 TV ceiling mount 109,2 cm (43") - 218,4 cm (86”) Tiltable, Swivelling, Height-adjustable
Brand: SpeaKa Professional
SKU: 3415245
Availability: InStock

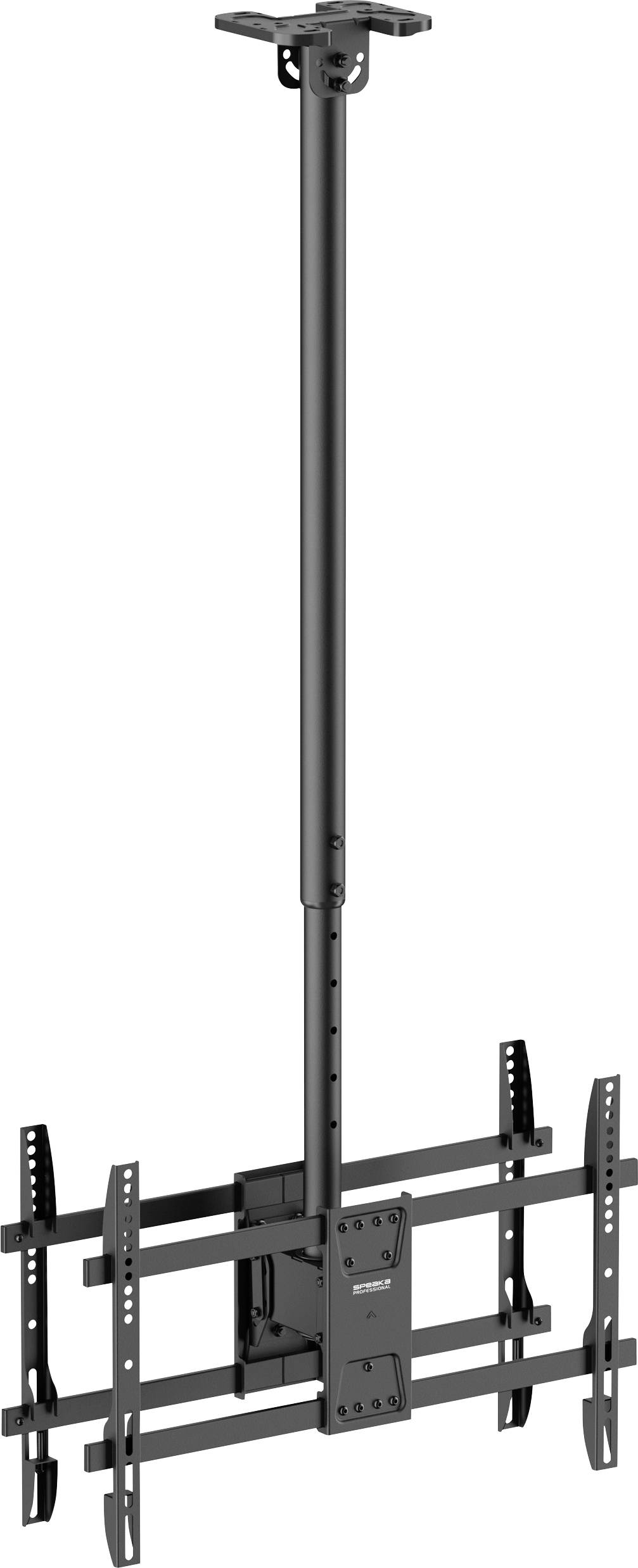

A ceiling-mounted TV bracket with adjustable pole and tilting mechanism, suitable for various screen sizes and offering flexible viewing angles.

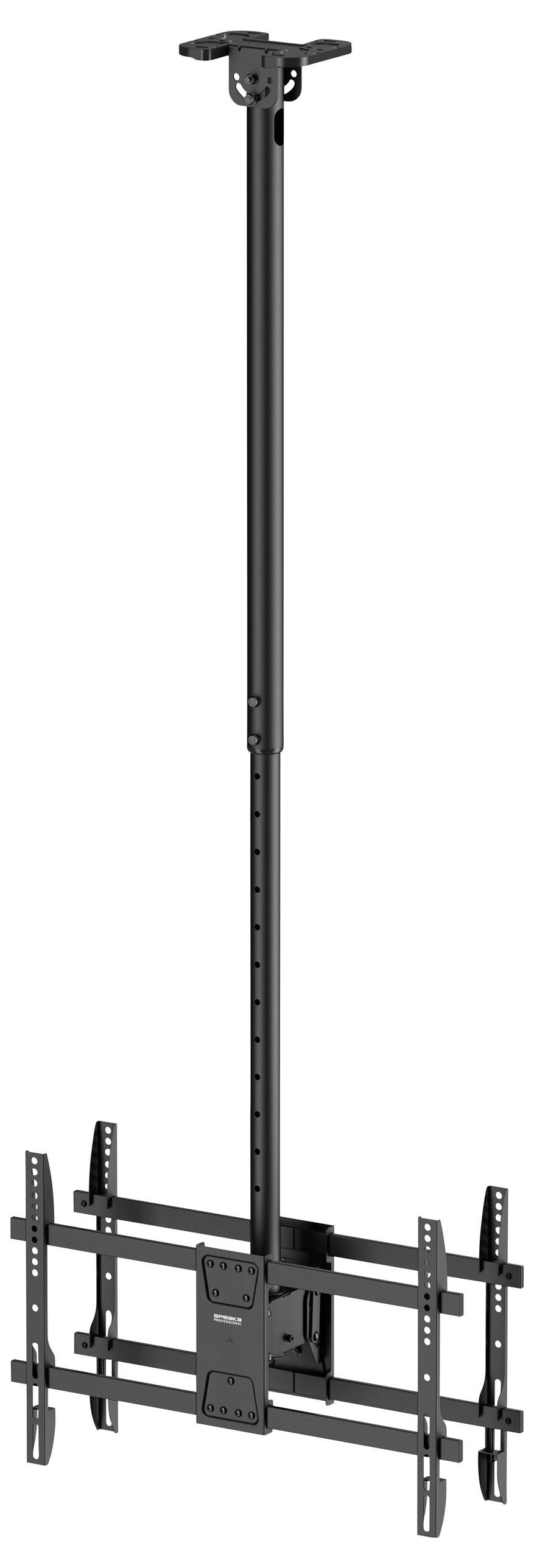

Ceiling TV mount with an adjustable pole and bracket. Designed to hold flat-screen TVs, providing overhead placement in various settings.

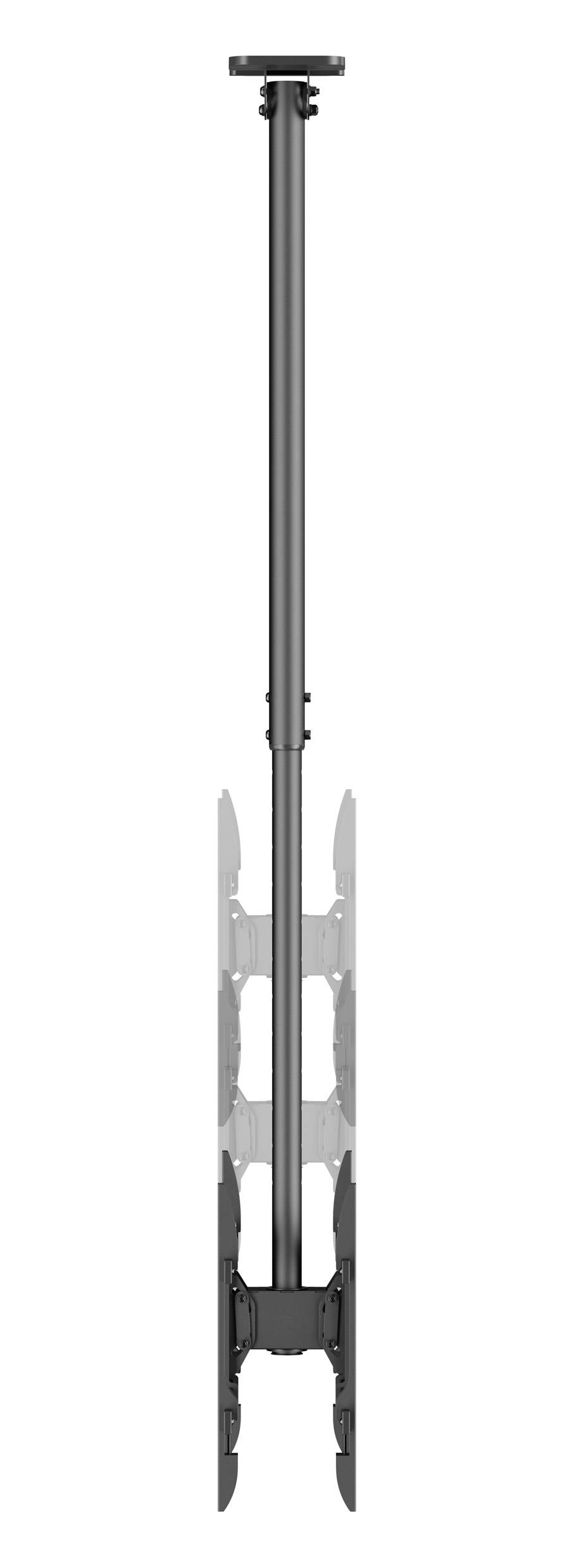

A long, vertical metal ceiling mount or bracket with adjustable sections, designed to support equipment or displays.

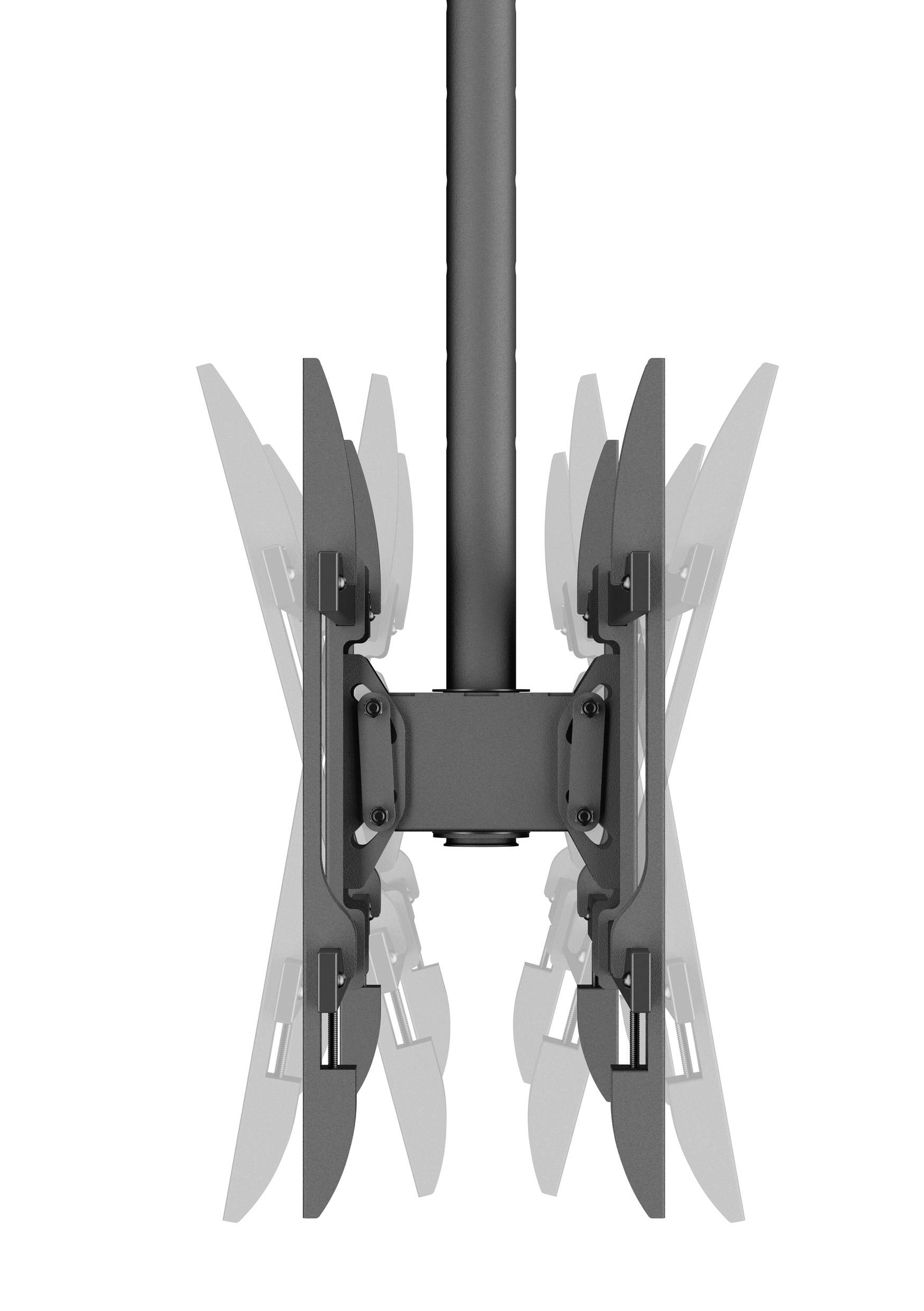

A front view of a dual monitor mount showing its adjustable arms, designed to hold two monitors vertically.

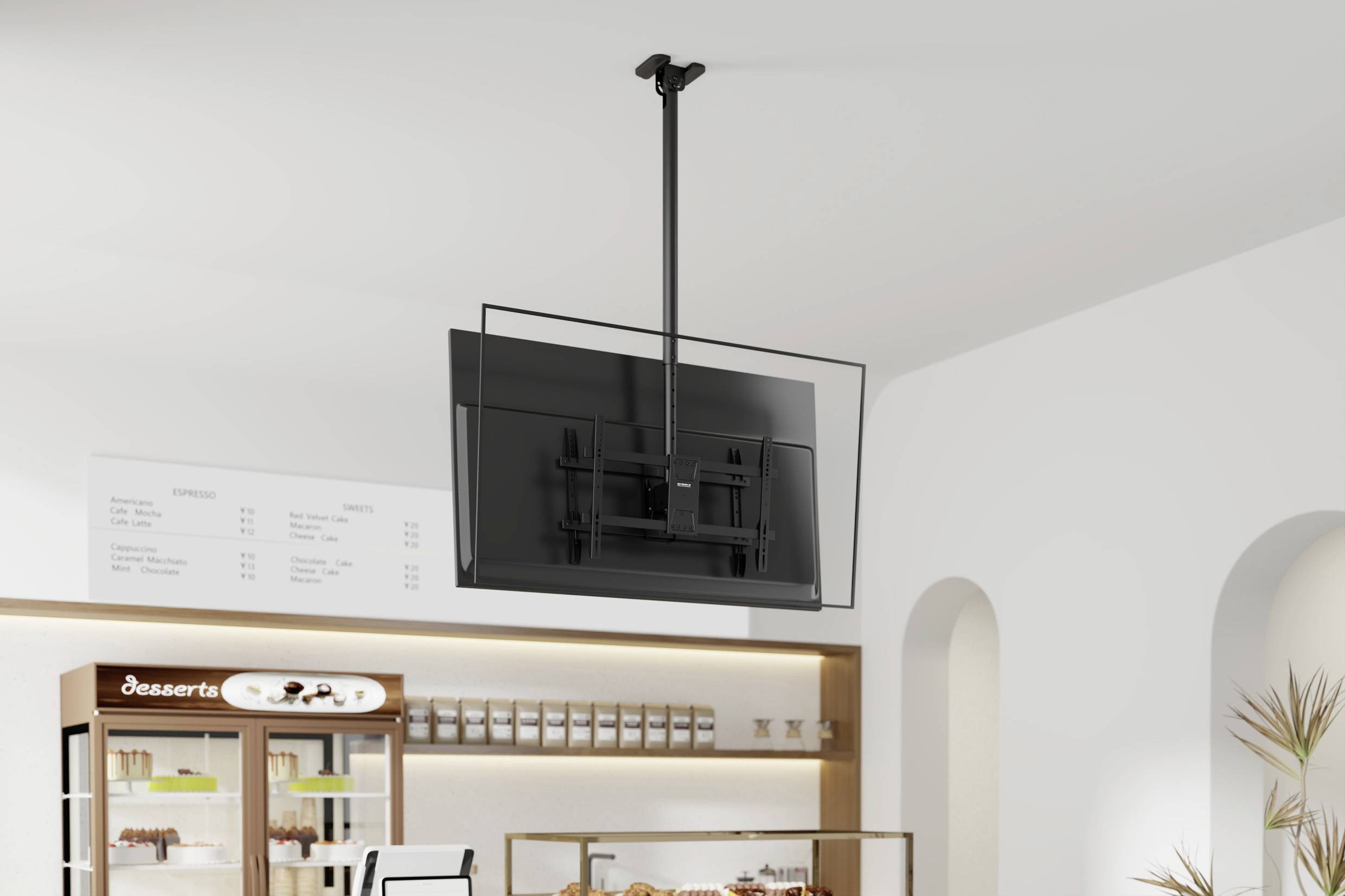

A ceiling-mounted, adjustable TV screen displayed above a modern café interior with a menu board and pastry display in the background.

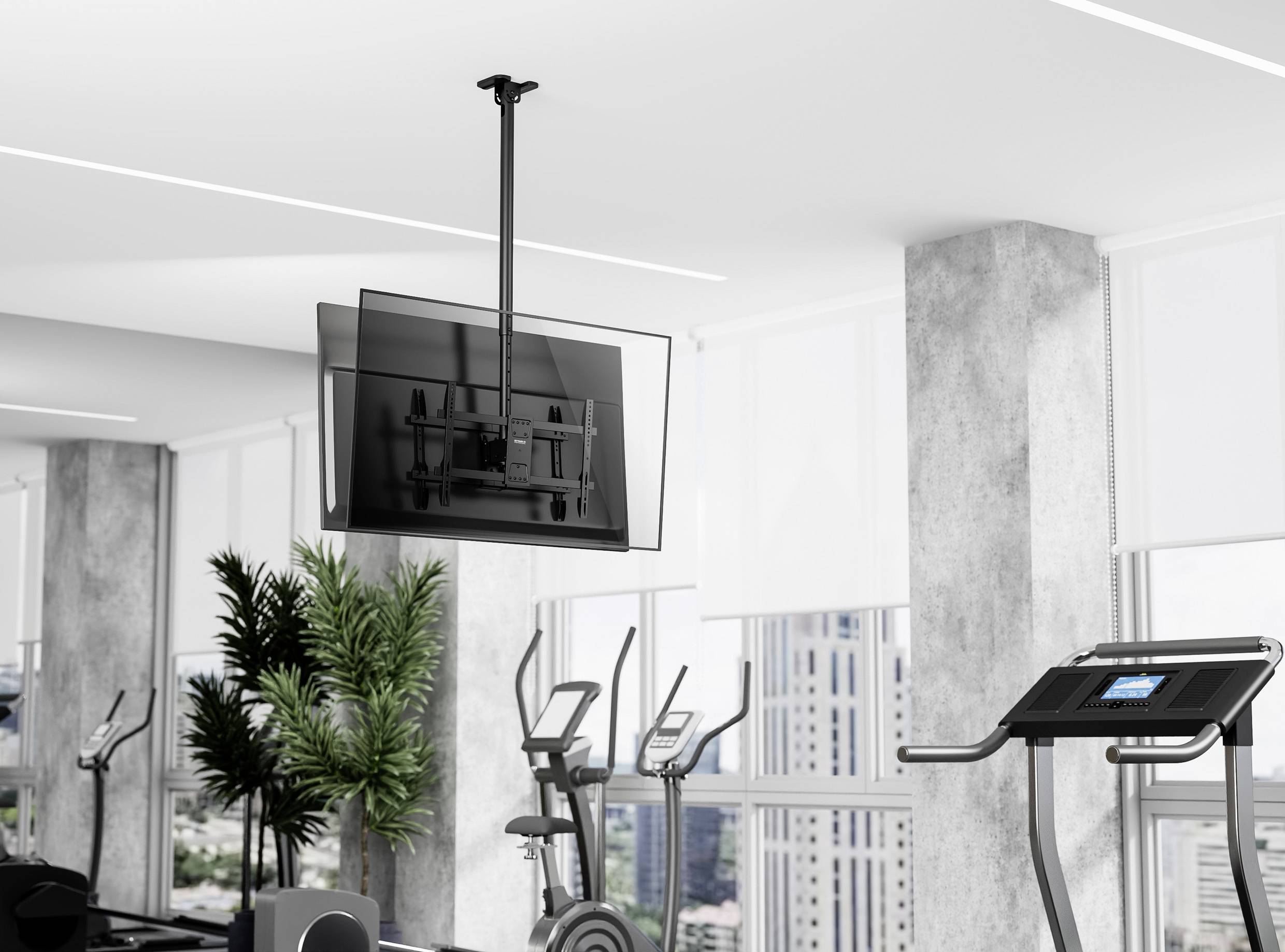

A modern gym with exercise equipment, including a treadmill and stationary bikes. A wall-mounted TV is visible, with a city view outside.

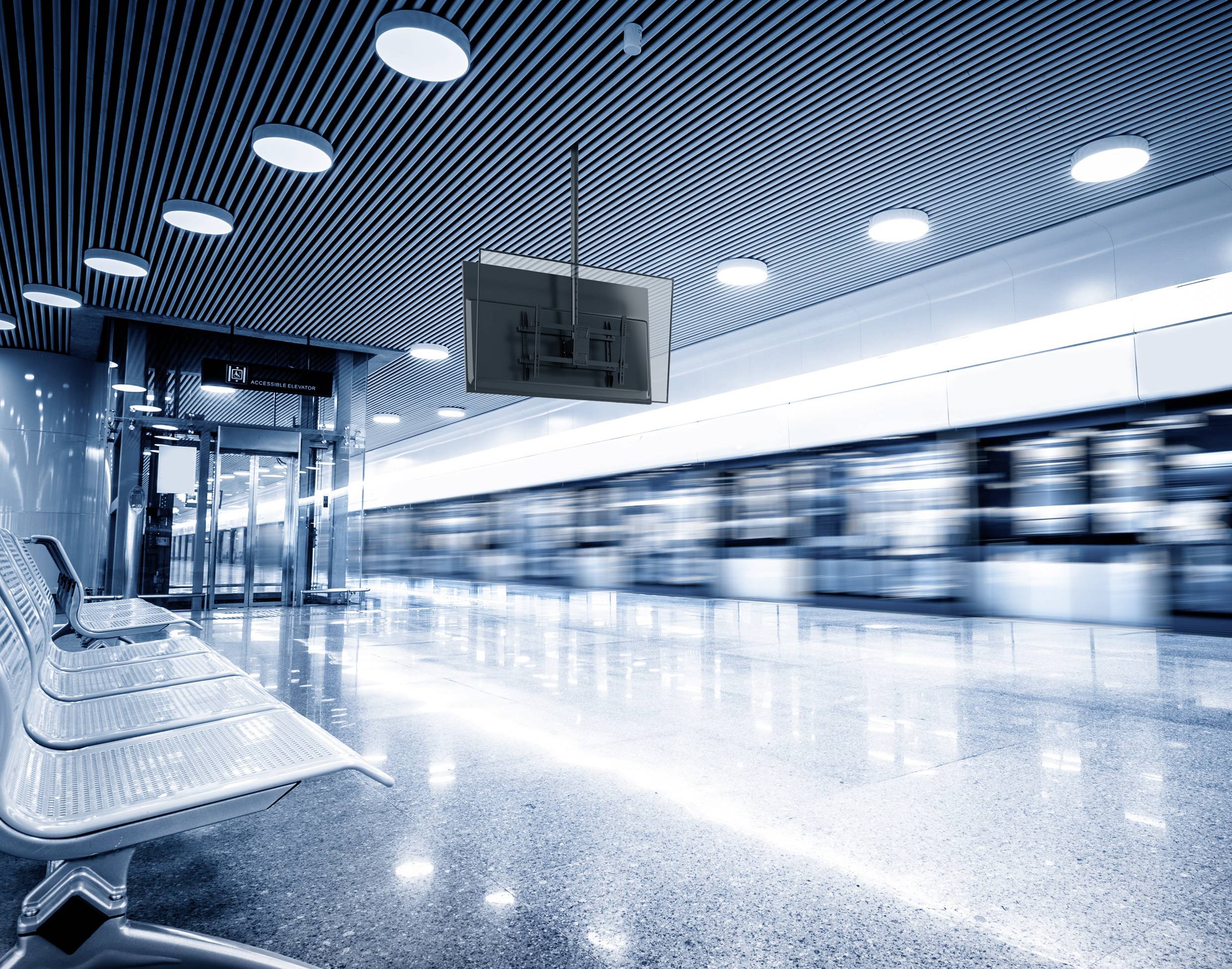

A subway station with metal benches and a blurred train passing by, suggesting high speed and motion, under a modern, well-lit ceiling.

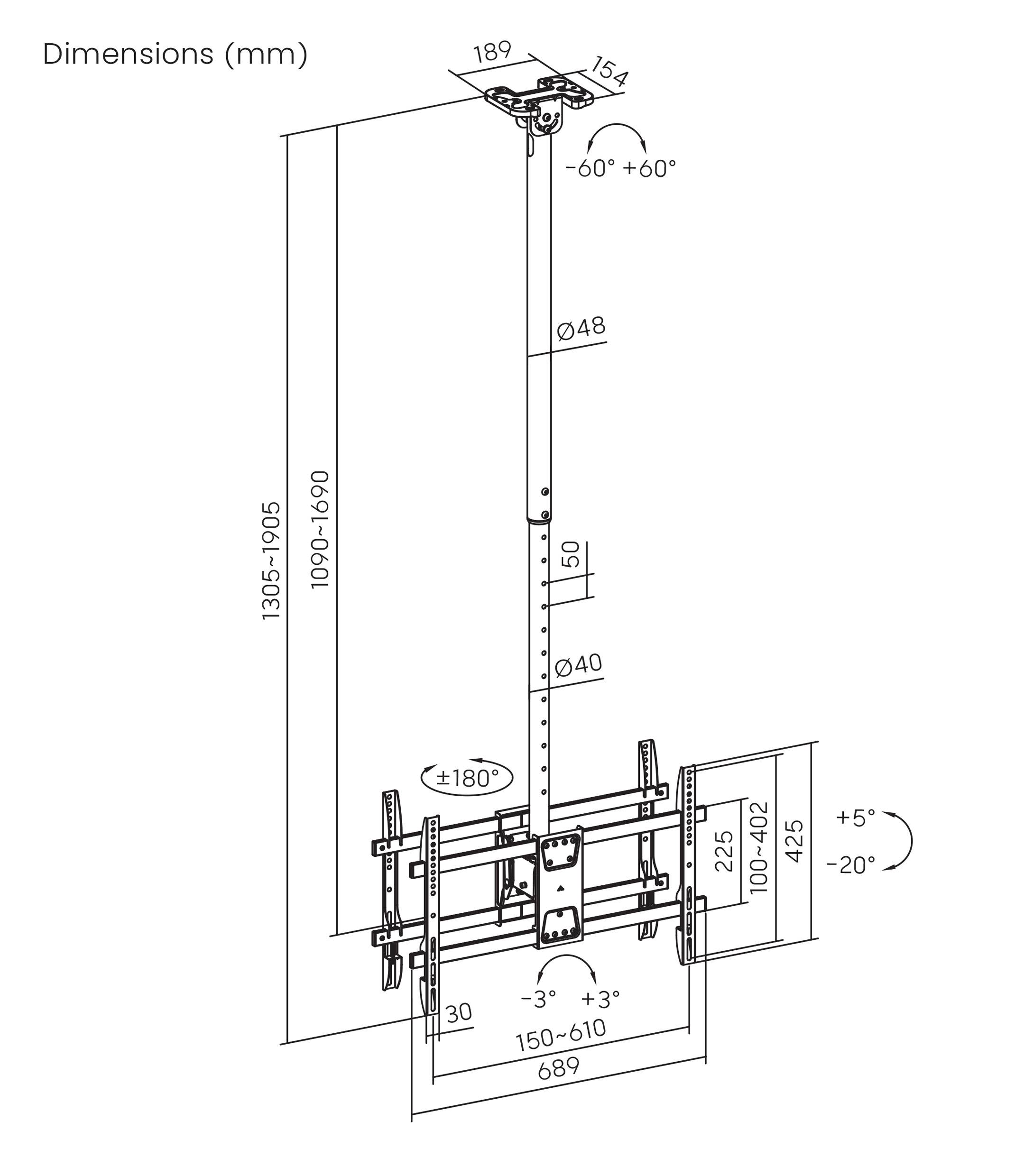

Diagram of adjustable wall mount dimensions in mm: pole with adjustable height 1090-1690, width 689, tilt angles ±60° horizontally, ±5-20° vertically.

1/8

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

92 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 49.99 / piece)

€ 49.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Speaka Professional SP-TVCM-550 Dual Heavy-Duty TV Ceiling Mount 109,20 cm (43") - 218,40 cm (86")

Holder type: Tiltable, Swivelling, Height-adjustable
Suitable for displays sized (range): 109,2 cm (43") - 218,4 cm (86”)
Load capacity (max.) 50 kg
Universally Compatible - Robust TV ceiling mount for TVs up to 50 kg.
Compatible with VESA standard
Telescopic height adjustmen for optimal viewing height
Free-tilting & swiveling design for multiple TV viewing angles
Cable management system keeps everything organized
Easy installation – install TV ceiling stand quickly and safely using our easy-to-follow instructions and videos. All necessary tools and accessories are included.
Adjustable ceiling plate for mounting in flat or sloping ceiling

Technical specifications

Product type: TV ceiling mount

Suitable for: 109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
180,3 cm (71")
182,9 cm (72")
185,4 cm (73")
188,0 cm (74")
190,5 cm (75")
193,0 cm (76")
195,6 cm (77")
198,1 cm (78")
200,7 cm (79")
203,2 cm (80")
208,3 cm (82")
213,4 cm (84")
215,9 cm (85")
218,4 cm (86”)
Show more

Suitable for: 109,2 cm (43") - 218,4 cm (86”)

Holder type: Tiltable
Swivelling
Height-adjustable

Max. load capacity: 50 kg

: No

: 200 x 200 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
600 x 400 mm

Tilt range (bottom): -20°

Tilt range (top): +5°

Swivel range (left): -180°

Swivel range (right): +180°

Min. distance to floor/ceiling: 1090 mm

Max. distance to floor/ceiling: 1690 mm

Width: 689 mm

Height: 1905 mm

Depth: 154 mm

Factory colour: Black

Weight: 8.20 kg

Dim: (W x H x D) 689 x 1905 x 154 mm

Add-on displays: 2 Display(s)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3415245 SpeaKa Professional SP-TVCM-550 TV ceiling mount 109,2 cm (43") - 218,4 cm (86”) Tiltable, Swivelling, Height-adjustable

Description

Why settle for one direction? With the SpeaKa Professional SP-TVCM-550 ceiling mount you can present your contents at the place where they have to be seen - in all directions.

This "back-to-back" solution was developed for professional use and easily holds two large screens back to back. It is the ideal choice for airports, retail shops, lobbies or conference centers.

Thanks to the robust telescopic rod and the flexible inclination function you can set the perfect viewing height and the optimum angle for both the screens. The SP-TVCM-550 can be mounted easily even at roof slopes. The integrated cable management thereby provides for a clean, neat finish without cable clutter.

This text is machine translated.

Features

Profile: 1090 to 1690mm
Tilt angle: +5° to -20°
Swivel range: +180° to -180°
VESA standard: 200x200, 300x200, 400x200,3 00x300, 400x300, 400x400, 600x400

Scope of delivery

A 1x Wall-Mounted Upper Pole Assembly
B 1x Lower Pole
C 2x VESA Plate Assembly
D 1x Drilling Template
E 1x Adjustable Head Assembly
F 4x Crossbar
G 4x TV Bracket
H 2x Decorative Cover
I 8x Screw M6x8
J 2x Screw M8x55
K 2x M8 Hexagon Lock Nut
L 1x 4mm x 70mm Hexagon Key
M 1x 5mm x 75mm Hexagon Key
N 1x 10-13mm Double Open-Ended Wrench
M-A 8x Screw M6x14
M-B 8x Screw M8x16
M-C 8x Screw M6x30
M-D 8x Screw M8x35
M-E 8x D8 Flat Washer
M-F 8x Plastic Bushing ￠15x￠8x5
M-G 8x Plastic Bushing ￠15x￠8x15
W-A 4x Hexagon Head Tapping Screw (Type C) ST8.0x90 W-B 4x Expansion Anchor ￠12x60
W-C 4x D8 Flat Washer
