SpeaKa Professional SP-TVM-1200 TV wall mount 94,0 cm (37") - 218,4 cm (86”) Retractable, Tiltable, Swivelling

Black, adjustable TV wall mount with multiple joints for flexible positioning and optimal viewing angles.
Wall mount for television or monitor, made of metal, with adjustable arms and holes for wall attachment.
TV wall mount, articulated and tilting, suitable for various screen sizes. Robust metal construction.
Wall mount for televisions with pivoting arms, compatible with various TV sizes, made of black metal.
Height-adjustable desk mechanism viewed from the side, showing metal details and lightweight construction for robust support.
Living room with modern design, white armchair and sideboard. A wall-mounted bracket for a television. Bright room with wooden flooring.
Flat-screen wall mount installed, displaying a screen with the text 'Max Load 176 lbs', in a bright living room with a sofa.
Wall mount without a mounted television on a painted wall, next to a wooden table with decoration, an armchair and a plant.

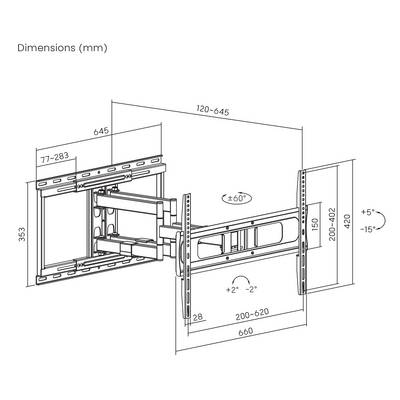

Figure shows technical drawing of an adjustable TV wall mount with dimensions in millimetres. Adaptable tilting and swivel functions.
1/9
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
140 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 59.99 / piece)
€ 59.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Speaka Professional SP-TVM-1200 TV Wall Mount, 94cm (37") - 218.4 cm (86"), black

  • Holder type: Retractable, Tiltable, Swivelling
  • Supports VESA standards : 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
  • Suitable for displays sized (range): 94,0 cm (37") - 218,4 cm (86”)
  • Load capacity (max.) 80 kg
  • Heavy-Duty full-motion TV wall mount with lateral shift wall plate
  • Detachable wall plate for easy assembly
  • Open architecture ensures increased ventilation and easier access to wires
  • Free-tilting & swiveling design for multiple TV viewing angles
  • Leveling adjustments allow TV to be perfectly positioned after hanging
  • Lateral shift wall plate allows TV to shift left and right for perfect placement with off-center studs
  • Cable management system

Technical specifications

Product type

TV wall mount

Suitable for

94,0 cm (37")

96,5 cm (38")

99,1 cm (39")

101,6 cm (40")

104,1 cm (41")

106,7 cm (42")

109,2 cm (43")

111,8 cm (44")

114,3 cm (45")

116,8 cm (46")

119,4 cm (47")

121,9 cm (48")

124,5 cm (49")

127,0 cm (50")

129,5 cm (51")

132,1 cm (52")

134,6 cm (53")

137,2 cm (54")

139,7 cm (55")

142,2 cm (56")

144,8 cm (57")

147,3 cm (58")

149,9 cm (59")

152,4 cm (60")

154,9 cm (61")

157,5 cm (62")

160,0 cm (63")

162,6 cm (64")

165,1 cm (65")

167,6 cm (66")

170,2 cm (67")

172,7 cm (68")

175,3 cm (69")

177,8 cm (70")

180,3 cm (71")

182,9 cm (72")

185,4 cm (73")

188,0 cm (74")

190,5 cm (75")

193,0 cm (76")

195,6 cm (77")

198,1 cm (78")

200,7 cm (79")

203,2 cm (80")

208,3 cm (82")

213,4 cm (84")

215,9 cm (85")

218,4 cm (86”)

Show more
Suitable for

94,0 cm (37") - 218,4 cm (86”)

Holder type

Retractable

Tiltable

Swivelling

Max. load capacity

80 kg

No

200 x 200 mm

300 x 200 mm

300 x 300 mm

400 x 200 mm

400 x 300 mm

400 x 400 mm

600 x 400 mm

Tilt range (bottom)

-15°

Tilt range (top)

+5°

Swivel range (left)

-60°

Swivel range (right)

+60°

Distance to wall (min.)

120 mm

Distance to wall (max.)

645 mm

Width

660 mm

Height

420 mm

Depth

645 mm

Factory colour

Black

Weight

9.9 kg

Dim

(W x H x D) 660 x 420 x 645 mm

Add-on displays

1 Display(s)

Plastic free packaging

Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3345794 SpeaKa Professional SP-TVM-1200 TV wall mount 94,0 cm (37") - 218,4 cm (86”) Retractable, Tiltable, Swivelling

User & Safety Instructions 3345794 SpeaKa Professional SP-TVM-1200 TV wall mount 94,0 cm (37") - 218,4 cm (86”) Retractable, Tiltable, Swivelling

Description

Features

  • Profile: 120-645mm
  • Tilt angle: +5° to -15°
  • Swivel range: +60° to -60°
  • Screen level: +2° to -2°

Scope of delivery

  • A x Mount
  • B x Mounting Template
  • C 2x Bracket Assembly
  • D 4x Cable Clip
  • E x 4mm Hexagon Key
  • F x10-13mm Double-Head Open-End Hexagon Wrench
  • M-A 4x M6*14 Screw
  • M-B 4x M8*16 Screw
  • M-C 4x M6*30 Screw
  • M-D 4x M8*35 Screw
  • M-E 4x D8 Flat Washer
  • M-F 4x Ø 8x Ø15x5 Spacer
  • M-G 4x Ø 8x Ø15x15 Spacer
  • W-A 6x ST6.3x55 Screw
  • W-B 6x Ø 10x45 Expansion Anchor Bolt
  • W-C 6x D6 Flat Washer
  • Operating instructions
  • Safety data sheet
