Name: Steinel 066048 Surface-mount PIR motion detector 180 ° Grey IP54
Brand: Steinel
SKU: 2573590
Availability: InStock

White wall-mounted motion sensor with a dome infrared lens and visible screw mounts<br>

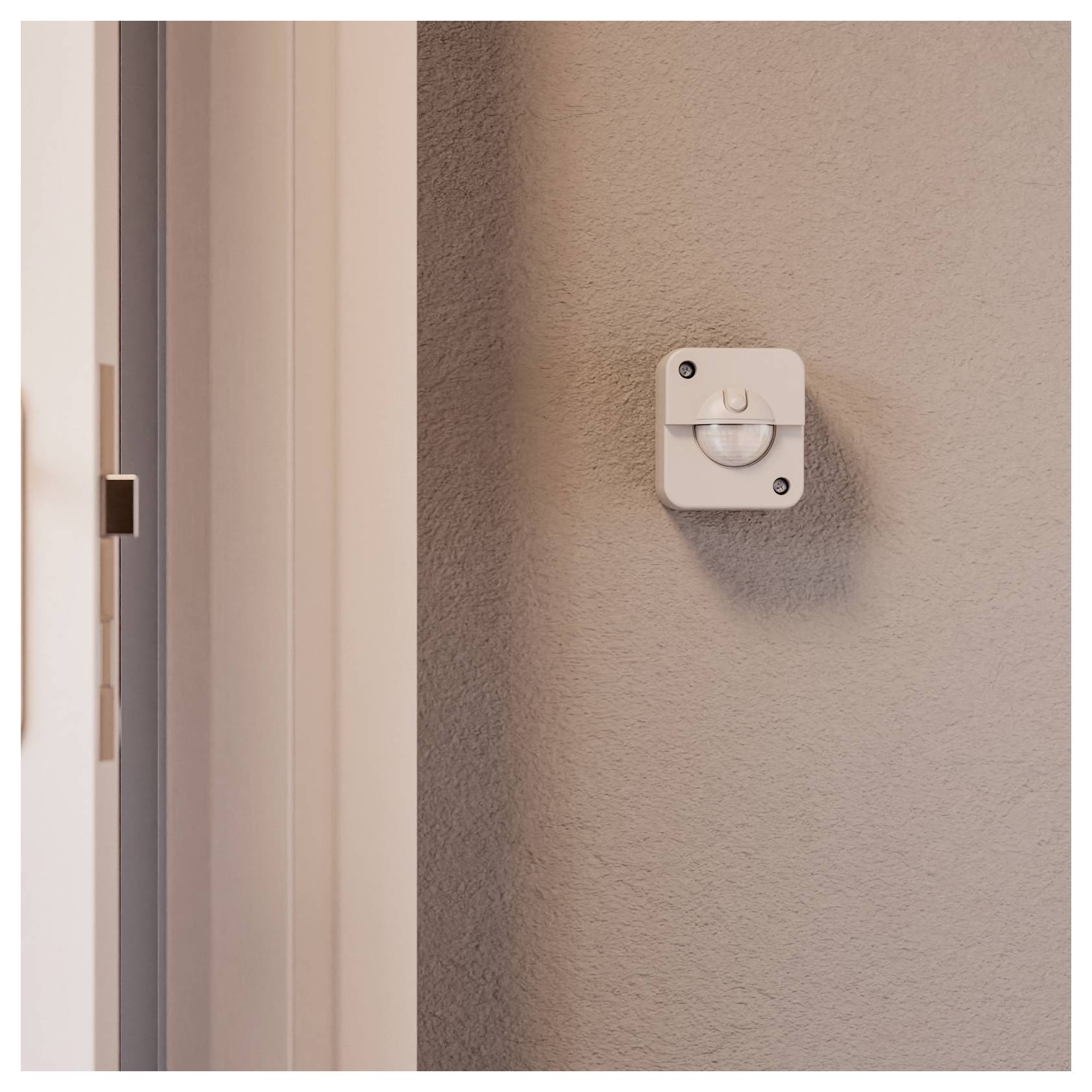

Wall-mounted white motion sensor beside a doorway on a beige wall.

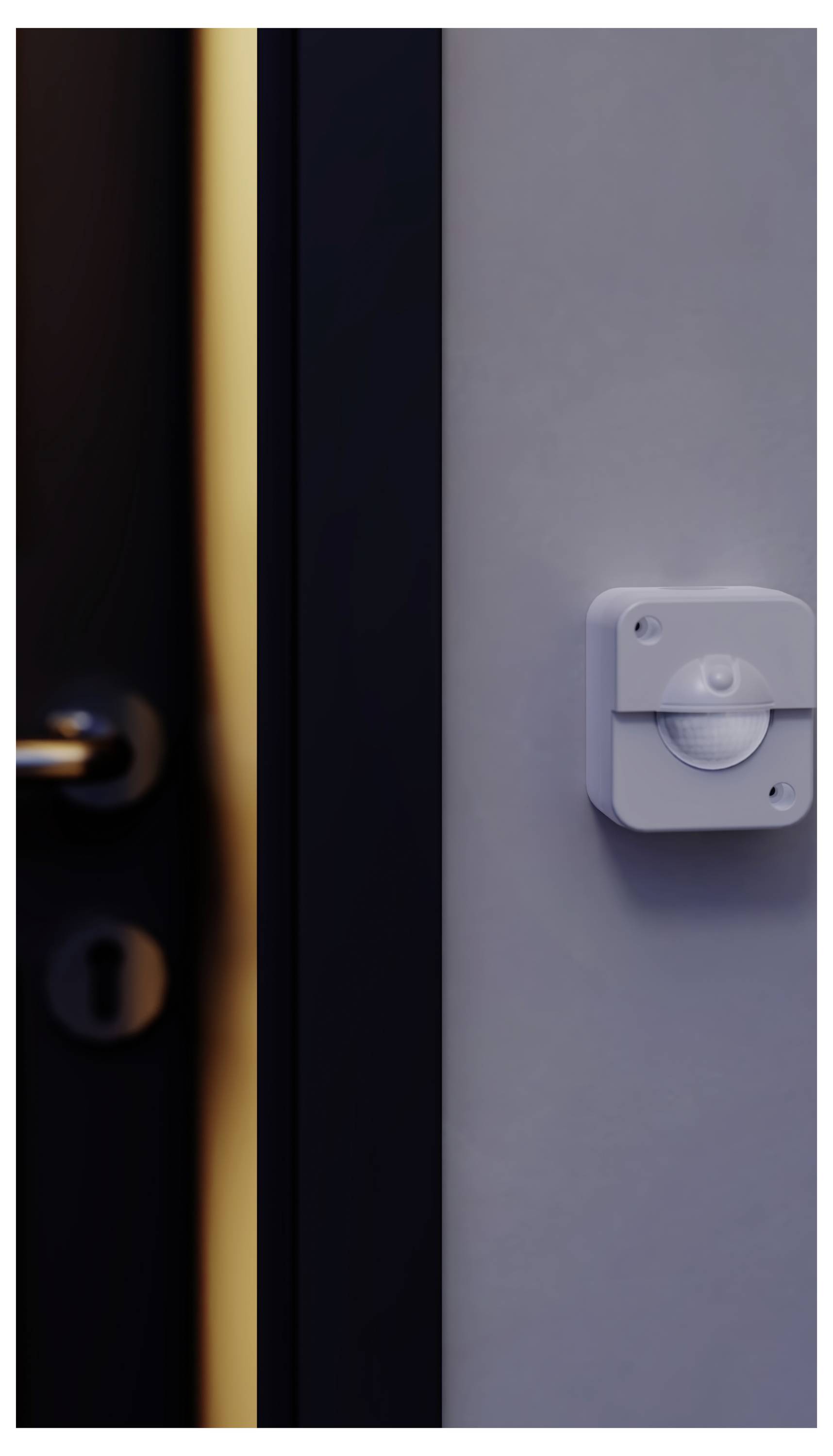

Close-up of a gray door with a white latch or lock on the right and a dark door edge with keyhole on the left.

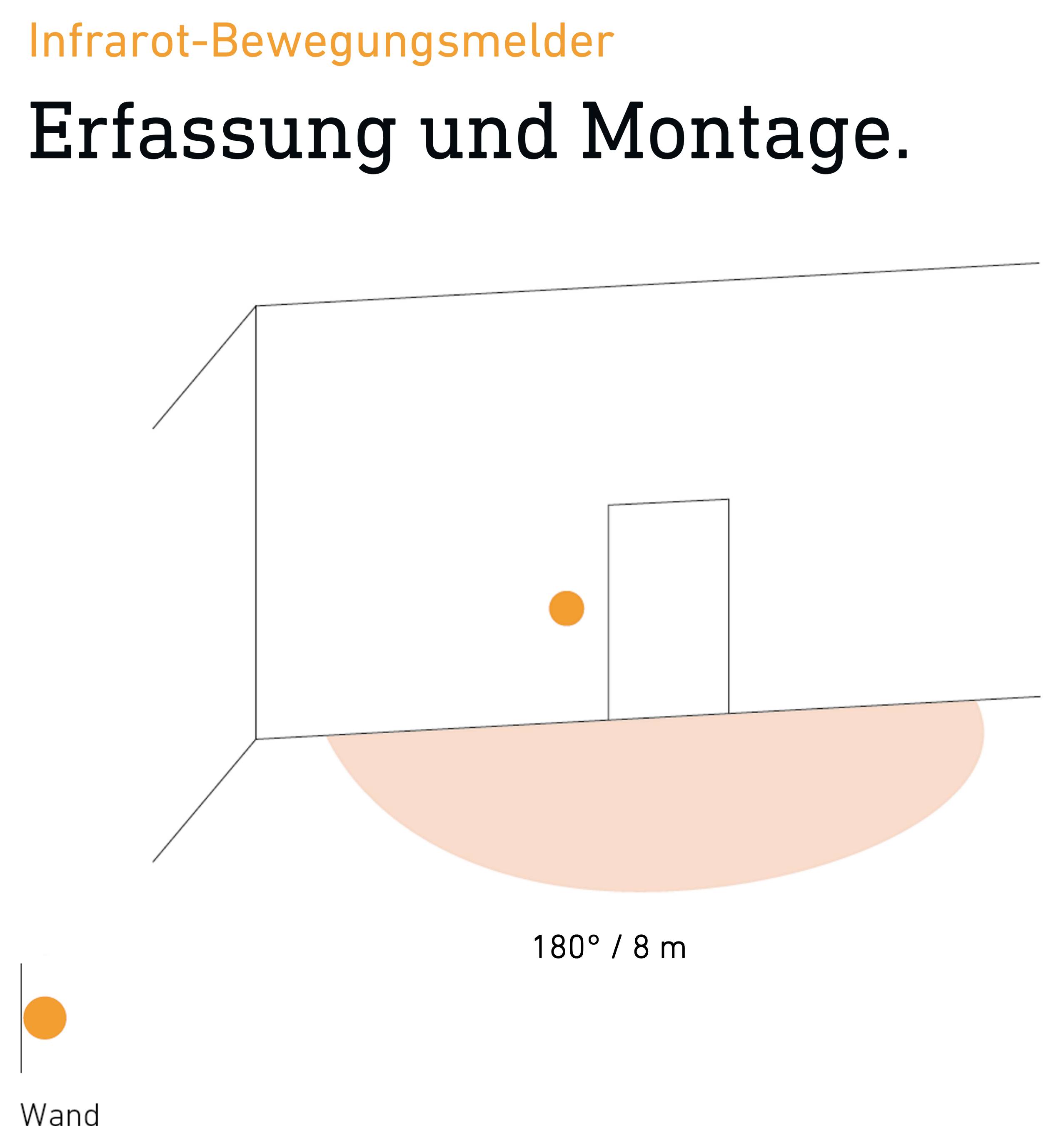

Diagram of an infrared motion detector: wall mounting with a detection range of 180° and 8 m range.

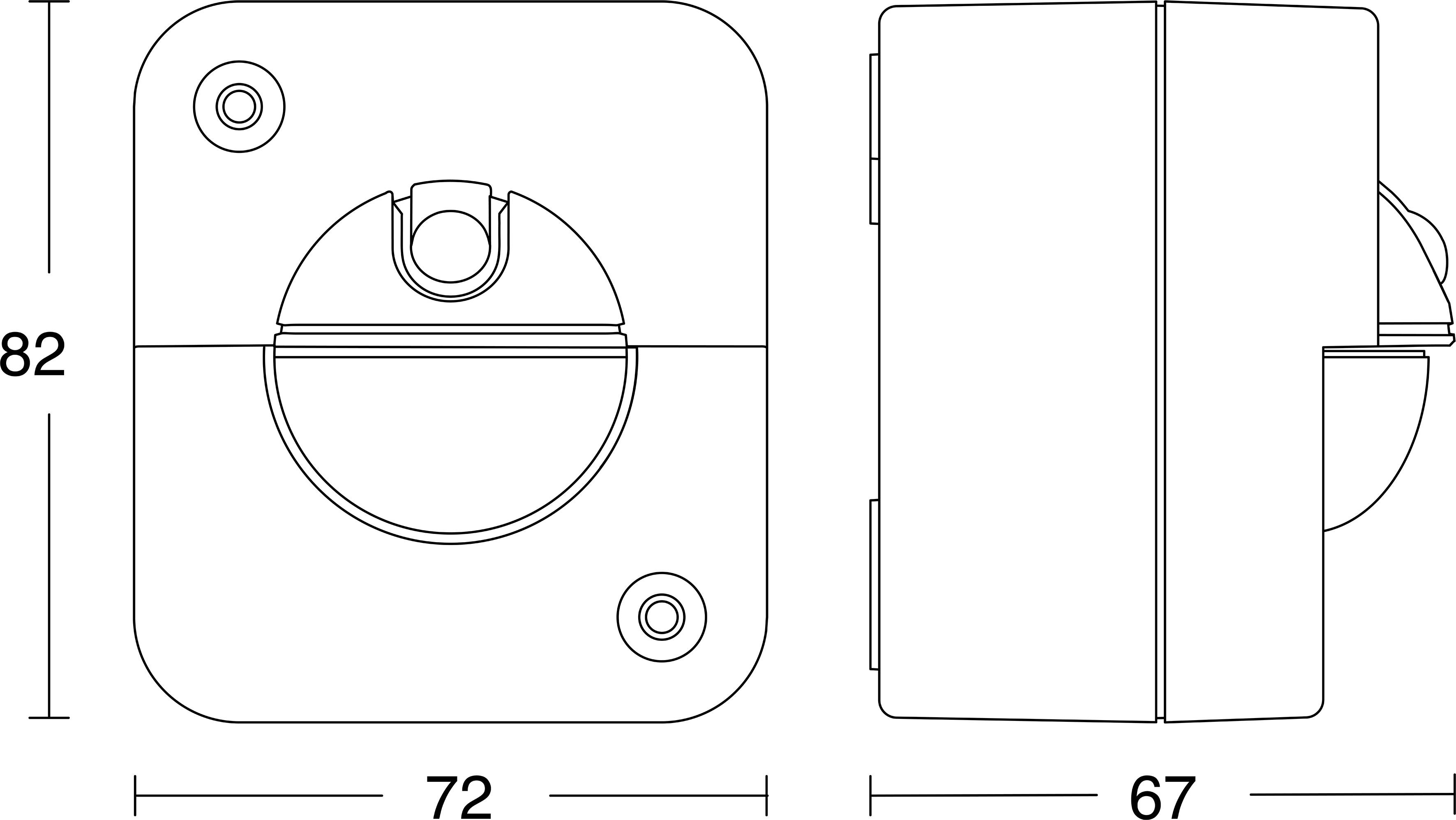

Dimensioned technical drawing of a rectangular device housing, front and side views, showing mounting holes and measurements 82, 72, and 67.

Four-part infographic on STEINEL quality: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 125.00

-26 %

€ 91.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Sensor switch IR 180 AP easy

180° PIR surface-mounted sensor switch with max. 8M range, ideal for cellars, garages, carportsWorks with both 2- and 3-wire installationsSplash-proof, can also be used in damp rooms or outdoorsIndividual setting of time and twilight threshold, incl. twilight setting TEACH

Technical specifications

Product type: PIR motion detector

Detection angle: 180°

: 8 m

Used at: Outdoors
Indoors

Mounting type: Surface-mount

Operating voltage: 230 V

Switching capacity: 200 W

Voltage (max.): 240 V

Switching capacity (LED): 150 W W

Switching capacity (light tubes): 200 VA

Twilight settings: 2 - 1000 lx

Time settings: 5 sec to 30 min

Factory colour: Grey

: IP54

Length: 82 mm

Width: 72 mm

Height: 67 mm

Dim: (L x W x H) 82 x 72 x 67 mm

Weight: 0.199 kg

Voltage (min.): 220 V

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2573590 Steinel 066048 Surface-mount PIR motion detector 180 ° Grey IP54

User & Safety Instructions

User & Safety Instructions 2573590 Steinel 066048 Surface-mount PIR motion detector 180 ° Grey IP54

Warranty Terms

Warranty Terms 2573590 Steinel 066048 Surface-mount PIR motion detector 180 ° Grey IP54

Description

Light up your eyes. If you do not have a hand free. You come back from shopping and load beverage crates from your car. Bring the purchases to the storeroom in full. Safe and convenient, the IR 180 AP easy switches on and off the light without touching and automatically as soon as you leave the room. The intelligent switch is particularly suitable for corridors, kitchens, guest toilets or other utility rooms. By the way, the assembly is extremely intelligent. You can easily replace your conventional switches, whether they are 2 or 3-wire installations. Switches all bulbs.
