Name: Steinel 660215 Wall PIR motion detector 130 ° Relay Black IP54
Brand: Steinel
SKU: 1513606
Availability: InStock

Steinel wall-mounted motion sensor light with a white dome sensor on a dark gray rectangular housing<br>

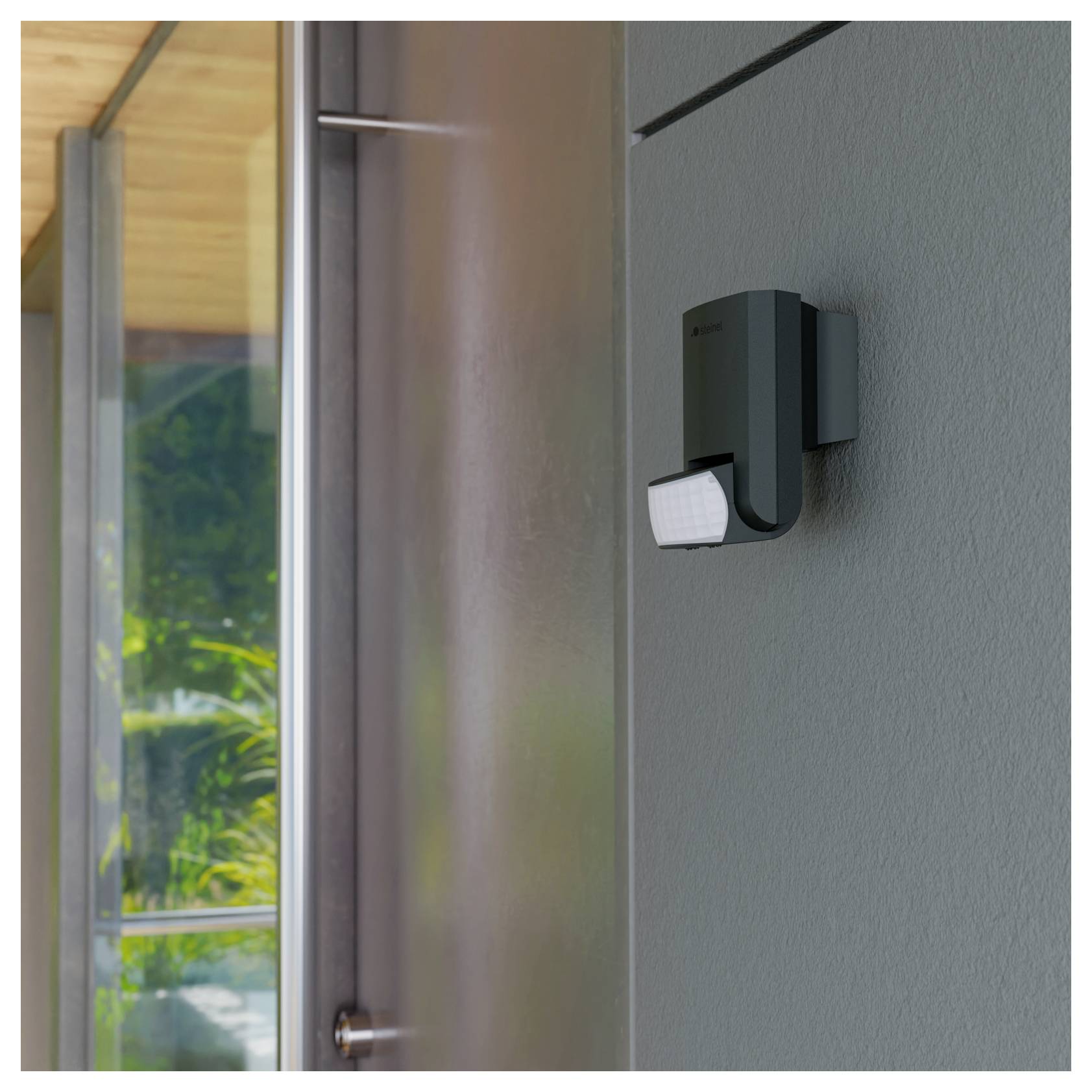

Black outdoor motion sensor light mounted on a gray wall beside a door, with a window and greenery visible nearby.

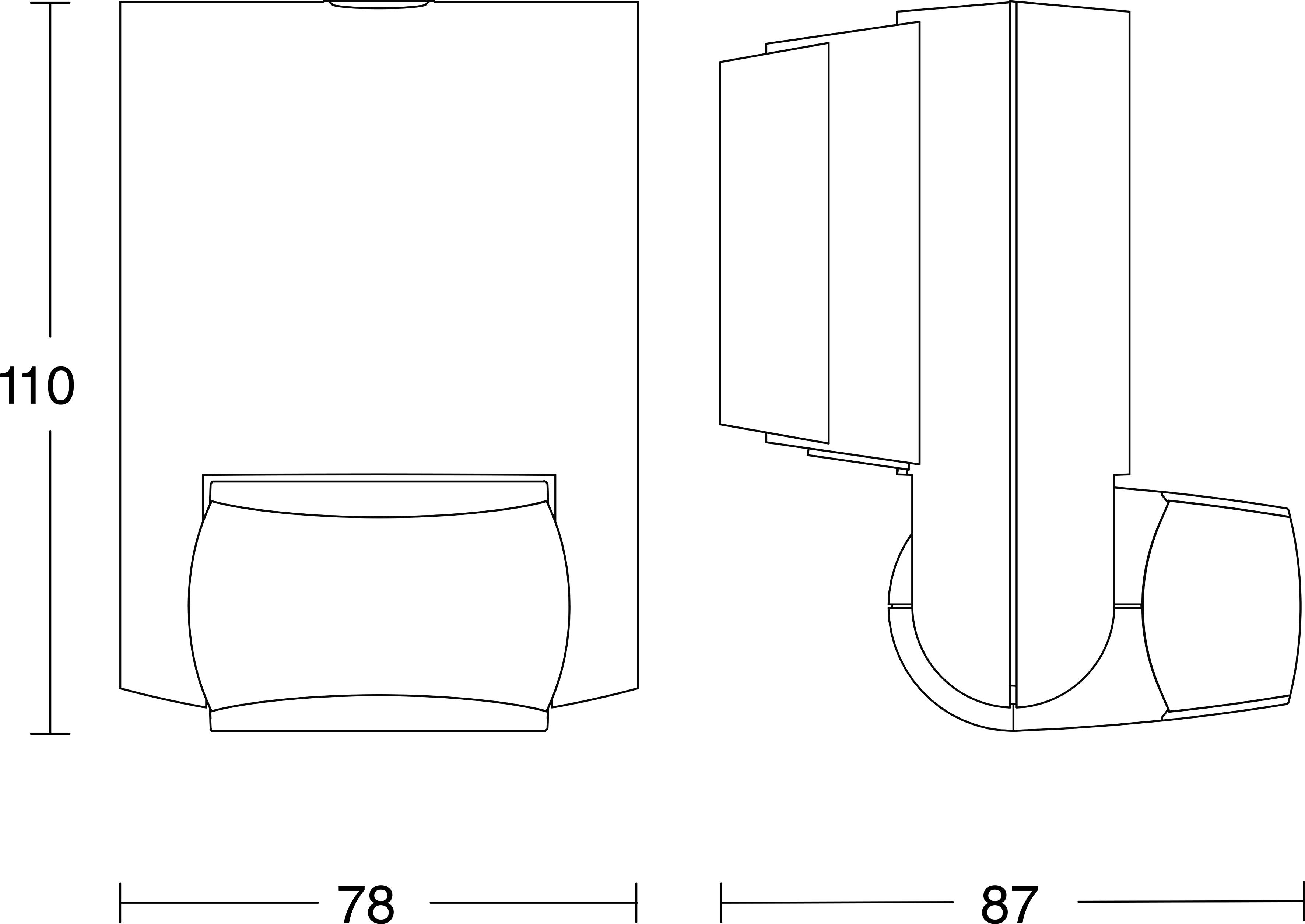

Technical line drawing of a wall-mounted fixture shown front and side views, with dimensions labeled 110, 78, and 87.

Quality graphic with four advantages: certified STEINEL quality, 3 years manufacturer's warranty, developed in Germany, personal customer service.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 33.99 / piece)

€ 33.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Infrared motion detector is 130-2 black

Generous, clear connection space
Can be swiveled horizontally and vertically
Perfect detection with low-creep protection
Time and twilight threshold can be set

Technical specifications

Swivel range horizontal: 50°
Swivel range vertical: 90°
Sensor type: passive infrared
Segment-detection fade-out possible: Yes
Protection class: 2

Product type: PIR motion detector

Detection angle: 130°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Wall

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 600 W

Voltage (max.): 240 V

Switching capacity (energy saving bulbs): 500 W

Switching capacity (light bulbs): 600 W

Switching capacity (halogen bulbs): 600 W

Switching capacity (LED): 500 W

Switching capacity (light tubes): 500 W

Twilight settings: 2 - 2000 lx

Time settings: 8 s - 35 min

Factory colour: Black

: IP54

Length: 84 mm

Width: 78 mm

Height: 130 mm

Dim: (L x W x H) 84 x 78 x 130 mm

Weight: 0.16 kg

Voltage (min.): 230 V

: Surface mounted (plaster)

: Black

: 78

: Movement sensor

: TRUE

: 87 mm

: 87 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 120 A

: Plastic

: 9005

: IP54

: FALSE

: FALSE

: FALSE

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1513606 Steinel 660215 Wall PIR motion detector 130 ° Relay Black IP54

User & Safety Instructions

User & Safety Instructions 1513606 Steinel 660215 Wall PIR motion detector 130 ° Relay Black IP54

Warranty Terms

Warranty Terms 1513606 Steinel 660215 Wall PIR motion detector 130 ° Relay Black IP54

Description

The infrared motion detector is 130-2 with the unbeatable price/performance ratio is one of the STEINEL Customer Favorites. The infrared motion detector is 130-2 is the ideal solution for the specific monitoring of surfaces at the house. The detection range can be due to the horizontal by 50° and vertically by 90° swivel multi lens can be precisely adjusted to the specific conditions on-site. In addition, the detection range can be restricted with the accompanying cover plates. Time and twilight threshold can be via a rotary knob on the bottom of the multi-lens is continuously adjustable. Thanks to the generous, clear connection area, the infrared motion detector is 130-2 quickly and easily wired and mounted on the wall. The cable can be flush or surface.

This text is machine translated.
