Buy Sygonix SY-5251904 Ceiling, Structure Ceiling-mount motion detector 360 ° Relay White

A white, circular ceiling motion sensor with a transparent central section for detecting movement in rooms.

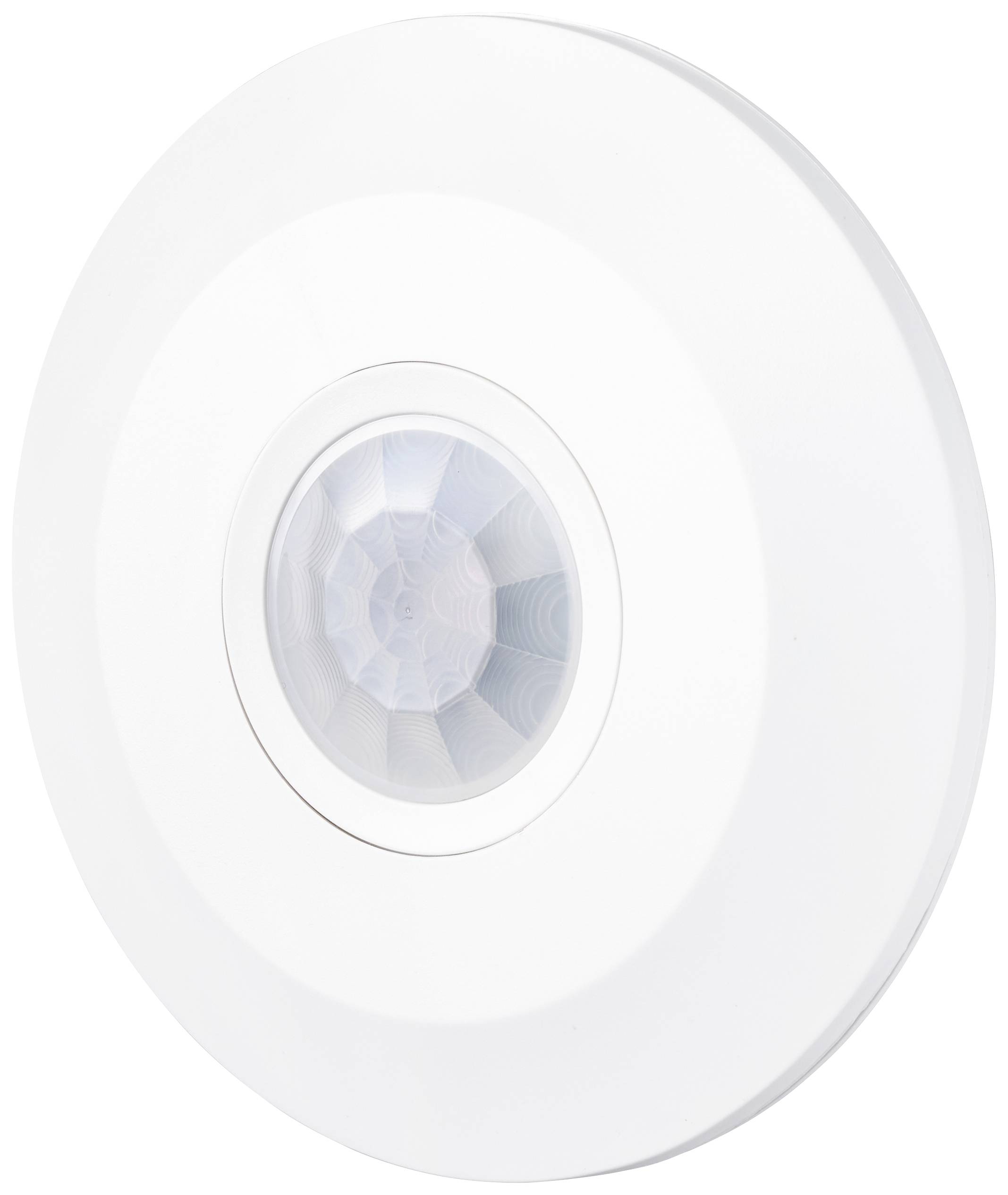

A round, white motion sensor with a curved lens in the centre, suitable for detecting movement in rooms or corridors.

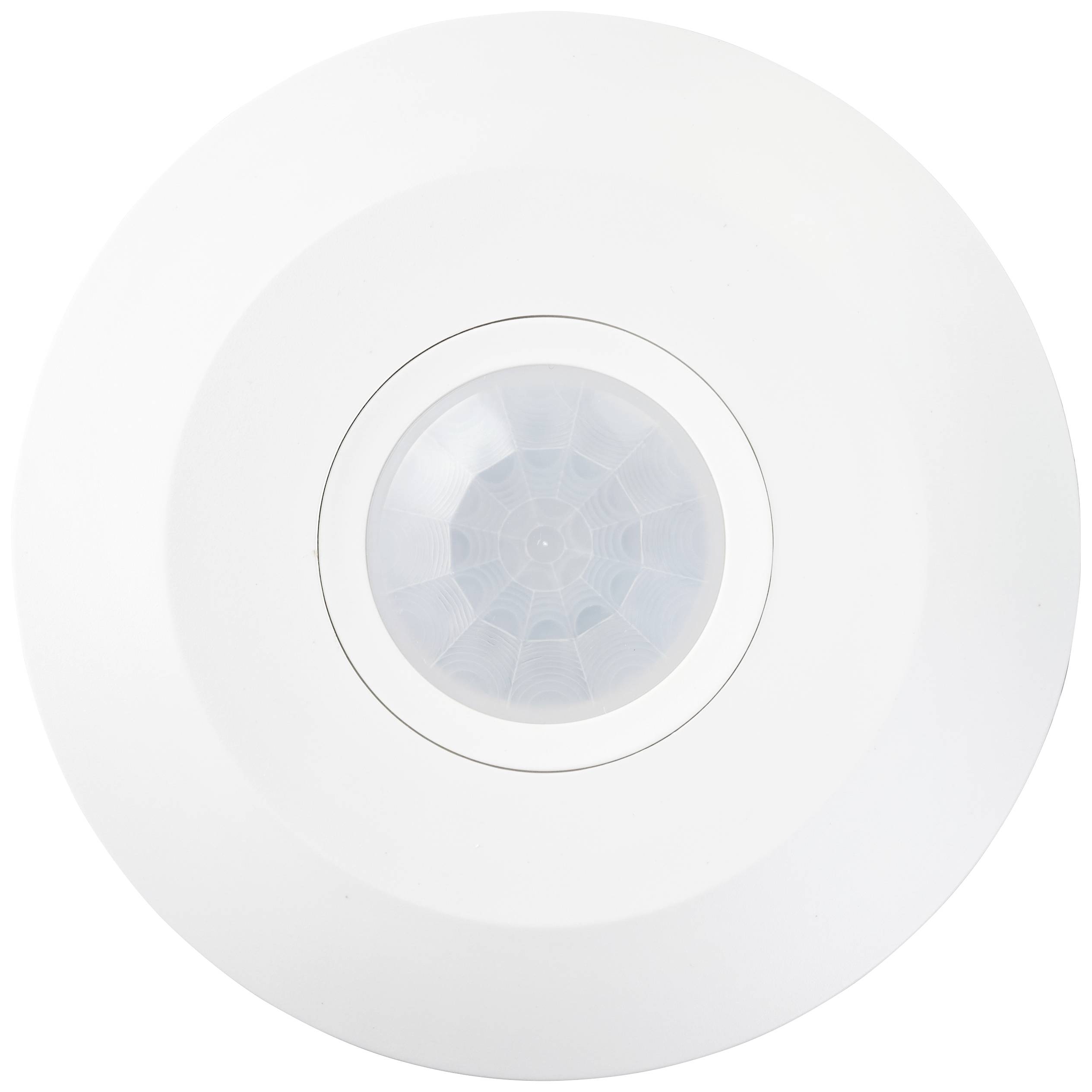

A circular motion sensor with a transparent cover, mounted on a white wall or ceiling.

White round back of an electronic device with screw holes and cable openings, suitable for wall or ceiling mounting.

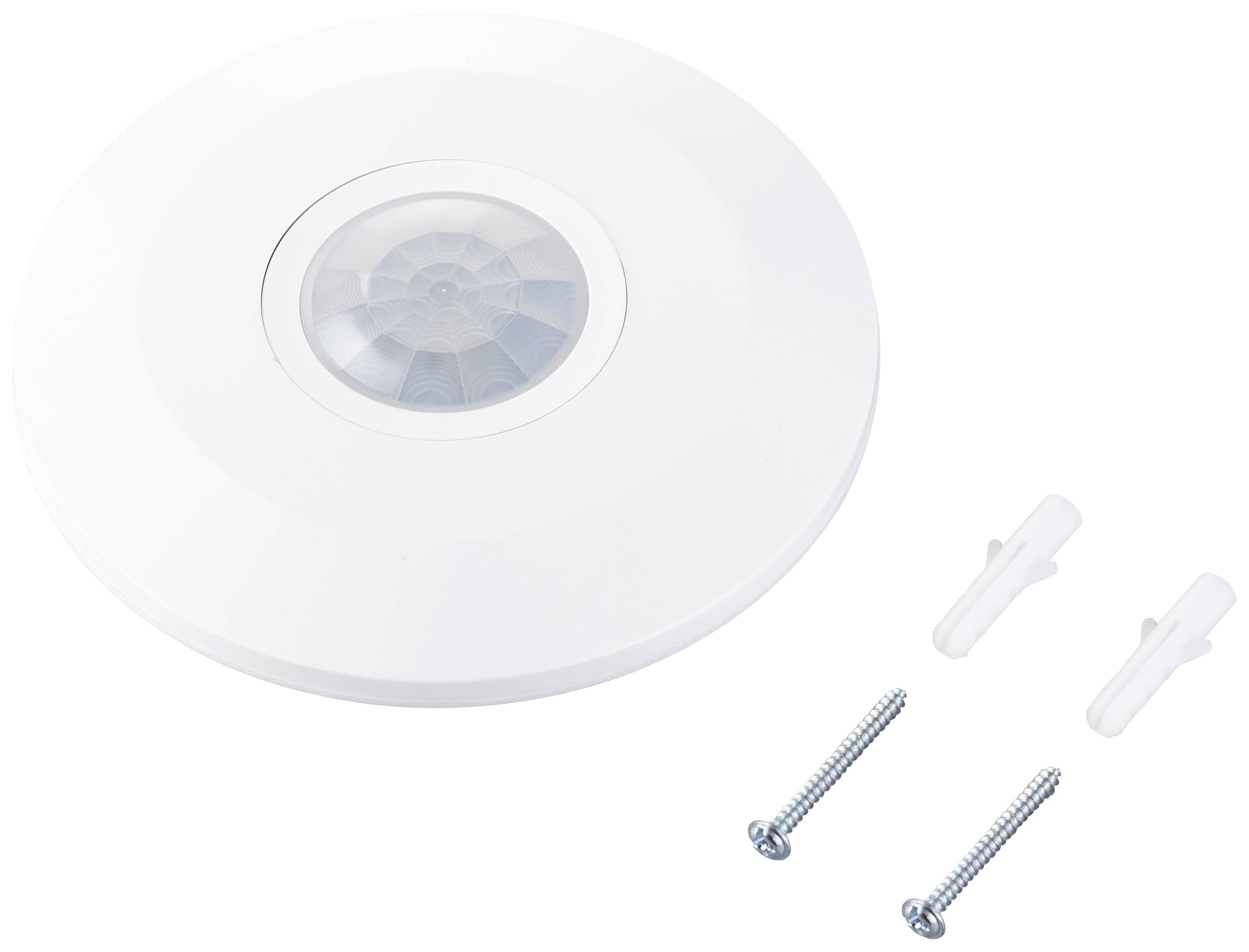

White round motion sensor with a clear lens in the centre. Two screws and wall plugs are placed beside it, suitable for ceiling mounting.

A person walks through a modern corridor with multiple lift doors on both sides, heading towards a brightly lit exit.

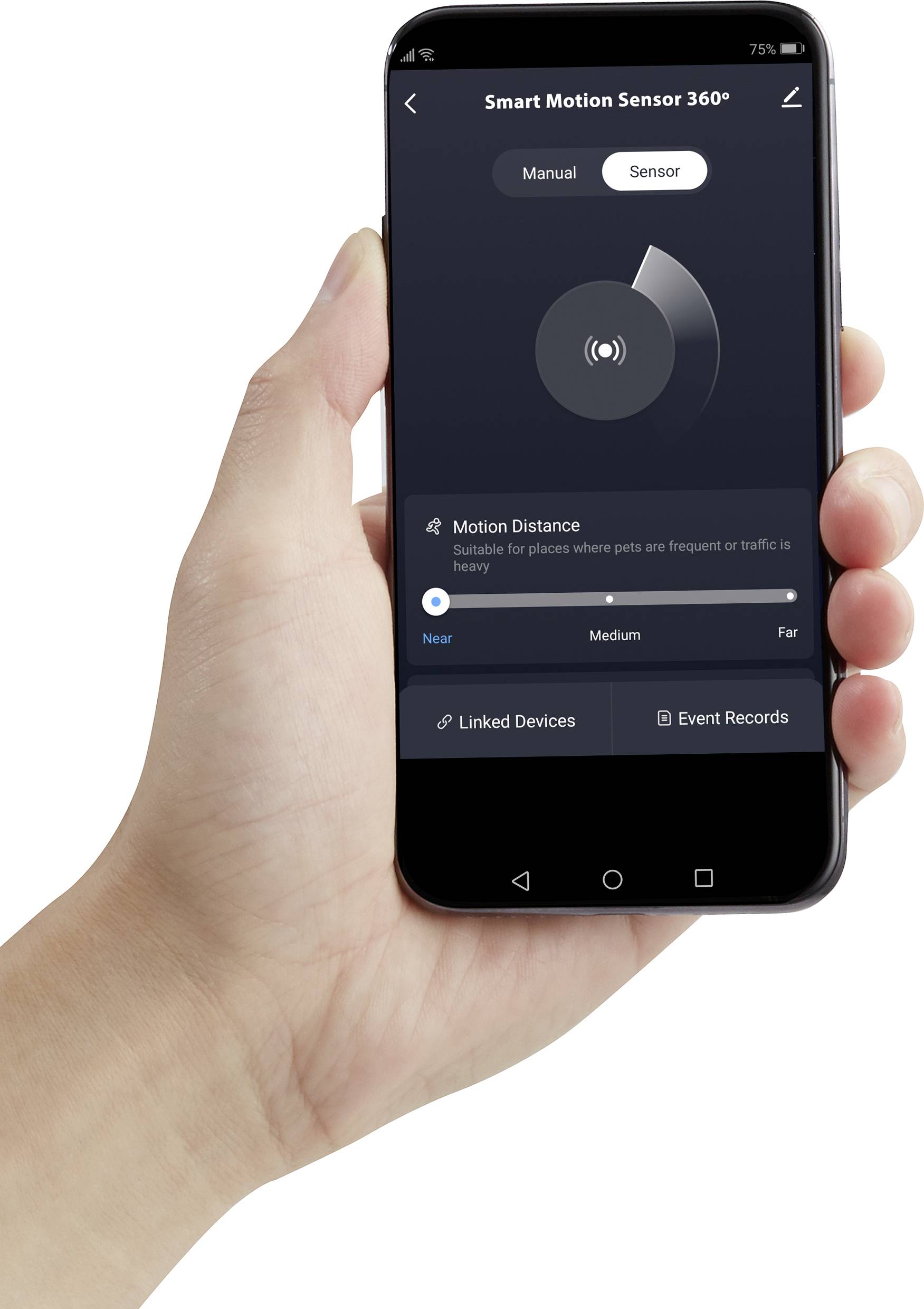

A hand is holding a smartphone with the app 'Smart Motion Sensor 360°'. The display shows settings for motion detection.

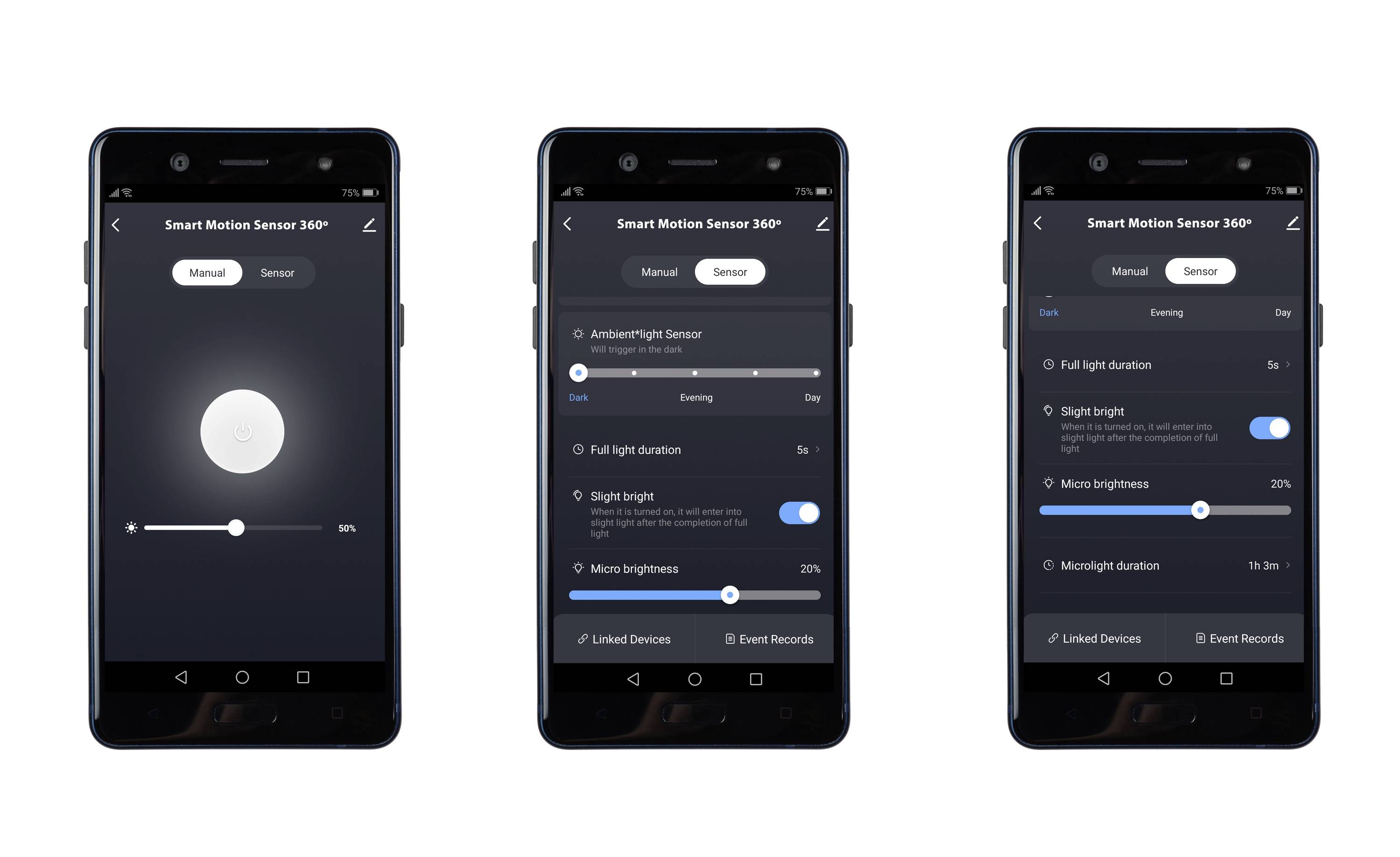

Three smartphone screens display the settings of a smart motion sensor, including brightness and night mode adjustments.

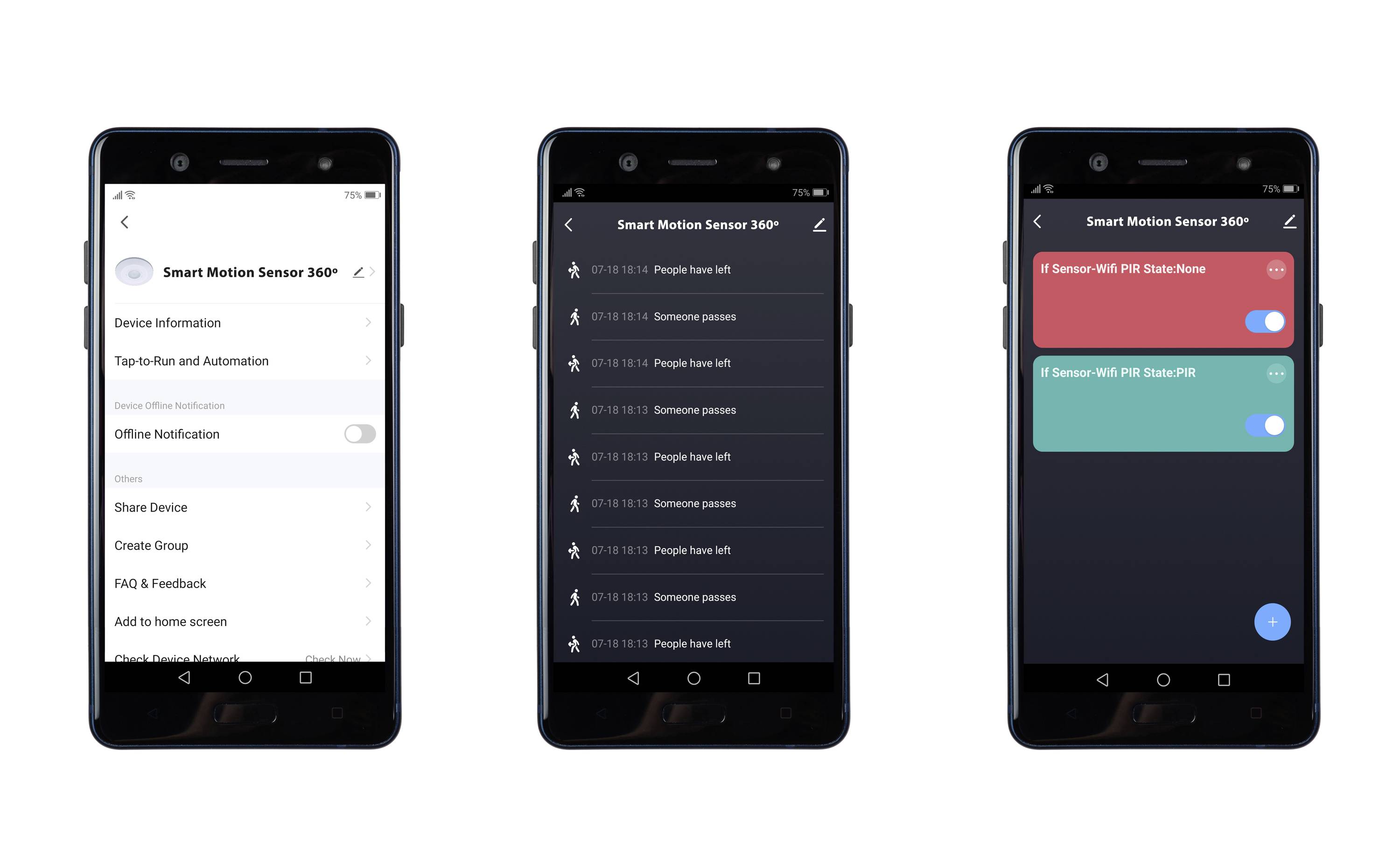

Three smartphone screens display the settings of a Smart Motion Sensor with options for automation based on movement and status changes.

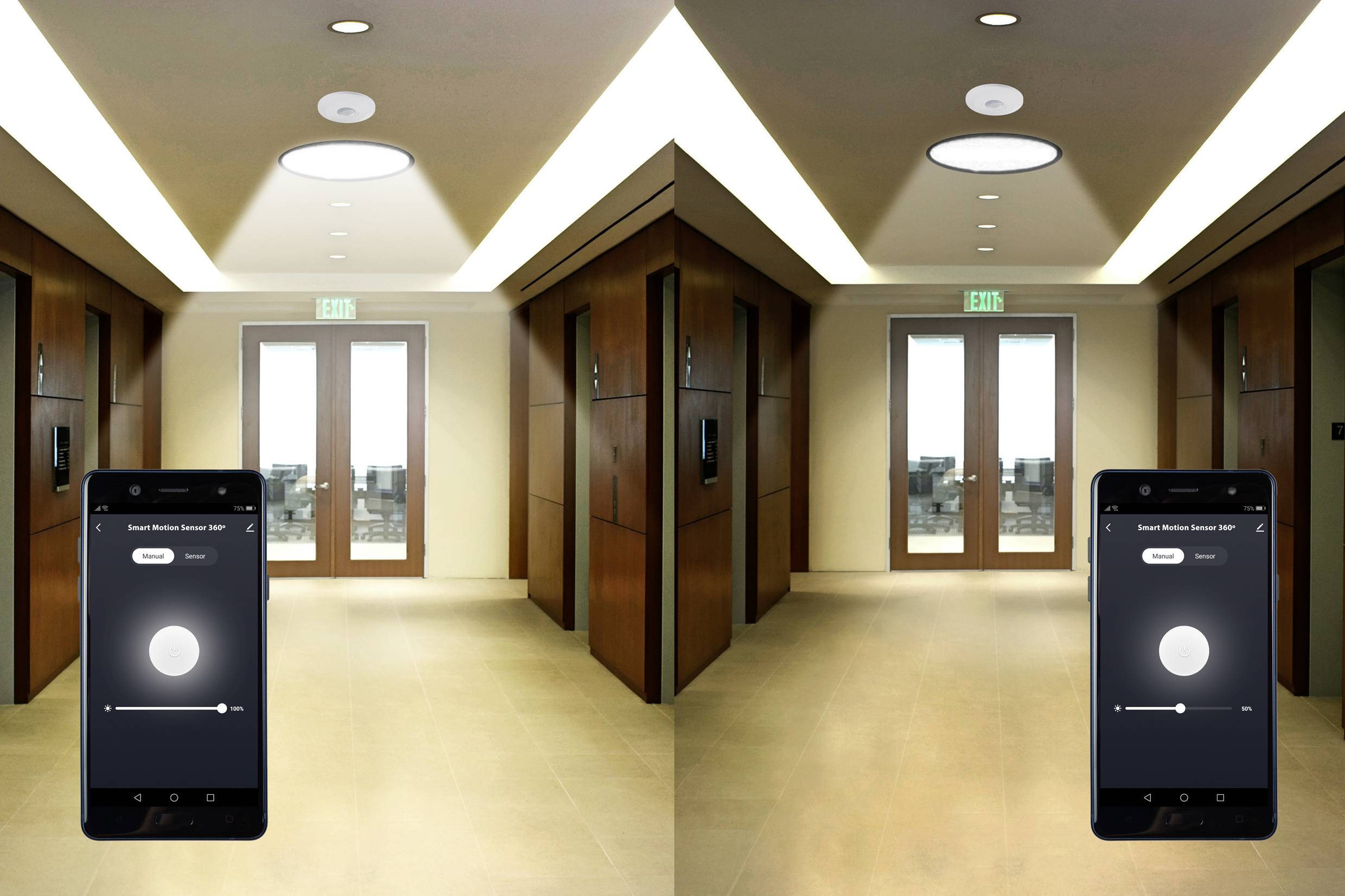

A corridor with two doors shows two scenarios: on the left, dimmed lighting, on the right, bright light. A smartphone controls the brightness.

Shopping centre, hotel, school and office with smartphone app for controlling lighting via a circular sensor demonstrated.

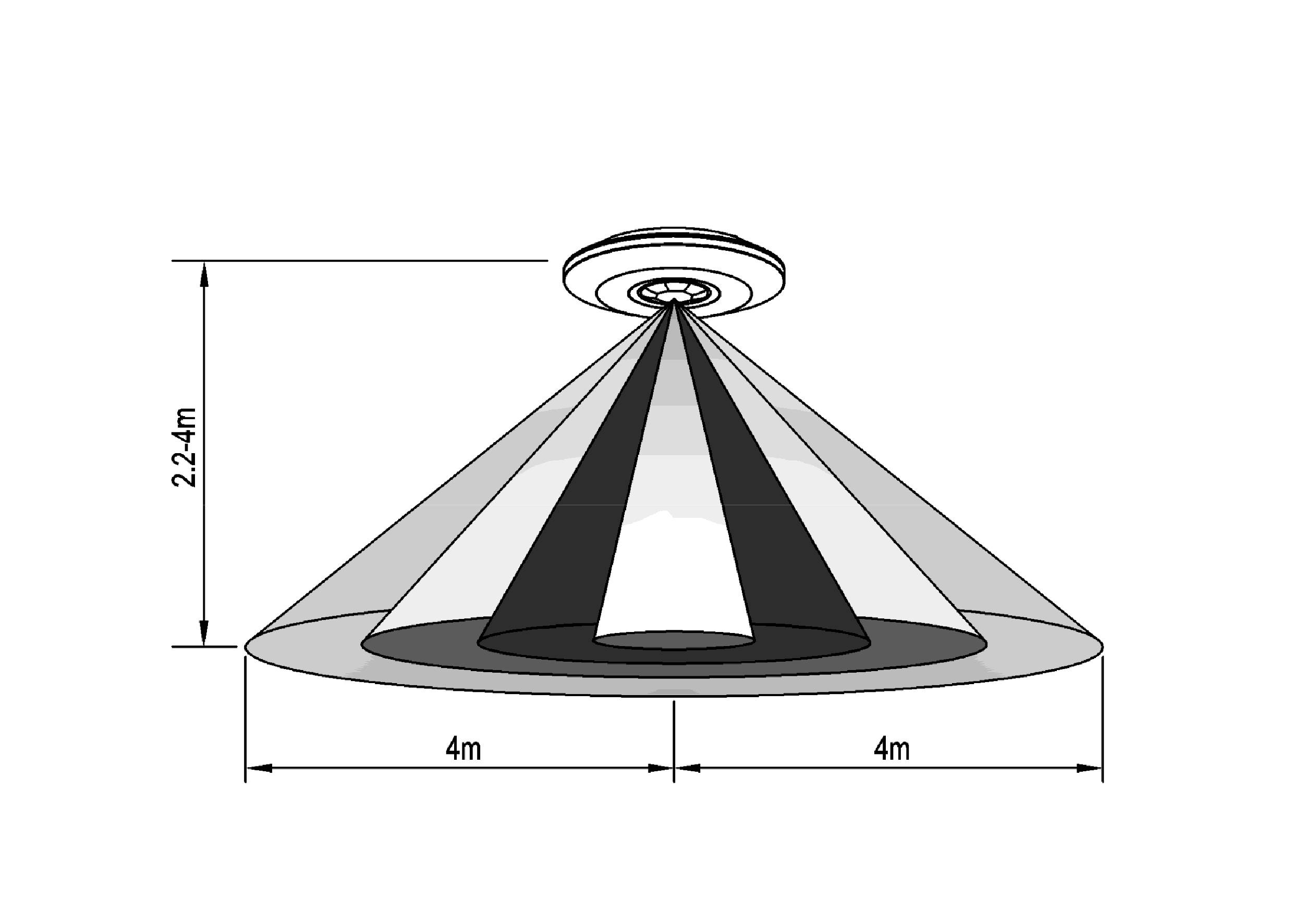

A ceiling light projects light in a cone measuring 4 metres in diameter and 2.4 metres in height downwards.

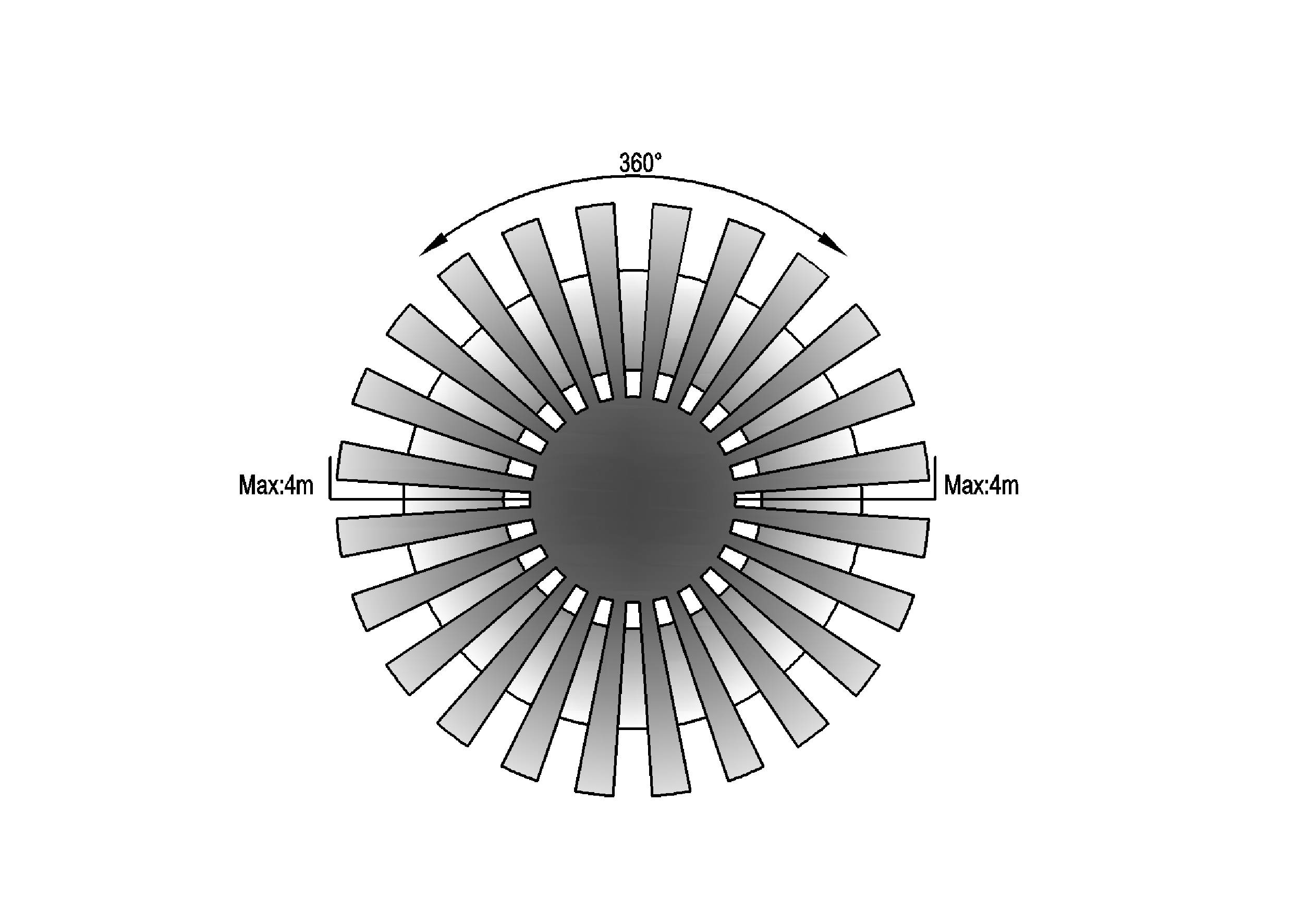

Pie chart shows a 360-degree span with "Max: 4m" positioned to the left and right sides of the circle. Radial lines emanate from the centre.

1/13

Our service for you

Fast track dispatch on Wed, 16 Sep

363 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Ceiling-mounted PIR motion sensor, TUYA

Switches up to 2000W
Dim and switch lights on/off remotely via mobile app
Easy configuration via mobile app

Technical specifications

Detection range: Near (50%), Medium (75%), Far (100%) (selection)Detection distance: Max. 8 m (<24 °C)Time delay: 5 s - 60 min (adjustable) Micro brightness duration: 1 min - 8 hours (adjustable)Micro brightness Dimming level: Sensor mode: 1% - 30% (selectable), Manual mode: 1% - 100% (selectable)Ambient light: Dark (5LUX), 10LUX, evening (50LUX), 150LUX, day (2000LUX) (adjustable)Installation height 2.2 - 4 m.Wi-Fi frequency: 2.4 GHz Wi-Fi standard: IEEE 802.11 b/g/n.

Product type: Ceiling-mount motion detector

Detection angle: 360°

: 8 m

Used at: Indoors

Mounting type: Ceiling
Structure

Operating voltage: 230 V AC

Contact type: Relay

Switching capacity: 2000 W

Switching capacity (energy saving bulbs): 1000 W

Switching capacity (light bulbs): 2000 W

Switching capacity (LED): 1000 W

Factory colour: White

Height: 25 mm

(Ø): 115 mm

Dim: (Ø x H) 115 mm x 25 mm

Weight: 110 g

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2625952 Sygonix SY-5251904 Ceiling, Structure Ceiling-mount motion detector 360 ° Relay White

Warranty Terms

Warranty Terms 2625952 Sygonix SY-5251904 Ceiling, Structure Ceiling-mount motion detector 360 ° Relay White

Description

With the clever "all-round detection" it does not matter from which direction you enter the detection range of this PIR detector. Within up to 8 m and a detection angle of 360°, the connected lamp is always reliably switched on, whereby the lighting duration can be set individually. This motion detector is therefore ideal for corridors and stairwells.

This text is machine translated.

Features

Infrared motion sensor
For incandescent lamps, energy-saving lamps and LEDs
Detection angle: 360º
Detection range:max. 8m
Standby dimming function

Scope of delivery

Wi-Fi & Bluetooth sensor
2x Screws
2x Dowels
User manual
