Buy Tamiya VW Golf II GTI 16V 1:10 RC model car Electric Road version Kit

Red model car of a VW Golf GTI with black windows and details. Small, two-door car photographed against a white background.

Box illustration of a red Volkswagen Golf II GTI 16V model car by Tamiya in 1:10 scale, with details of the chassis.

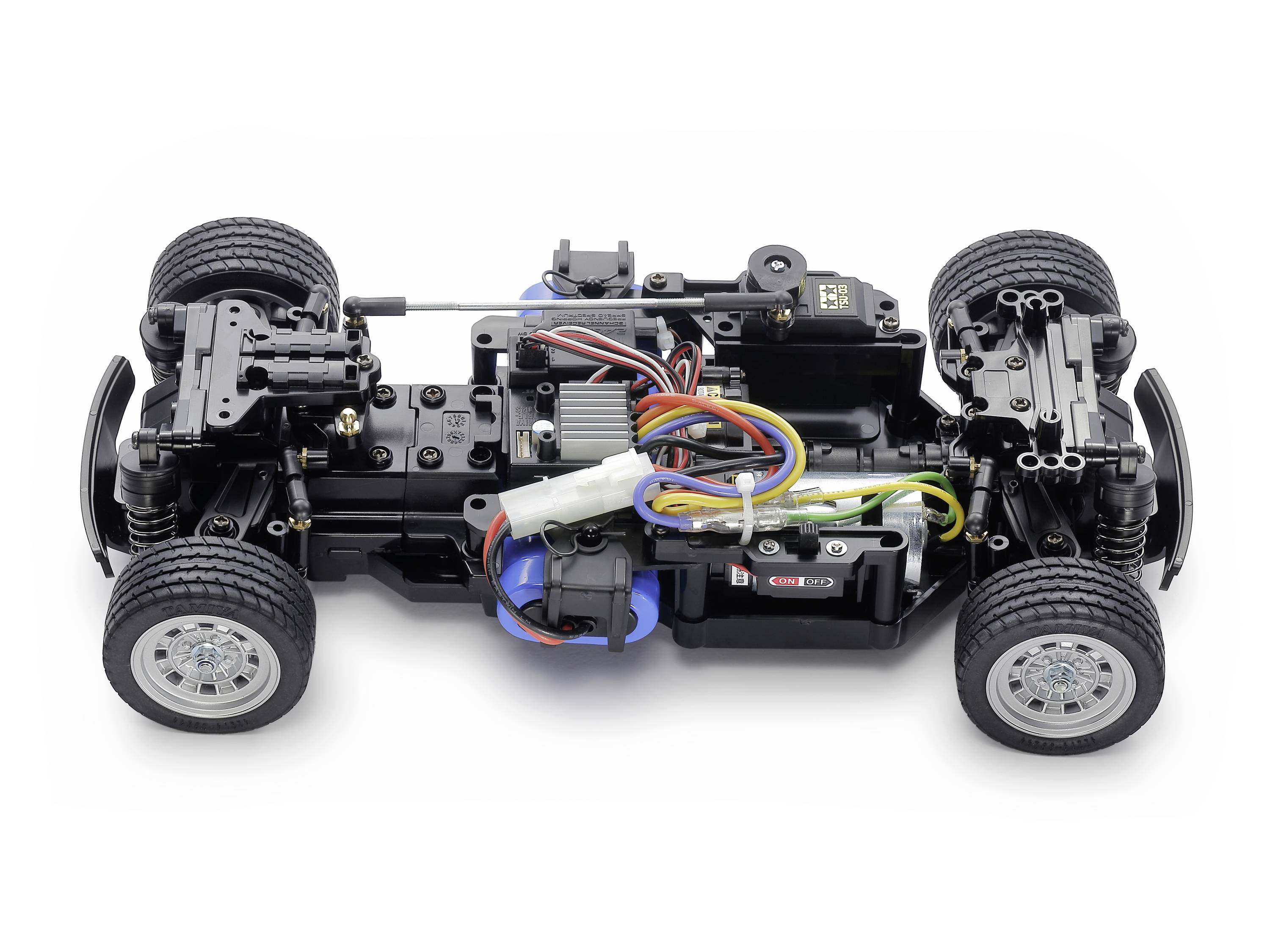

Remote-controlled car chassis with visible motors and cables, without bodywork. Four wheels are mounted, technical details discernible.

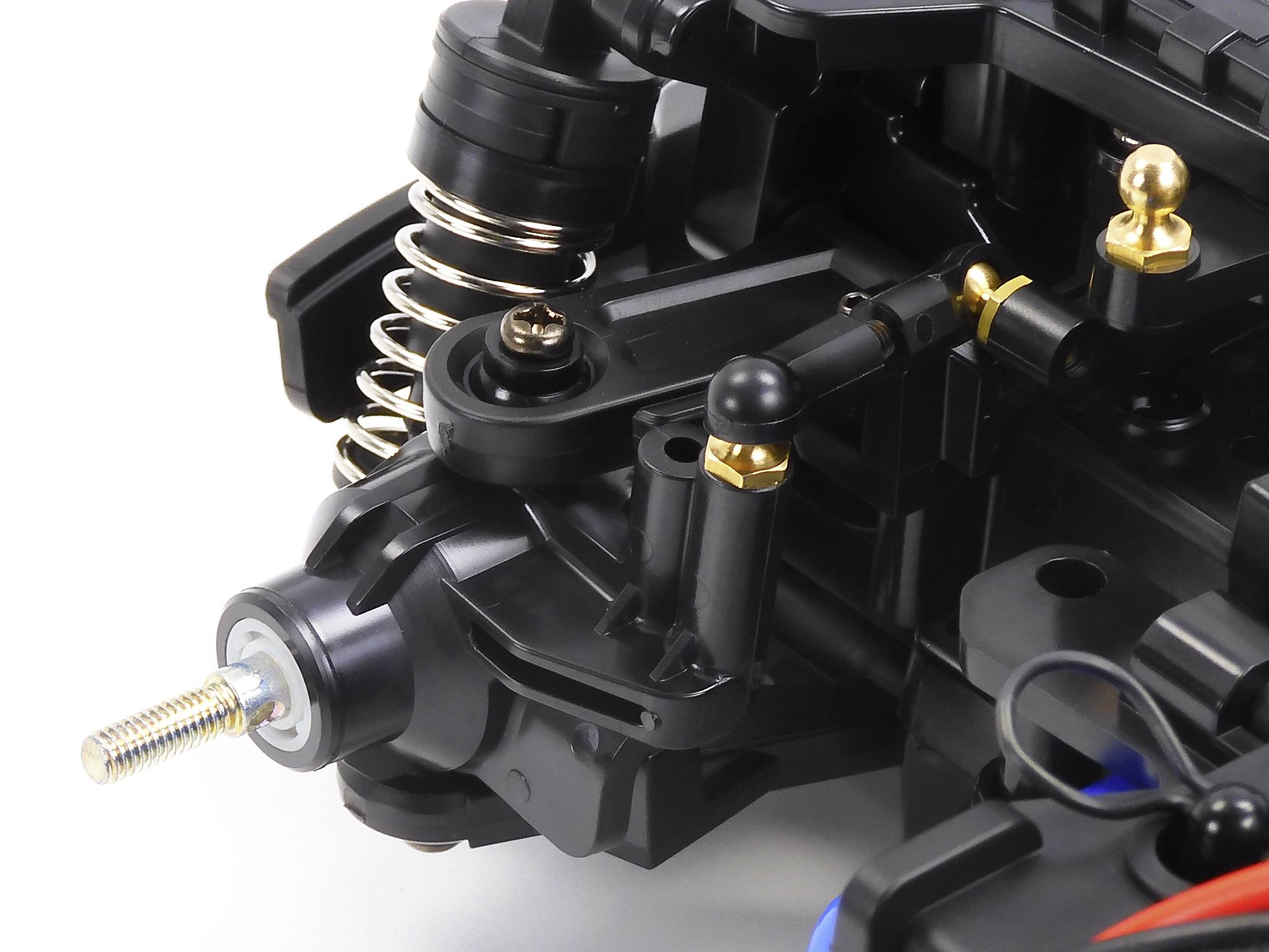

Close-up of a black and gold model car suspension system with springs and screws, revealing the details of the mechanics.

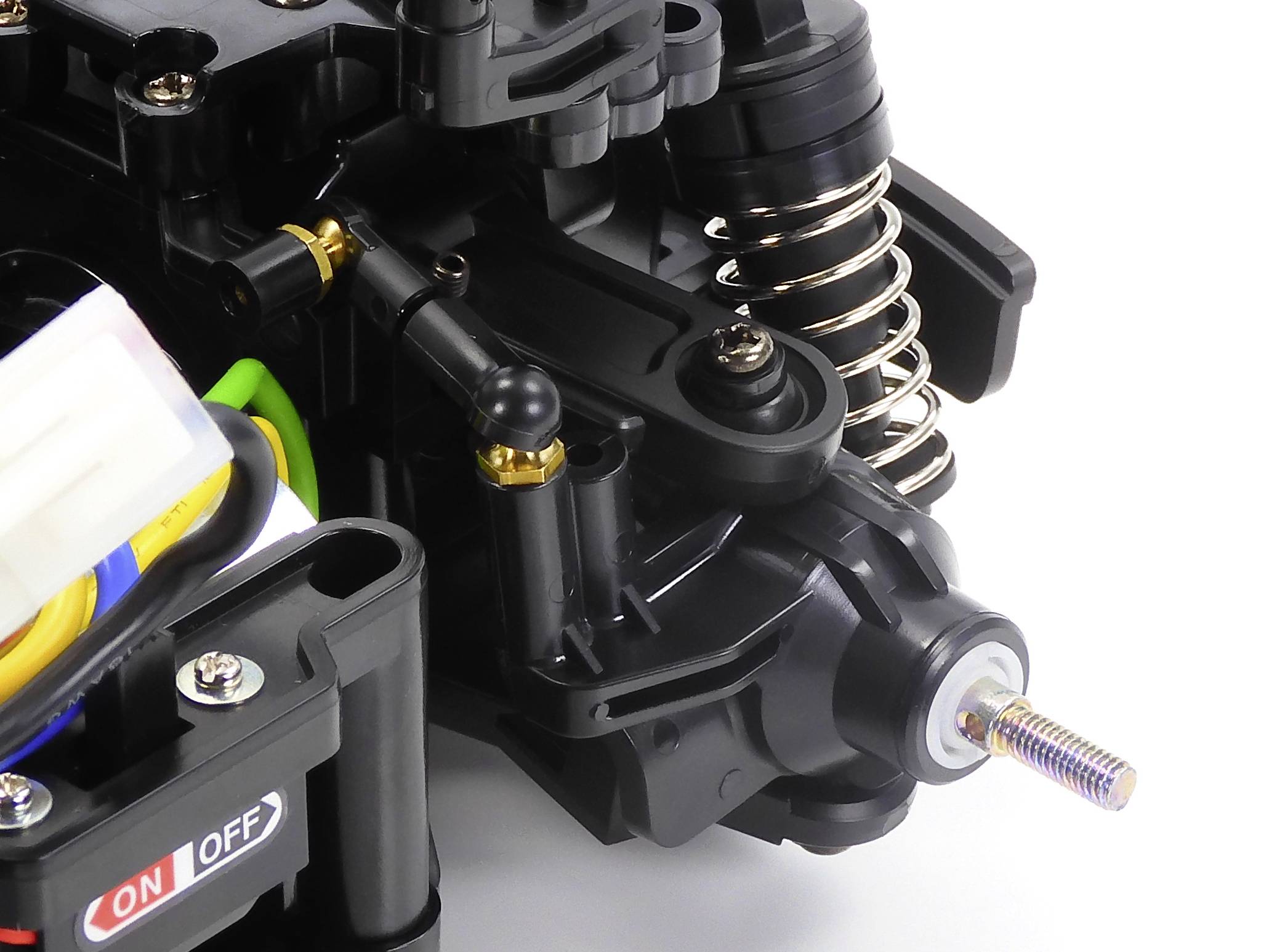

Close-up of a mechanical component with springs and screws, possibly part of a vehicle or machine.

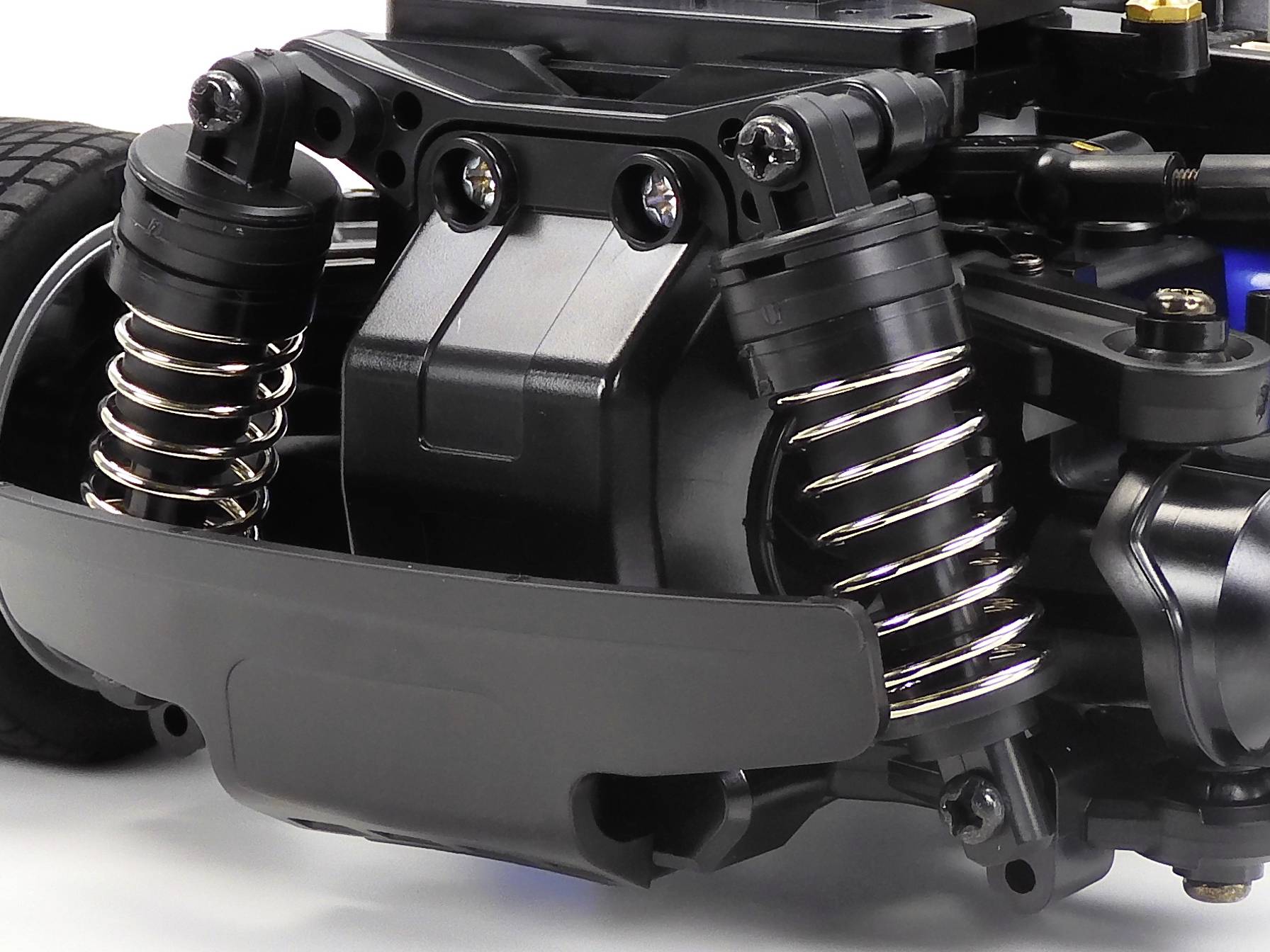

Close-up of the suspension and shock absorbers of a remote-controlled car, showing technical details and design elements.

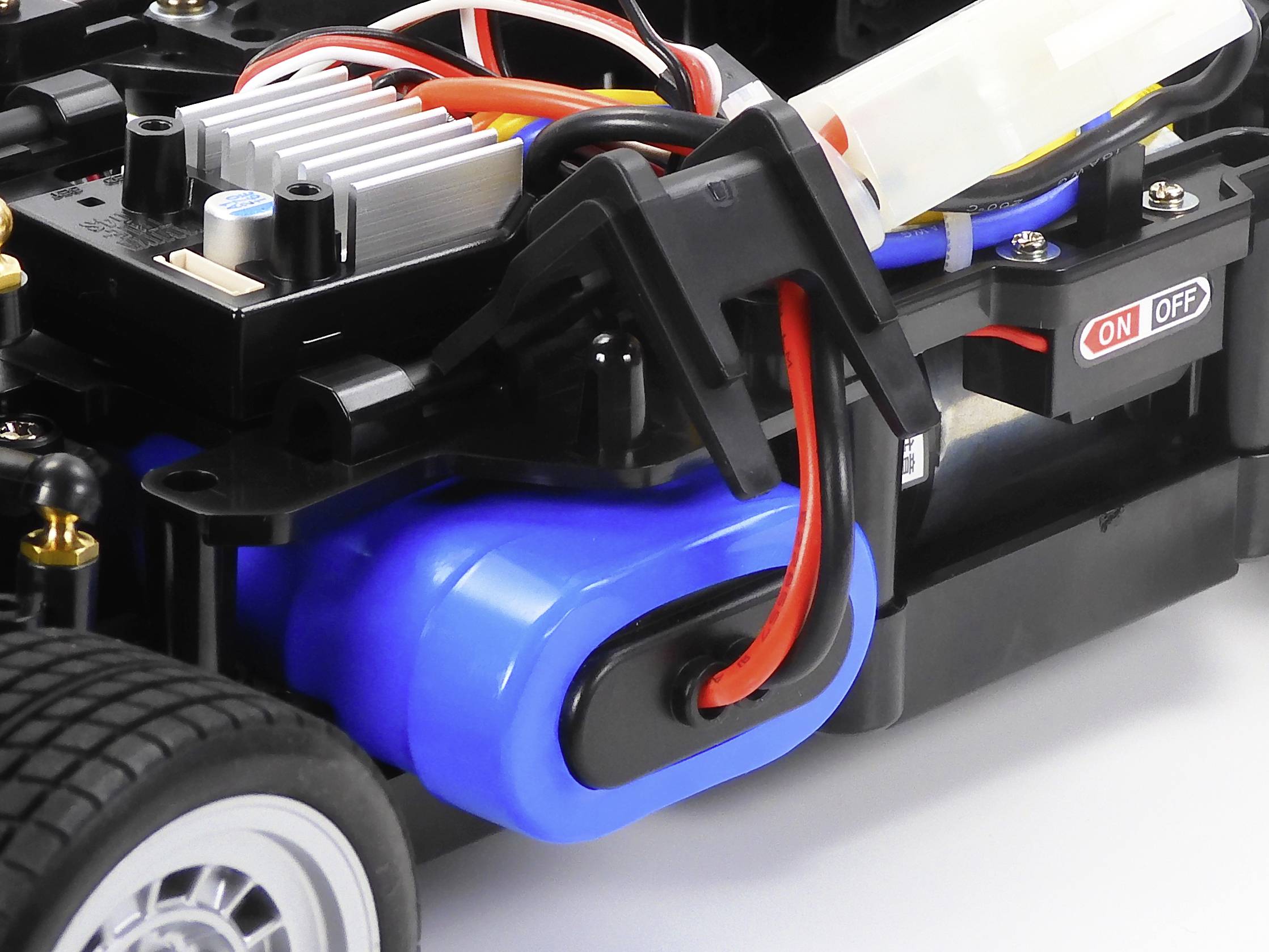

Close-up of a remote-controlled model car with visible wiring, battery, and on/off switch.

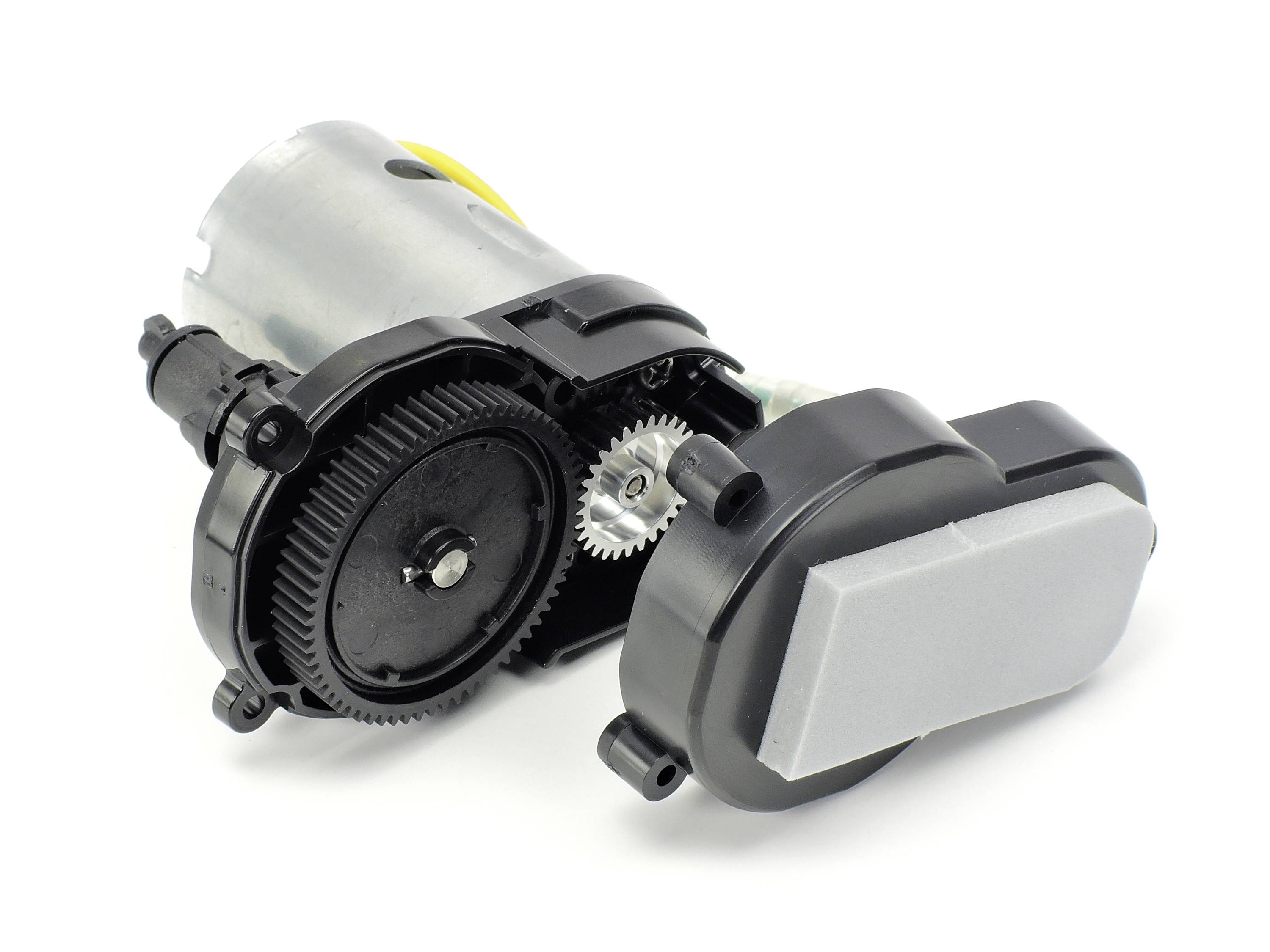

'An electric geared motor with visible gears and housing. Main components: motor, gear mechanism and cover.'

A black plastic gearbox with visible gears and two connection pieces, likely part of a technical machine.

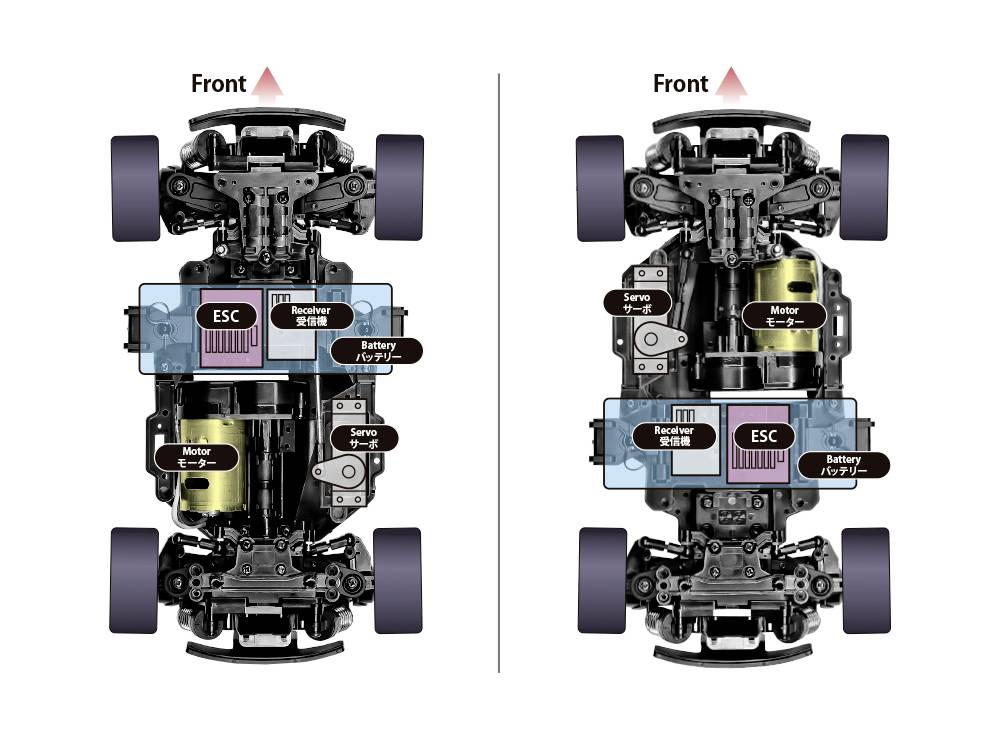

'Diagram shows two layouts of an RC vehicle from above. Each layout highlights the ESC, servo, receiver, and battery position.'

1/10

Fast track dispatch on Wed, 23 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: RC model car

Model craft type: Road version

Scale: 1:10

Dim: (L x W x H) 383 x 170 x 138 mm

Wheelbase: 239 mm

Model version: Kit

Age category: 14 years and over

Model: VW GOLF II GTI 16V

Engine type: Electric

Motor type: 540 er

Width: 170 mm

Height: 138 mm

Length: 383 mm

Required accessories: 2-channel radio system
Battery
Battery charger
Power steering

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3398505 Tamiya VW Golf II GTI 16V 1:10 RC model car Electric Road version Kit

Description

TAMIYA presents the Volkswagen Golf II GTI 16V on the MB-01 chassis.
As Basi's the MB-01 M-Chassis serves the 58748 TAMIYA model in scale 1:10. With this chassis both the drive type (front or rear motor) and the motor position (front, rear, low/high) can be selected freely. The drive is made by a strong 540-series electric motor and the wheels have an independent suspension.

This text is machine translated.

Features

Kit model in the scale of 1/10
MB-01 chassis with 2 WD drive
Prototypical, unpainted polycarbonate body
M-Chassis 60 mm tires front and rear
Powerful 540-series motor included
Independent front and rear suspension
Electronic speed controller included in the kit
WD drive – can be freely selected whether front-wheel or rear-wheel drive
Motor position can be installed in 3 different positions
Built in 3 different wheelbase: 209 mm (short), 224 mm (Medium) and 239 mm (large)
Independent suspension on all four wheels
Gear reduction: 5.83:1 (when using the 29-series pinion from kit)
