Name: TDE Instruments Digalox DPM72-MPP-RS485 Process display
Brand: TDE Instruments
SKU: 2352378
Availability: InStock

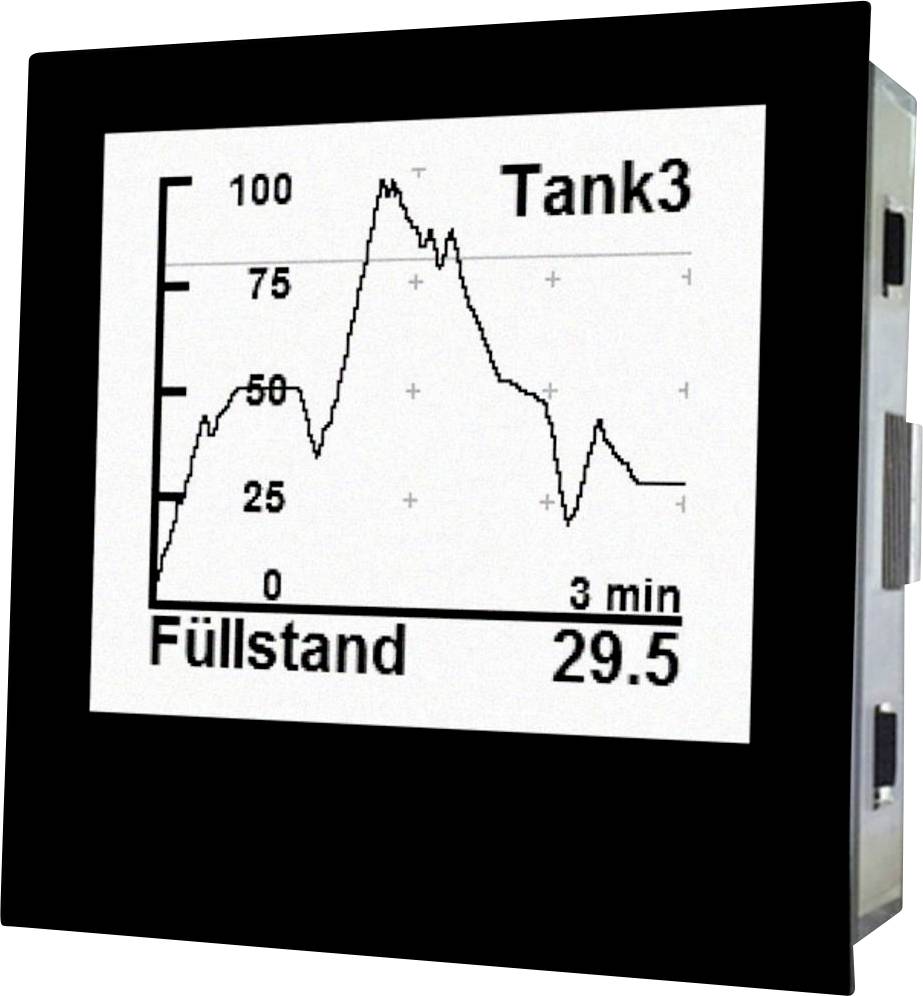

Black and white display shows 'Tank 3 Level', with a bar graph and a line graph underneath. Current value: 29.5.

Graph shows the fill level of Tank 3 in percentage over 3 minutes, rising from 50 to 100, then falling to 25, final value 29.5 percent.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 224.99 / piece)

€ 224.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

1 measurement input 0/2 to 10 V.
1 measurement input 0/4 to 20 mA
LCD graphic display 16 gray scales 192 × 160 pixels
RGB background lighting
Pointer graphics and digital display
Multiple display of up to 4 parameters
Adjustable scale deflection and labeling
Measured value recording for up to 14 days
Alarm outputs with adjustable thresholds, galvanically isolated
Individual alarm lighting color
Customer-specific start screen
Various display designs are available, e.g. speedometer, bar graph, history display
Real-time measurement transmission
Bimetal function (averaging)
RS485 Modbus RTU interface
SUPPLY 12-24V AC/DC
Measurement accuracy 0.5% true RMS
PC software for individual configuration and measurement data recording included
Operating hours timer
Time counter
This text is machine translated.

Technical specifications

Product type: Process display

Reading type: DC current
Amperage

Reading range (min.): 0 mA
4 mA

Type: Digalox DPM72-MPP-RS485

Reading range (max.): 20 mA

Display technology: LCD

: IP65 (front)

Recess width: 68 mm

Display (counts): 9999

Recess height: 68 mm

Operating voltage: 12 V DC/AC
24 V DC/AC

Dim: (L x W x H) 59 x 72 x 72 mm

Weight: 149 g

Max. operating voltage: 24 V DC/AC

Min. operating voltage: 12 V DC/AC

Display lighting: RGB
blue
green
red
white

Features: Dual reading dial
selectable units

Recess depth: 56 mm

Factory colour: Black

Width: 72 mm

Height: 72 mm

Length: 59 mm

Frame width: 7.2 cm

Frame height: 7.2 cm

Interfaces: 1 x RS 485 Modbus RTU

Interfaces: RS485

Documents & Downloads

Datasheet

Datasheet 2352378 TDE Instruments Digalox DPM72-MPP-RS485 Process display

User & Safety Instructions

User & Safety Instructions 2352378 TDE Instruments Digalox DPM72-MPP-RS485 Process display

Description

Innovative, individual and multifunctional: The DPM72-MP+ and DPM72-MPN+ measuring instruments for electrical sizes are characterized by extensive functions and configuration options. Suitable for measuring the comprehensive measurement types (Volt AC/DC, Current AC/DC, Frequency, Power, Cosinus phi), The measuring devices are equipped with extensive functions. The individual configuration of the devices as well as the real-time transmission of all measured values is ensured by the Modbus interface. Thus, the DPM72 meters are versatile and enable a wide range of applications for industrial applications. The multifunctional measuring instruments are particularly in demand in the area of monitoring machine and operating data and are suitable for modernizing old systems, as they are particularly suitable for retro fitters. In addition, they can be attached to DIN rails as well as to other backgrounds by corresponding holes on the housing.Comprehensive software customizationThe measuring instruments can be individually set up using the configuration software "Digalox Manager". Once set up, the DPM72 transmits your measured values reliably and in real time. The software enables the reading of the measured values in the measurement memory, which can then be evaluated graphically and exported as a CSV file.Switching outputsTwo galvanically isolated alarm outputs enable an alarm to be triggered and activated or Abschaltvorgänge when individually adjustable threshold values are reached.Modbus interfaceThe RS485 Modbus interface of the DPM72 meters allows the configuration as well as the transmission of all measured values. The RS485 Modbus protocol is in line with the established industry standard, making the DPM72 instruments with Modbus interface universally compatible with existing Modbus devices from other manufacturers. This enables, above all, an unstateless modernization of older or technically obsolete machines (Retrofit) without having to replace these costs and time-consuming.
