Name: Technaxx TX-190 4989 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p
Brand: Technaxx
SKU: 2798176
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Surveillance Camera Kit with Camera, Wall Mount, Cable, Mounting Accessories and Key. Suitable for Security Installations.

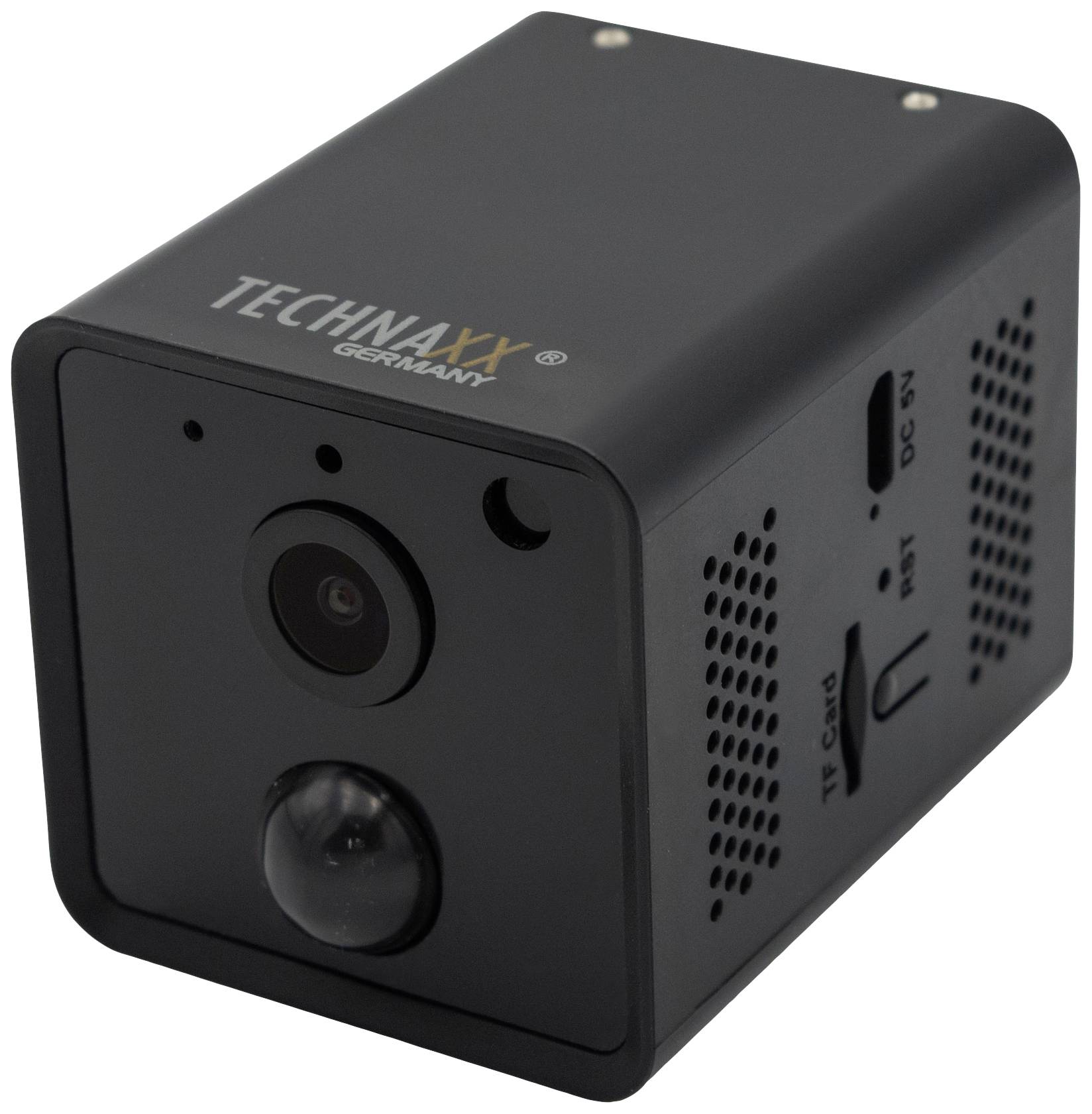

Black surveillance camera by TECHNAXX with lens and infrared sensor, suitable for indoor security monitoring.

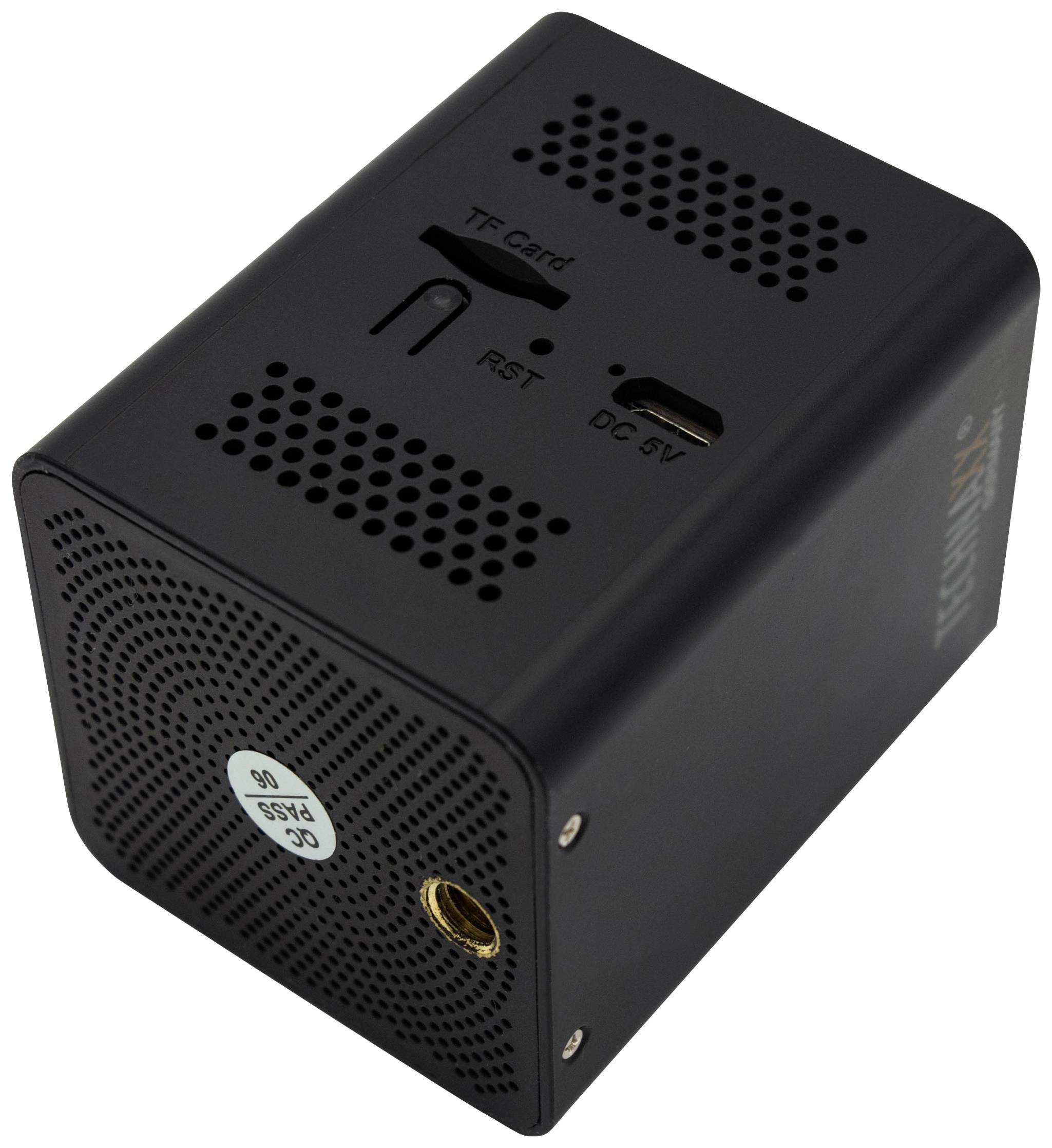

A black, square speaker with slots for TF card, reset, DC 5V and an audio output.

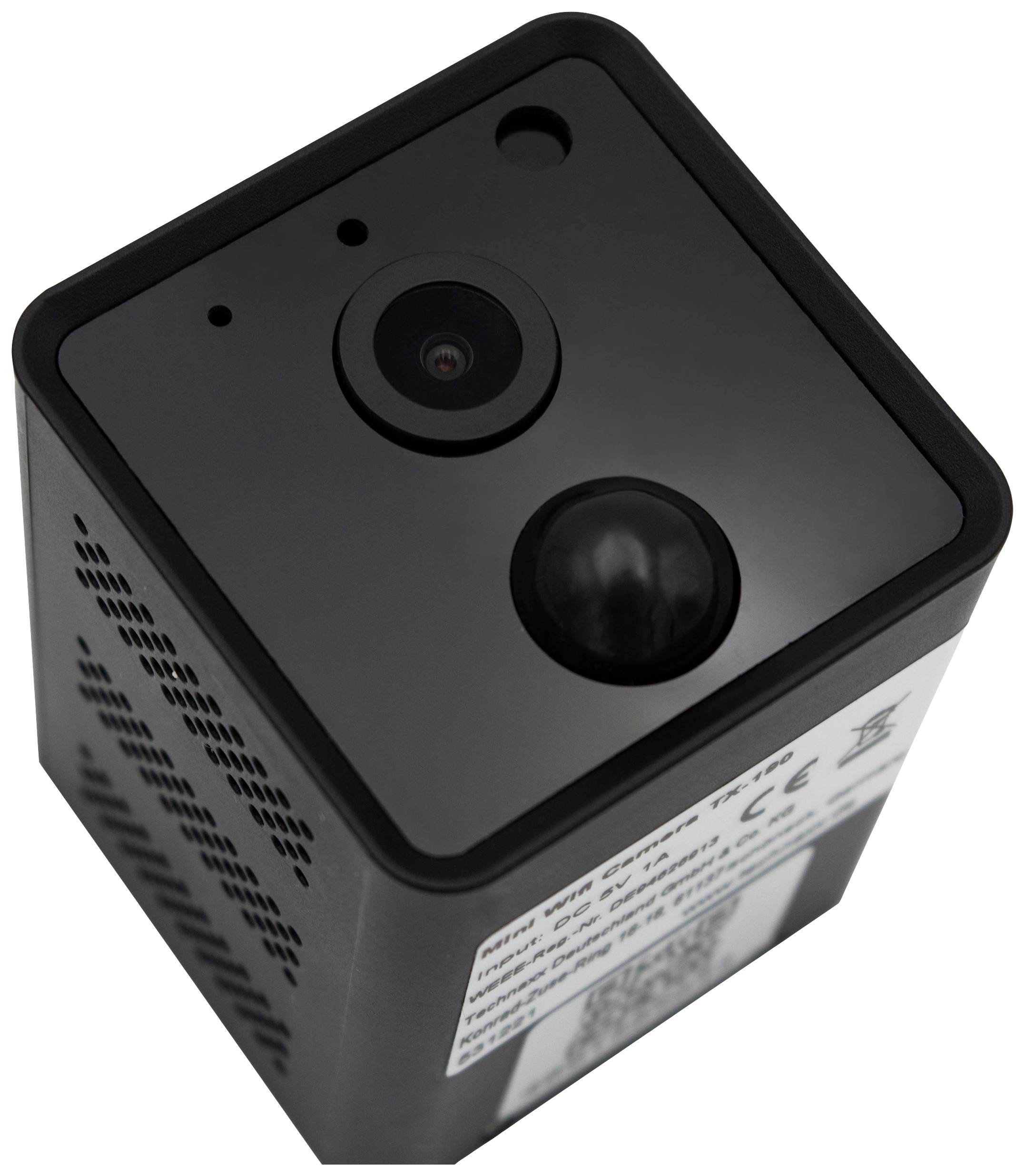

A black surveillance camera housing with lens and motion sensor, suitable for indoor security applications.

'TECHNAXX Mini WiFi IP Camera TX-190' Packaging. Functions: Full HD 1920x1080, 15m WiFi, 100° viewing angle, night vision, PIR sensor. Micro SD up to 128GB (not included).

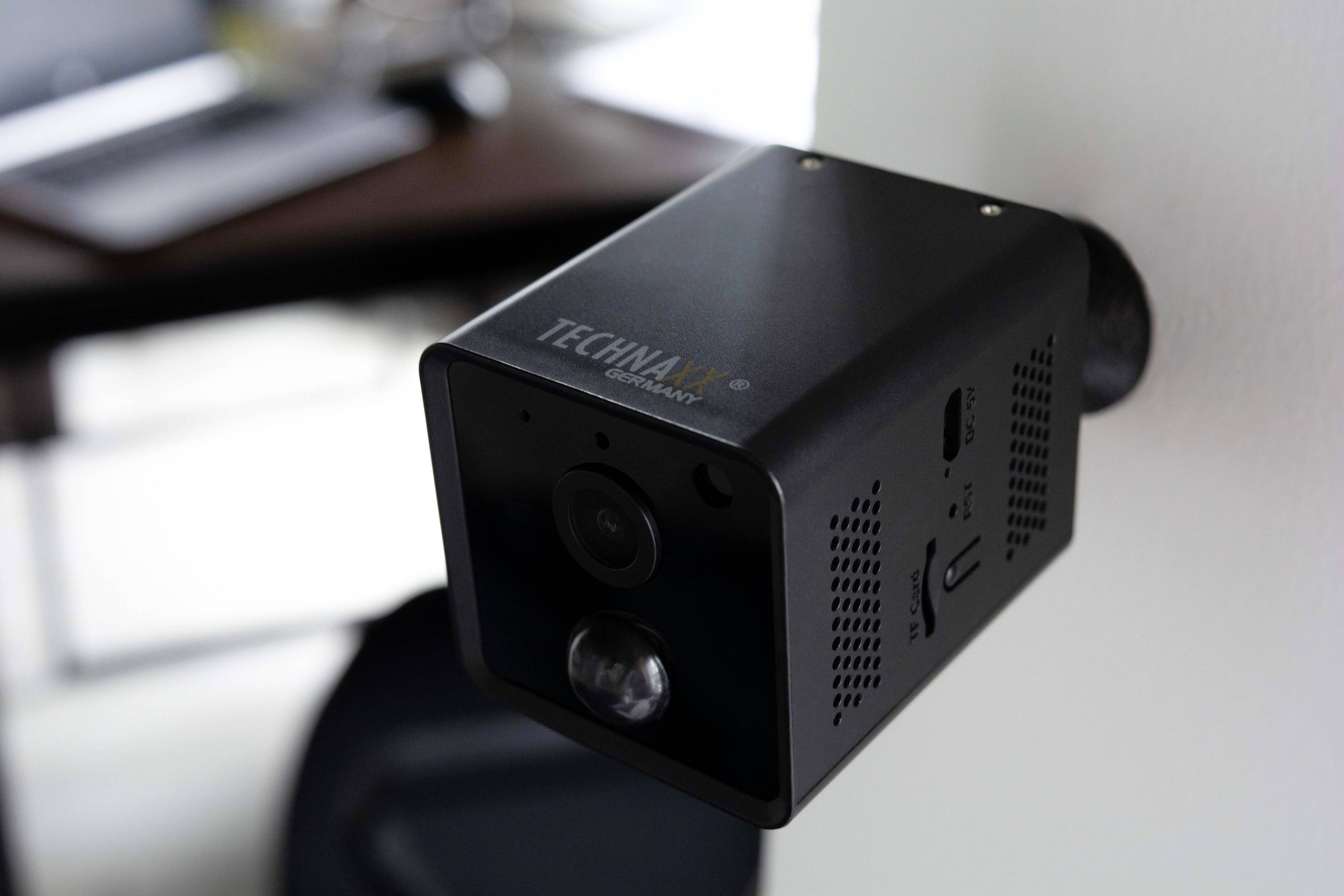

'Technax' surveillance camera mounted on a wall, with a blurred desk area in the background.

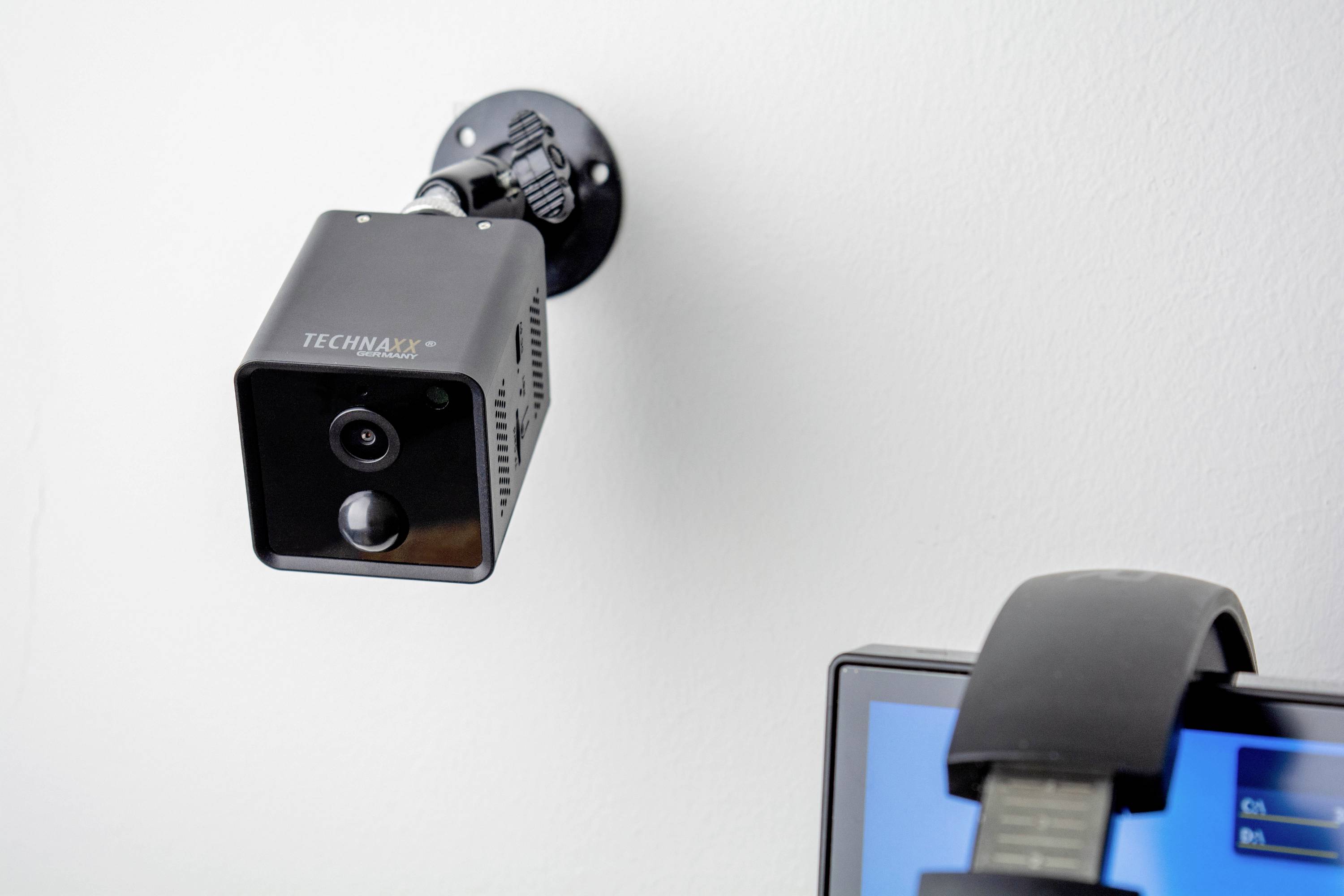

Security camera mounted on the wall next to a screen with headphones. The camera is black and square-shaped, pointing downwards.

A man is working on a computer in an office, with a green plant in the foreground.

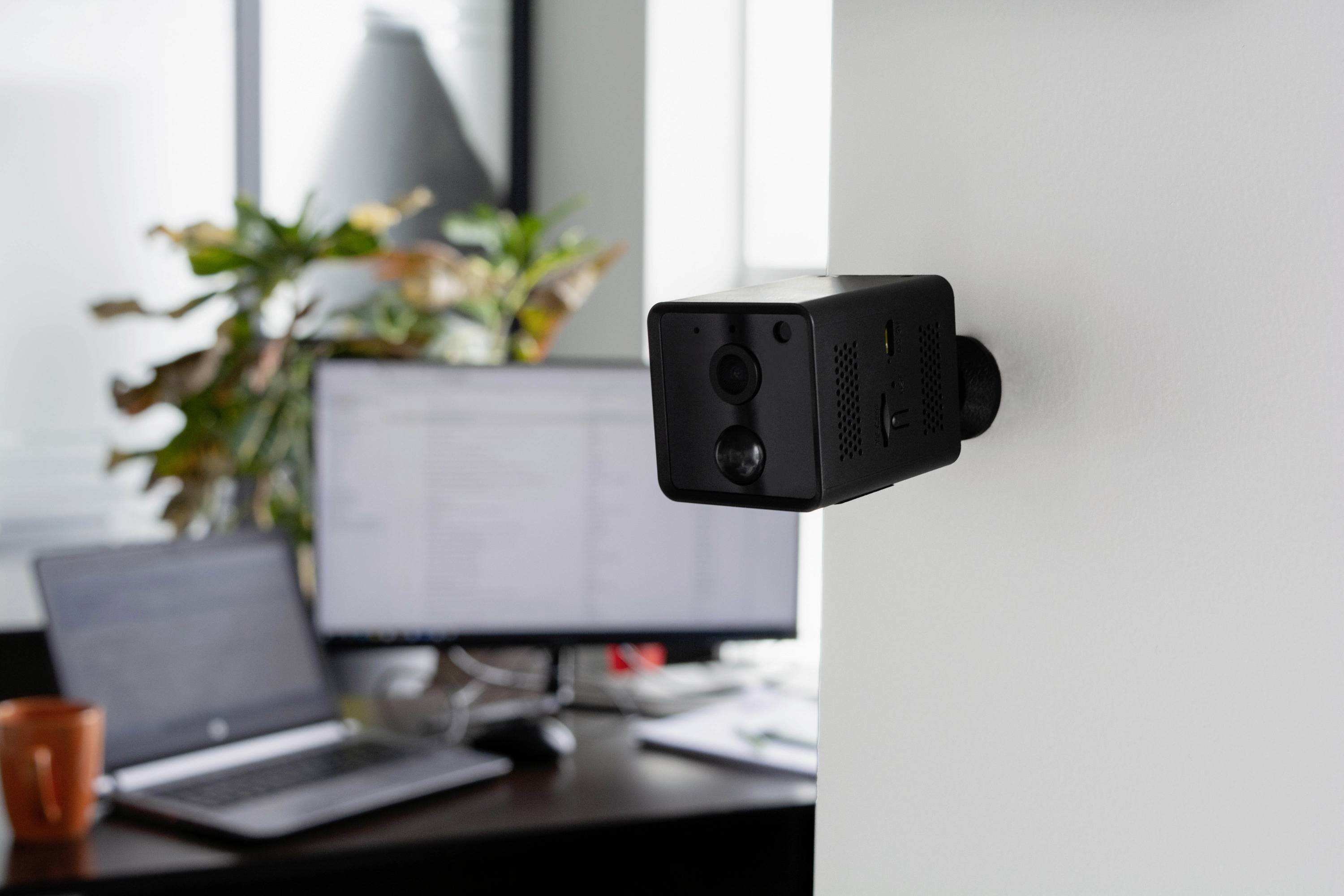

A surveillance camera is mounted on an office wall, with two computer screens and a plant visible in the background.

1/9

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Wi-Fi, LAN IP-Compact camera;2304 x 1296 p;TechnaxxTX-190;4989Outdoors, Portable, Indoors, Fixed

Full HD video resolution 2304x1296 with max. 15fps;PIR motion detection up to ~8m with automatic recording;Large viewing angle 100° horizontal and 62° vertical;2x IR LED no lights (940nm) up to ~5m for optimum night vision;Battery powered, built-in rechargeable battery (up to 15 days)
This text is machine translated.

Technical specifications

Normal mode 2W / sleep mode 0.1W

Product type: CCTV camera

CCTV features: Saves footage on SD card
2-way communication
Battery-powered
Motion detector
IR LEDs
Speaker
Microphone

Camera type: Compact camera

Resolution (max.): 2304 x 1296 p

Sensor size: 8.5 mm (1/3")

Sensor type: CMOS

Focal length: 3,6 mm

Max. viewing angle hor.: 100°

Vertical viewing angle: 62°

App compatibility: Yes

Transfer type: Wi-Fi
LAN

Wi-Fi standard: IEEE802.11b
IEEE802.11g
IEEE802.11n

IR range (max.): 5 m

Used at: Outdoors
Portable
Indoors
Fixed

Type: microSD card (up to 128 GB)

Width: 66 mm

Height: 48 mm

Depth: 48 mm

Dim: (W x H x D) 66 x 48 x 48 mm

Weight: 120 g

Enclosure material: ABS plastic

Factory colour: Black

Signal standard: IP

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2798176 Technaxx TX-190 4989 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p

Information

Information 2798176 Technaxx TX-190 4989 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p

Warranty Terms

Warranty Terms 2798176 Technaxx TX-190 4989 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p

Features

Image sensor 3MP 1/3" CMOSLens: F=3.6mm, fixed focusViewing angle: Horizontal 100°/ vertical 62°Min Illumination: Colour mode: 1 lux; night mode: 0.01 lux with 2x IR LEDIR range 5 m, 940nmVideo resolution: HD (2304x1296), liquid (640x360)Video frame rate / file format: 15fps / .TSAudio source: Built-in microphone with -38DB noise reductionAudio compression standard: G711A/AAC-8K16bitsSpeakers: 8Ω 2WWi-Fi: 2.4 GHz 802.11b/g/nWi-Fi security/ range WPA2 /max. 15mRadiated output power max.: 100mWMemory: Supports MicroSD(HC/XC) cards up to 128GB (FAT32/ exFAT) (class 10)File size: Night: B/W: 5-6MB/min (32 GB = 3 days continuous recording) / Day; Color: 6-7MB/min (32 GB = 3 days continuous recording)PIR motion detection: Distance: ~8m (open space) / angle: 120°PIR triggering time: 0.2 sPower consumption: Normal mode ≤ 2W / sleep mode ≤ 0.1WExternal charger: DC5V/1A (not included)Built-in lithium polymer battery 3.7V, 3200mAhOperating time: Up to 15 days (or up to 7 hours continuous recording - mixed day and night) depending on use and motion triggerStandby time: Up to 30 days (no use, no triggers)Charging time: Up to 5-7 hours (using a USB power adapter with DC5V/1A)

Scope of delivery

With 6 bits. USB power cable (1 m)
3 screws & plugs
Tripod

Related products can be found here

USB Cables PoE Network Components Radios Mobile Phone Sleeves Network Cables, 1-1 wired Fixed Voltage Mains Adapters Monitor Cables IP Camera Accessories Earphones SD Cards Network Switches MicroSD Cards Powerline Weather stations Smartphones Network Video Recorder (NVR)Power Strips CCTV Camera Brackets LED Light Bulbs

System requirements

APP “Security Premium” iOS 13.0 or later
Android 10.0 or higher / EN, DE, FR, ES, IT, NL, SE, DK, NO, FI, CZ, PL (11-2022)

Description

Features

Image sensor 3MP 1/3" CMOSLens: F=3.6mm, fixed focusViewing angle: Horizontal 100°/ vertical 62°Min Illumination: Colour mode: 1 lux; night mode: 0.01 lux with 2x IR LEDIR range 5 m, 940nmVideo resolution: HD (2304x1296), liquid (640x360)Video frame rate / file format: 15fps / .TSAudio source: Built-in microphone with -38DB noise reductionAudio compression standard: G711A/AAC-8K16bitsSpeakers: 8Ω 2WWi-Fi: 2.4 GHz 802.11b/g/nWi-Fi security/ range WPA2 /max. 15mRadiated output power max.: 100mWMemory: Supports MicroSD(HC/XC) cards up to 128GB (FAT32/ exFAT) (class 10)File size: Night: B/W: 5-6MB/min (32 GB = 3 days continuous recording) / Day; Color: 6-7MB/min (32 GB = 3 days continuous recording)PIR motion detection: Distance: ~8m (open space) / angle: 120°PIR triggering time: 0.2 sPower consumption: Normal mode ≤ 2W / sleep mode ≤ 0.1WExternal charger: DC5V/1A (not included)Built-in lithium polymer battery 3.7V, 3200mAhOperating time: Up to 15 days (or up to 7 hours continuous recording - mixed day and night) depending on use and motion triggerStandby time: Up to 30 days (no use, no triggers)Charging time: Up to 5-7 hours (using a USB power adapter with DC5V/1A)
