Name: Technaxx TX-192 4991 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p
Brand: Technaxx
SKU: 2798179
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Surveillance camera with aerials, power cable, and mounting hardware.

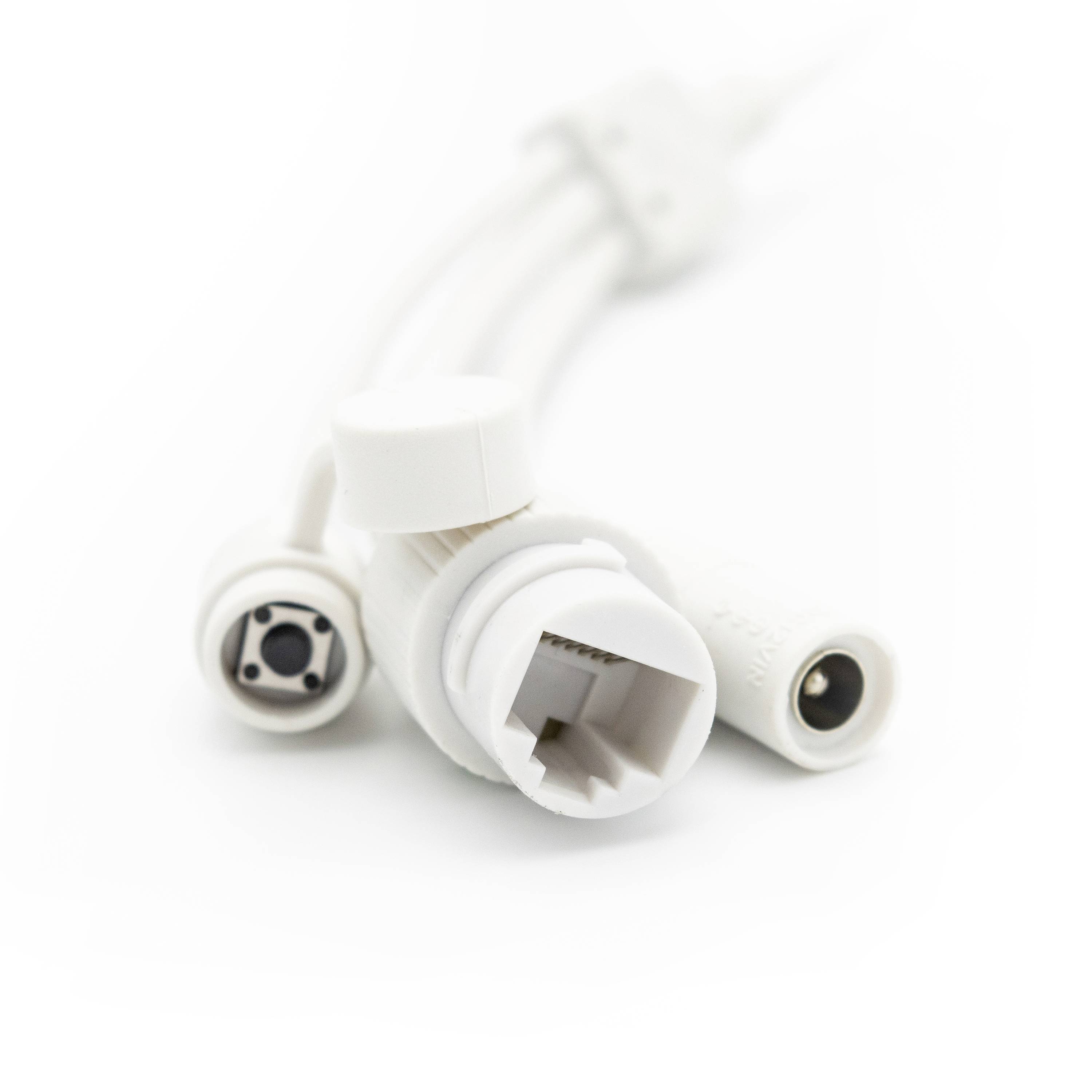

White electrical connectors and cables on a white background, showing a close-up of plugs and sockets.

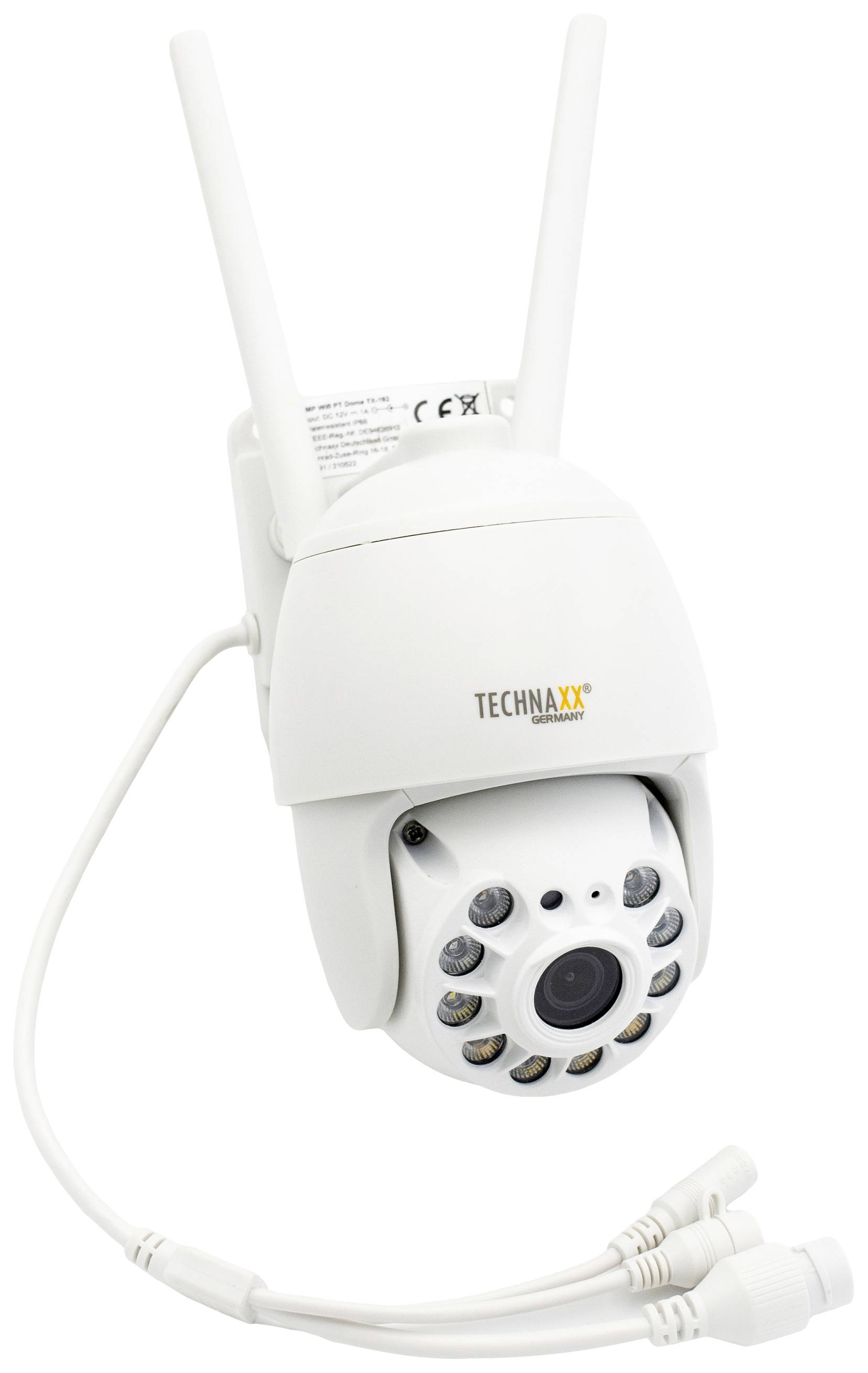

'White surveillance camera with antennae and cables, suitable for indoor or outdoor use, model with multiple LEDs for night vision.'

Packaging for a 3MP WiFi PTZ Dome Camera, Model TX-192, for Outdoor Use with Night Vision. Includes Camera Images and Functional Icons.

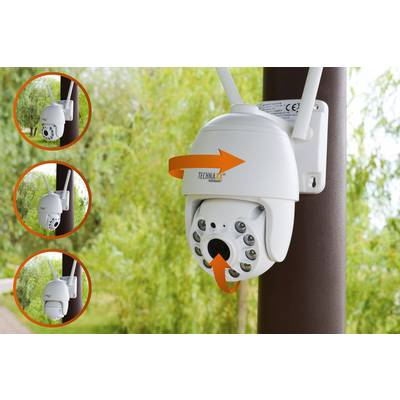

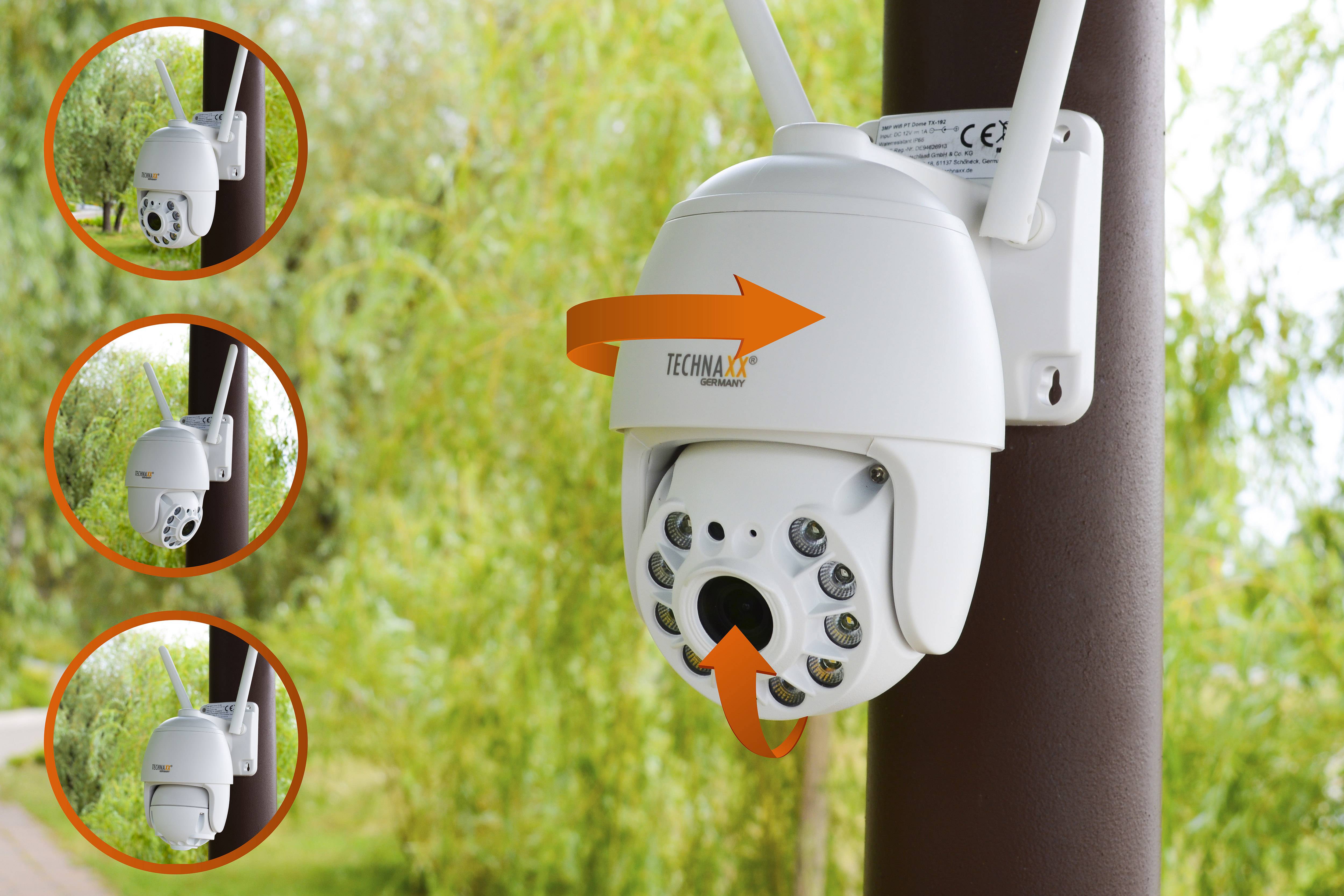

Surveillance camera mounted on an outdoor post, demonstrating its pan and tilt movement for monitoring in different directions.

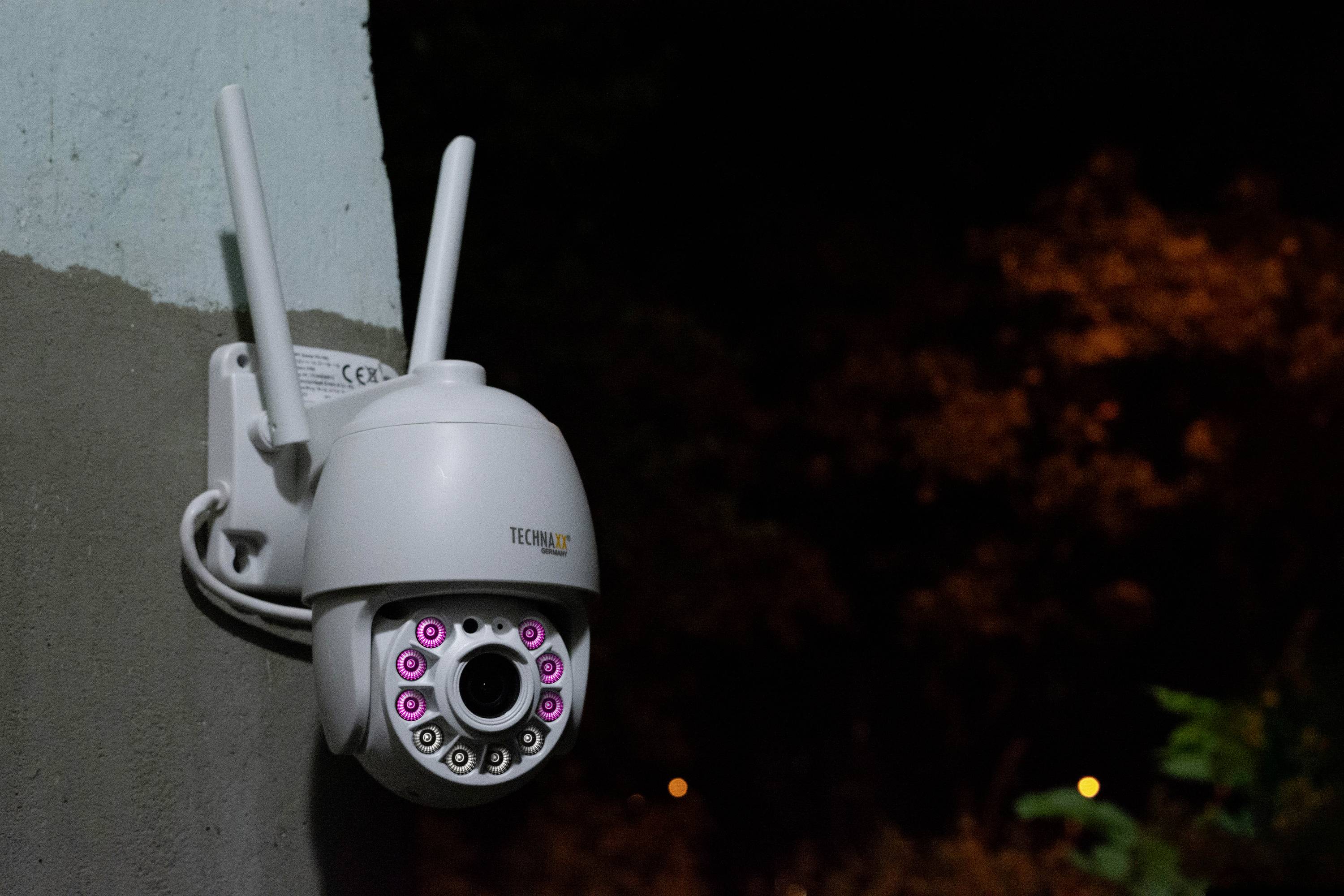

Night vision security camera mounted on a wall, showing nine illuminating lights around the lens, with a night-time background lit up.

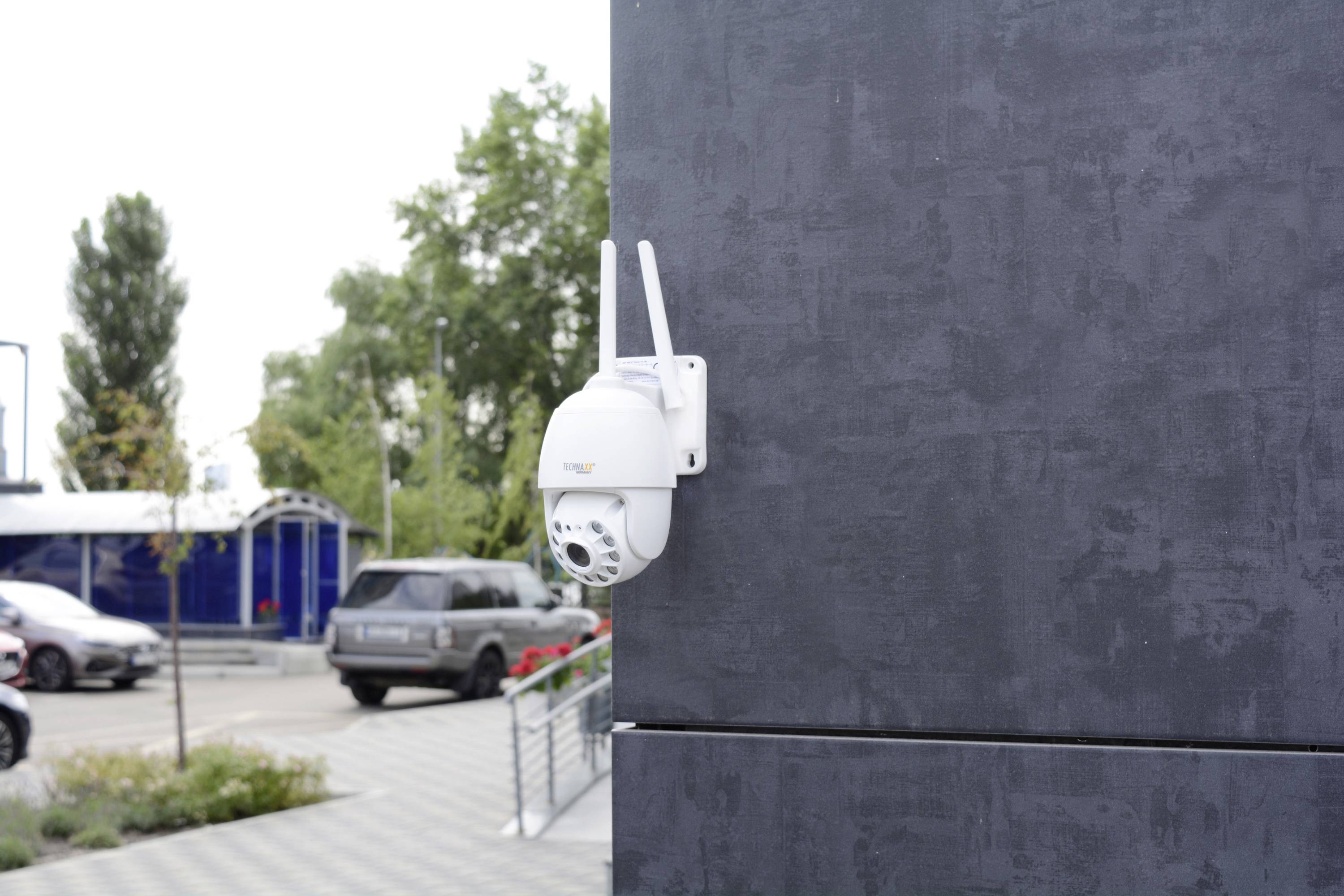

'CCTV camera mounted on a grey wall, overlooking a car park with vehicles and trees in the background.'

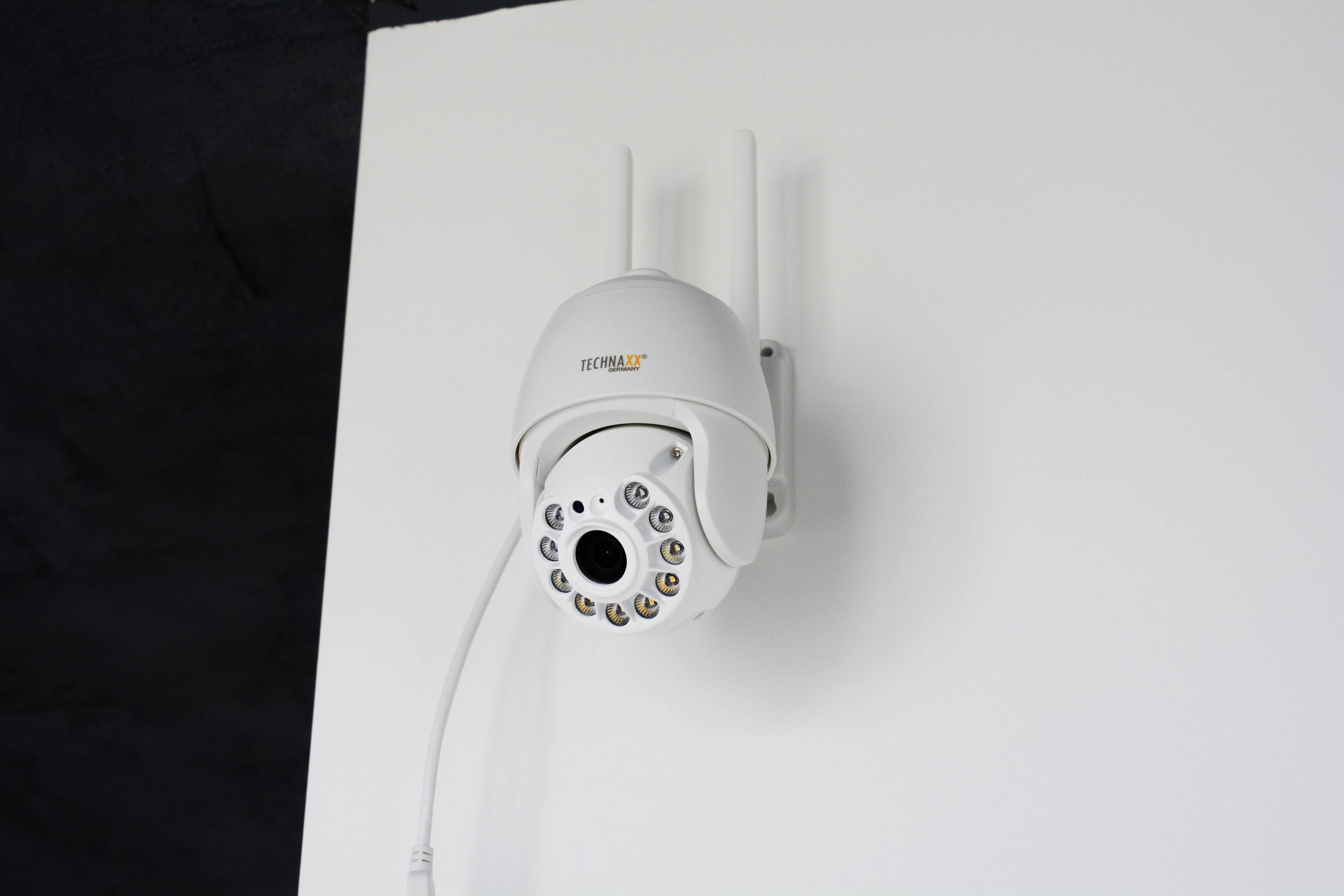

Security camera mounted on a white wall, angled downwards. It has multiple lenses and is designed for surveillance purposes.

1/8

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Wi-Fi, LAN IP-Rotatable/tilting camera;2304 x 1296 p;TechnaxxTX-192;4991Outdoors, Fixed

Full HD video resolution 2304x1296Motion detectionCan be swivelled6 IR LED red light6 white LEDs
This text is machine translated.

Technical specifications

4W (day) 8W (night)

Product type: CCTV camera

CCTV features: Pan-tilt function
2-way communication
IR LEDs
Motion detector
Speaker
Microphone

Camera type: Rotatable/tilting camera

Resolution (max.): 2304 x 1296 p

Sensor size: 8.76 mm (1/2.9")

Sensor type: CMOS

Focal length: 4 mm

Max. viewing angle hor.: 86°

Vertical viewing angle: 46°

App compatibility: Yes

Transfer type: Wi-Fi
LAN

Wi-Fi standard: IEEE802.11b
IEEE802.11g
IEEE802.11n

IR range (max.): 15 m

Used at: Outdoors
Fixed

Type: microSD card (up to 128 GB)

Width: 170 mm

Height: 155 mm

Depth: 90 mm

Dim: (W x H x D) 170 x 155 x 90 mm

Weight: 500 g

Enclosure material: ABS plastic
Aluminium/PVC

Factory colour: White

: IP66

Signal standard: IP

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2798179 Technaxx TX-192 4991 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p

Information

Information 2798179 Technaxx TX-192 4991 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p

Warranty Terms

Warranty Terms 2798179 Technaxx TX-192 4991 Wi-Fi, LAN IP CCTV camera 2304 x 1296 p

Features

Image sensor 3MP 1/2.9" CMOSLens: F=4mm, fixed focusViewing angle: Horizontal 86°/ vertical 46°Min Illumination: Color mode: 0.05lux; night mode: 0lux with 6x IR LED or 6x white LEDIR range ~15m; IR 850nm, white 4W, 200lm, 6000KAngle of rotation: Horizontal: 0-355°; vertical: 0-90°Video resolution: HD (2304x1296), liquid (640x360)Video frame rate / file format: 20fps / .TSAudio source: Built-in microphoneAudio compression standard: G711A/AAC-8K16bitsSpeakers: 8Ω 2WWi-Fi: 2.4 GHz 802.11b/g/nWi-Fi security/ range WPA2 /max. 30mRadiated output power max.: 100mWMovement detection: Distance: ~15m (open room)Memory: Supports MicroSD(HC/XC) cards up to 128GB (FAT32/ exFAT) (class 10)Size of files: Night; B/W: 2-4MB/min (32GB = 7 days continuous recording) / Day; Color: 3-5MB/min (32GB = 5 days continuous recording)Power consumption day ≤ 4W / night ≤ 8WMains adapter DC 12V/1A, hollow plug 5,5x2.1mmCable length 1.1mProtection class IP66Material: ABS plastic, aluminum metal"Full HD video resolution 2304x1296 with max. 20fps;Movement detection up to ~15m with automatic recording;Large viewing angle 86° horizontal and 46° vertical;Rotatable (355° horizontal and 90° vertical);6x IR LED red glowing (850nm) up to ~15m for B/W night view;6x white LED (4W, 200lm, 6000K°) ~15m for colored view at night;WiFi transmission range up to max. 30 m (open field);Use as an additional camera for TX-128 or as a stand-alone camera;Brilliant 1/2.9" CMOS color sensor (3MP);Free "Security Premium" APP for worldwide access [iOS and Android];Download footage via APP to your smartphone;Alarm function (push message) on your smartphone;Built-in microphone and speakers for 2-way communication;Supports MicroSD(HC/XC) cards up to 128GB (class 10) for local recordingH.264/H.265 video compression (for space-saving, high-quality recordings)"

Scope of delivery

With 6 bits. Mains adapter (1.1m)
4 screws & plugs

Related products can be found here

USB Cables PoE Network Components Radios Mobile Phone Sleeves Network Cables, 1-1 wired Fixed Voltage Mains Adapters Monitor Cables IP Camera Accessories Earphones SD Cards Network Switches MicroSD Cards Powerline Weather stations Smartphones Network Video Recorder (NVR)Power Strips CCTV Camera Brackets LED Light Bulbs

System requirements

APP "Security Premium": IOS 13.0 or higher
Android 10.0 or higher

Description

Features

Image sensor 3MP 1/2.9" CMOSLens: F=4mm, fixed focusViewing angle: Horizontal 86°/ vertical 46°Min Illumination: Color mode: 0.05lux; night mode: 0lux with 6x IR LED or 6x white LEDIR range ~15m; IR 850nm, white 4W, 200lm, 6000KAngle of rotation: Horizontal: 0-355°; vertical: 0-90°Video resolution: HD (2304x1296), liquid (640x360)Video frame rate / file format: 20fps / .TSAudio source: Built-in microphoneAudio compression standard: G711A/AAC-8K16bitsSpeakers: 8Ω 2WWi-Fi: 2.4 GHz 802.11b/g/nWi-Fi security/ range WPA2 /max. 30mRadiated output power max.: 100mWMovement detection: Distance: ~15m (open room)Memory: Supports MicroSD(HC/XC) cards up to 128GB (FAT32/ exFAT) (class 10)Size of files: Night; B/W: 2-4MB/min (32GB = 7 days continuous recording) / Day; Color: 3-5MB/min (32GB = 5 days continuous recording)Power consumption day ≤ 4W / night ≤ 8WMains adapter DC 12V/1A, hollow plug 5,5x2.1mmCable length 1.1mProtection class IP66Material: ABS plastic, aluminum metal"Full HD video resolution 2304x1296 with max. 20fps;Movement detection up to ~15m with automatic recording;Large viewing angle 86° horizontal and 46° vertical;Rotatable (355° horizontal and 90° vertical);6x IR LED red glowing (850nm) up to ~15m for B/W night view;6x white LED (4W, 200lm, 6000K°) ~15m for colored view at night;WiFi transmission range up to max. 30 m (open field);Use as an additional camera for TX-128 or as a stand-alone camera;Brilliant 1/2.9" CMOS color sensor (3MP);Free "Security Premium" APP for worldwide access [iOS and Android];Download footage via APP to your smartphone;Alarm function (push message) on your smartphone;Built-in microphone and speakers for 2-way communication;Supports MicroSD(HC/XC) cards up to 128GB (class 10) for local recordingH.264/H.265 video compression (for space-saving, high-quality recordings)"
