Buy Tektronix TBS1102C Digital 100 MHz 1 GS/s 20 KP 8 Bit Digital storage (DSO) 1 pc(s)

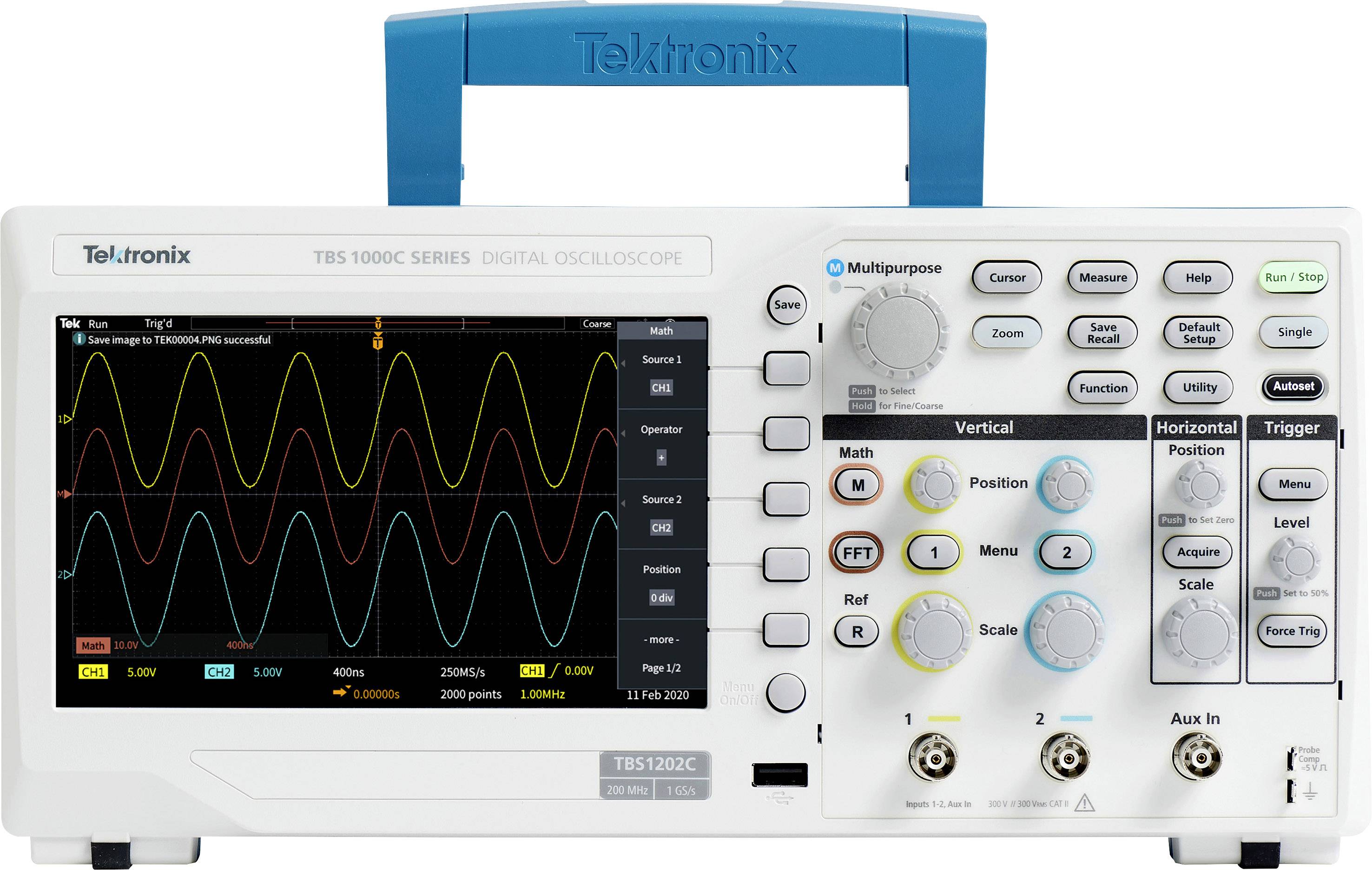

'Oscilloscope displays a rectangular signal on the screen, with controls and scale markings in the foreground.'

A digital oscilloscope with a colour display showing waveforms, operating controls, and connectors for measuring electrical signals.

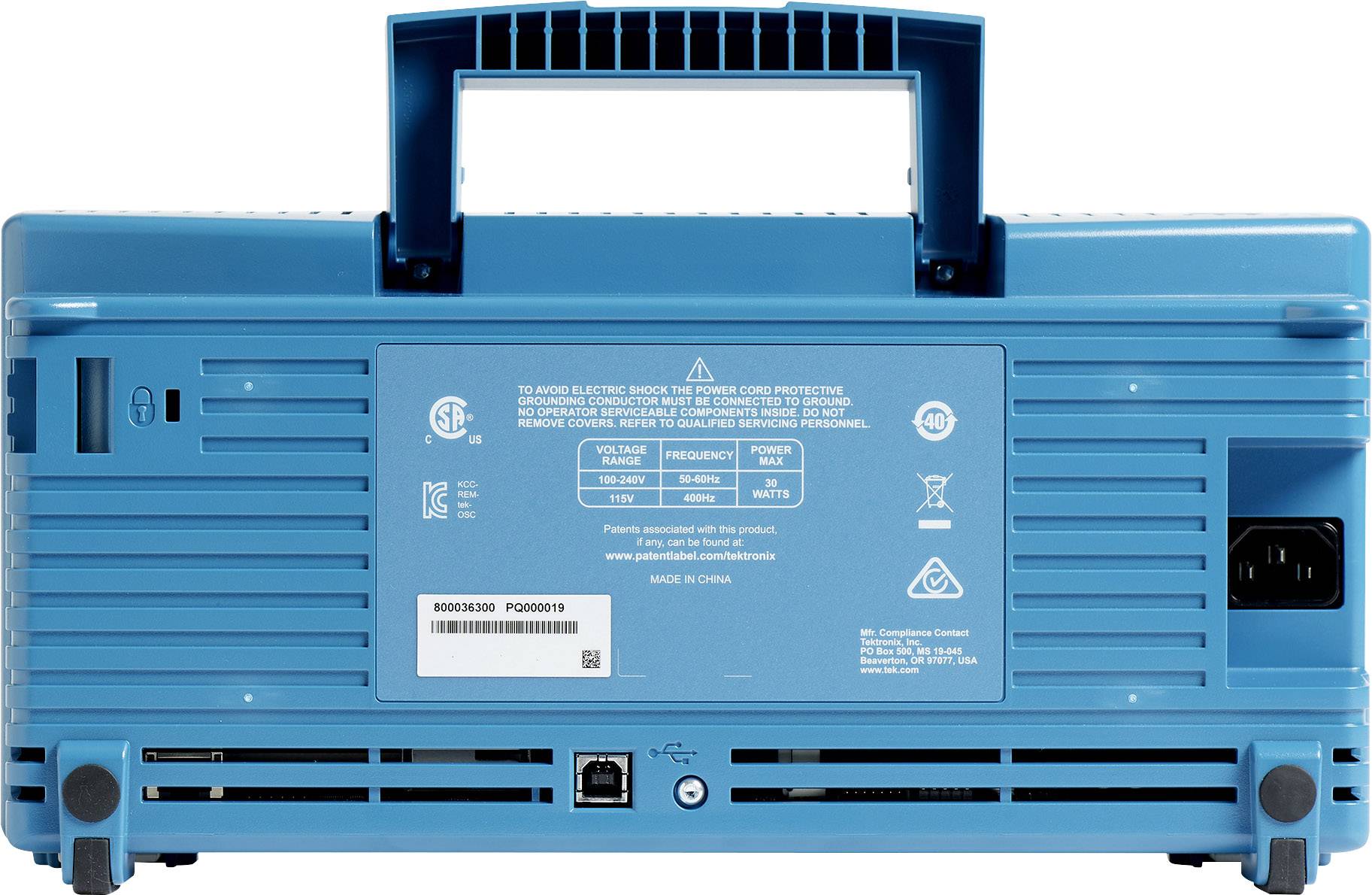

The screen displays the blue rear side of an electronic device with a handle. Visible connections and technical information are shown at the top.

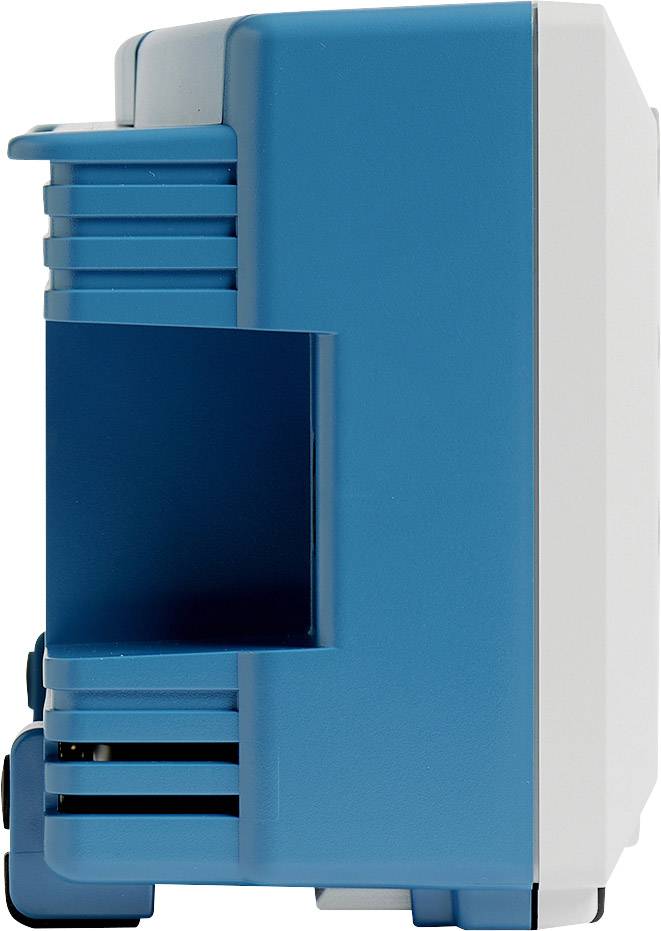

Blue electrical cabinet viewed from the side with ventilation slots and a white area on the right side.

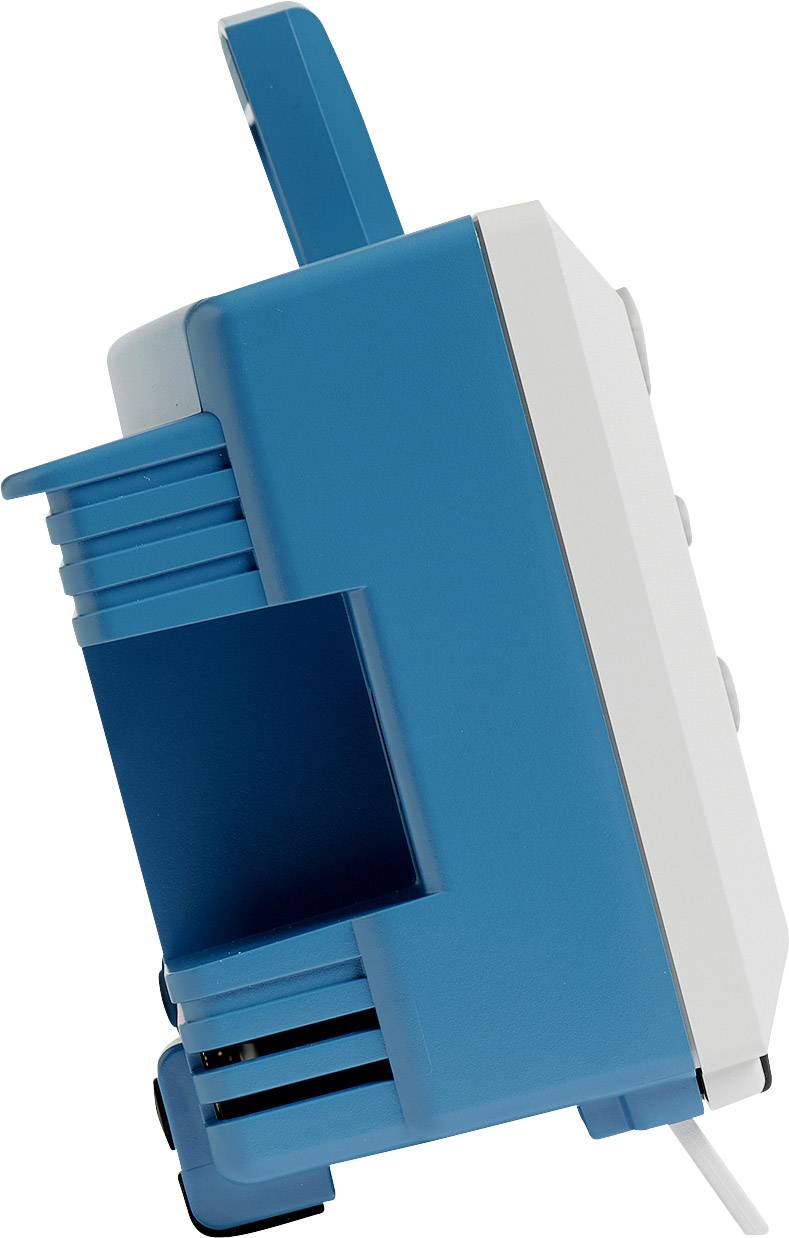

A blue and white electronic device with multiple sockets on the side, positioned vertically on a white surface.

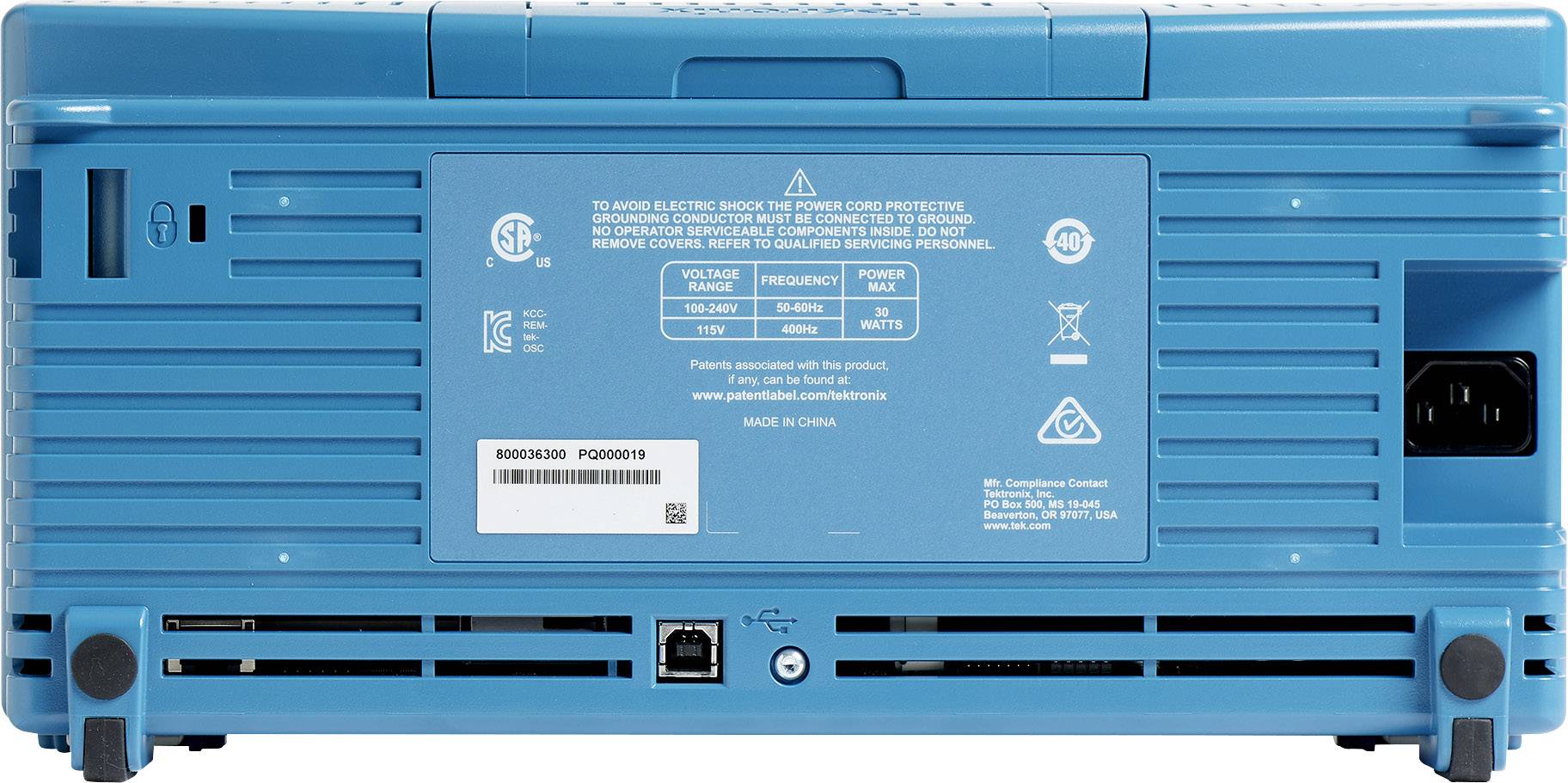

Back of a blue device with various ports and a label displaying technical specifications and safety certifications.

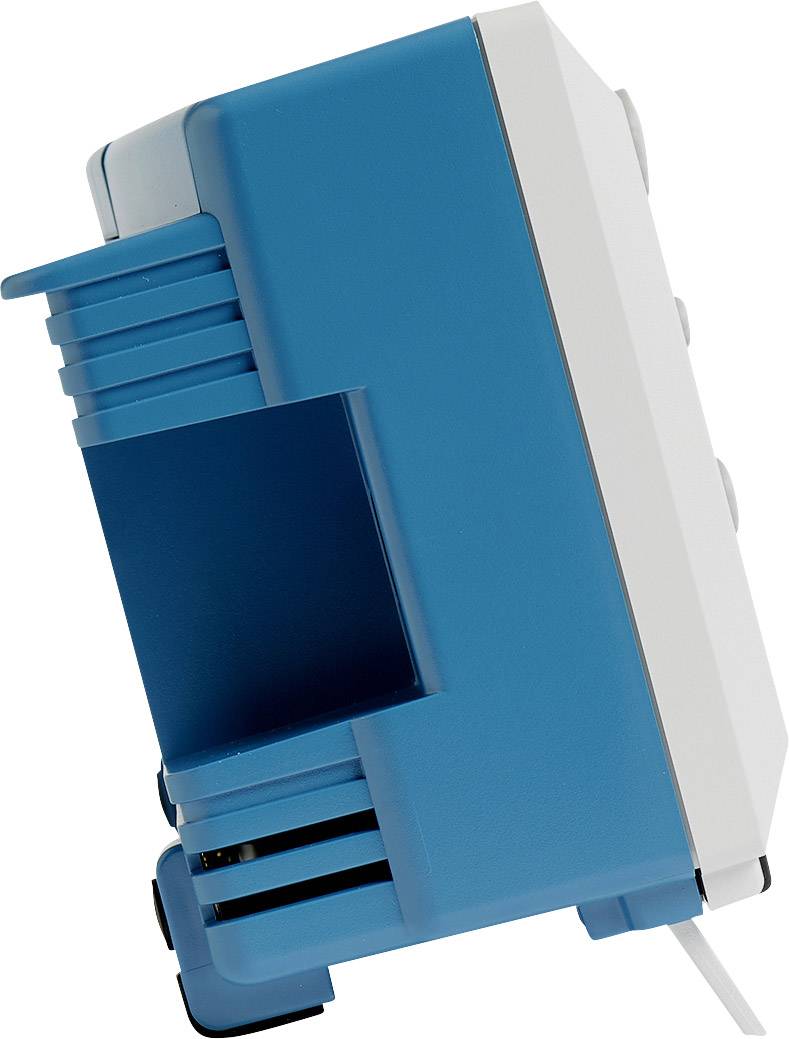

A blue and white technical device viewed from the side. It has multiple slots and a protruding arm on the left side.

1/7

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,293.28 / piece)

€ 1,293.28

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Highlights & Details

Digitally oscilloscope

100 MHz
No. of analogue inputs 2

Technical specifications

Product type: Digital

Bandwidth: 100 MHz

Channel sample rate: 1 GS/s

Displays: 7" (17.78 cm) TFT color display 800 x 480

Resolution: 8 Bit

Screen size: 7 inch

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Input impedance: 1 MΩ ±2%

Input coupling: AC, DC

Power supply (details): 230 V AC

Dim: (L x W x H) 124.2 x 326.3 x 158 mm

Weight: 2000 g

Display: 800 x 480 p

Width: 326.3 mm

Height: 158 mm

Length: 124.2 mm

Interfaces: USB
USB host

Channel memory depth: 20 KP

Type: TBS1102C

Documents & Downloads

Datasheet

Datasheet 2267354 Tektronix TBS1102C Digital 100 MHz 1 GS/s 20 KP 8 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2267354 Tektronix TBS1102C Digital 100 MHz 1 GS/s 20 KP 8 Bit Digital storage (DSO) 1 pc(s)

Conformity certificate

Conformity certificate 2267354 Tektronix TBS1102C Digital 100 MHz 1 GS/s 20 KP 8 Bit Digital storage (DSO) 1 pc(s)

Description

The TBS1000C series digital storage oscilloscopes offer affordable performance in a compact design. They are designed to meet the needs of today's educational institutions, embedded design engineers and manufacturers.
The devices include a 7" (17.78 cm) WVGA color display with a sampling rate of up to 1 GS/s and bandwidths from 50 MHz to 200 MHz. The equipment comes with an innovative course material system that integrates lab exercises with step-by-step instructions for student use. The HelpAnywhere® system provides useful tips and hints throughout the user interface to make the device more accessible to a new user.
