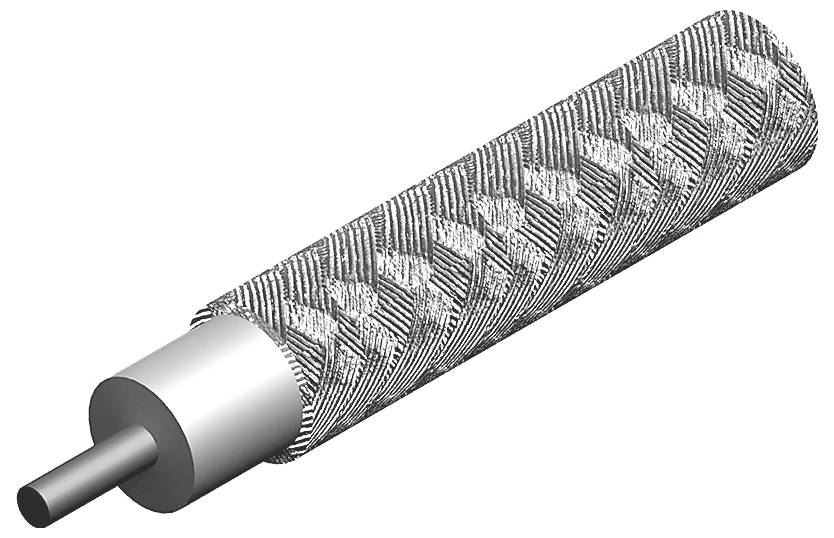

Telegärtner 100013033 Coax Semi Flex. 85 50 Ω 25 m
EAN:
Part number:
Item no:
Product type
Coax
Cable type
Semi Flex. 85
Impedance
50 Ω
Cable features
Flexible
Content
25 m
Datasheet (PDF)
Number
Total (1 m = € 6.55)
€ 163.86
plus VAT.
Only 3 Set(s) available
Technical specifications
- Product type
Coax
- Cable type
Semi Flex. 85
- Impedance
50 Ω
- Cable features
Flexible
- Content
25 m
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
100013033
- RoHS-compliant
Yes
- Type
100013033
- Max. length sold by the metre
25 m
50 Ohm
Documents & Downloads
Datasheet
Datasheet 3737170 Telegärtner 100013033 Coax Semi Flex. 85 50 Ω 25 m
User & Safety Instructions
User & Safety Instructions 3737170 Telegärtner 100013033 Coax Semi Flex. 85 50 Ω 25 m
Description
Specifications:
Insertion loss (attenuation): The insertion loss describes the electrical losses along the cable. They are mainly determined by the cable diameter, the material of the dielectric and the frequency to be transmitted. Low-loss cables are characterized by particularly good (low) values for insertion loss.,
Shielding attenuation: The shielding attenuation describes how well the cable prevents the radiation or the radiation of HFsignals along the cable. To improve the shielding attenuation of cables, double shielding braid, film + braided shielding and tin-plated braid are used.
Temperature range: Depending on the materials used, the cables can be used in different ambient temperatures. Cables with PE or PVC sheath can be used up to approx. 80°C. Cable with PTFE or FEP sheath up to approx. 200 °C,
Wave resistance (impedance) 50 Ohm or 75 Ohm: For the transmission of video signals and in the wide-traffic technology is processed with 75 Ohm system. In almost all other areas 50 ohm cable is used.
Z 50 Ω
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Cable group; Cable: G11
Type: Semi Flex .85, ring
G11:RG-405/U, SUCOFORM 86, UT-85, 1671A, EZ 86, flexible form 405 Nm
Without cable group: Semi Flex .85
Packaging unit (m): 25
Damping dB/100 m at 2 GHz 108
This text is machine translated.
Insertion loss (attenuation): The insertion loss describes the electrical losses along the cable. They are mainly determined by the cable diameter, the material of the dielectric and the frequency to be transmitted. Low-loss cables are characterized by particularly good (low) values for insertion loss.,
Shielding attenuation: The shielding attenuation describes how well the cable prevents the radiation or the radiation of HFsignals along the cable. To improve the shielding attenuation of cables, double shielding braid, film + braided shielding and tin-plated braid are used.
Temperature range: Depending on the materials used, the cables can be used in different ambient temperatures. Cables with PE or PVC sheath can be used up to approx. 80°C. Cable with PTFE or FEP sheath up to approx. 200 °C,
Wave resistance (impedance) 50 Ohm or 75 Ohm: For the transmission of video signals and in the wide-traffic technology is processed with 75 Ohm system. In almost all other areas 50 ohm cable is used.
Z 50 Ω
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Cable group; Cable: G11
Type: Semi Flex .85, ring
G11:RG-405/U, SUCOFORM 86, UT-85, 1671A, EZ 86, flexible form 405 Nm
Without cable group: Semi Flex .85
Packaging unit (m): 25
Damping dB/100 m at 2 GHz 108
This text is machine translated.
