Name: Teltonika TRB500 Router Gigabit LAN (1 Gbps)
Brand: Teltonika
SKU: 2865645
Availability: InStock

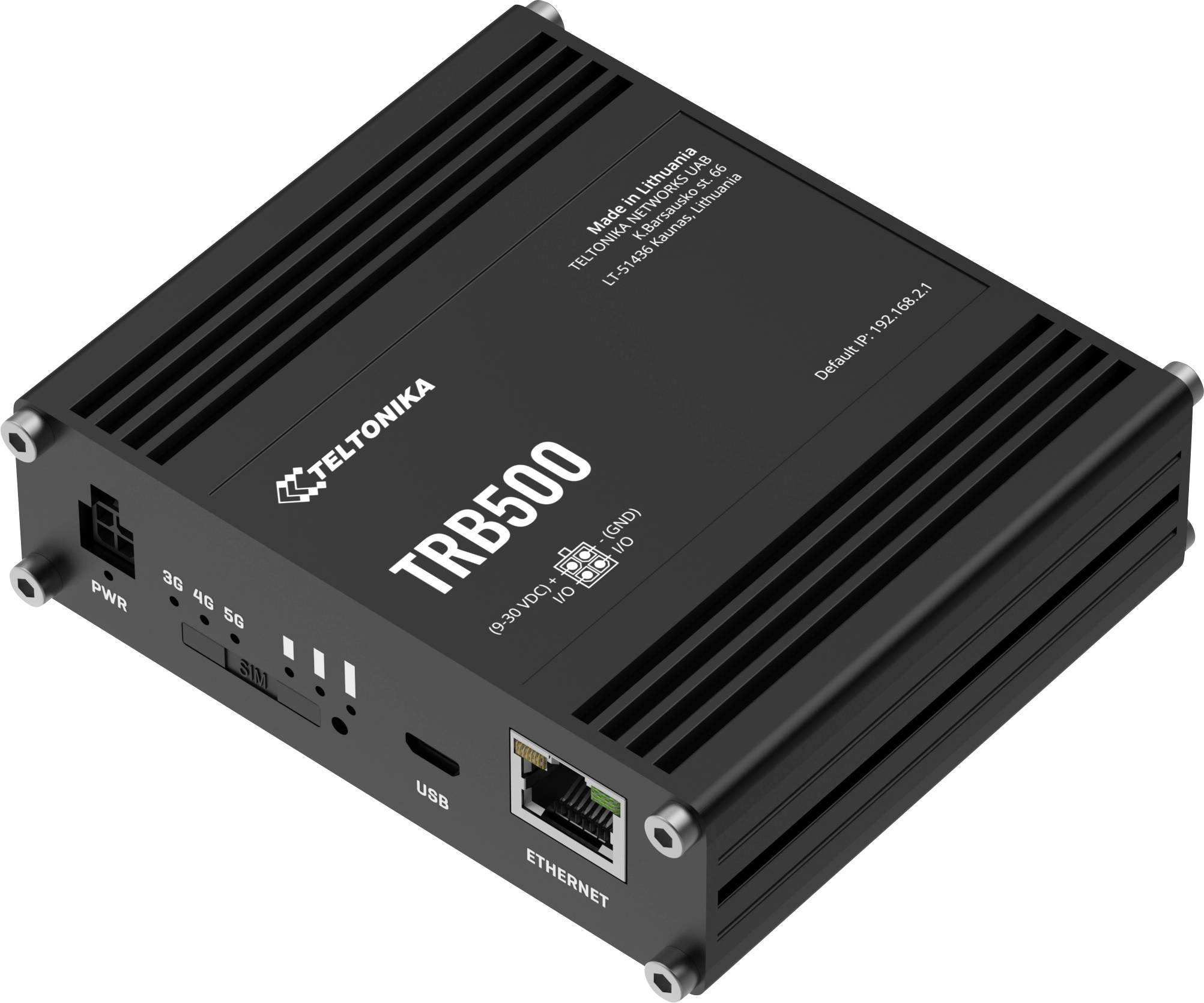

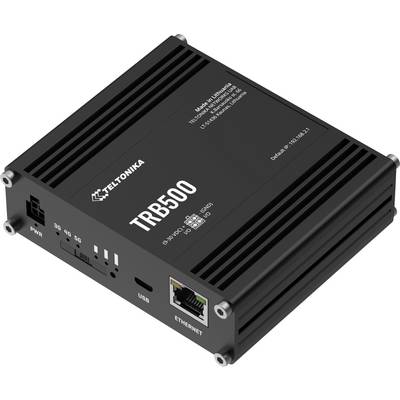

Teltonika TRB500 industrial 5G router/modem in a black metal enclosure with Ethernet and USB ports.

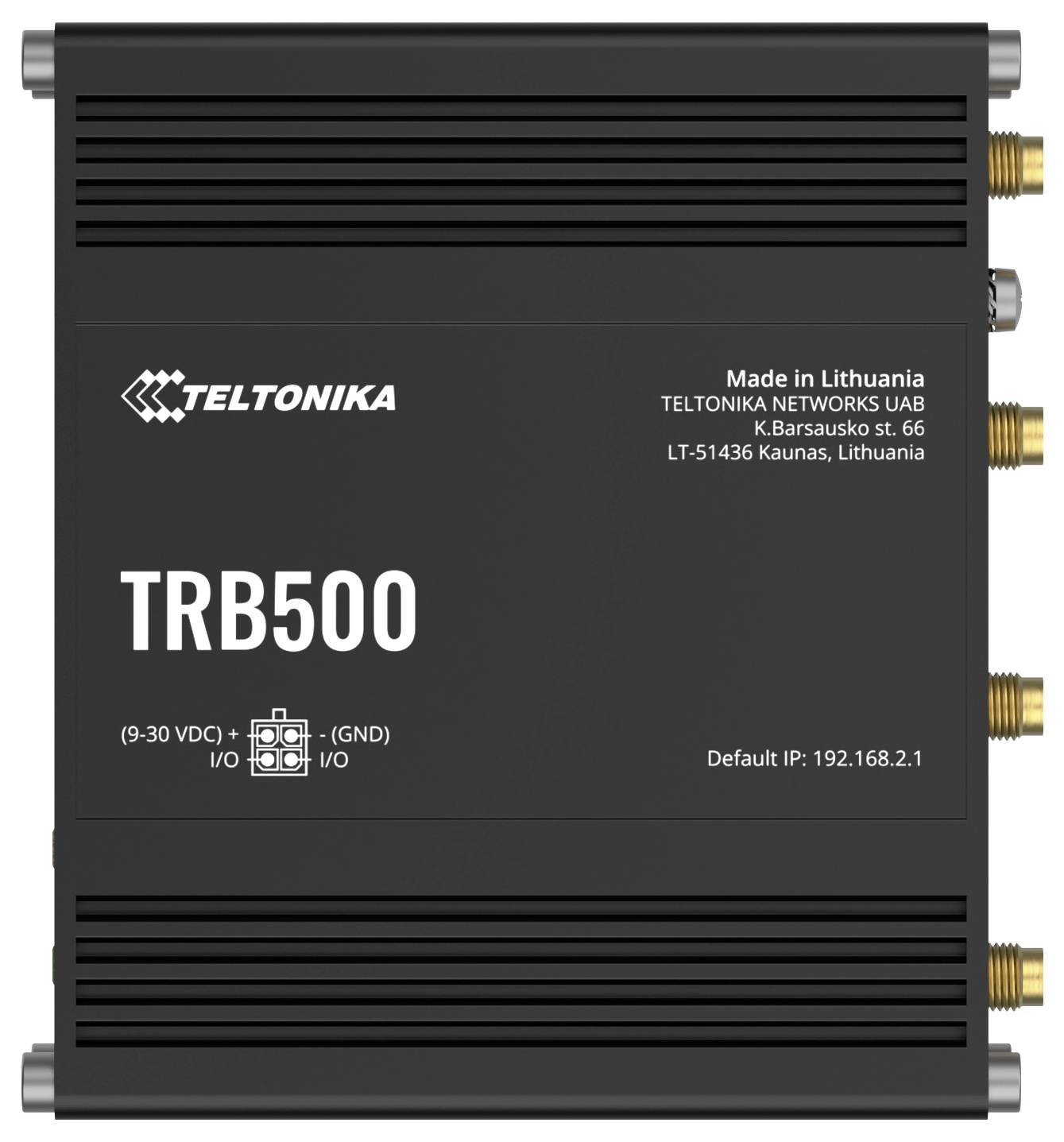

Teltonika TRB500 industrial router shown front view, labeled 'TRB500' and 'Default IP: 192.168.2.1'.

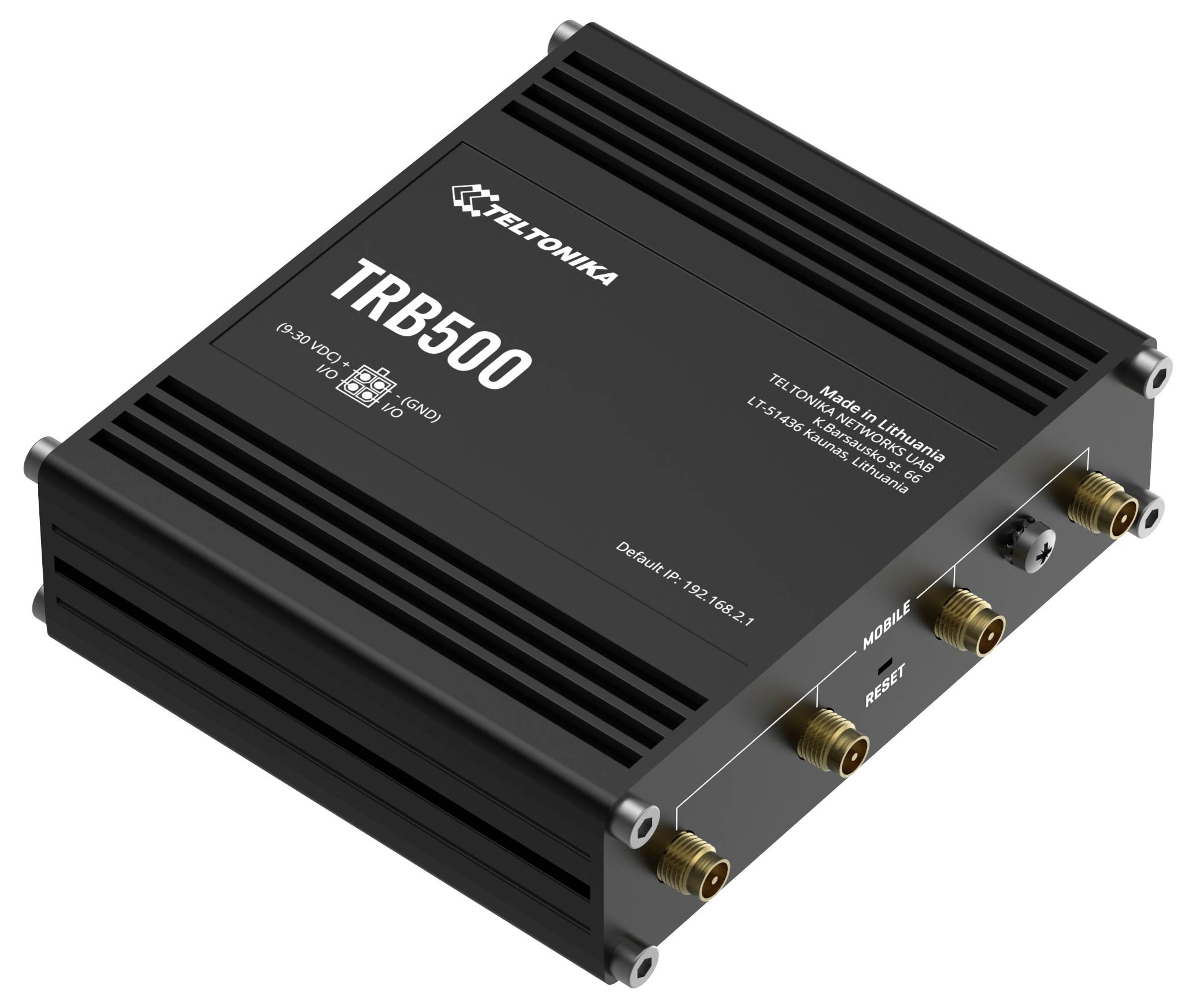

Black Teltonika TRB500 cellular gateway modem with four antenna connectors and labeled module/reset ports, shown on a white background.

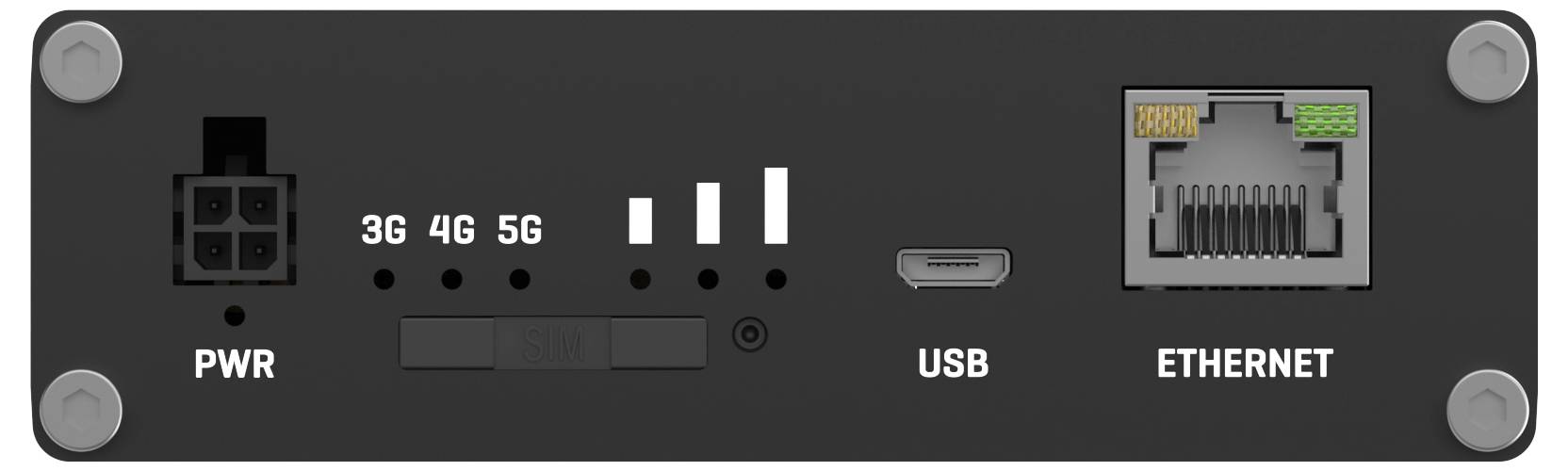

Rear view of a device showing power input, 3G/4G/5G indicator lights, USB port, and Ethernet port.

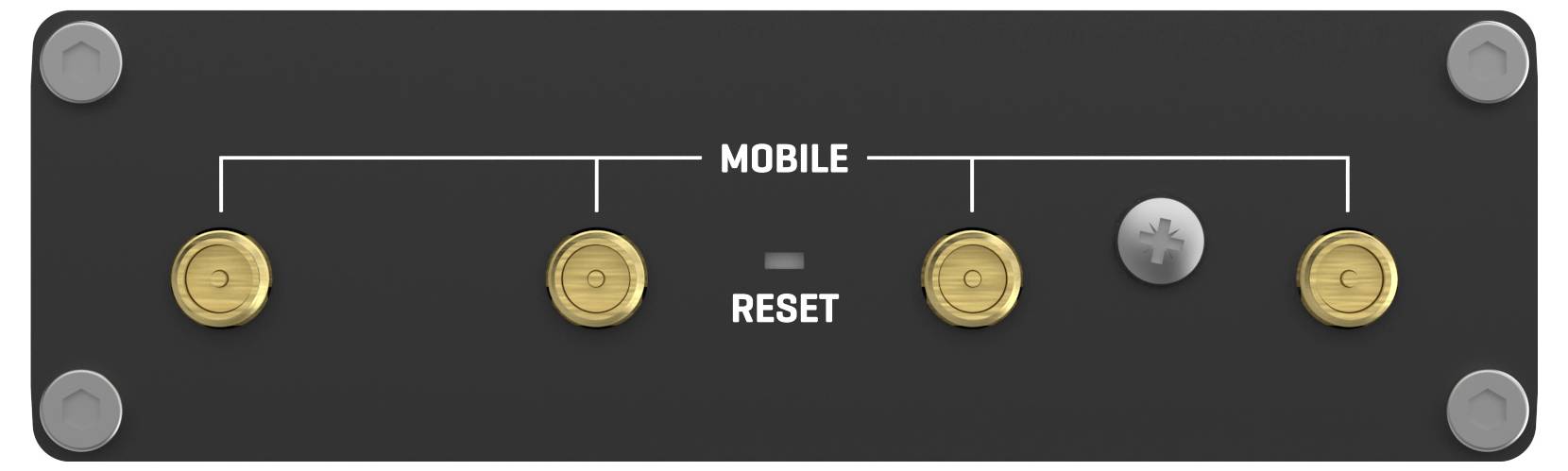

Close-up of a mobile device panel showing four gold speaker-like holes, a central reset button, and four corner screws on a dark plate.<br>

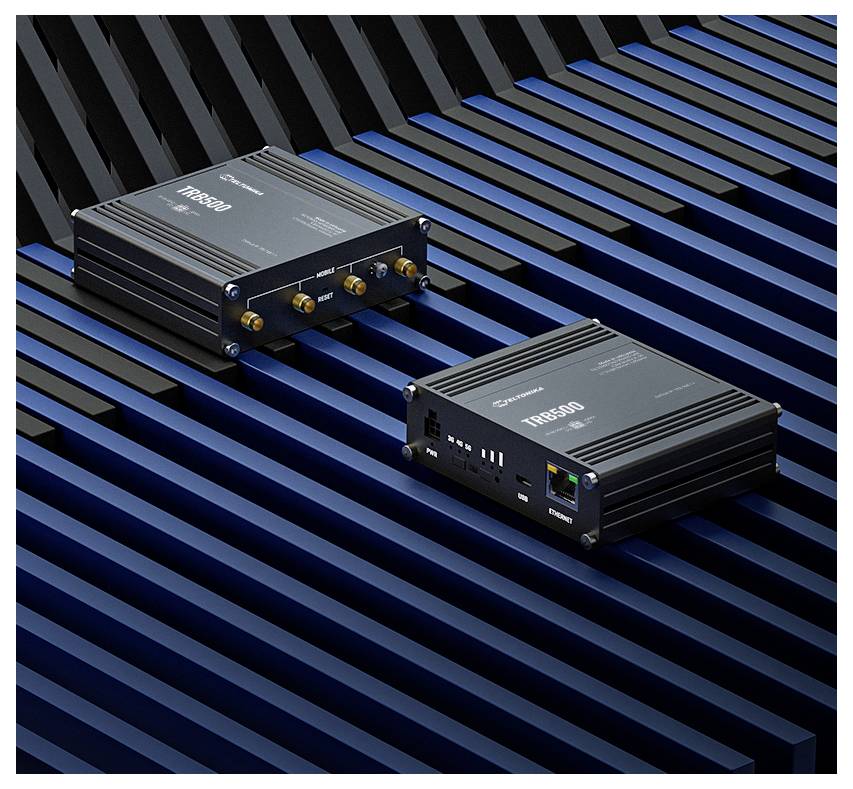

Two black TRB500 communication devices on a blue-and-black diagonal ribbed surface, showing front ports and connectors on one unit and an Ethernet port on the other.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 445.00 / piece)

€ 445.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Teltonica TRB500 gateway, 5G

Hardware
CPU: Single core ARM Cortex A7, 1.5 GHz
Flash memory 512 MB
RAM: 256 MB
SIM: 1x SIM slot (Mini SIM - 2FF), 1.8 V/3 V
Antenna connections: 4x SMA for mobile radio
Status LEDs 3 x connection type status LEDs, 3 x connection strength LEDs, 2x LAN status LEDs, 1x Power LED
Operating System : RutOS (OpenWrt-based Linux operating system)

Technical specifications

5G sub-6 GHz SA/NSA 2.1/3.3 Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2) 4G (LTE) - LTE CAT 20 2.0 Gbps DL, 200 Mbps UL 3G - 42 Mbps DL, 5.76 Mbps UL
Power option: 4-pin power connector, 9-30 VDC
Ethernet: 1x 10/100/1000 Mbps Ethernet connection
Inputs/outputs: At 4-pin socket: 1x digital input, 1x digital open collector output
Others: 1x Micro-USB-Slave, 1x Earth screw
Status-LEDs: 3x connection type status-LEDs, 3x connection strength LEDs, 2x LAN-Status-LEDs, 1x Power-LED
Operating temperature: -40°C to + 75°C.
Housing: Aluminium housing, DIN-rail (mounted on both sides), flat positioning surface

Product type: Router

Type: TRB500

Interfaces: Gigabit LAN (1 Gbps)

Weight: 241 g

Width: 100 mm

Height: 30 mm

Length: 93.4 mm

Factory colour: Silver (metallic)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2865645 Teltonika TRB500 Router Gigabit LAN (1 Gbps)

User & Safety Instructions

User & Safety Instructions 2865645 Teltonika TRB500 Router Gigabit LAN (1 Gbps)

Description

TRB500 - Industrial 5G gateway
The TRB500 Gateway is a compact, energy-efficient industrial gateway with one Gigabit Ethernet interface and two configurable I/Os that enable high-level customization and deployment of a variety of scenarios.

This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and a high data throughput, which is ensured by 4 external antennas that enable the use of 4x4 MIMO.

TRB500 comes with the RutOS operating system, which provides advanced security features and compatibility with Teltonikas Remote Management System (RMS) for optimized remote management and monitoring functions of large device fleets.

This text is machine translated.
