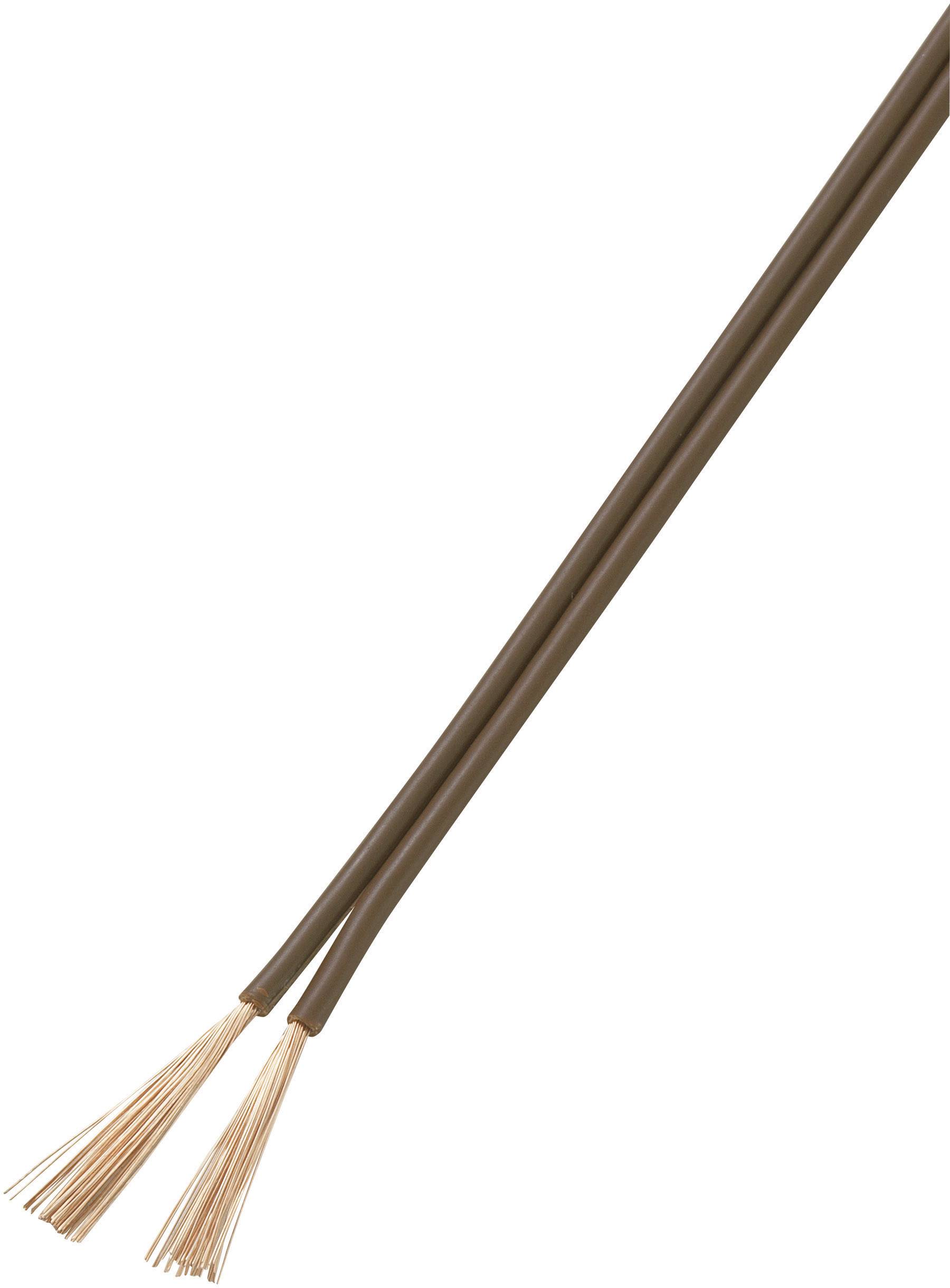

TRU COMPONENTS 1566633 Strand 2 x 0.75 mm² Brown 50 m
EAN:
Part number:
Item no:
No. of leads
2 x
Cross section (each core)
0.75 mm²
No. of leads (part 2)
2 x
Cross section (each core) (part 2)
0.75 mm²
Cable features
CCAW
Flexible
Flat
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.40
€ 20.16
3
1 M = € 0.38
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.40)
€ 21.00
€ 20.16
plus VAT.
Technical specifications
- Wire identification by white bar.
- No. of leads
2 x
- Cross section (each core)
0.75 mm²
- No. of leads (part 2)
2 x
- Cross section (each core) (part 2)
0.75 mm²
- Cross section
2 x 0.75 mm² + 2 x 0.75 mm²
- Cable features
CCAW
Flexible
Flat
- Width
4.5 mm
- Height
2.3 mm
- Factory colour
Brown
- Content
50 m
- Nominal voltage
48 V
- AWG max.
19
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
1566633
- Insulation material
PVC
- Core layout
27 x 0.19 mm
- Hole Ø (coil)
51 mm
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Type
NYFAZ/CCA
- Max. length sold by the metre
50 m
- Product type
Strand
Documents & Downloads
Datasheet
Datasheet 1566633 TRU COMPONENTS 1566633 Strand 2 x 0.75 mm² Brown 50 m
User & Safety Instructions
User & Safety Instructions 1566633 TRU COMPONENTS 1566633 Strand 2 x 0.75 mm² Brown 50 m
Description
This text is machine translated.
For connection of low-power electrical devices (radios, table lamps, clocks, etc.) with very low mechanical demands in domestic situations and where permitted in the corresponding device regulations. The cable can also be used as speaker cables. 6 mm² is particularly suited for connection of hifi speakers. The cable is not suitable for the connection of cooking and heating equipment or for use outdoors.
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
For connection of low-power electrical devices (radios, table lamps, clocks, etc.) with very low mechanical demands in domestic situations and where permitted in the corresponding device regulations. The cable can also be used as speaker cables. 6 mm² is particularly suited for connection of hifi speakers. The cable is not suitable for the connection of cooking and heating equipment or for use outdoors.
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
Scope of delivery
- Coil (50 m).
