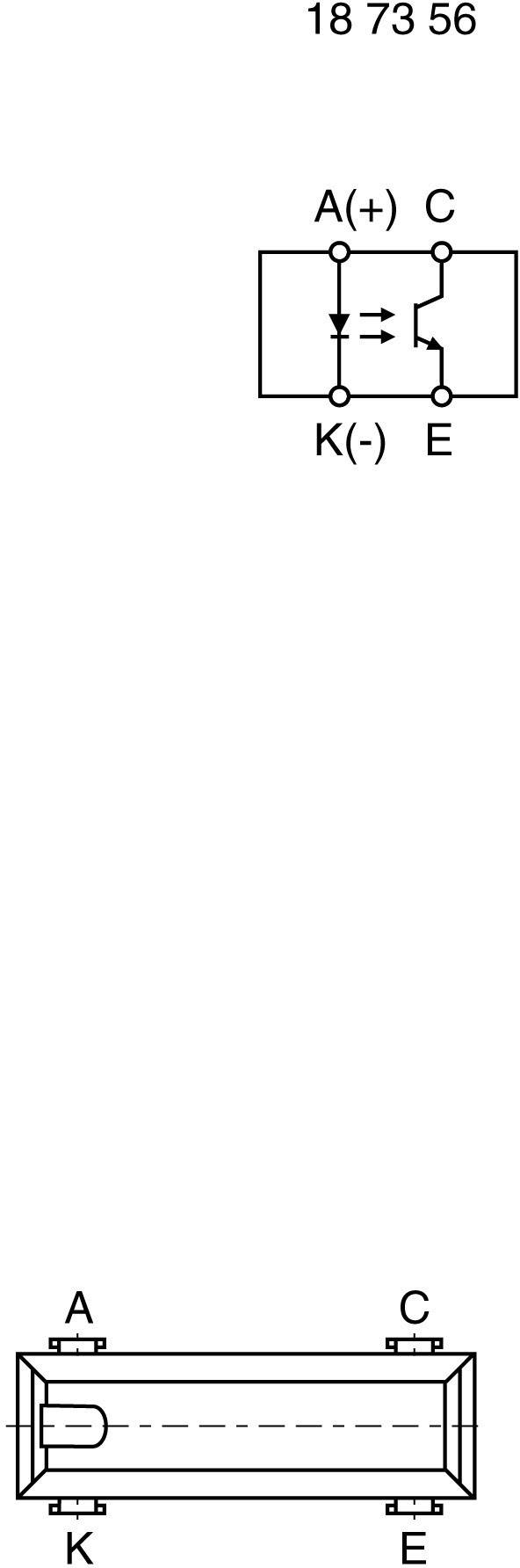

Vishay CNY 66 Optocoupler 4-pin. Plastic housing Type (misc.) Optocoupler with photo transistor output
Product type
Opto-isolator - LED controller
Enclosure
DIP 4
Forward current I(F)
75 mA
Reverse voltage U(R)
5 V
Mounting type
Through-hole
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.49 / piece)
€ 3.99
-13 %
€ 3.49
incl. VAT
14-day return policy included
Highlights & Details
Vishay CNY 66 Optocoupler 4-pin. Plastic housing Type (misc.) Optocoupler with photo transistor output
Our service for you
Technical specifications
- Type
CNY 66
- Product type
Opto-isolator - LED controller
- Enclosure
DIP 4
- Manufacturer
Vishay
- Manuf. code
VIS
- UF typ.
1.25 V
- Forward current I(F)
75 mA
- Reverse voltage U(R)
5 V
- Channels
1
- Input type
DC
- Output type
Transistor
- Insulation voltage
13000 V DC
- Operating temperature (min.)
+85 °C
- Operating temperature (max.)
-55 °C
- Mounting type
Through-hole
- Forward voltage U(F) max
1.6 V
- Slew rate
2.7 µs
- Fall time
2.4 µs
- Power output/channel
50 mA
- Creepage distance
17 mm
- Power (max) P(TOT)
250 mW
- Voltage output (max.)
32 V
- Current transfer ratio (min.)
50 %
- Current transfer ratio (min.) - current reference
10 mA
- Current transfer ratio (max.)
300 %
- Collector-emitter saturation voltage (max.)
300 mV
- Collector current
50 mA
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
Optocoupler with photo transistor output
- Output current (details)
50 mA
- Casing
4-pin. Plastic housing
Documents & Downloads
Datasheet
Datasheet 187380 Vishay CNY 66 Optocoupler 4-pin. Plastic housing Type (misc.) Optocoupler with photo transistor output
