Buy WAGO 254-366 Spring-loaded terminal Number of pins 16 Grey 20 pc(s)

A grey electrical terminal block with multiple connection terminals and metallic pins on the underside, used for electrical connections.

'Current load capacity curve shows current in A against ambient temperature in °C. Includes curves for 2-, 4-, 6- and 12-pole configurations.'

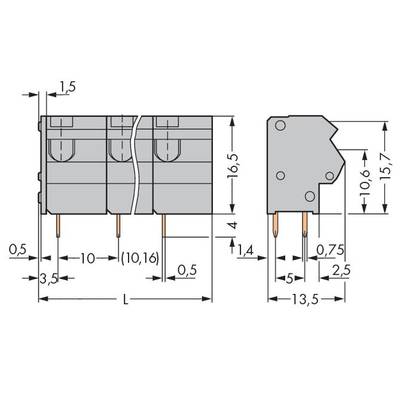

Technical drawing of an electronic component with dimensions in millimetres. Front and side view of the component.

1/3

Product type

Spring-loaded terminal

10 mm

10.16 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Sales and shipping:

Number (Package size 20 pc(s))

Set(s)

Total (€ 5.46 / piece)

€

Report legal concerns

Highlights & Details

2-conductor PCB terminal strip

Content 20 pc(s)

Technical specifications

16 POS PCB STRIP

Type: 254-366

Product type: Spring-loaded terminal

Features: + PUSH WIRE®

CS: 10 mm
10.16 mm

No. of rows: 1

Pins per row: 16

Number of pins: 16

Series: 254

Min. stripping length: 8 mm

Stripping length (max.): 6 mm

Connection: Spring-loaded terminal
Print

Nominal current: 10 A

Nominal current - rounded value: 10 A

Cross section (inflexible) (min.): 0.25 mm²

Cross section (inflexible) (max.): 0.75 mm²

AWG (min.): 22

Connector orientation: At an angle (to the PCB)

AWG max.: 18

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Grey

Wire protection: Yes

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 254-366

Industrial packaging: Yes

Content: 20 pc(s)

Nominal voltage: 630 V

Width: 161.50 mm

Height: 20.50 mm

Length: 13.50 mm

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Type

Pins per row

Connection

Number of pins
