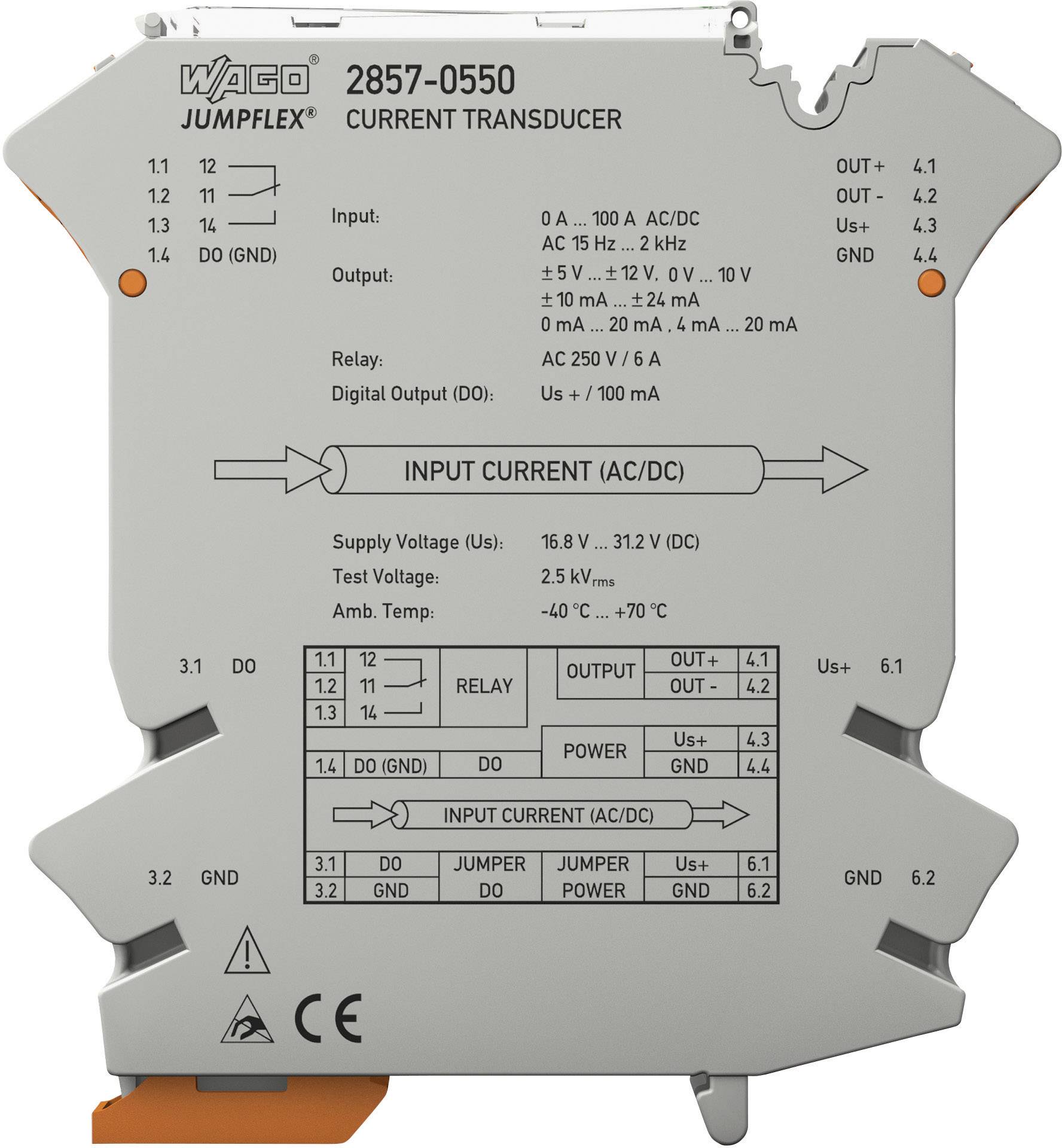

WAGO 2857-550 2857-550 Transducer 1 pc(s)
Product type
Transducer
Type
2857-550
Dim
(L x W) 105 mm x 107 mm
Content
1 pc(s)
Width
107 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 539.00 / piece)
€ 539.00
incl. VAT
14-day return policy included
Technical specifications
- Type
2857-550
- Product type
Transducer
- Dim
(L x W) 105 mm x 107 mm
- Content
1 pc(s)
- Width
107 mm
- Length
105 mm
- Current consumption
≤ 50 mA
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
- Type
1 changeover (1U)
- Frequency
15 Hz - 1000 Hz
- Connection
CAGE CLAMP ® S (picoMAX ® 5.0)
- Output signal
±10 mA; 0…10 mA; 2…10 mA;
±20 mA; 0…20 mA; 4…20 mA
± 5 V; 0…5 V;1 … 5 V;
± 10 V, 0…10 V, 2…10 V
- Input signal
AC/DC 100 A
- Setting
DIP Switches
Configuration Display
- Supply voltage
16,8 V…31,2 V (-30%...+30%)
DIN rail (top hat rail) 35 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1232607 WAGO 2857-550 2857-550 Transducer 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1232607 WAGO 2857-550 2857-550 Transducer 1 pc(s)
Information
Information 1232607 WAGO 2857-550 2857-550 Transducer 1 pc(s)
Description
The current measuring transducer is used to measure AC and DC currents in the measuring range up to AC/DC 100 A. The output side converts the measurement signal into an analogue standard signal.
Features:
A digital signal output as well as a relay with changeover contact respond when configured measuring range limits (on and off delay and limit switch function with up to two thresholds can be configured)
Switchable Clipping (limitation of the analog signal on the output values)
Adjustable software filter
Simulation of input and output behavior via configuration display
Secure 3-way isolation with 4 kV test voltage according to EN 61140.
This text is machine translated.
Features:
A digital signal output as well as a relay with changeover contact respond when configured measuring range limits (on and off delay and limit switch function with up to two thresholds can be configured)
Switchable Clipping (limitation of the analog signal on the output values)
Adjustable software filter
Simulation of input and output behavior via configuration display
Secure 3-way isolation with 4 kV test voltage according to EN 61140.
This text is machine translated.
