Name: Walther Werke smartEVO duo+ Wallbox Type 2 Mode 3 32 A No. of ports 2 22 kW RFID
Brand: Walther Werke
SKU: 2898824
Availability: BackOrder

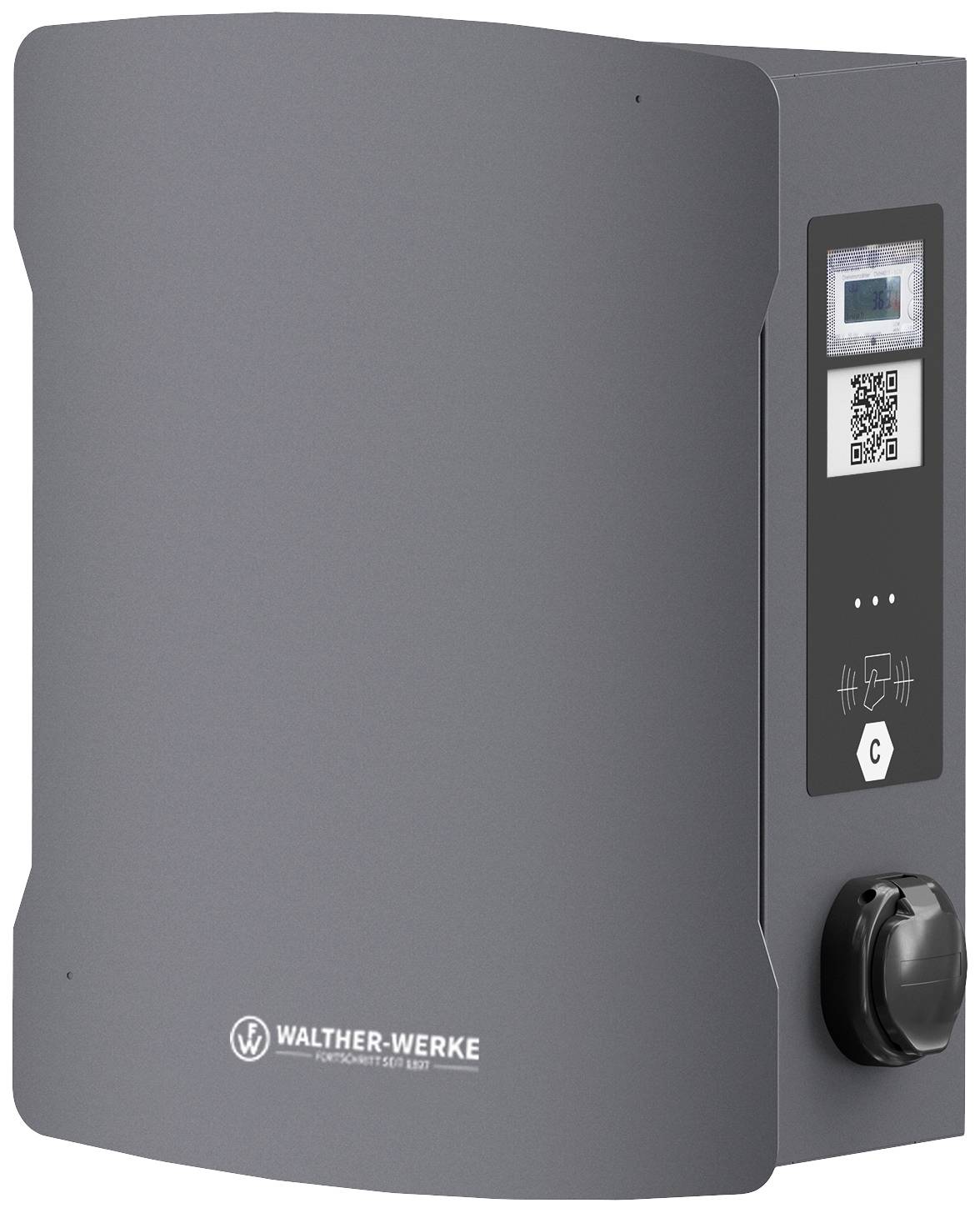

Walther-Werke charging station, grey, with display and QR code, suitable for electronic devices or vehicles.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,959.00 / piece)

€ 3,959.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Wallbox smartEVO+ with 2 charging sockets max. 22kW

Charging according to mode 3 according to IEC 61851
2x charging socket type 2 (mode 3)
Charging power per charging point up to 22 kW
Conforms to calibration law, PLC ISO 15118 and EEBUS

Technical specifications

Product type: Wallbox

Authorisation: RFID

Charger connectors: Type 2

Charging mode: Mode 3

Charging current: 32 A

No. of ports: 2

Charging capacity: 22 kW

No. of phases: 3-phase

Nominal voltage: 230 V
400 V

: IP54

Factory colour: Iron mica (semi-gloss)

Width: 390 mm

Height: 490 mm

Depth: 175 mm

Nominal current: 32 A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2898824 Walther Werke smartEVO duo+ Wallbox Type 2 Mode 3 32 A No. of ports 2 22 kW RFID

User & Safety Instructions

User & Safety Instructions 2898824 Walther Werke smartEVO duo+ Wallbox Type 2 Mode 3 32 A No. of ports 2 22 kW RFID

Description

Wallbox smartEVO+ with 2 charging sockets max. Charging power per charging point up to 22 kW

This text is machine translated.

Features

3 status LEDs on the side panel to display the current status of the charging point
Authentication via side-mounted RFID panel
Visible energy meter (MID certified) for each charging point
Display of consumption data in conformity with calibration law and display of the public key as QR code and plain text
Powerline communication (PLC) according to ISO 15118 enables plug & charge and bi-directional with the vehicle.
Connection to energy management systems via Modbus TCP or EEBUS
Connectivity to IPD control and IPD manager as well as to the SMA communication protocol (SEMP)
Integrated web server
Update firmware version as well as control/ maintenance via remote access.
Ethernet interface incl. AMJ-module for connecting to permanently installed data cables
Smart Grid capability with OCPP 1.6 (JSON)
Local Dynamic Load Management (DLM) incl. Imposition load detection (precise phase control) for efficient use of available charging capacity with up to 250 charging points
Each charging point:
Permanent PE monitoring
6mA DC- residual current monitoring and FI type A
Protective-adhesive monitoring (welding detection)
Integrated 2-stage temperature monitoring.
Robust, weatherproof case
Galvanized powder-coated steel casing in iron mica gray (DB703)
Lockable door in elegant design
max. Power supply connection on NYY-J 2x5x10mm²
Direct connection to ground fault circuit interrupter

Scope of delivery

2 RFID- cards Mifare-Desfire EV1
1 key
1x Wall bracket
1x AMJ- module
Mounting screws
Drill template
Quick Guide
