Buy Weller WSP 80 Soldering iron 24 V 80 W Chisel-shaped 50 - 450 °C + soldering tip

A soldering iron with a metal tip and insulated handle lies on a white background.

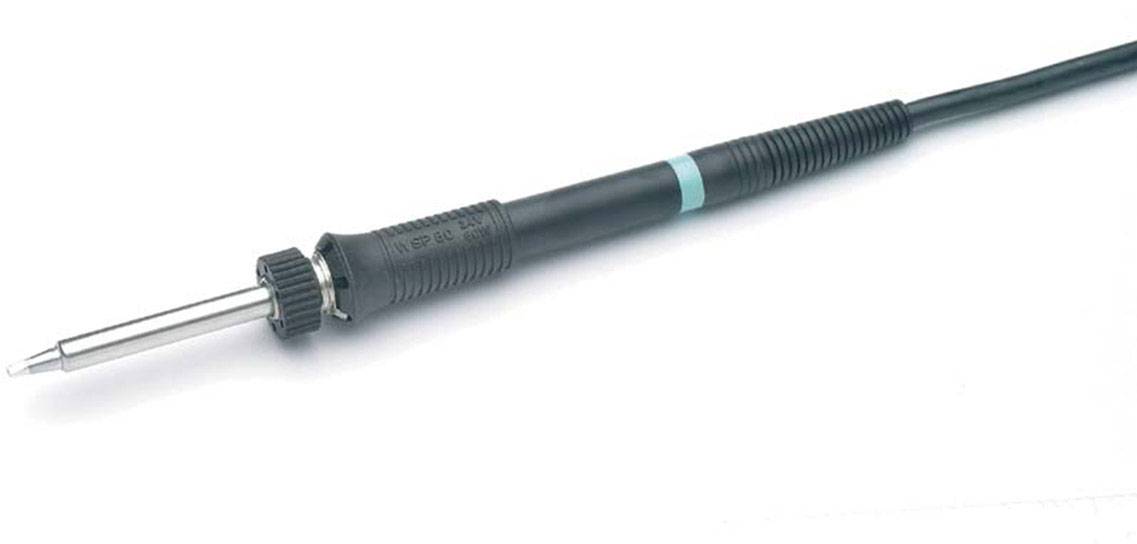

A soldering iron with a black handle and a silver metal head. It is used for melting solder on electronic components.

Soldering iron with a tip and black handle, lying at an angle on a white background.

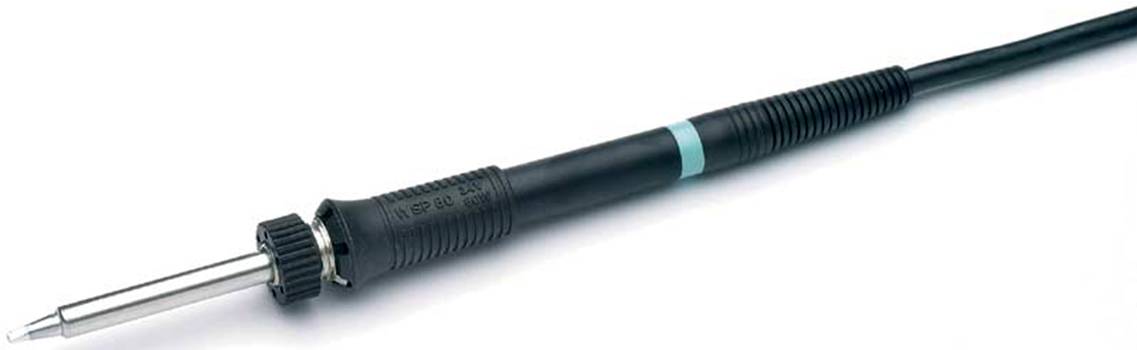

Soldering iron with a pointed metal tip and black handle, lying on a white surface. Suitable for electronic soldering work.

Soldering iron with a black handle and metallic tip, used for soldering electronic components.

A soldering iron with a black handle and pointed metal tip. It is frequently used for soldering electronic components.

Silver-coloured, conical metal point with a broad, flat end and narrow shaft. It reflects light on its surface.

'WT compatible' is written in white letters on a black background.

1/8

Fast track dispatch on Tue, 22 Sep

40 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 205.87 / piece)

€ 205.87

plus VAT.

14-day return policy included

Report legal concerns

Weller WSP 80 soldering iron 80 W, 24 V with Silver-Line heating element technology

Highlights & Details

Soldering iron 80 W, 24V with knurled nut for quick change of soldering tip
For medium-sized components with hohem of energy
For universal soldering work with WT soldering stations and WR rework stations
Extensive top offer of the LT soldering tip family
Silver-Line radiator technology in slim soldering iron
Lightning fast and precise reach of the soldering temperature

Technical specifications

Product type: Soldering iron

Max. power: 80 W

Min. temperature: 50 °C

Power supply (LOV): via base station

Max. temperature: 450 °C

Solder tip type: Chisel-shaped

Soldering iron features: + soldering tip

Dim: (L x W x H) 340 x 80 x 50 mm

Weight: 174 g

Preheating time: 10 s

Operating voltage: 24 V

Width: 80 mm

Height: 50 mm

Length: 340 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2177631 Weller WSP 80 Soldering iron 24 V 80 W Chisel-shaped 50 - 450 °C + soldering tip

Information

Information 2177631 Weller WSP 80 Soldering iron 24 V 80 W Chisel-shaped 50 - 450 °C + soldering tip

Description

The Weller WSP 80 micro soldering iron is characterized by the precise and lightning-fast achievement of the soldering temperature. An especially powerful 80 W heating element achieves an excellent, dynamic behavior. Together with the slim design and the simple tip change, this soldering iron is used universally from extremely fine soldering work up to those with increased heat requirement. With an integrated equipotential bonding cable, it is possible to establish a desired equipotential bonding to the soldering tip. The antistatic design of the handle and lead fulfills all ESD safety requirements.

This text is machine translated.
