Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
EAN:
Part number:
Item no:
Number
Total (€ 2,382.35 / piece)
€ 2,382.35
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
- Heating time 7 s from 50 °C - 350 °C.
Technical specifications

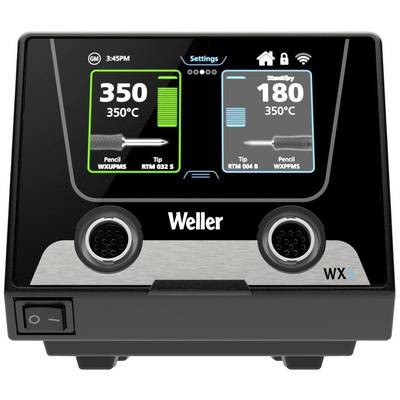

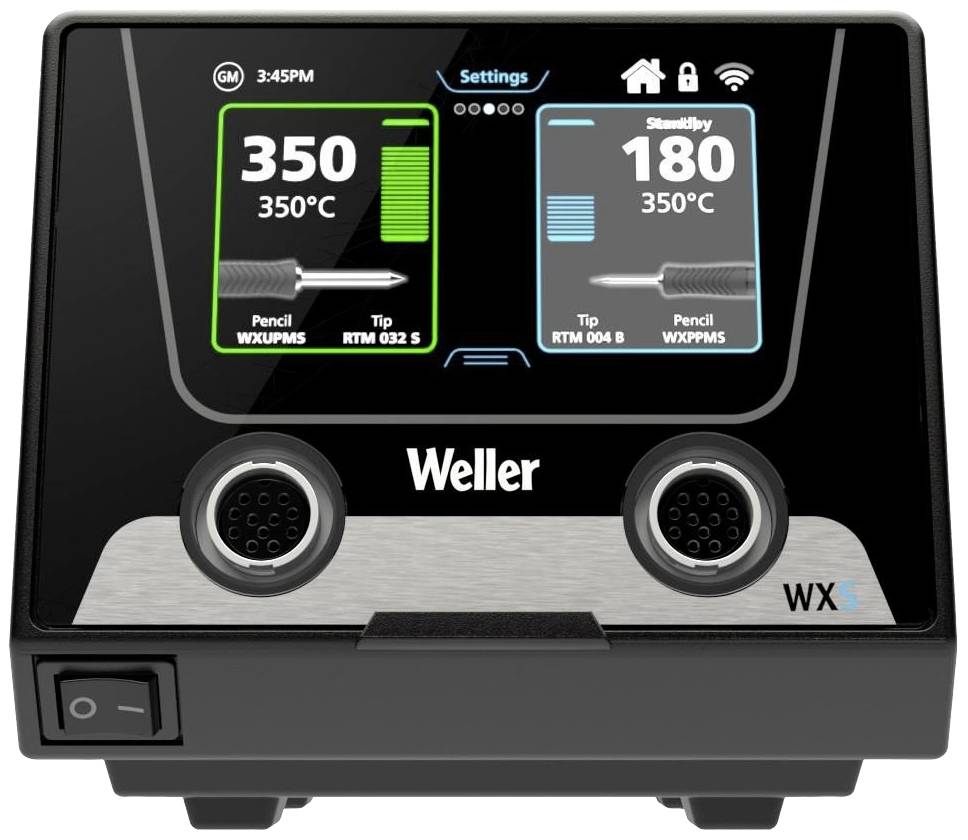

- WXsmart power supply unit
- Power supply 230 V/AC
- Protection class power supply: I
- Protection class of soldering iron II
- Temperature accuracy +/- 9 °C.
- Temperature stability +/- 2 °C.

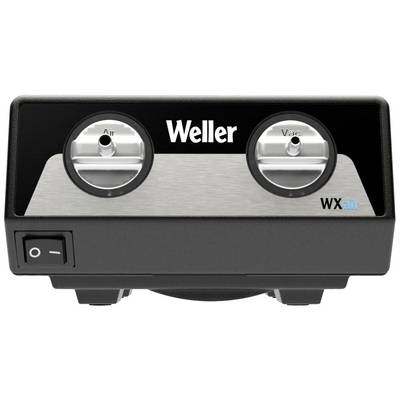

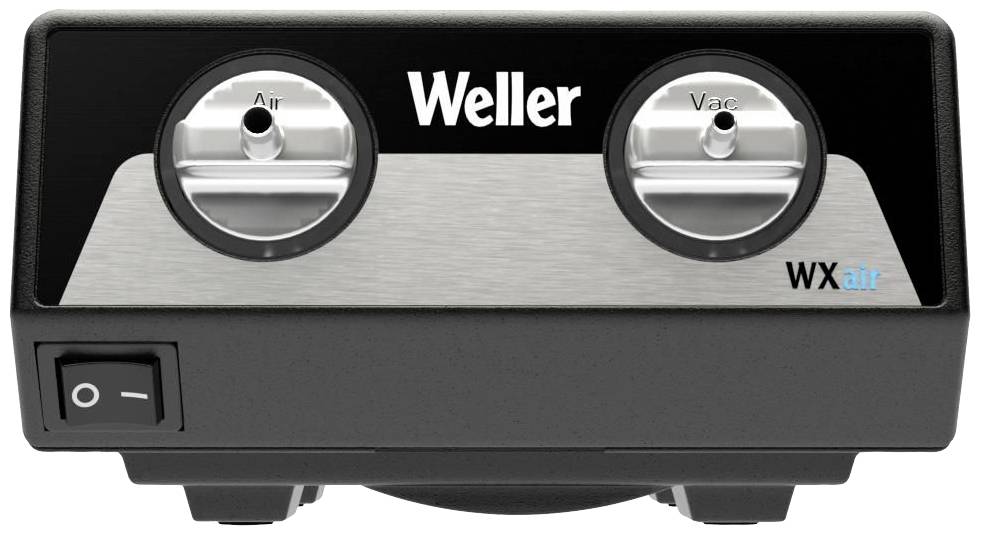

- WXair hot air module
- Power: 70 W
- Power supply voltage 100 240 V/AC
- Fuse T4A
- Protection class power supply: I
- max. Vacuum: 70 kPa
- Max. 18 L/min quantity
- Ambient temperature: 10 - 40 °C

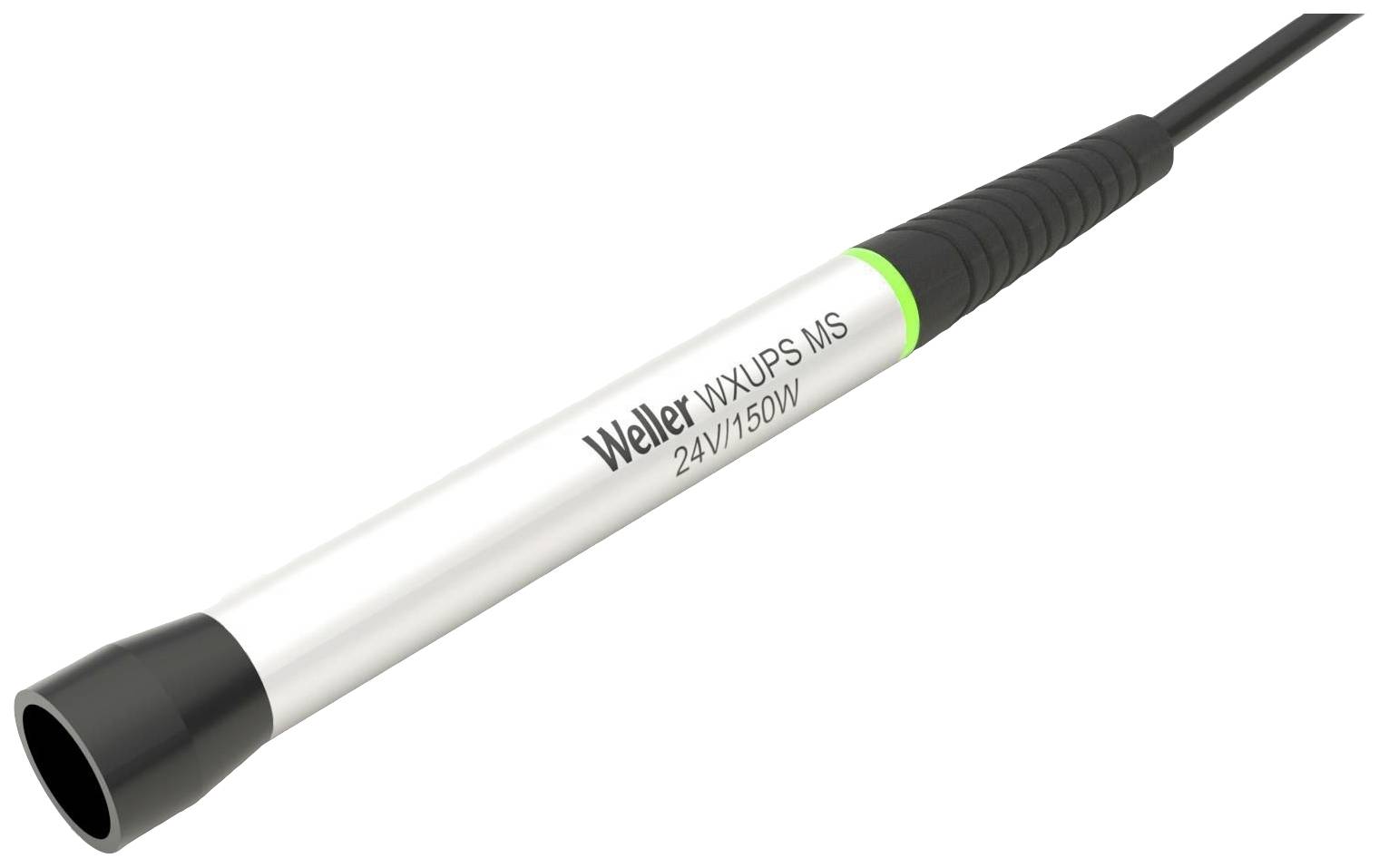

- WXUPS MS handset
- Output 150 W
- Power supply voltage 24 V/AC
- Heating-up time: 7 sec.

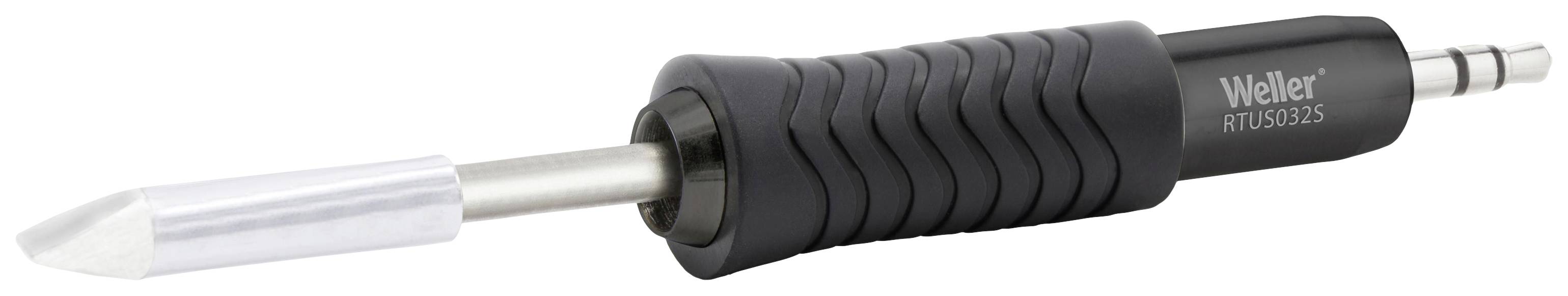

- RTUS 032 MS soldering tip
- Tip size 3.2 x 0.8 mm
- Tip form: Chisel
- Product type
Soldering/desoldering station
- Max. power
300 W
- Max. temperature
450 °C
- Preheat time
7 s
- Preheat time
50 °C - 350 °C
- Operating voltage
230 V
- Min. temperature
100 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987787 Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
User & Safety Instructions 2987787 Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
User & Safety Instructions 2987787 Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
User & Safety Instructions 2987787 Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
Information
Information 2987787 Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
Information 2987787 Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
Information 2987787 Weller WXsmart/Wxair Entlöt/Lötset Soldering/desoldering station 300 W 100 - 450 °C
Description

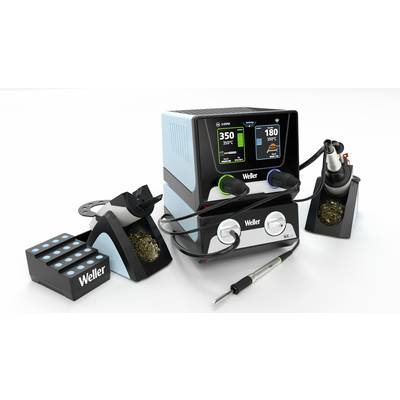

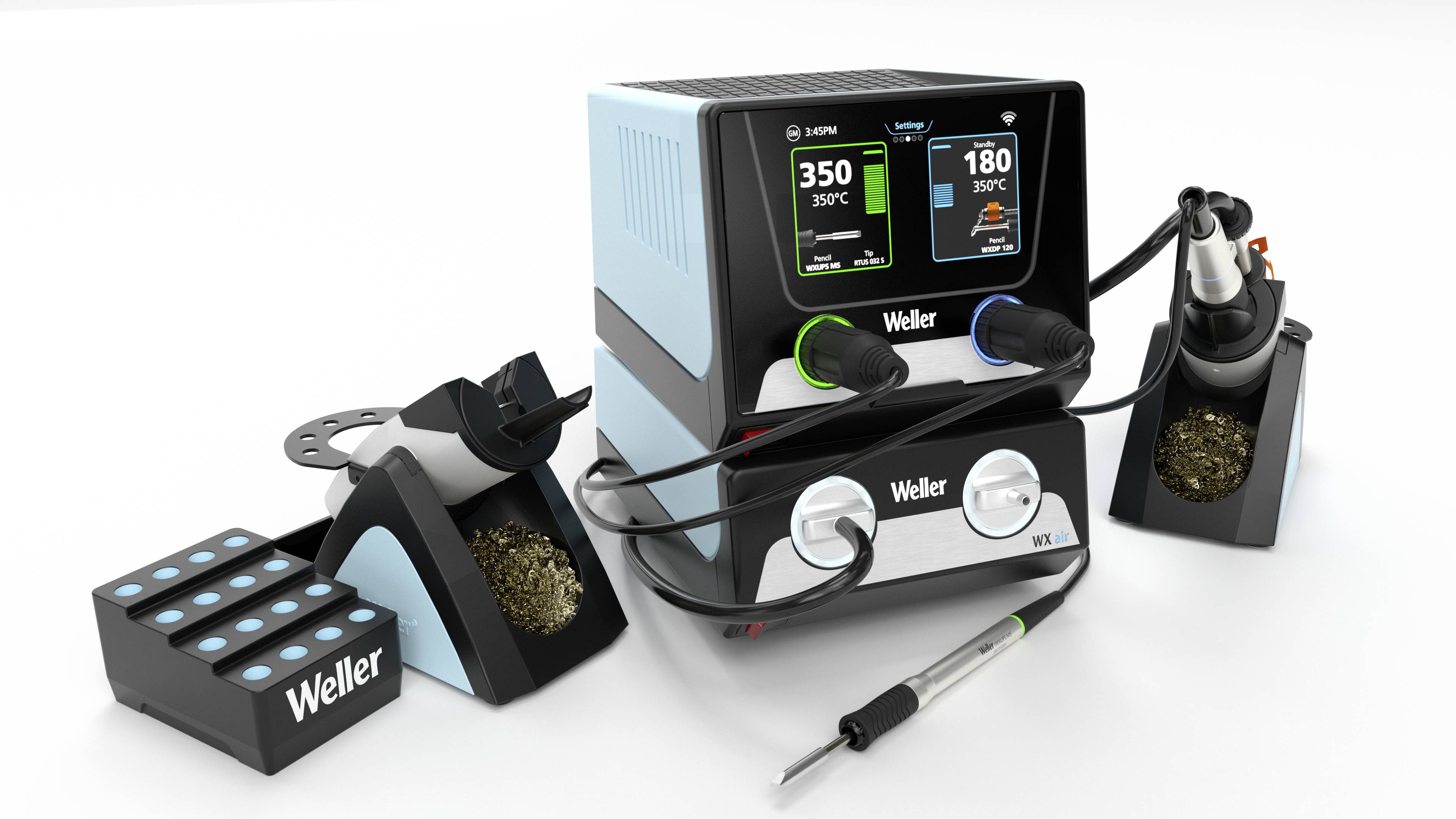

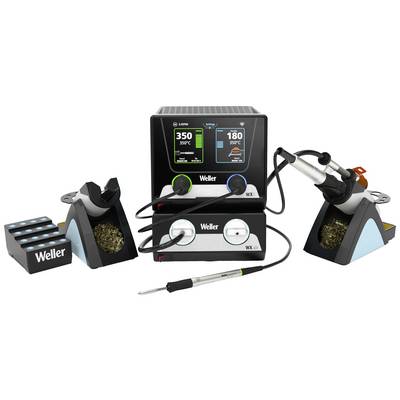

Rework set for every purpose. A new soldering kit. Rework system with WXsmart Station and WXair Module for the most demanding tasks in the electronics, medical, aerospace and automotive industry. It offers the shortest heating and recovery times and a complete process control from the top to the station with the new intelligent tools. First-class connectivity, a user-friendly color touchscreen and cyber security complete the package. In combination with the WXair module, the WXsmart Station becomes a complete rework station.
This text is machine translated.
This text is machine translated.
Features
- Drive for efficiency, quick heating-up times
- The active top technology from Weller (cartridge) offers optimized heat transfer with a maximum power of 150 W at 24 V. The extremely fast heating-up time of 7 seconds provides excellent heat transfer and recovery time during soldering for a powerful, continuous working process.
- Perfect for demanding soldering applications
- The WXUPS uses Thermal Core Technology for an optimized heat transfer through the solder joint and offers maximum power with 150 W. It is suitable for high-performance applications with large component sizes starting from 1612 and more.
- Complete process control
- Smart soldering tips with an individual serial number, smart tools for storing data parameters and a smart soldering station ensure a complete process control and complete traceability of the calibration history.
- Investment savings
- WXair makes a complete all-in-one rework station from a WXsmart soldering station. The WXair rework module with 1 air and 1 vacuum channel converts your WXsmart 2 channel soldering station into a full all-in-one rework station. A total of 16 tools can be connected. All soldering, desoldering and hot-air applications, from the smallest to the largest components, are covered with just one WXsmart platform.
- Protects against cyber attacks
- TLS encryption and two-factor authentication (2FA), including Weller's built-in certificate upload mechanism, which provides the soldering station with a customer verification certificate, and protected software updates.
- Better quality of results
- Managing your entire soldering process from the soldering tip to the station has never been so easy and productive as with the first WXsmart all-in-one hand soldering platform. With Total Process Control, WXsmart provides maximum connectivity and traceability at the highest quality. The platform supports all IoT standards. It is the first hand-held soldering station with cyber security, which prevents the costly downtime.
- ESD protection.
- WXsmart Station and all connected tools are completely ESD-safe.
Scope of delivery
- WXsmart 2-channel power supply unit 300 W (T005341699)
- WXair Rework Module (T005342699)
- WSR 207 (T0051518199)
- DESOLDERING IRON 120 W, 24 V (T0051320199N)

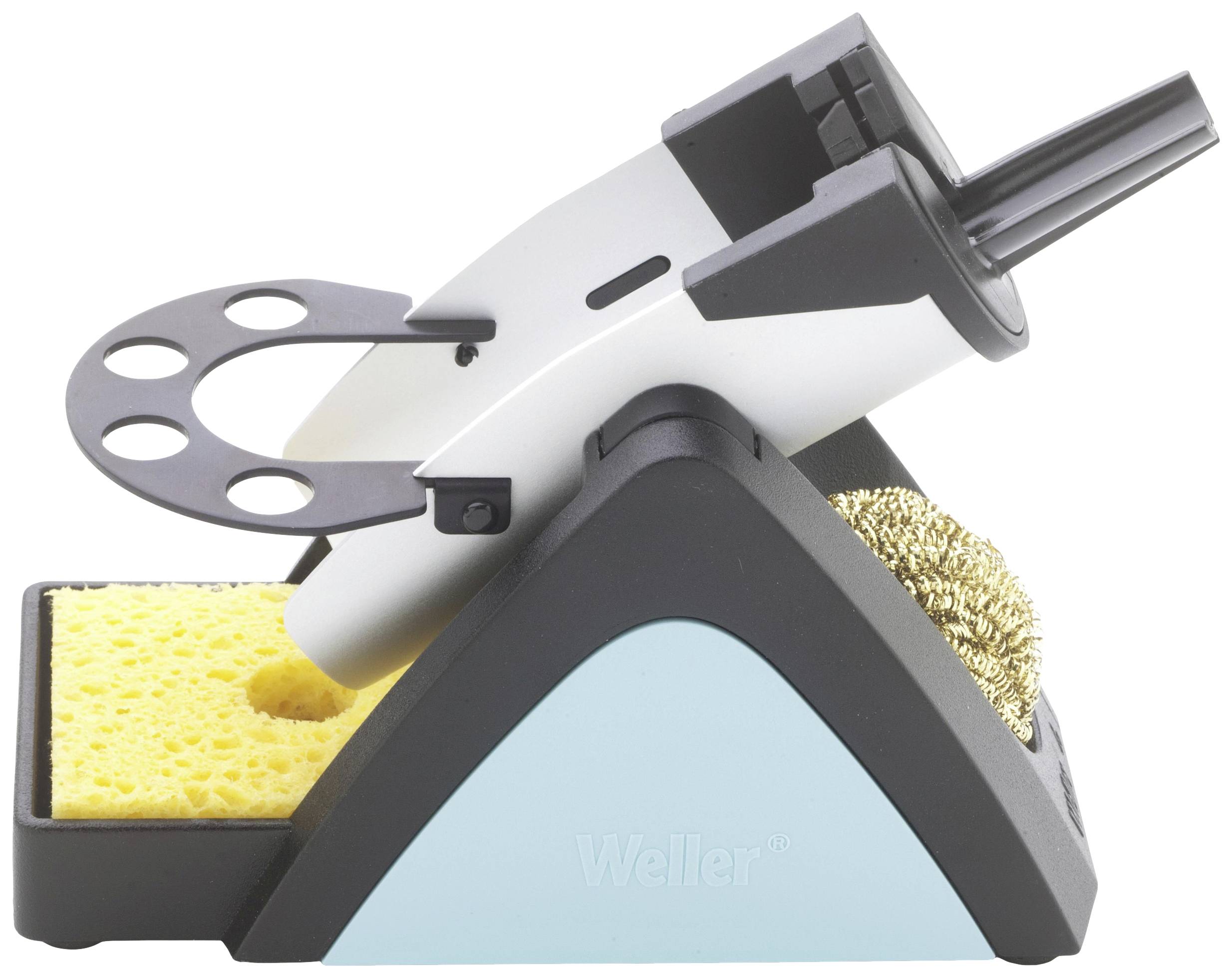

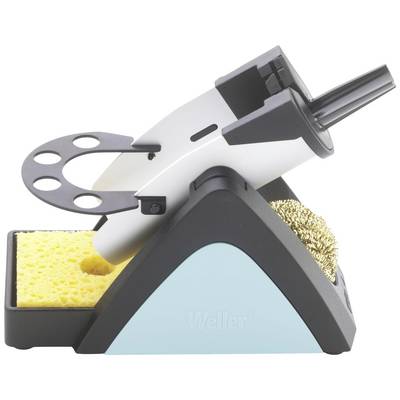

- 2in1 safety storage WSR 200 (T0051517499N)
- SOLDERING IRON WXUPS MS 150 W, 24 V (T0052923599)
- RTUS Ultra Solder Tip, Tapered Ø 0.4 mm (T0050113299)

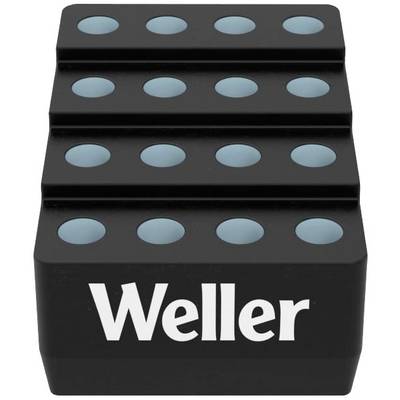

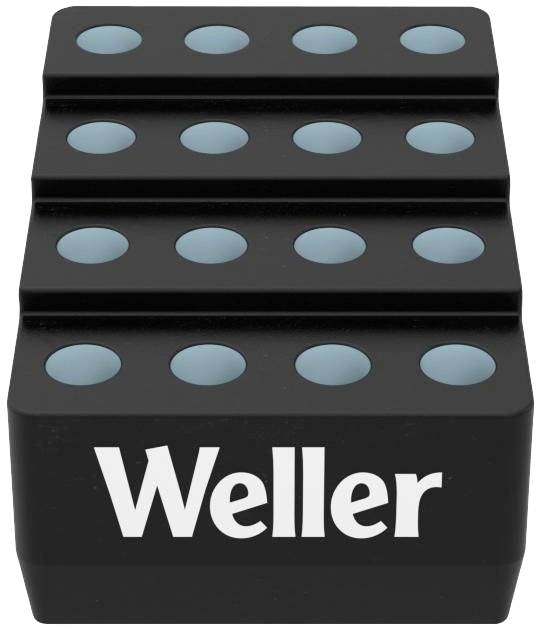

- Solder tip holder (T0053450299)
