Buy Weller WT 1H Soldering station supply unit Digital 150 W 50 - 550 °C

Electronic soldering station with display showing temperature '350°C', square design, blue sides. Rocker switch, buttons and connection visible.

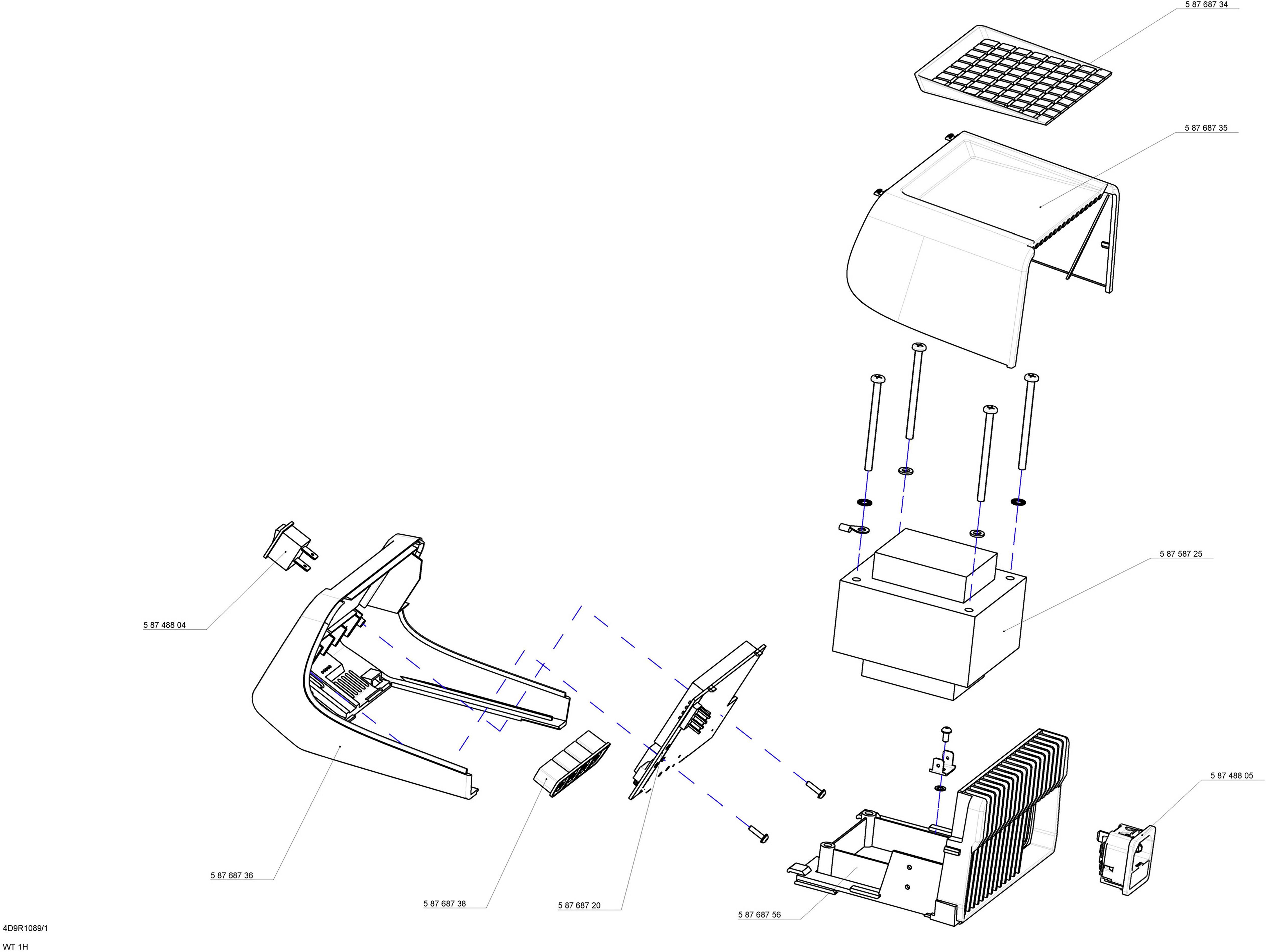

Exploded diagram of a technical device, with visible components such as casing, bolts and electronics. Parts are labelled.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 410.92 / piece)

€ 410.92

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

WX1 single-iron power supply unit

Housing cover can be used as additional storage
modern operating concept

Technical specifications

Temperature stability: ± 2 °C

Product type: Soldering station supply unit

Max. power: 150 W

Power supply (LOV): mains-powered

Max. temperature: 550 °C

Display: Digital

Dim: (L x W x H) 149 x 138 x 101 mm

Operating voltage: 230 V

Weight: 3 kg

Width: 138 mm

Height: 101 mm

Length: 149 mm

Min. temperature: 50 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1492210 Weller WT 1H Soldering station supply unit Digital 150 W 50 - 550 °C

User & Safety Instructions

User & Safety Instructions 1492210 Weller WT 1H Soldering station supply unit Digital 150 W 50 - 550 °C

Information

Information 1492210 Weller WT 1H Soldering station supply unit Digital 150 W 50 - 550 °C

Description

Intuitive operation with clear menu navigation · low space requirement thanks to stacks of use · LC-display with background lighting · high functionality and flexibility - Large number of tools can be connected · Automatic switch-off in the built-in utilization sensor in the tool.
