Wiska 10110741 Junction box (L x W x H) 200 x 160 x 94 mm Black IP66/IP67 1 pc(s)

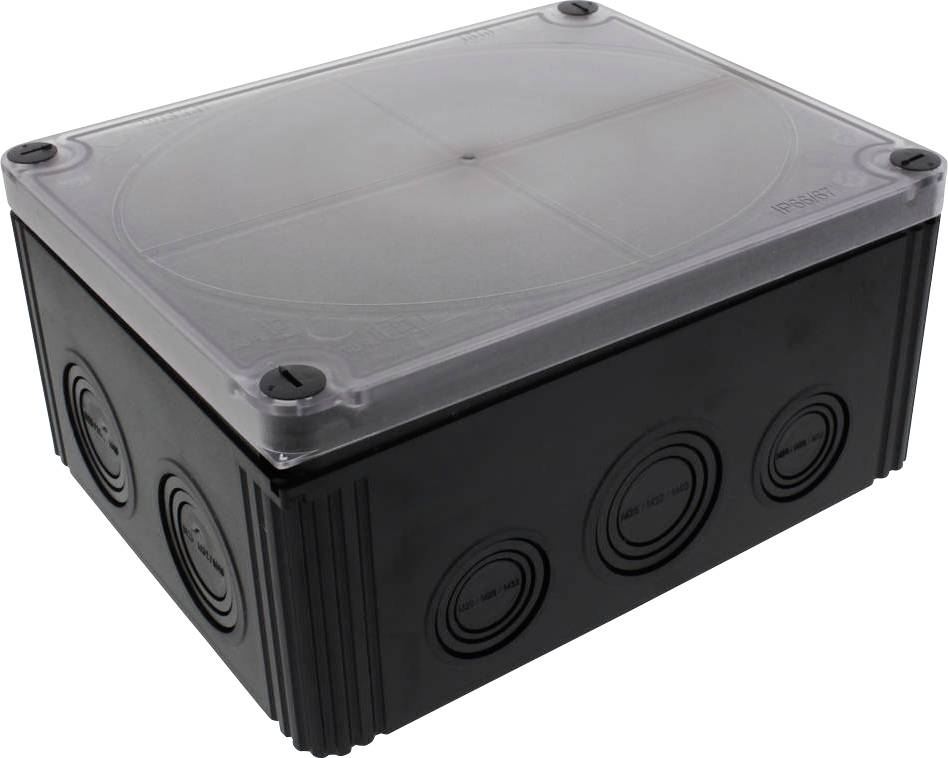

Plastic junction box with transparent lid and round openings on the sides, suitable for electrical installations.
Technical drawing of a component for M25/M32/M40/CD with two central holes. Dimensions: 30 mm between holes, 33 mm width.
Technical drawing of a rectangular box with three display holes, marked with dimensions 28.00 mm x 32.50 mm.
Technical drawing of a rectangular component with two holes in the centre. Labelled with dimensions L, B, C and diameter specifications M20/M25/CD.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 28.99 / piece)
€ 34.59
-16 %
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Max. Conductor cross-section 16 mm²
  • Mounting type: universal
  • Introduction from behind: Yes
  • Number of introductions: 12
  • Type of housing bushing: Prestamped
  • Cover design: Blind cover, transparent, screwed
  • Pouring: Yes
  • Rated insulation voltage UI: 690 V.
  • Weather-resistant: Yes
Product type

Junction box

Factory colour

Black

IP66/IP67

Permanent temperature resistance

-30 °C - +100 °C. °C

Dim

(L x W x H) 200 x 160 x 94 mm

Type

rectangular

Features

Halogen-free

Sealable

Content

1 pc(s)

Material

Plastic

Width

160 mm

Height

94 mm

Length

200 mm

Documents & Downloads

Datasheet

Datasheet 2480158 Wiska 10110741 Junction box (L x W x H) 200 x 160 x 94 mm Black IP66/IP67 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2480158 Wiska 10110741 Junction box (L x W x H) 200 x 160 x 94 mm Black IP66/IP67 1 pc(s)

Description

KOMBI cable junction box made of flame retardant, halogen-free thermoplastic. The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof. Ideally suited for extreme stress or installation in indoor and outdoor areas.
The box has 10 lateral and 2 knockouts with different diameters located in the floor, as well as a clear cover for easy detection of switching or signaling states.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Captive quick-release cap screws, close the box with only a quarter turn.

This text is machine translated.
