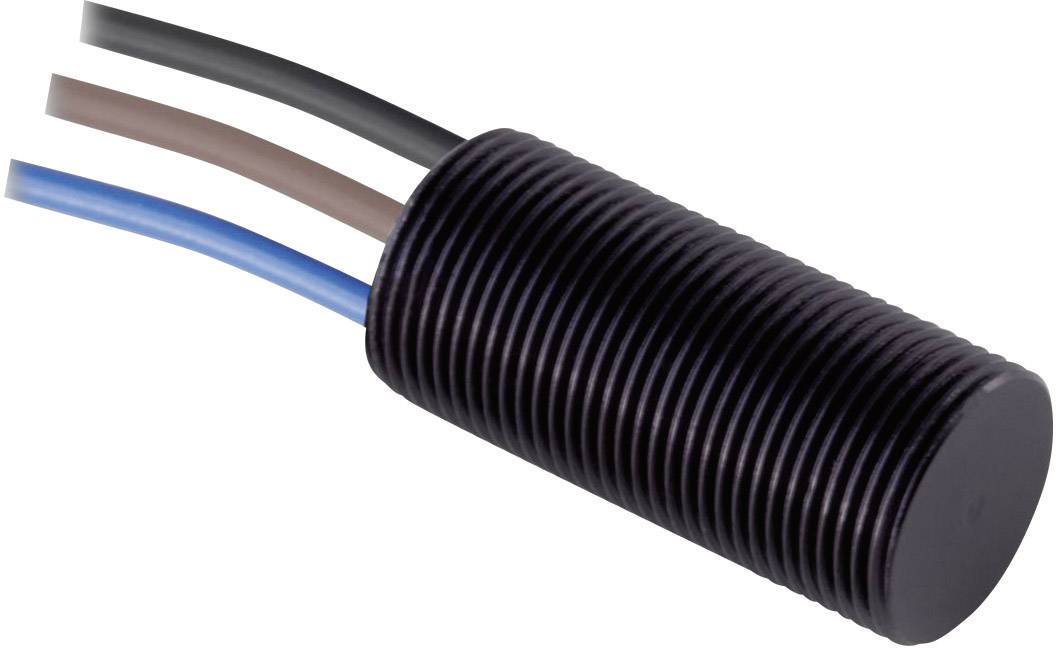

ZF MP200703 Reed switch 1 change-over 30 V DC, 30 V AC 200 mA 3 W
Product type
Reed switch
Contact type
1 change-over
Switching voltage (max.)
30 V DC
30 V AC
Switching current (max.)
200 mA
Length
25.4 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Highlights & Details
Cherry Switches MP200703 Magnetic Proximity Sensor (Reed)
Our service for you
Technical specifications
- Product type
Reed switch
- Type
MP200703
- Contact type
1 change-over
- Switching voltage (max.)
30 V DC
30 V AC
- Switching current (max.)
200 mA
- Max. switching capacity
3 W
- Thread size
15/32"
- Cable length
30.48 cm
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Length
25.4 mm
- (Ø)
11.906 mm
- Dim
(Ø x L) 11.906 mm x 25.4 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 276122 ZF MP200703 Reed switch 1 change-over 30 V DC, 30 V AC 200 mA 3 W
User & Safety Instructions
User & Safety Instructions 276122 ZF MP200703 Reed switch 1 change-over 30 V DC, 30 V AC 200 mA 3 W
Description
Omni-polar reed sensor switch in aluminum-thread casing. No power consumption in stand-by. Can be used in direct and alternating current circuits. Hermetically sealed for long life.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2 nuts
- This text is machine translated.
