Name: Akyga AK-ND-72 Laptop PSU 80 W 19 V 4.22 A
Brand: Akyga
SKU: 3841229
Availability: InStock

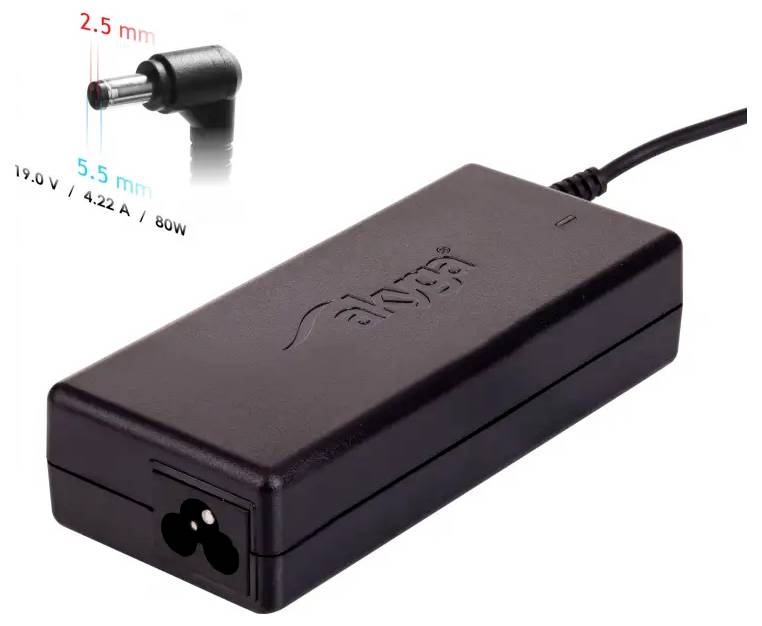

Laptop power adapter with barrel connector; inset shows 2.5 mm tip and 19.0 V, 4.22 A, 80 W specifications.

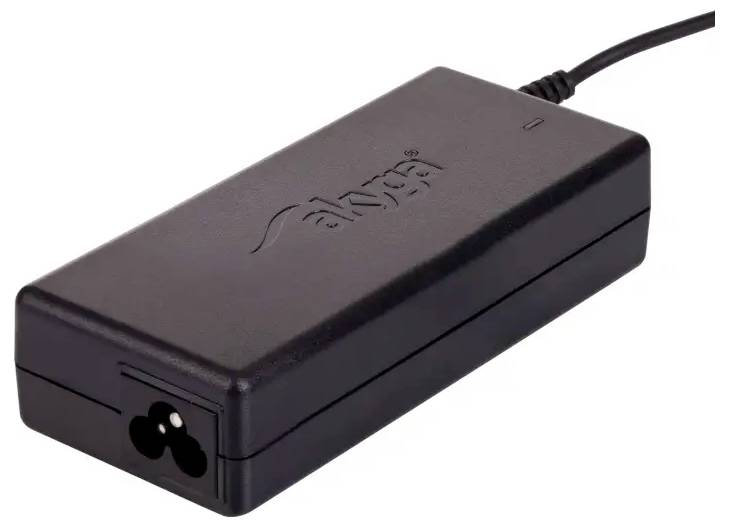

Black rectangular AC power adapter with attached cord and two-prong socket output port on one end.

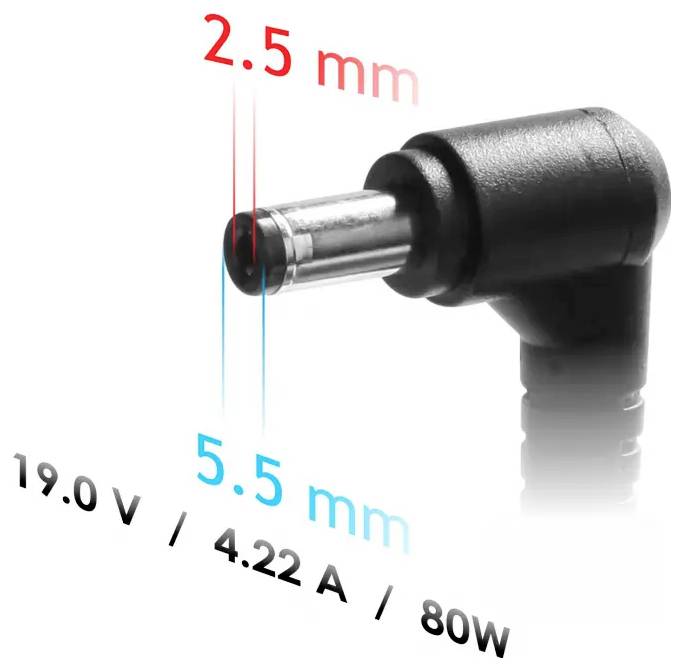

Right-angle DC power plug labeled 2.5 mm and 5.5 mm, with specs 19.0 V, 4.22 A, 80W.<br>

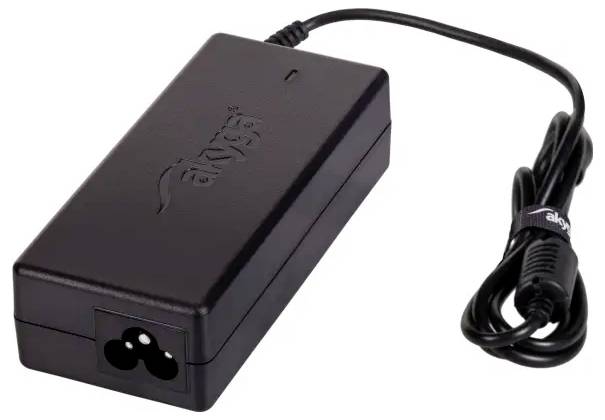

Black AC power adapter brick with attached cord and plug, shown on a white background.

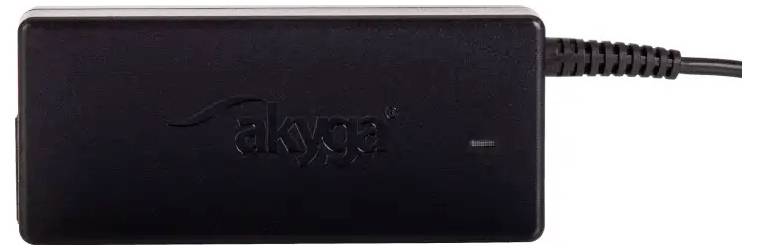

Black rectangular power adapter with attached cable, shown on a white background.

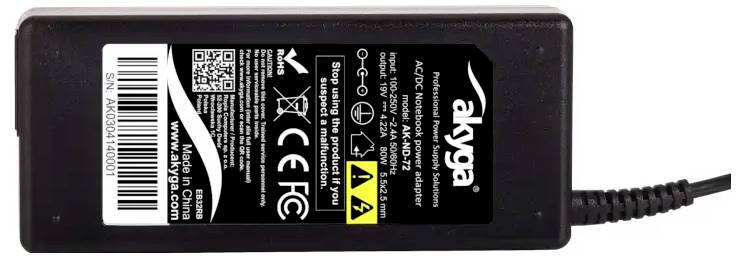

Black Akyga AC/DC power adapter with cord; label shows safety symbols, barcode, QR code, and model information.

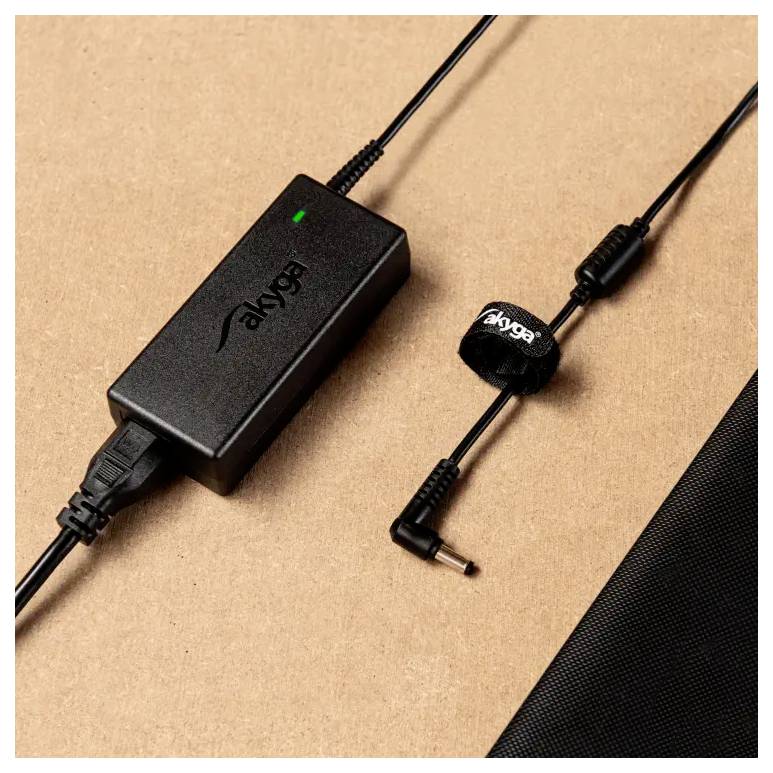

Black Alkyg? power adapter with green indicator light and attached cables on a tan surface, next to a small inline cable accessory.<br>

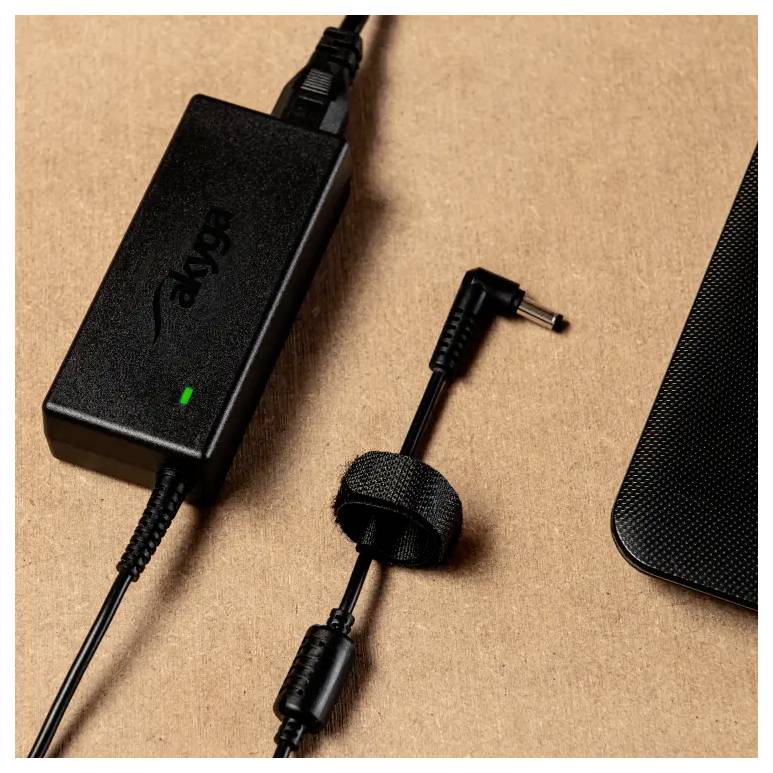

Black laptop power adapter with cable and a right-angle DC connector on a tan surface, next to a laptop edge.<br>

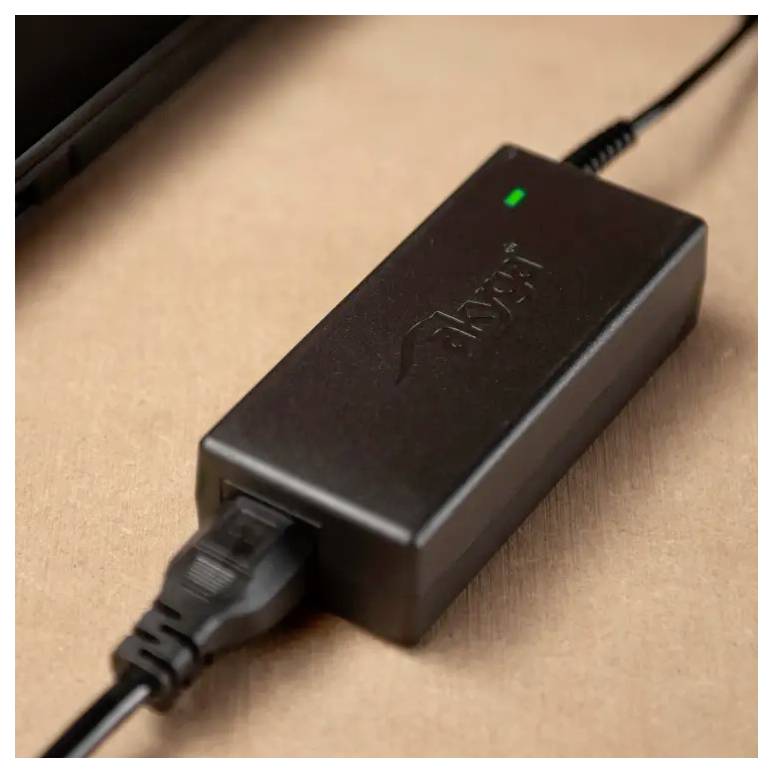

Black Anker power adapter with green indicator light plugged into a cable on a tan surface.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 18.99 / piece)

€ 18.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Power supply AK-ND-72 19V / 4.22A 80W 5.5 x 2.5 mm

/ 4.22 A
80 W Power
Suited for notebooks from Zebra

Technical specifications

Power input < 2.4 A.
Grounding: Yes
OVP fuse: Yes
OCP Backup: Yes
OPP fuse: Yes
OTP fuse: Yes
SCP fuse: Yes
Manufacturing material: ABS
MTBF: 100000 h
Max. voltage 19 V
Capacity: > 80%
Bolts of a socket: IEC C6
Mild start: Yes
Supply cable in set: No.
Length of output cable 1.2 m.
Lighting color: Green diode

Product type: Laptop PSU

Type: AK-ND-72

for brands: Zebra

Connections: 5.5 x 2.5 mm

: 80 W

Input voltage: 250 V AC

Output voltage: 19 V

Output current (max.) - rounded: 4.22 A

Max. output current: 4.22 A

Weight: 254 g

Factory colour: Black

Cable length: 1.2 m

Max. temperature: 50 °C

Min. temperature: 5 °C

Documents & Downloads

Datasheet

Datasheet 3841229 Akyga AK-ND-72 Laptop PSU 80 W 19 V 4.22 A

User & Safety Instructions

User & Safety Instructions 3841229 Akyga AK-ND-72 Laptop PSU 80 W 19 V 4.22 A

Description

The Akyga® AK-ND-72 is a reliable power supply for laptops and printers. The product provides a current of 19 V / 4.22 A, WAS, in combination with the rightly popular 5.5 x 2.5 mm plugs, offers a very large range of power supply options. It can charge laptops of many popular brands such as Fujitsu-Siemens or Toshiba as well as Zebra printers. In addition, the adapter is equipped with a number of security features (OVP, OCP, OPP, OTP, SCP). that ensure secure and stable operation of the supplied devices as well as the power supply itself. Additional security for the devices is offered by the so-called soft-start technology, which minimizes the shock caused by a surge while connecting the device. The long 1.2 m cable ensures comfort when using.

All Akyga® power supplies are packaged in an EcoBox.

This text is machine translated.
