Name: Akyga AK-ND-74 Laptop PSU 65 W 20 V 3.25 A
Brand: Akyga
SKU: 3841230
Availability: InStock

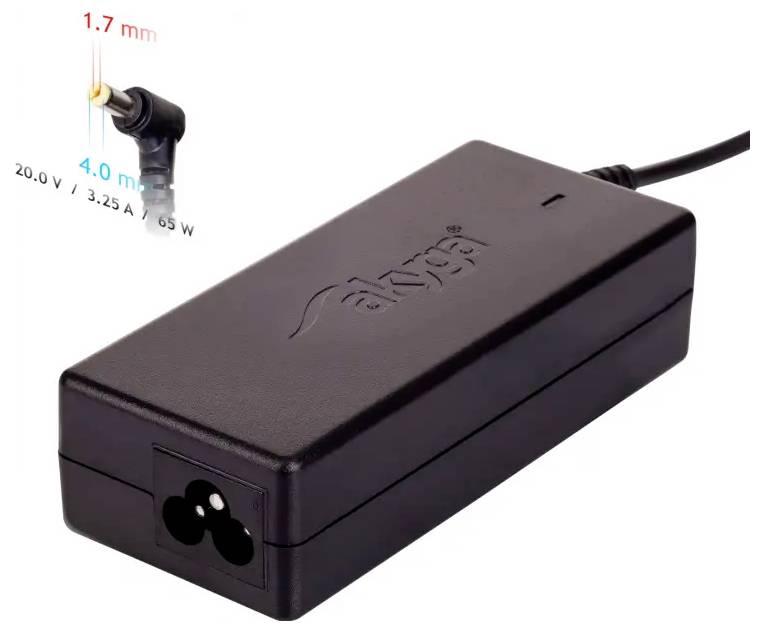

Black laptop power adapter with right-angle barrel plug, labeled 20.0 V 3.25 A 65 W, and tip size inset showing 4.0 mm x 1.7 mm.

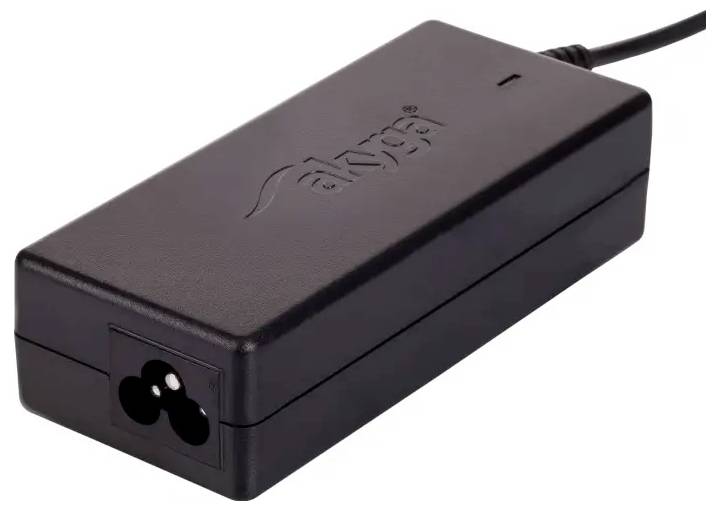

Black laptop power adapter brick with attached cord and three-hole connector port<br>

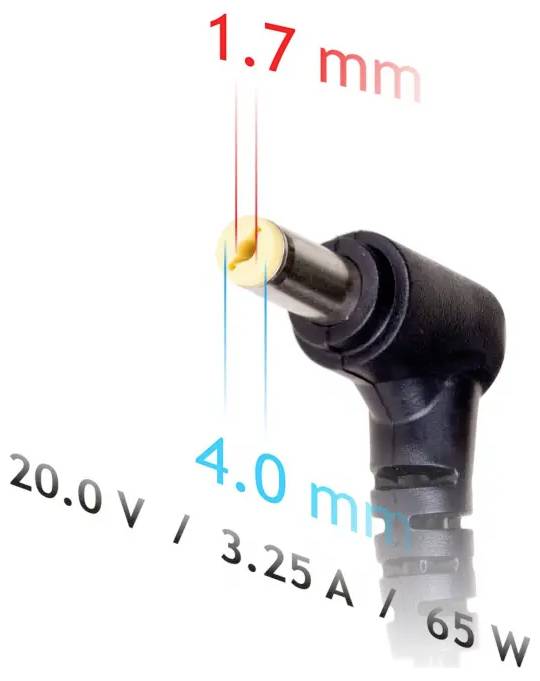

Right-angle DC power plug with dimensions labeled 1.7 mm and 4.0 mm, and specs 20.0 V, 3.25 A, 65 W.

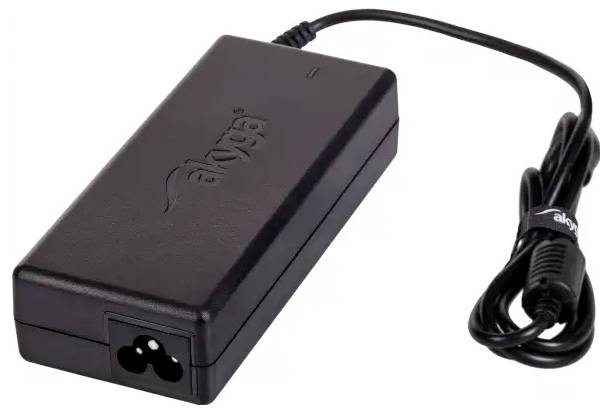

Black laptop power adapter with attached cord and plug on a white background.

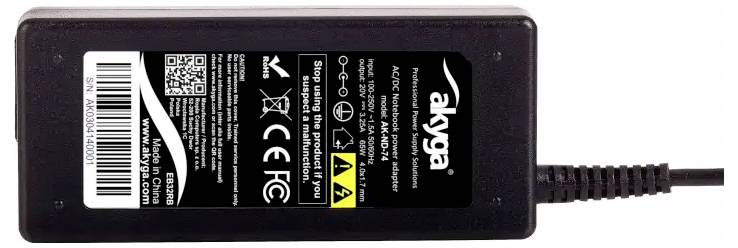

Black Akya AC/DC power adapter with attached cord and label showing barcode, QR code, safety symbols, and specifications.

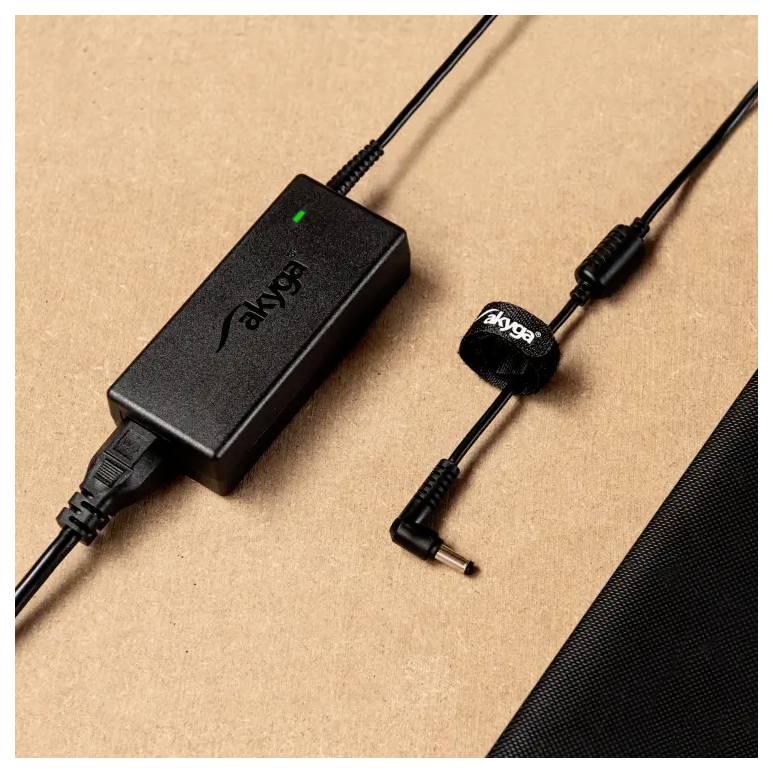

Black Akyga power adapter with green indicator LED and attached cables beside a small inline connector on a cardboard surface.

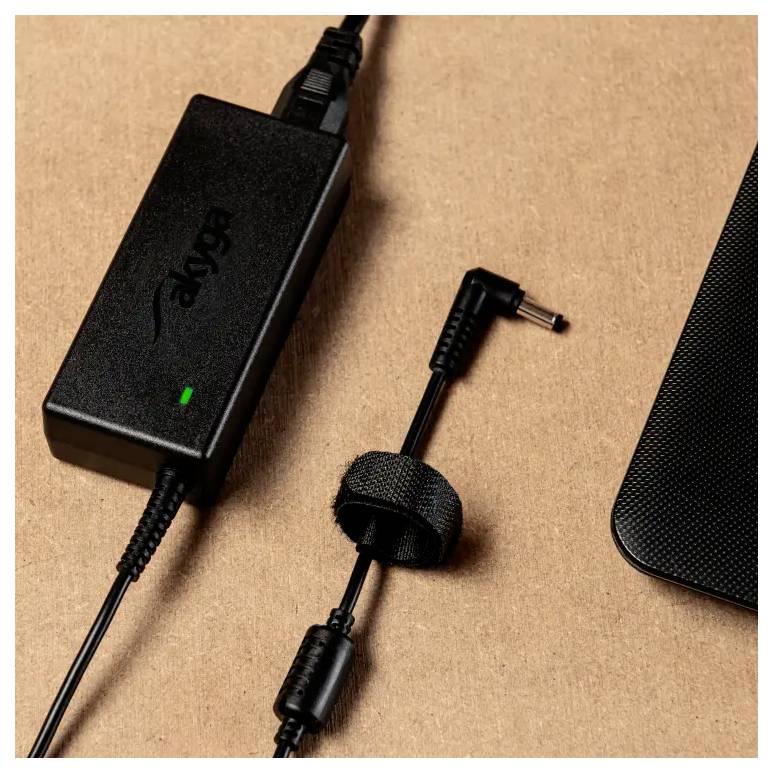

Black laptop power adapter with green indicator light and charging cable next to a right-angle connector and laptop edge on a desk.

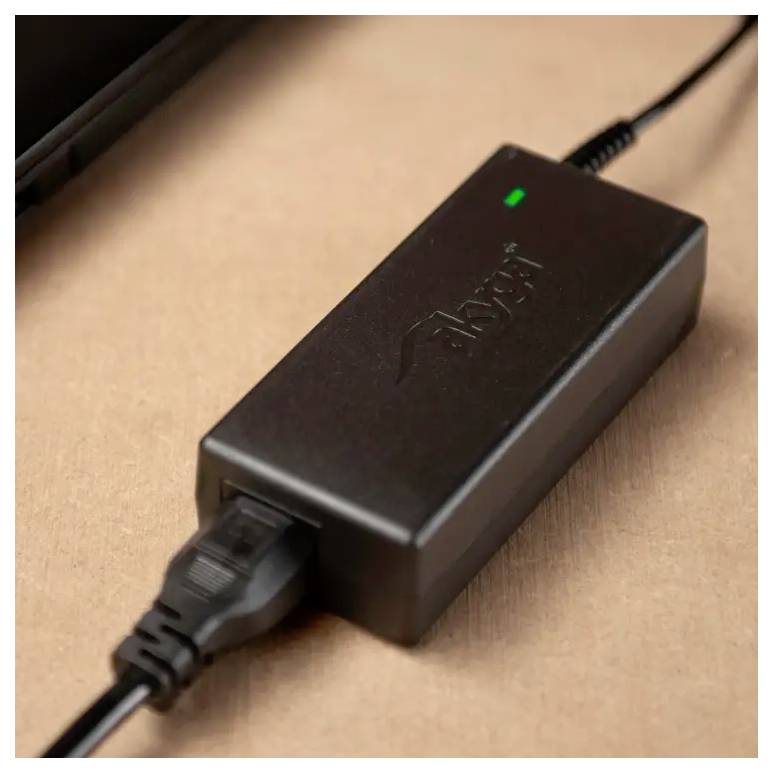

Black inline power adapter with green indicator light connected to a cable on a beige surface.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Power supply AK-ND-74 20V / 3.25A 65W 4.0 x 1.7 mm

/ 3.25 A
65 W Power
Suited for notebooks from Lenovo, IBM

Technical specifications

Power input < 1.5 A.
Grounding: Yes
OVP fuse: Yes
OCP Backup: Yes
OPP fuse: Yes
OTP fuse: Yes
SCP fuse: Yes
Manufacturing material: ABS
MTBF: 100000 h
Max. voltage 20 V
Capacity: > 80%
Bolts of a socket: IEC C6
Mild start: Yes
Supply cable in set: No.
Length of output cable 1.2 m.
Lighting color: Green diode

Product type: Laptop PSU

Type: AK-ND-74

for brands: Lenovo
IBM

Connections: 4.0 x 1.7 mm

: 65 W

Input voltage: 250 V AC

Output voltage: 20 V

Output current (max.) - rounded: 3.25 A

Max. output current: 3.25 A

Weight: 182 g

Factory colour: Black

Cable length: 1.2 m

Max. temperature: 50 °C

Min. temperature: 5 °C

Documents & Downloads

Datasheet

Datasheet 3841230 Akyga AK-ND-74 Laptop PSU 65 W 20 V 3.25 A

User & Safety Instructions

User & Safety Instructions 3841230 Akyga AK-ND-74 Laptop PSU 65 W 20 V 3.25 A

Description

The Akyga® AK-ND-74 AC adapter is a reliable power source for Lenovo IdeaPad notebooks. It is characterized by slim design and low weight. You can easily pack it in your travel bag without significantly increasing the weight. Moreover, the power supply is fitted with a practical 4.0 x 1.7 mm angled plug. Allows you to pass the 1.2 m long cable into a hole on the desk. Thus the order on your desk is clearly simplified. The power supply is designed to supply a voltage and a current of 20 V and 3.25 A to the charged device. It supplies an output of 65 W.

Like any Akyga® laptop power adapter, this also has a number of necessary protective devices. This includes protective devices such as: OVP, OCP, OPP, OTP, SCP, to protect not only the power supply but also the charged device from damage.

This text is machine translated.
